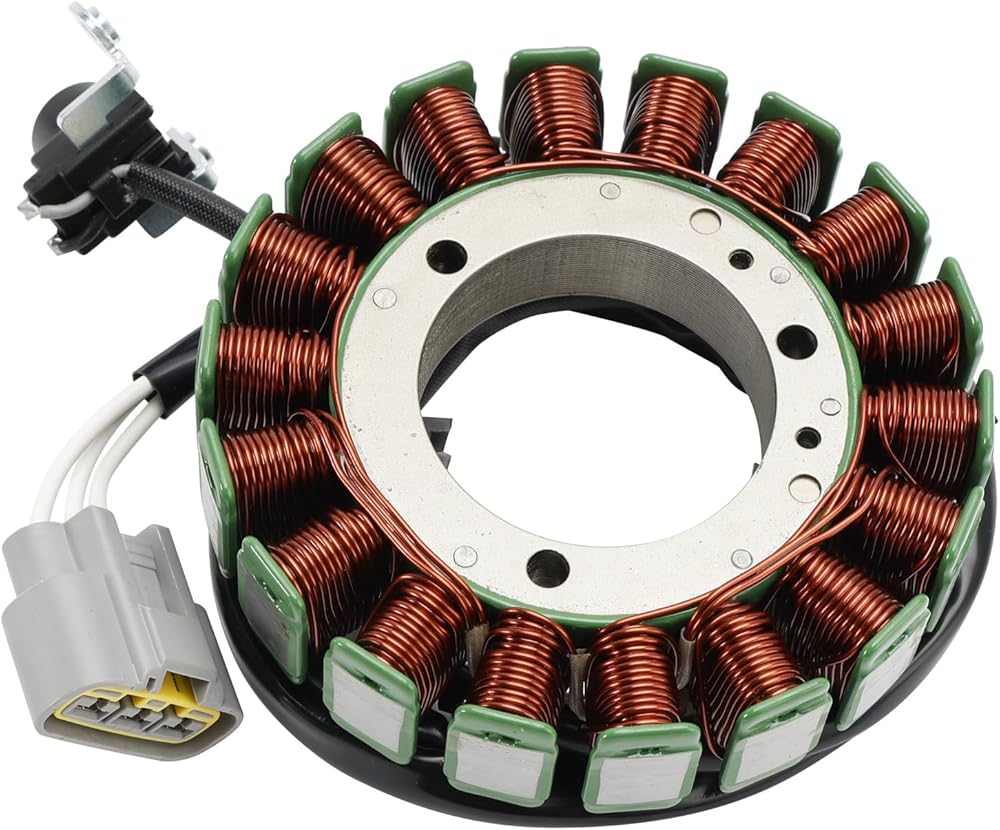

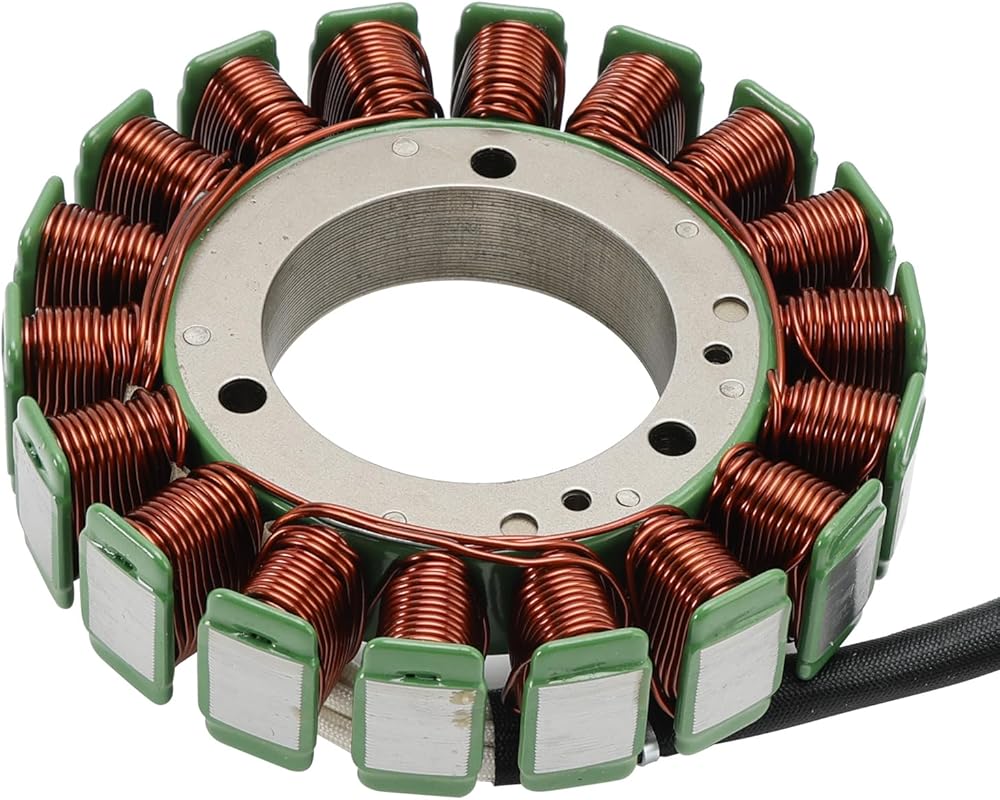

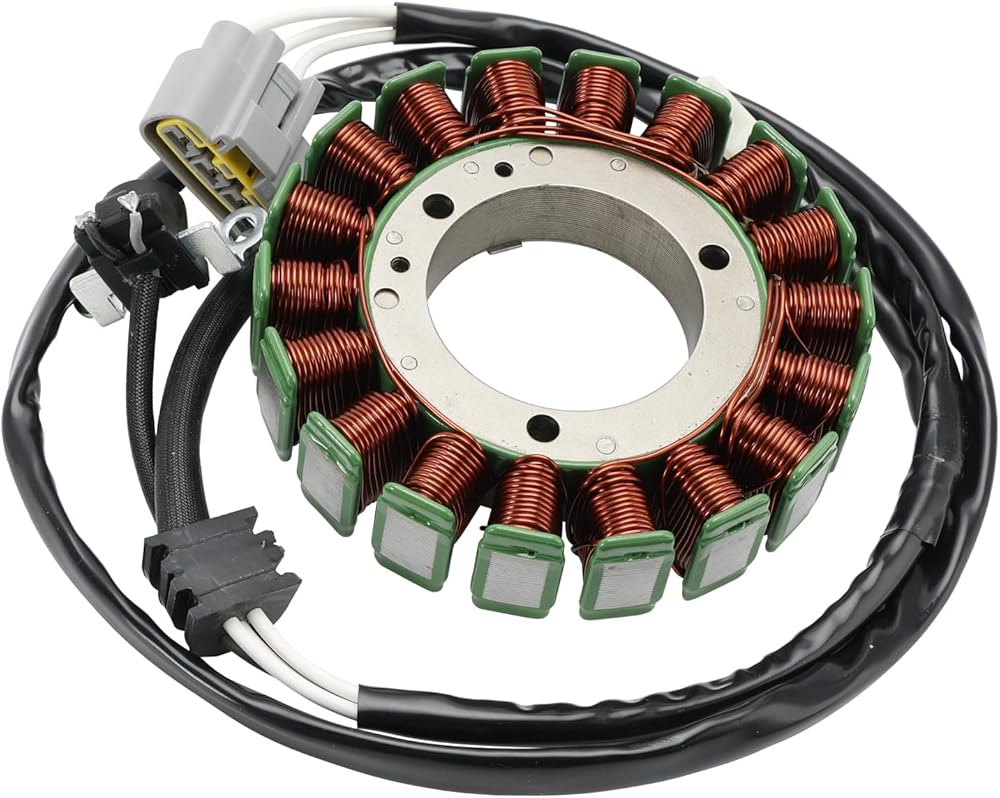

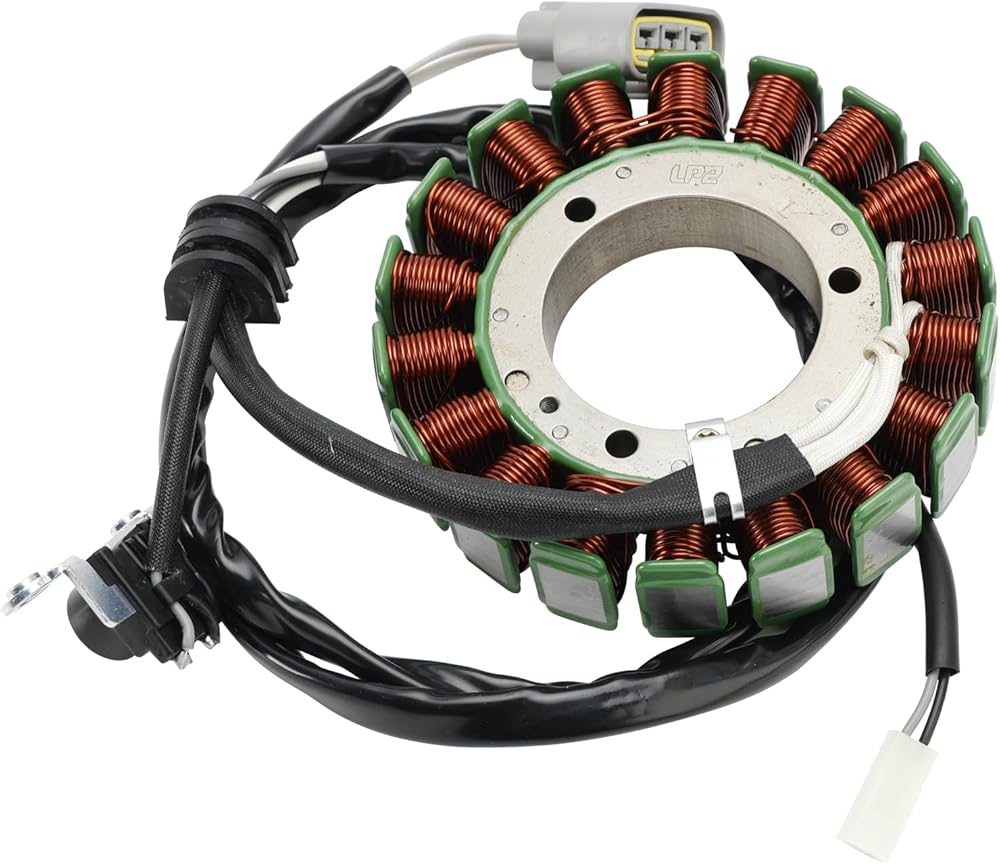

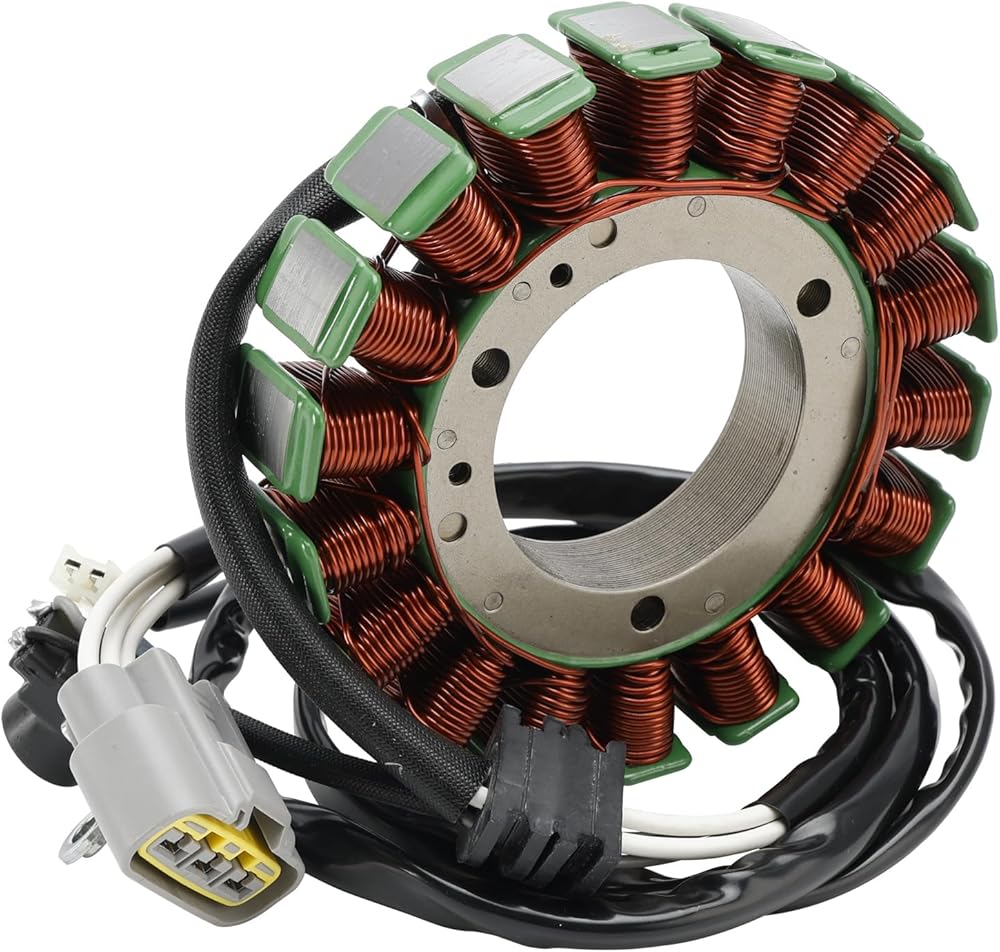

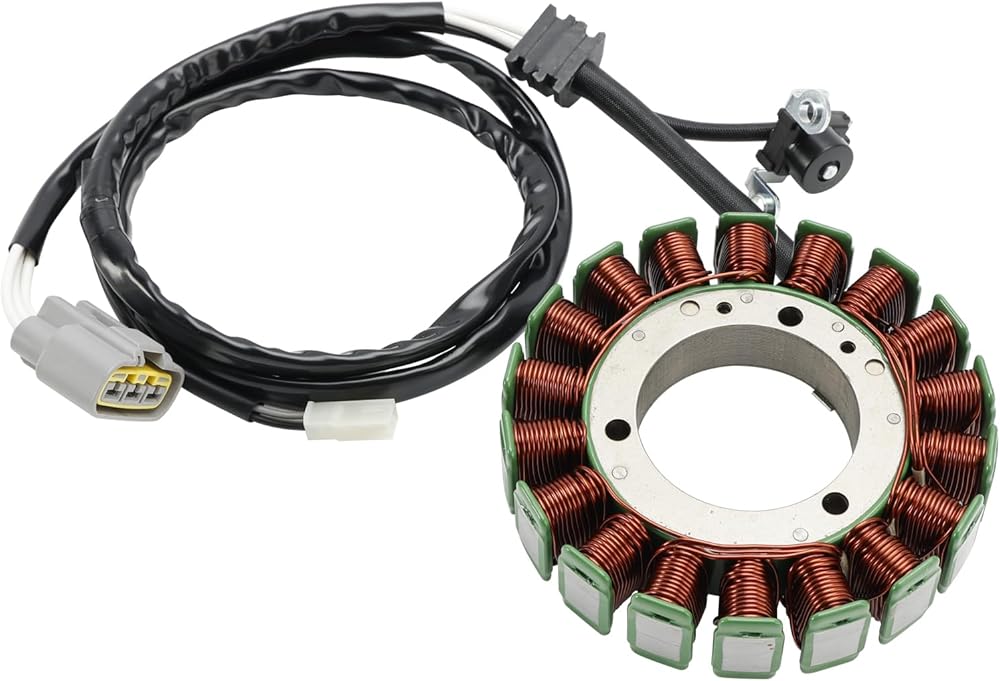

Magneto Generator Stator Fit for Yamaha XVS 950 V-Star / Bolt / R-Spec 2009-2024
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Quanity: 1PC
Type: Stator Coil
other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 2 + 3
Number of poles: 18
Dimensions:
Exterior diameter: 130mm
Interior diameter: 58mm
Replacement Part Number:
5S7-81410-00
1TP-81410-00
Fits Make/Model/Year:
5S7-81410-00
Fit for Yamaha XVS950A Midnight Star 950 2009-2015
Fit for Yamaha XVS950A V-Star 950 2009-2016
Fit for Yamaha XVS950 V-Star Tourer 2009-2017
1TP-81410-00
Fit for Yamaha XVS950 Bolt 2014-2020
Fit for Yamaha XVS950 XV950 R-Spec 2014/2016-2017
Fit for Yamaha XVS950 XV950 Racer 2015-2016
Fit for Yamaha XVS950 XV950 ABS 2014/2016
Fit for Yamaha XVS950 Bolt C-Spec 2015-2016
Fit for Yamaha XVS950 Bolt R-Spec 2014-2024
Fit for Yamaha XVS950 SR950 SCR950 2017
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Stator Generator
