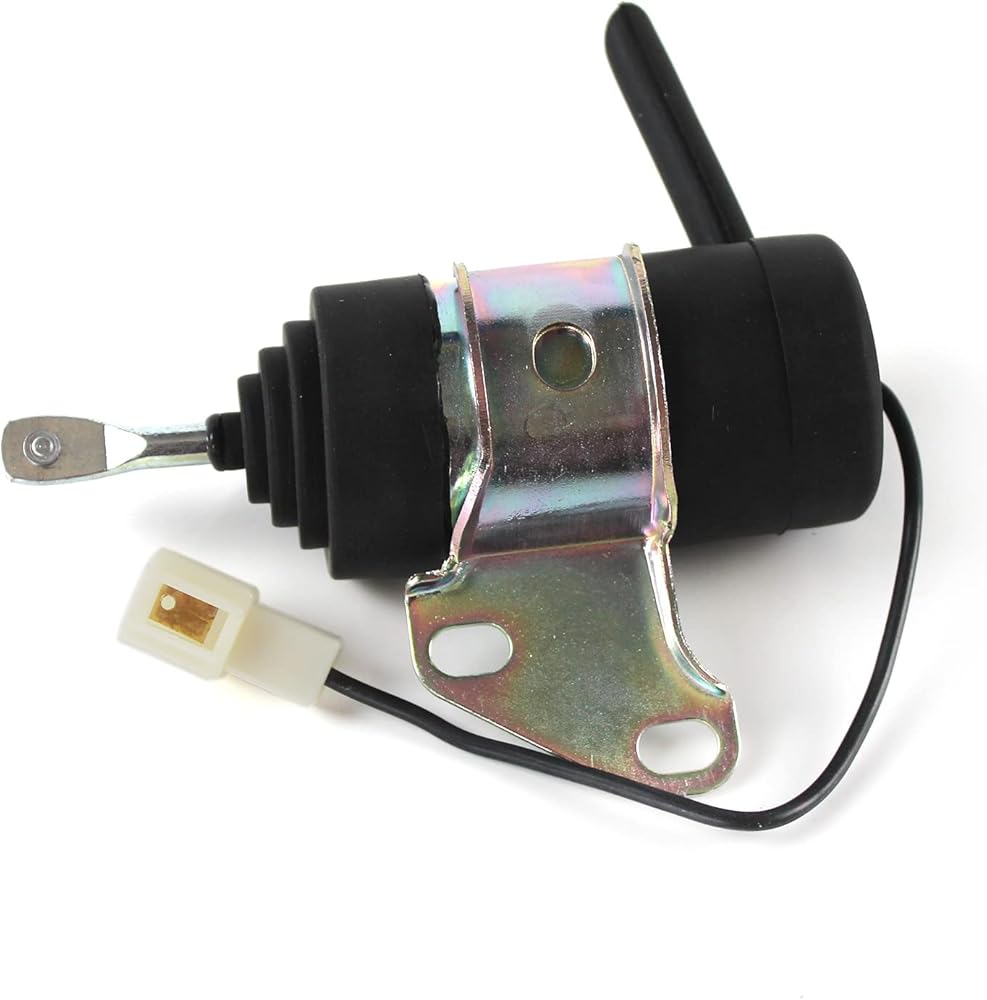

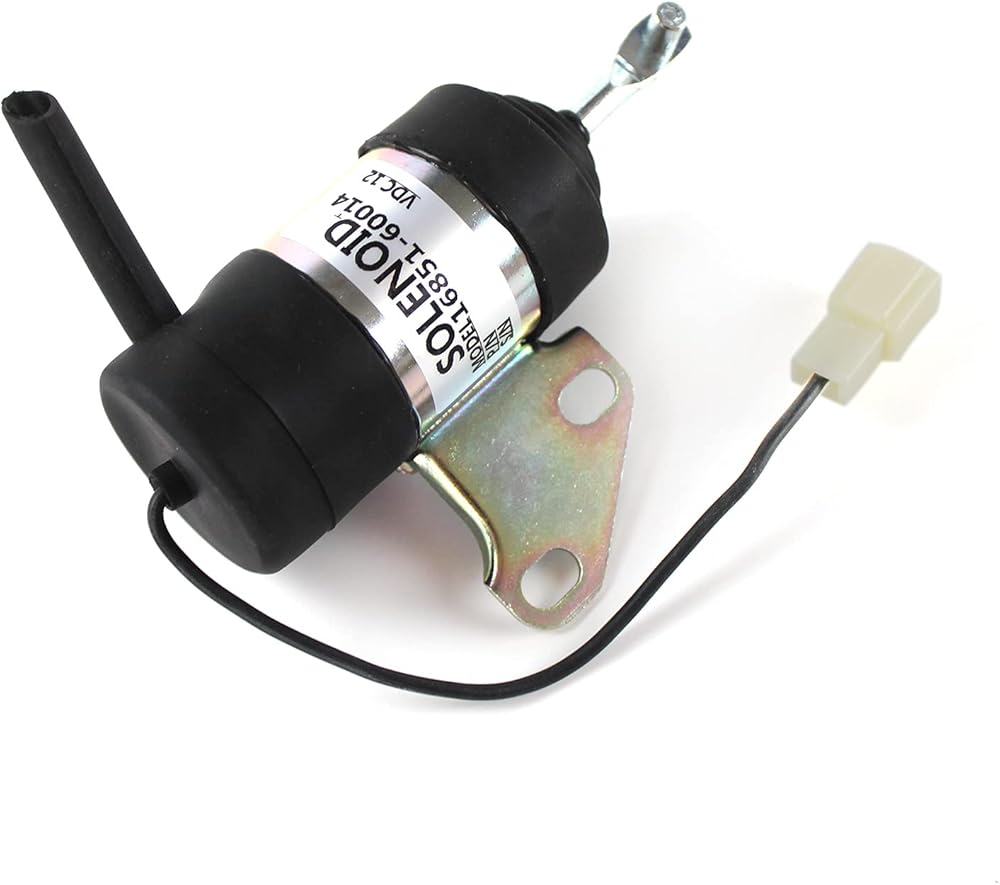

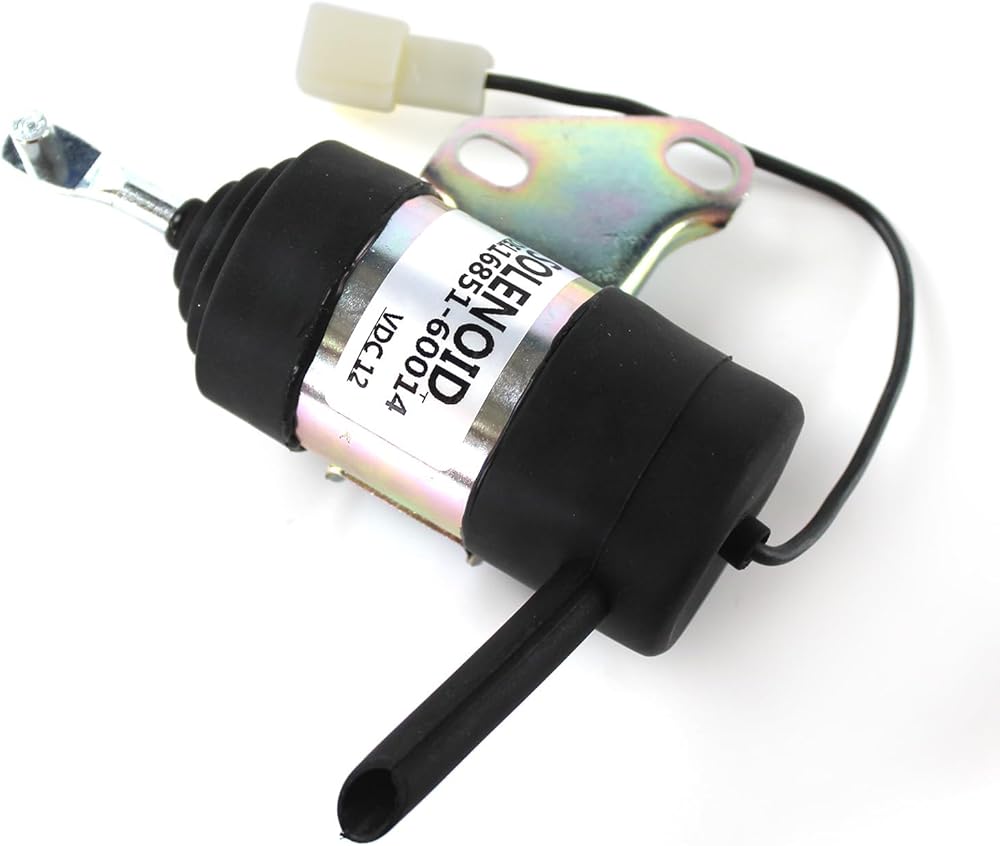

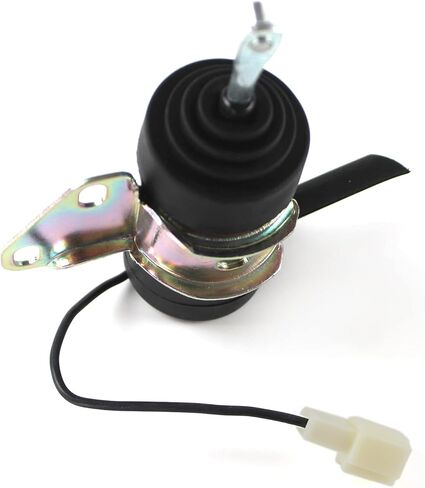

16851-60011 16851-60012 16851-60013 16851-60014 16851-60015 12V Fuel Shut Off Stop Solenoid Valve 052600-4530 6670776 for Kubota Z482 Engine Tractor B7410D BX1500D RTV900G

KWD 12.500
Brand
SINOCMP
– 1 +

Special Features

  • 🔋 Voltage Verification - 16851-60014 fuel shut off solenoid operates on 12V DC only. Before ordering this 12V stop solenoid for Kubota engine, verify your equipment uses a 12V electrical system. The 16851-60011 solenoid requires 12V for proper plunger retraction.
  • 📋 Part Number Cross-Reference - 12V fuel solenoid replaces for Kubota numbers 16851-60010, 16851-60011, 16851-60012, 16851-60013, 16851-60014, 16851-60015, 052600-4530, 052600-4531, and 6670776. Also fits 052600-453, 052600453, 0526004530, 0526004531. Verify your old solenoid matches one of these numbers before ordering this 16851-60014 replacement.
  • 🚜 For Kubota Engine & Equipment Compatibility - 16851-60012 stop solenoid fits for Kubota Z482 diesel engines. Compatible with tractors B7410D, BX1500D, BX1800D, BX1830D, BX2230D; utility vehicles RTV900, RTV900R, RTV900S, RTV900T, RTV900W; and mowers G1700, G1800, G1800S, G1900, G1900S, G2160, G2160DS, GF1800, GF1800E, T1600H, T1600HG, TG1860, ZD18F, ZD21F. The 12V solenoid mounts on the injection pump.
  • ⛽ Engine Shutdown Function - 16851-60015 fuel stop solenoid cuts fuel supply when de-energized. When you turn off the ignition for Kubota Z482 engine, power is removed from the 12V solenoid. The spring-loaded plunger extends to block the fuel rack, stopping the engine within 3 seconds. The 16851-60014 solenoid energizes (plunger retracts) when the engine runs. A failed 052600-4530 solenoid for Kubota tractor causes no-start or engine-run-after-key-off conditions.
  • 🔧 Installation Note - Installing 6670776 12V stop solenoid requires basic hand tools. The 16851-60011 solenoid mounts with two bolts on the for Kubota injection pump. Single wire terminal - body grounds through mounting bracket. Test solenoid operation by applying 12V - plunger should retract with an audible click for Kubota Z482 engine. Do not run engine until you verify proper plunger movement on your tractor or RTV.

Description

Part Numbers: 16851-60010, 16851-60011, 16851-60012, 16851-60013, 16851-60014, 16851-60015, 052600-4530, 052600-4531, 6670776, 052600-453, 052600453, 0526004530, 0526004531
Voltage: 12V DC (nominal operating range: 10.5V - 14.5V)
Solenoid Type: Pull-type stop solenoid (spring return to extended position)
Duty Cycle: Intermittent (energized when engine runs, de-energized at shutdown)

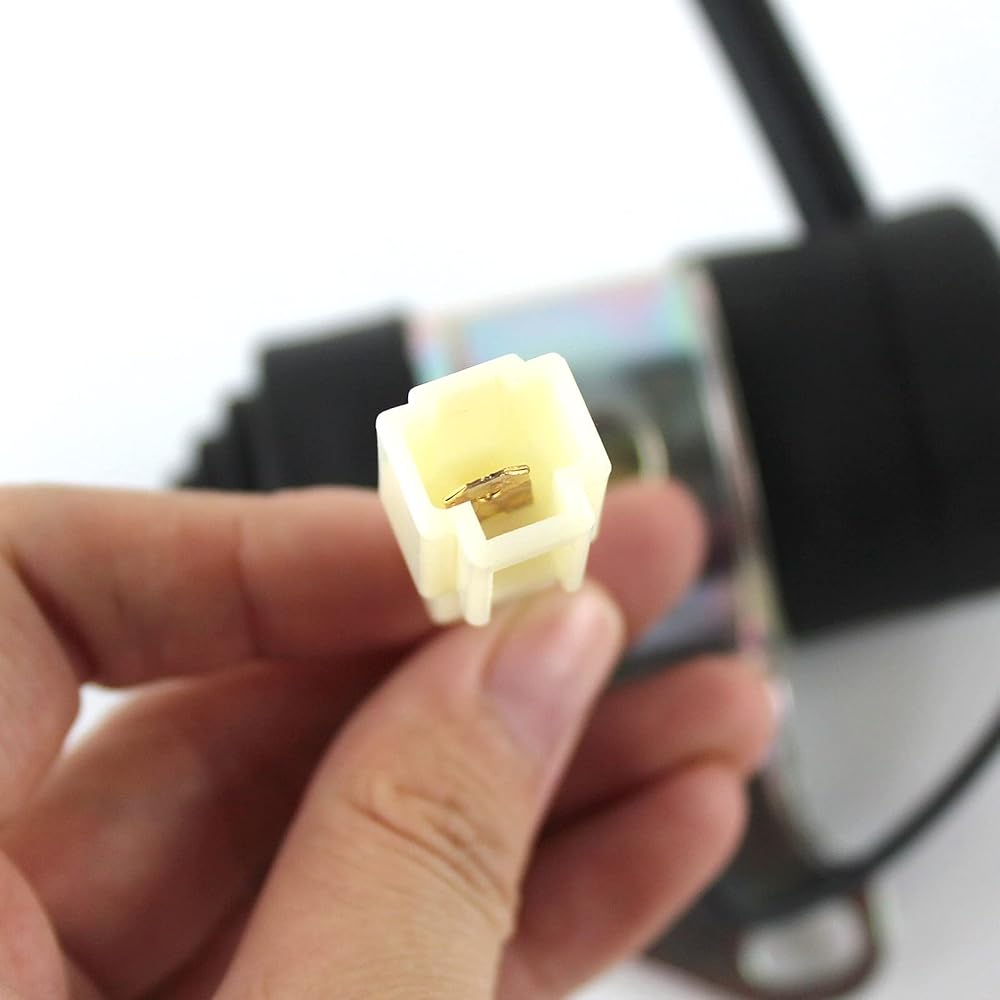

Terminal Type: Single wire (ground through mounting bracket)
Mounting: 2-bolt flange mount

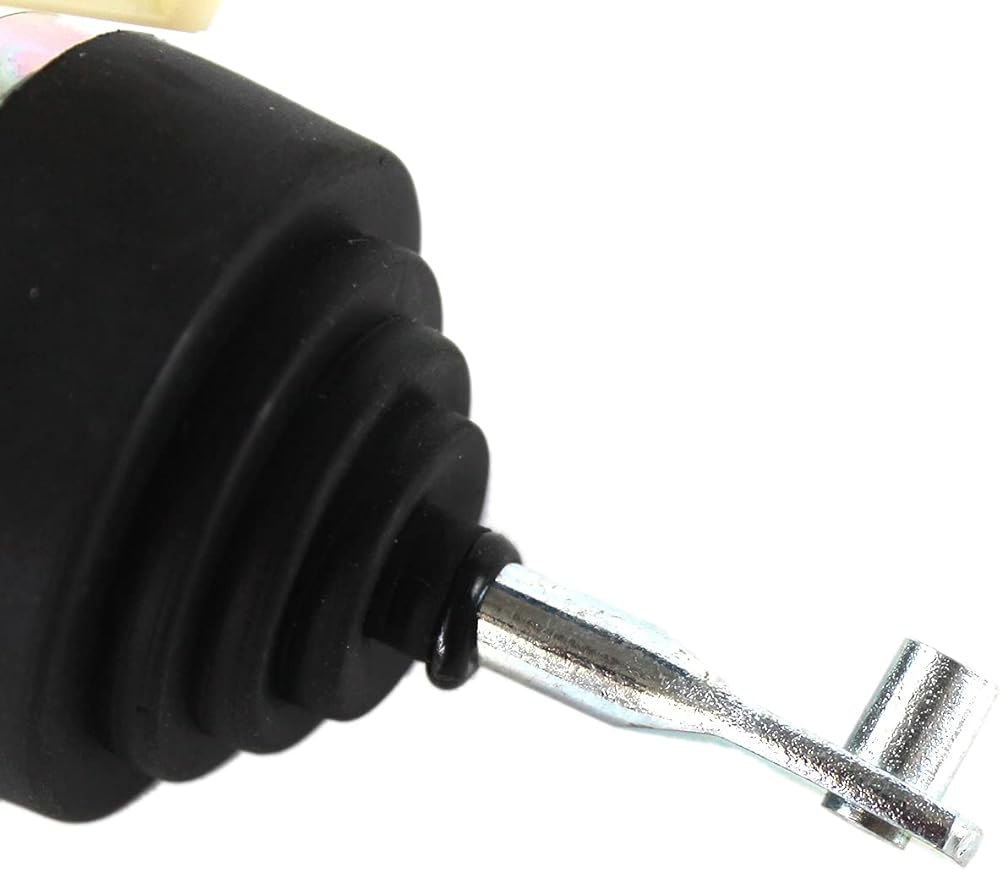

Plunger Action: Energized = retracted / De-energized = extended (spring return)
Material: Steel body with composite plastic coil cover
For Kubota Z482 (2-cylinder, 0.5L diesel)
Other for Kubota engines using this 12V stop solenoid configuration
Tractors: B7410D, BX1500D, BX1800D, BX1830D, BX2230D
Utility Vehicles: RTV900, RTV900R, RTV900S, RTV900T, RTV900W
Mowers: G1700, G1800, G1800S, G1900, G1900S, G2160, G2160DS, GF1800, GF1800E, T1600H, T1600HG, TG1860, ZD18F, ZD21F
Normal Operation (Key ON): 12V power energizes the 16851-60014 solenoid coil. Magnetic field retracts the plunger (pulls inward). Fuel rack moves to RUN position for Kubota Z482 engine. Engine runs.
Shutdown (Key OFF): Power removed from 16851-60011 solenoid. Internal spring extends the plunger (pushes outward). Fuel rack moves to STOP position. Fuel flow blocked. Engine stops within 3 seconds for Kubota tractor.
Safety Feature: Prevents engine runaway by cutting fuel when key is turned off or electrical power fails for Kubota equipment.
