Designed specifically for RC fixed-wing airplanes, our brushless motor offers customizable performance with 1000KV and 1400KV options and up to 2kg of thwear for powerful flight hatabilities. It ensures an effortless installation experience, catecircle to both novice and seasoned pilots. Built with high-quality materials, this motor is tested for a long lifespan, providing reliable service and enhancing the flying experience.

Specifications:
Product name: Brushless Motor 2814 for Fixed-wing RC Plane Model
KV: 1000KV, 1400KV optional
Support: 3S, 4S
MAX thwear: 2020g (4S)
Weight: Approx 115g/4.1oz
Size: Approx 2.8*2.8*1.4cm/1.1*1.1*0.6inch (L * W * H)

Motor Propeller Blade Voltage(V) MAX Current MAX Thwear
2814-1000KV:
1、GEMFAN
12*6 12.4V(3S) 26A 1700g

2、HY 1160
14.8V(4S) 25A 1760g

2814-1400KV:
1、HY 1060
12.4V(3S) 30A 1430g
14.8V(4S) 38A 1900g
2、HY 1160

12.4V(3S) 34A 1570g
14.8V(4S) 43A 2020g

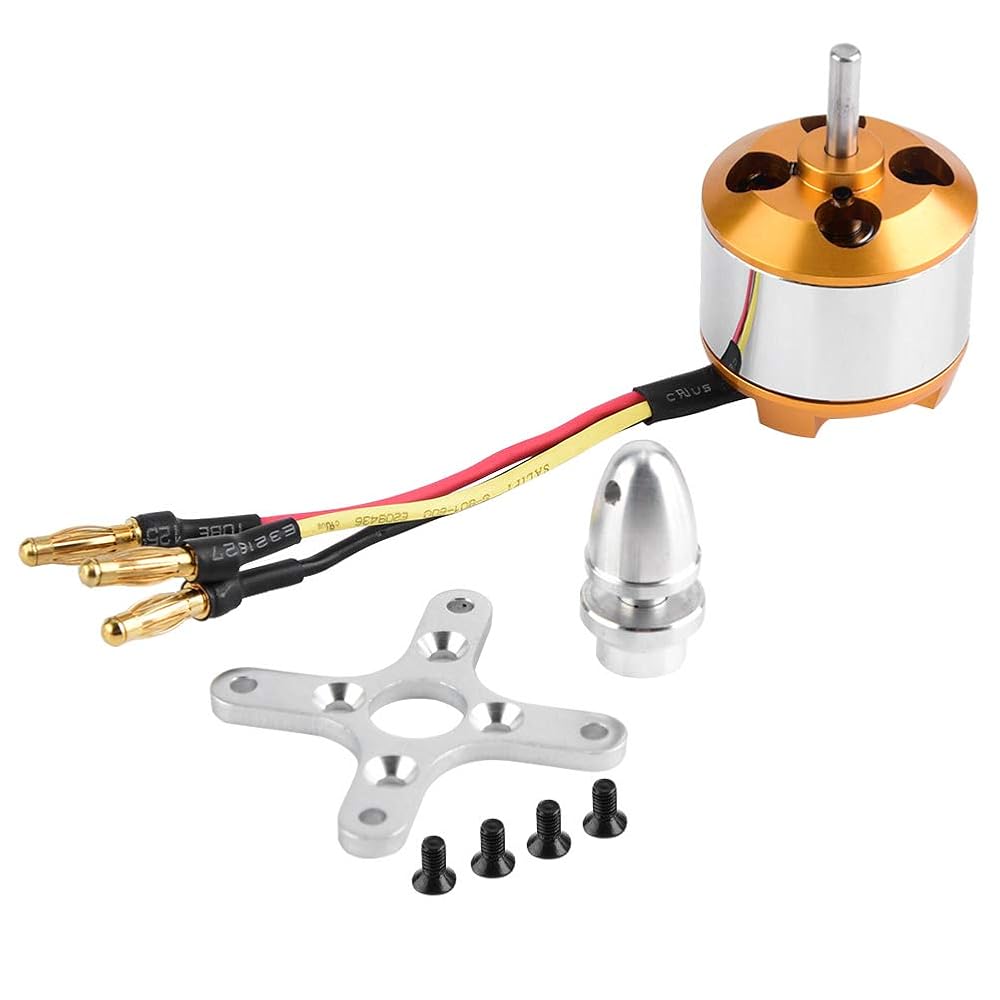

Package list:
1 * Motor
1 * Motor Base
1 * Bag of Accessories

Note:
Max 2kg thwear(4S), but a single accelerator should not exceed maximum 10 seconds.
The motor is equipped with cross, only need to lock 2 screws.
Properly weld motor 4.0mm banana plug, recommend use 50A ESC or higher.
