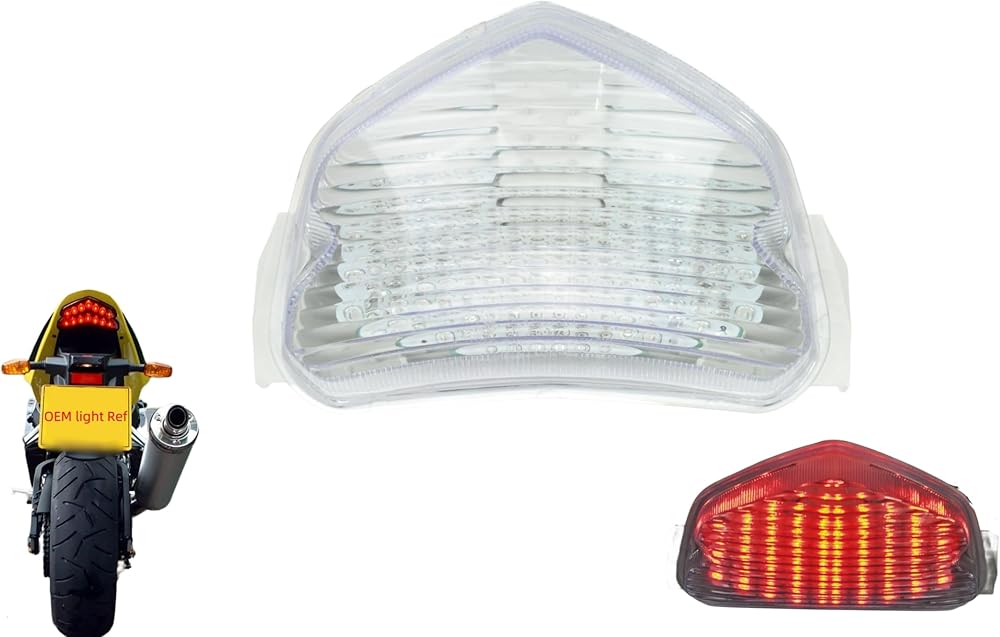

LED Rear Lamp Brake Tail Light Integrated Turn SignalFit For Suzuki
Oem: 35710-29G30
2004-2005 GSXR600;
2004-2005 GSXR750；

We provide customized LED taillight Service.

Style 1: LED taillight integrated with turn signals.

Style 2: Sequential flashing LED brake light, left and right turn signals displaying a pattern flow of the Amber color LED. While brake light always displays RED LED.

.

Running light / position light : red color
Stop light / brake light : red color more powerful when you are braking
Integrated turn signals indicators : amber color on each half of the taillight (wires are independent)
To slow down the blinking rate use provided resistors if necessary:

Wiring Diagram applicable to most bikes:
Black Wire(Negative),
Green Wire(Brake)
Red Wire(Running Light)
1. Connect one end of the resistor to the ground wire on your turn signal harness from your bike.
2. Connect the other end of the resistor to both the YELLOW wire from our taillight and the positive turn signal wire from your turn signal harness from your bike.
3. Repeat the same process for the other side. To use the red connectors, place one wire inside along one channel, place another wire inside along the other channel. Push down the metal pin as it will make a small cut on each wire bridging the connectors.
if you are using the resistors, place one end of the resistor in the middle of either channel along with the one wire.
