مميزات خاصة

Perfectly Used for DIY Go Kart, Trike, Tricycle, Dolly ,Electric Car ,Golf Cart, ATV Quad, 4 Wheelers
Chain Sprocket: 428 41 Teeth 48mm hole diameter , Brake Disc Diameter: 190mm(7.5")
Axle overall length 32 inch (810mm), 1" in diameter and the thickest part of the axle is 1 3/16" (30mm),Spline teeth: 24T and 28T
Fundamental Parameters: This brushless electric motor is powerful and efficient. Model: MY1020, Input Voltage: 72V DC, Output Power: 3000W, Rated Current: ≤ 43A, Rated Speed: 4900 RPM, Maximum Speed: 6500 RPM, Sprocket: T8F-11 Teeth, Horsepower: 4.07 HP, Rated Torque: 849.67 oz.in / 6 N.m, Maximum Current: 65A, No-load Current: ≤ 4.0A, Peak Efficiency:≥ 85%, Working Temperature: < 120 °C / 248 ℉.

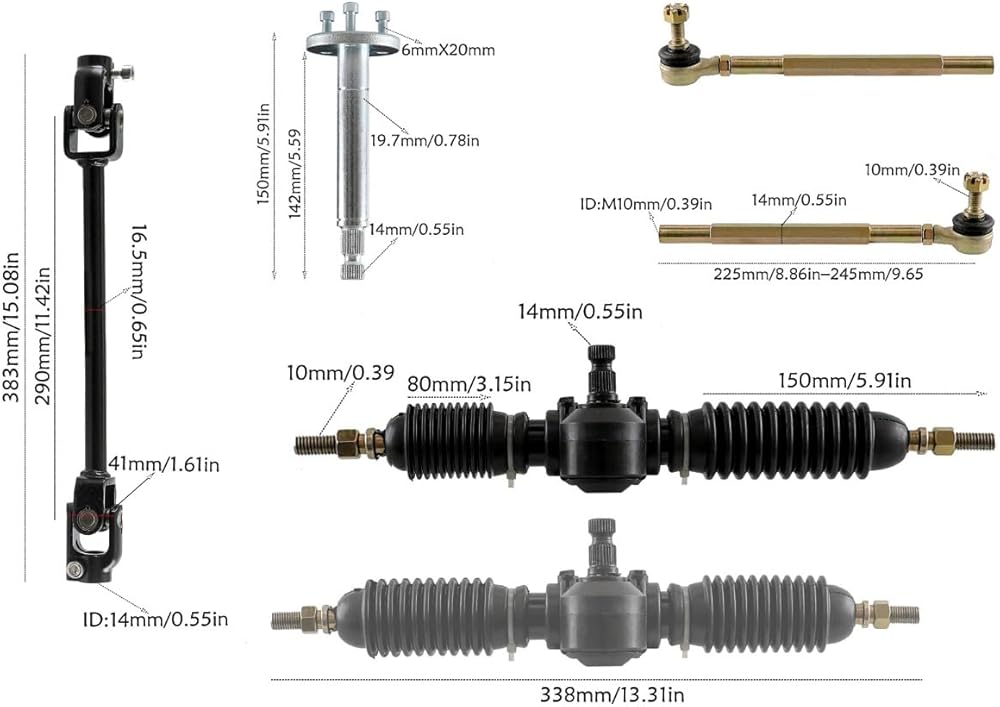

Power Steering Gear Rack Length: 338mm Steering Shaft Length: 383mm Steering Shaft Joint Hole Diameter: 14mm Steering Shaft Center-to-Center Hole Distance: 290mm Adjustable Tie Rod Length: 225mm-245mm Inner Diameter of Tie Rod: 10mm Outer Diameter of Tie Rod: 14mm
Easy Installation: Designed for straightforward assembly, perfect for DIY enthusiasts looking to upgrade or build their go-karts or ATVs.
Wheels Specs: Front Wheel Tire size: 10x4.50-5, 3 bolt pattern Rear Wheel Tire Size: 11x7.10-5, 3 bolt pattern

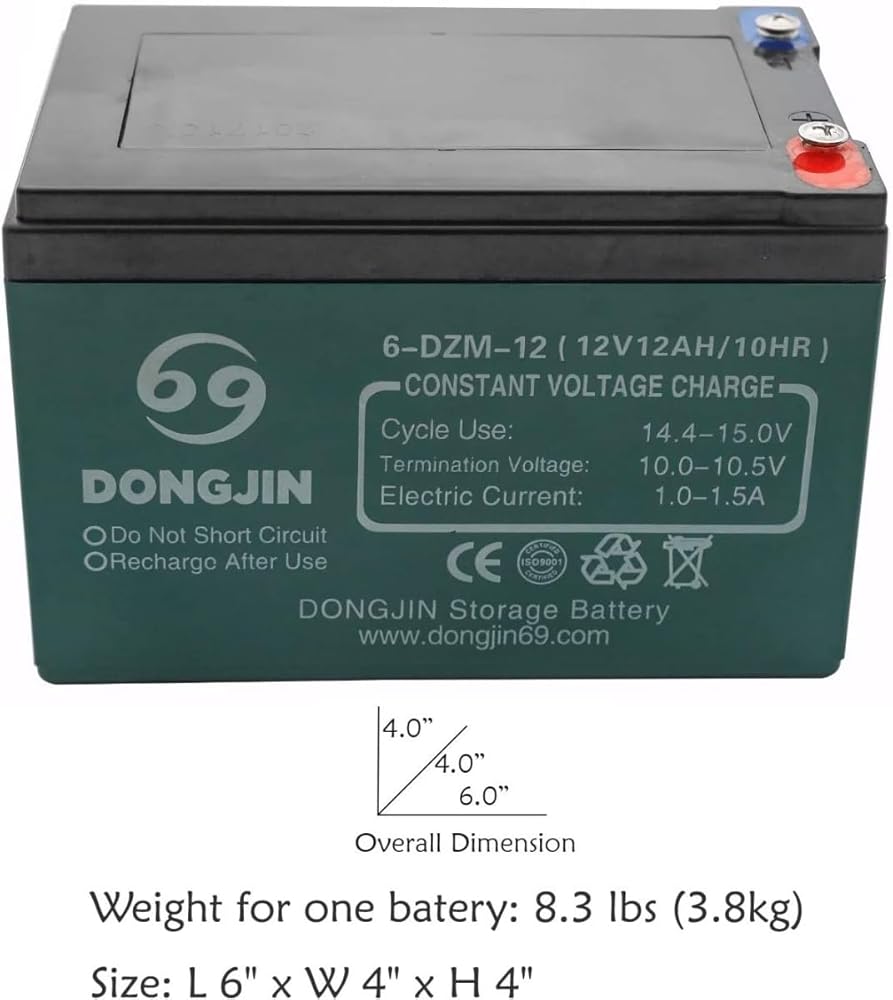

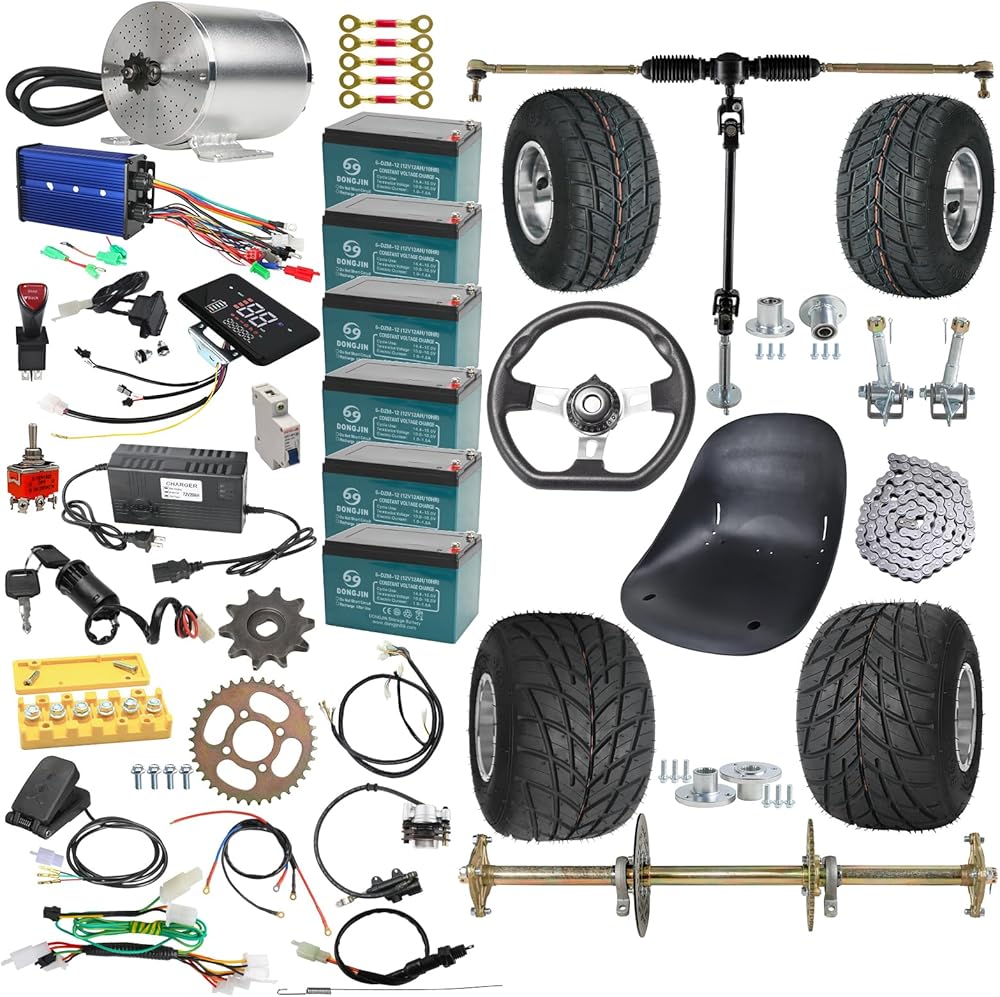

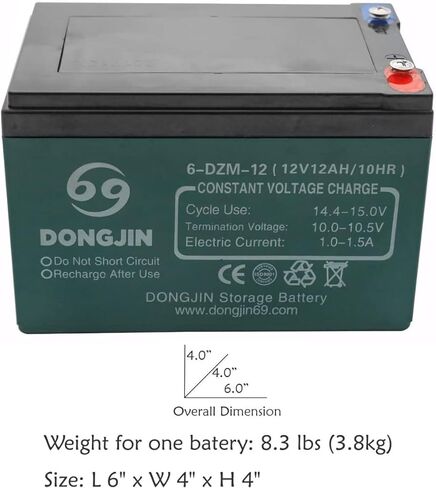

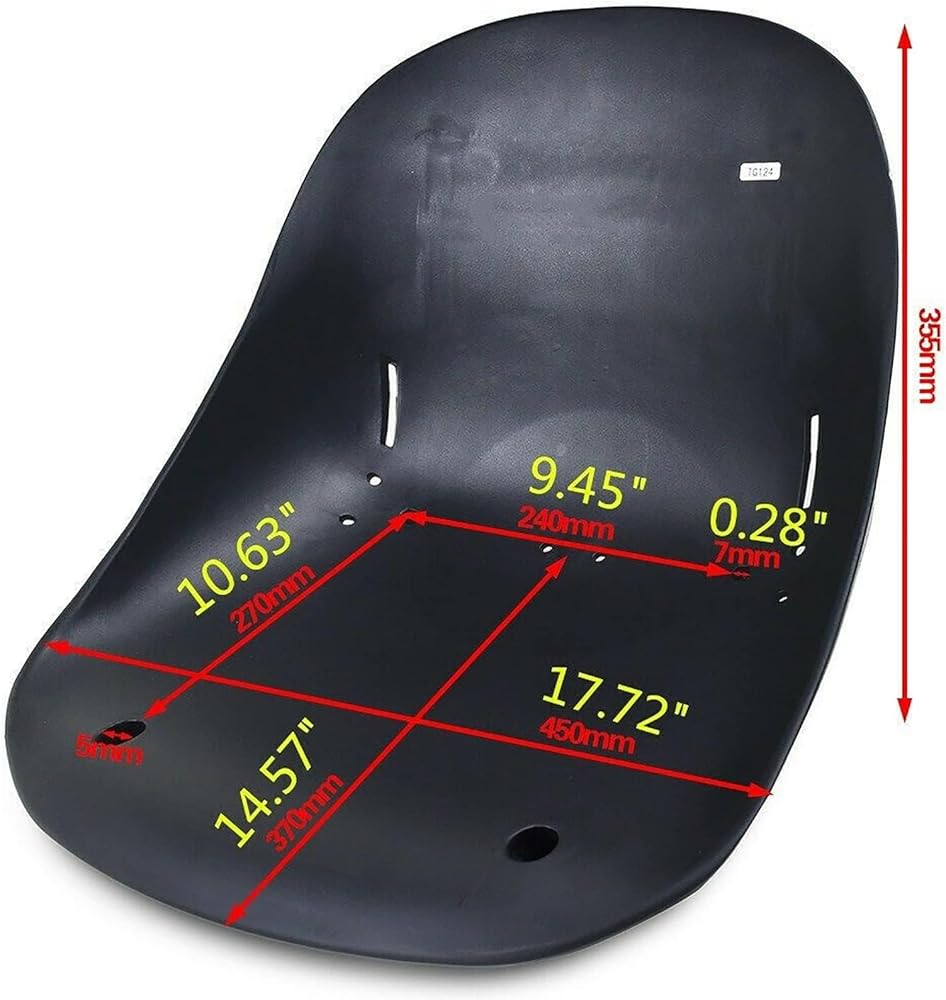

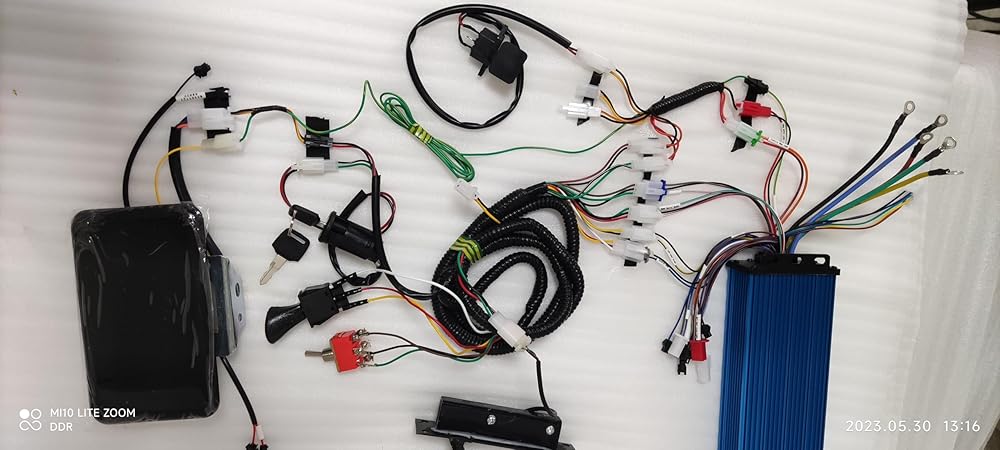

Whole package includes : 1x axle kit, 1x brake caliper assembly, 1x 428 41T sprocket, 1x 428 108 links chain, 2x 11x7.10-5 Wheels, 2x 10x4.50-5 wheels, 2x Steering Spindle, 2x Wheel Hubs, 1x Steering Gear Rack Pinion Set, 1x 270mm Steering Wheel ,1x Electric Motor, 1x Speed Controller, 1x LCD Display, 6x 12V 12Ah 6-DZM-12 Batteries 1x 72V Battery Charger ,5x Battery connecting cables , 1x Foot Pedal, 1x Charging Port ,1x 3 speed toggle switch ,1x forward reverse switch ,1x air switch, 1x brake switch ,1x wiring harness ,1x terminal block, 1x key on off switch,1x 428 9T motor sprocket,1x Go Kart Seat

وصف

Whole package includes : 1x axle kit, 1x brake caliper assembly, 1x 428 41T sprocket, 1x 428 108 links chain, 2x 11x7.10-5 Wheels, 2x 10x4.50-5 wheels, 2x Steering Spindle, 2x Wheel Hubs, 1x Steering Gear Rack Pinion Set, 1x 270mm Steering Wheel , 1x go kart seat, 1x Electric Motor, 1x Speed Controller, 1x LCD Display, 6x 12V 12Ah 6-DZM-12 Batteries 1x 72V Battery Charger ,5x Battery connecting cables , 1x Foot Pedal, 1x Charging Port ,1x 3 speed toggle switch ,1x forward reverse switch ,1x air switch, 1x brake switch ,1x wiring harness ,1x terminal block, 1x key on off switch,1x 428 9T motor sprocket

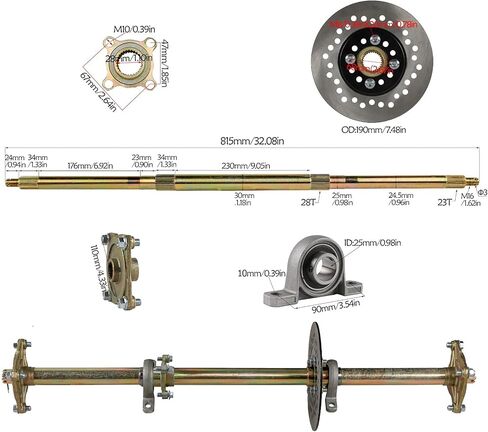

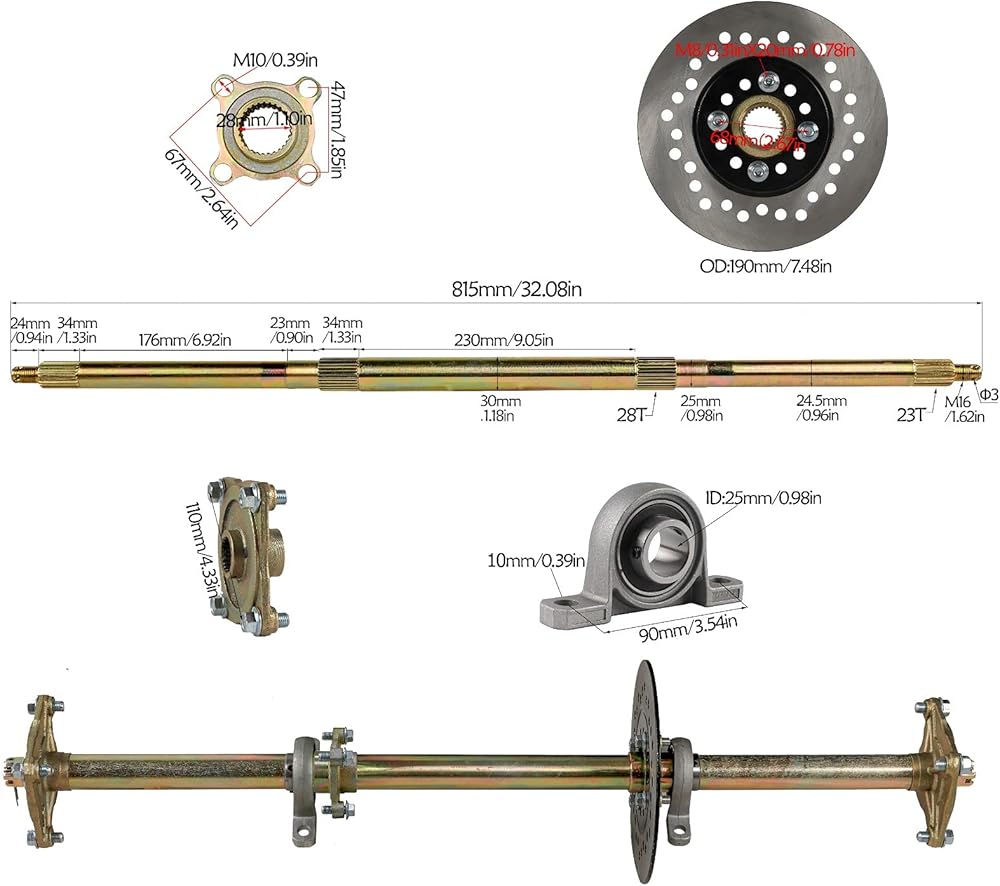

Axle Specs:
This is a live axle kit for DIY rebuild Go Kart, ATV, Quad and Drift Trikes
Axle Overall length (from end to end): 815mm (32")
The thickest part of the axle is 30mm (1.2")
Chain Sprocket: 428 41 Teeth
Brake Disc Diameter: 190mm(7.5")
Spline teeth: 24T and 28T

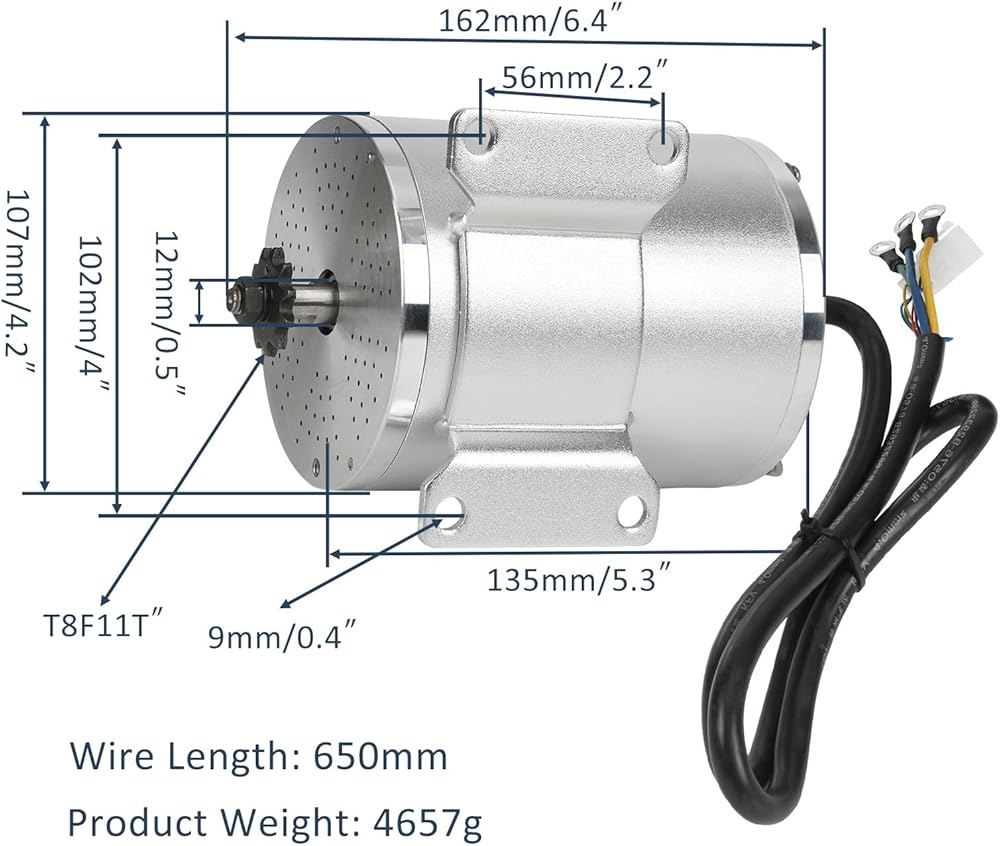

Moto Specs:
1.Model:Boma MOTOR MY1020
2.Motor Type:High-Speed brushless Motor
4.Output /W:3000W
5.Rated Speed:4900RPM, Torque: 5.8N.m
6.Weight: 4.8KG
7.Shaft diameter: 12mm
8.Applicable Controller: 72V 3000W
9.Applicable:Electric Scooter,Ebike,Folding Bike,Small E-Moto,machine,Mini Electric Car ,DIY Go Kart, ATV Quad, Buggy
10.Sprocket Model :T8F 11T (comes with an extra 428 9T sprocket)
11.The Motor need work with controller,throttle,power lock,72 voltage battery

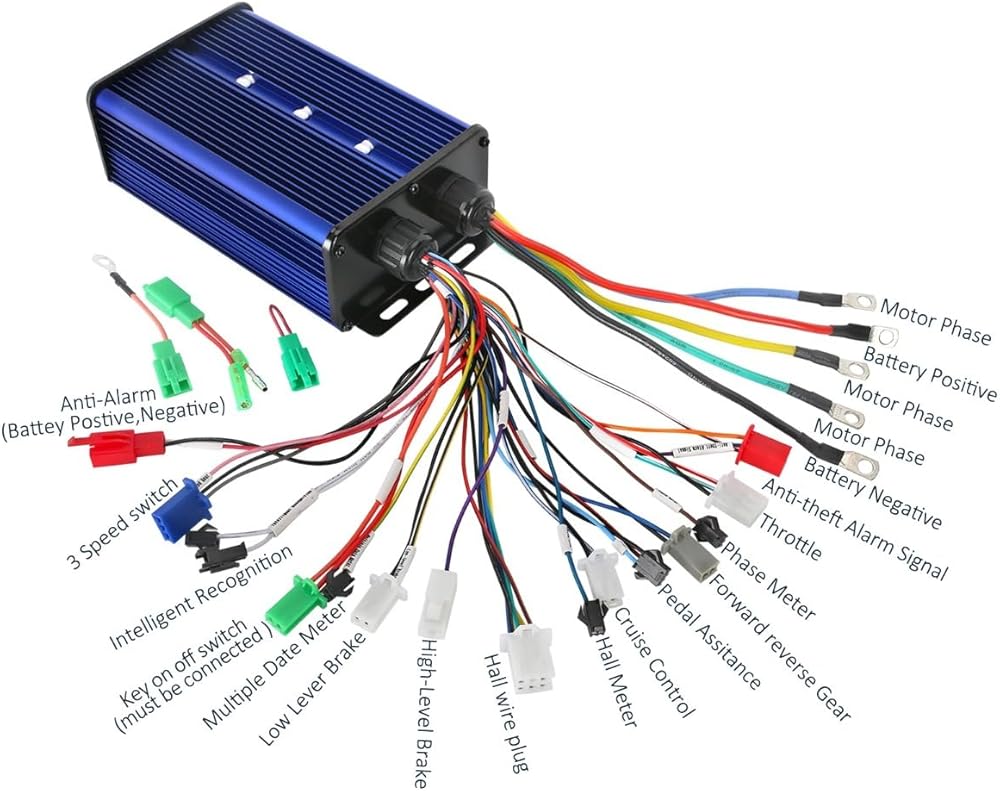

Controller Specs:

Current: 45A-60A

Voltage: 36V/48V/52V/60V/64V/72V

Phase: Automatic Identification (60°/120° both will fit)

MOS tube: 18mos (double row)

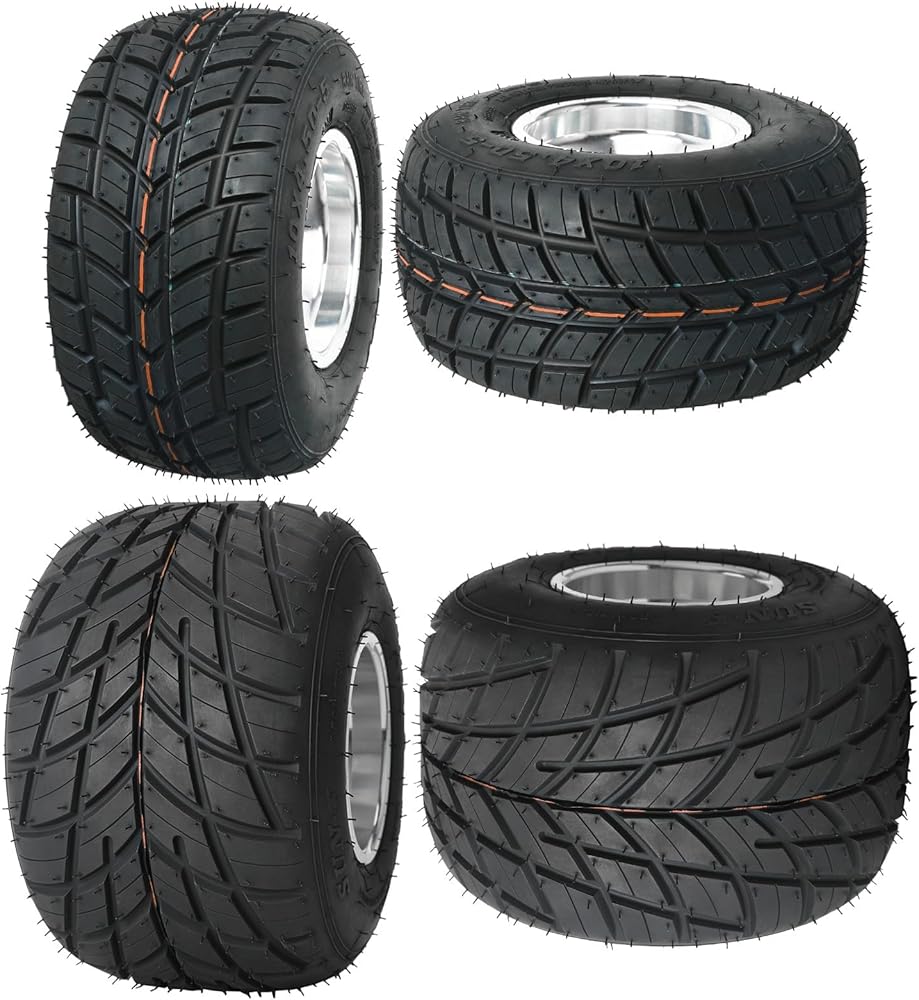

Wheels Specs:
Front Wheel Tire size: 10x4.50-5, 3 bolt pattern
Rear Wheel Tire Size: 11x7.10-5, 3 bolt pattern
