Features:
1. Analog voltage sensors: accelerator pedal sensor, throttle position sensor, oxygen sensor, fuel rail pressure sensor, for boost pressure sensor, oil pressure sensor, intake pressure sensor, air conditioning pressure sensor, etc.
2. Analog resistance sensors: coolant temperature sensor, intake temperature sensor, oil temperature sensor, exhaust temperature sensor, fuel temperature sensor, evaporator temperature sensor, ambient temperature sensor, etc.
3. Oxygen sensor signal 0.1-0.9V automatic jump.
4. The ratio of the two signals of the accelerator pedal sensor is 2:1.
5. The sum of the two signals of the throttle position sensor is 5V.
6. Built-in for multi-turn wirewound potentiometer.
7. Multiple sensor signals are output simultaneously, and each signal is adjusted independently without interfering with each other.
MN300 throttle position sensor simulation
Dual channel signal TPS1+TPS2=5V
MN300 voltage sensor simulation
V1 and V2 dual voltage signal simulation
Oil rail pressure sensor, for boost pressure sensor, oil pressure sensor, intake pressure sensor, air conditioning pressure sensor.
Three-wire throttle position sensor.
MN300 oxygen sensor signal simulation
Signal voltage 0.1-0.9V automatic jump
MN300 resistance sensor simulation
Built-in for multi-turn wirewound potentiometer
Coolant temperature sensor, intake temperature sensor
Oil temperature sensor, exhaust temperature sensor
Fuel temperature sensor, evaporator temperature sensor
Ambient temperature sensor. Automotive sensor simulator.

Specifications:

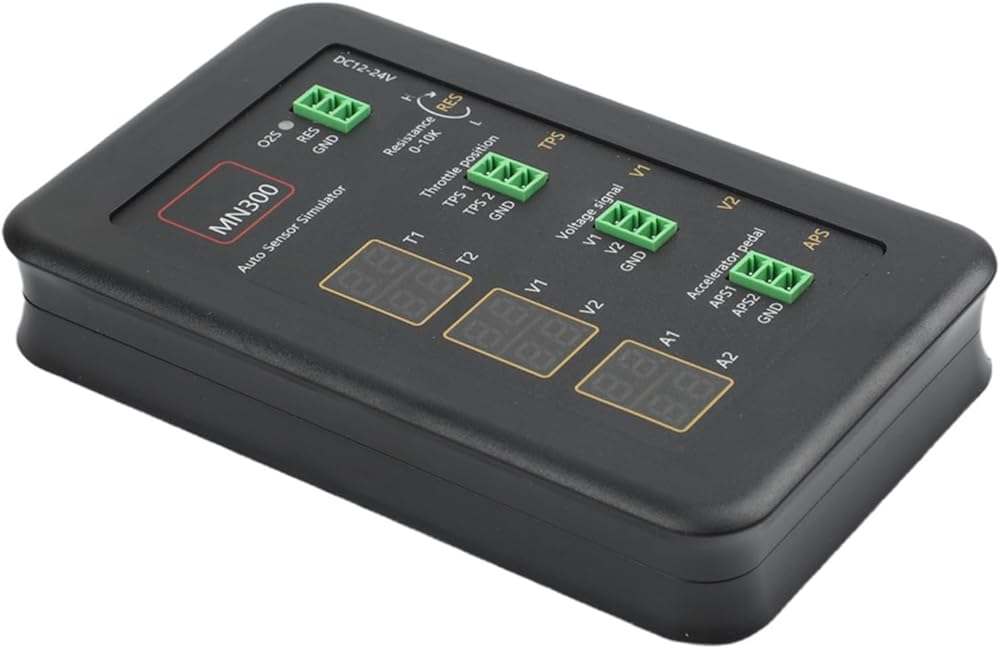

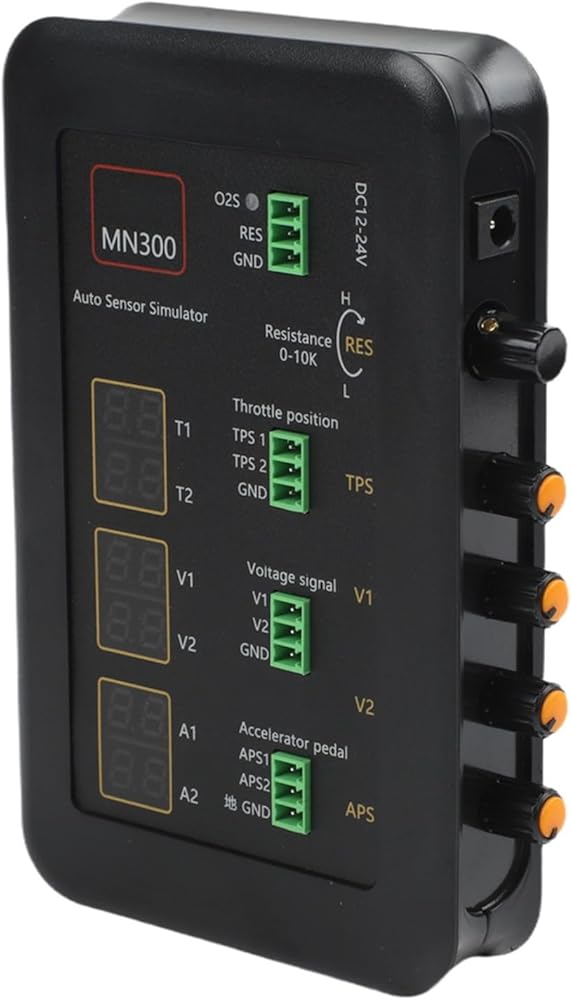

Part name: MN300 automotive signal generator sensor
Model: MN300

Material: abs
Size: 156.5*107*29mm
Color: black
Product parameters:
1. Power supply: DC 12-24V
2. Voltage signal: 0-5V
3. Resistance signal: 0-10kΩ.
4. Oxygen sensor signal: 0.1-0.9V.
5. The sum of the two signals of the throttle position sensor is 5V.
6. The ratio of the two signals of the throttle pedal sensor is 2:1.

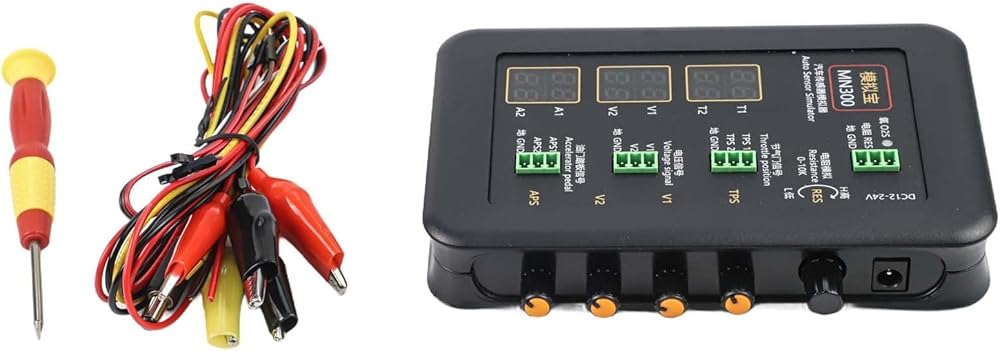

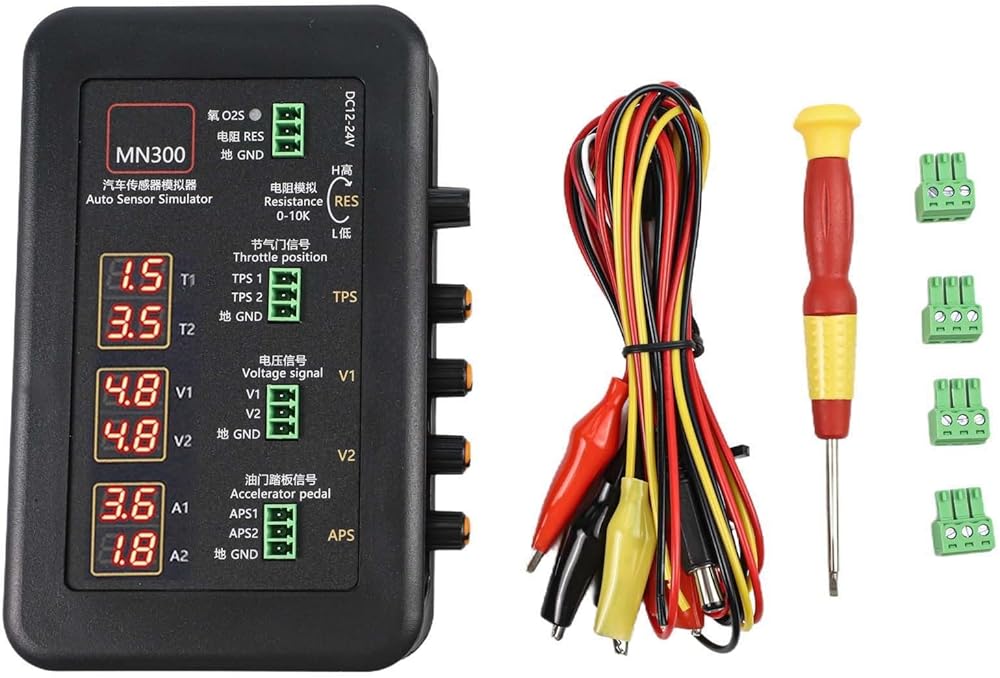

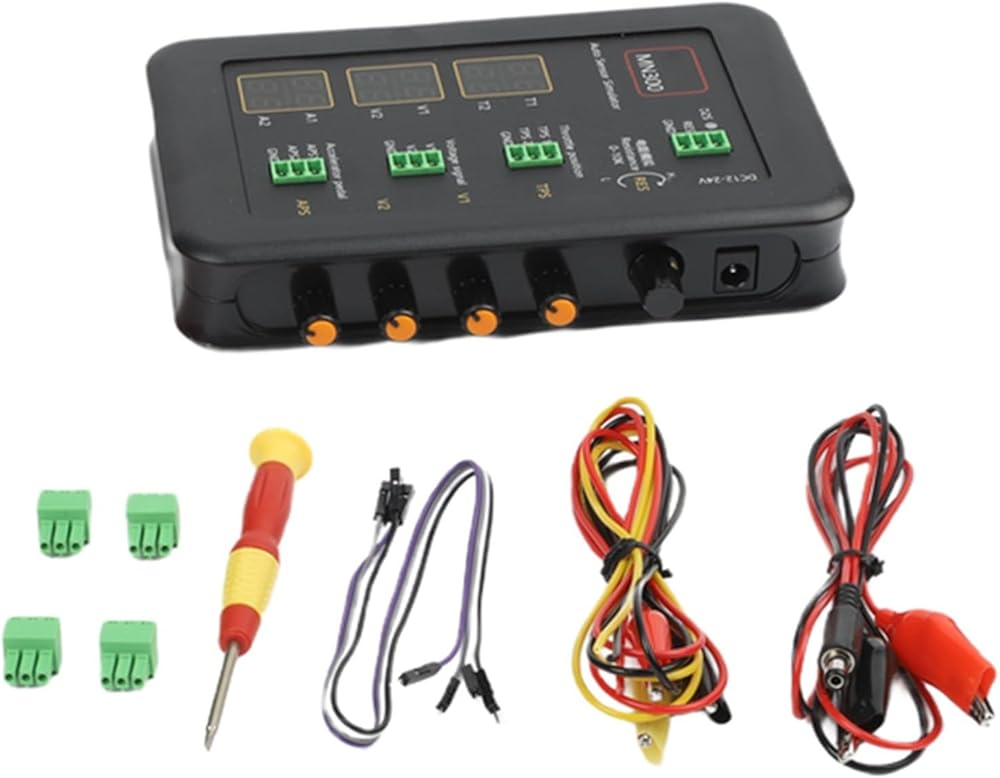

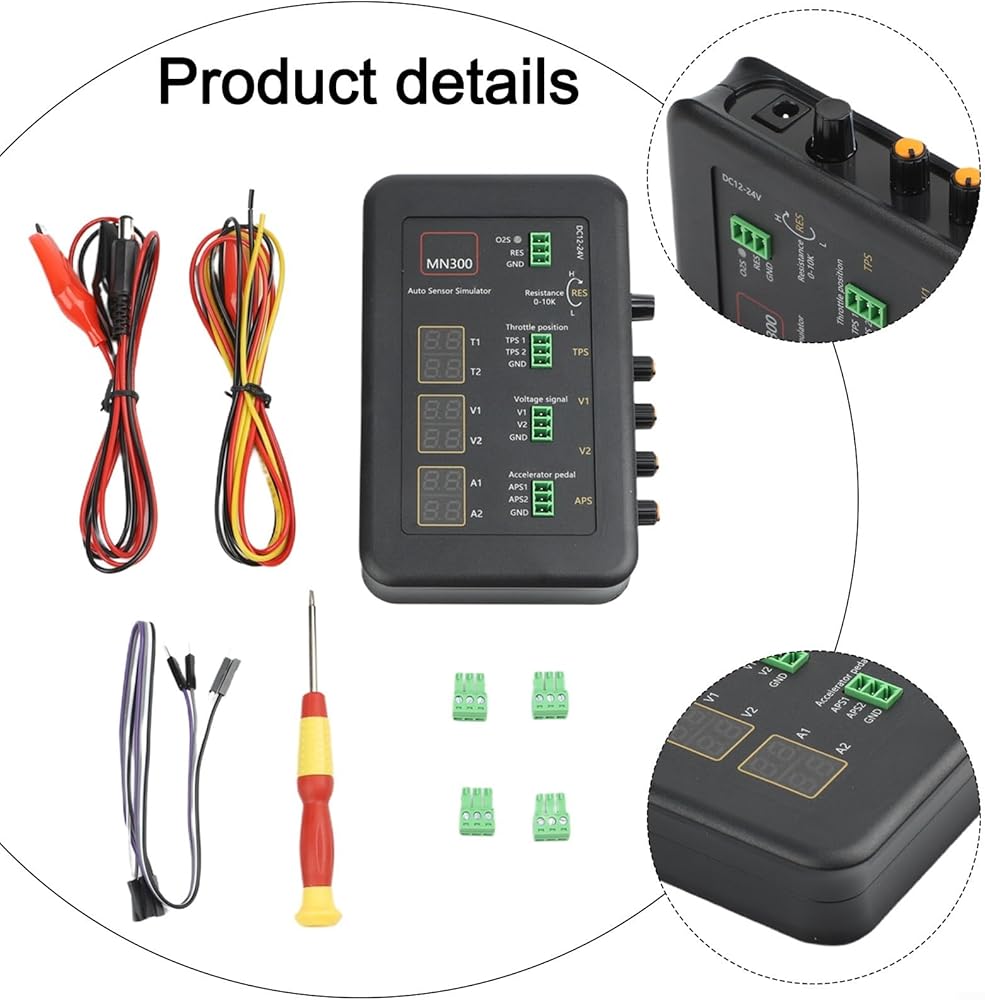

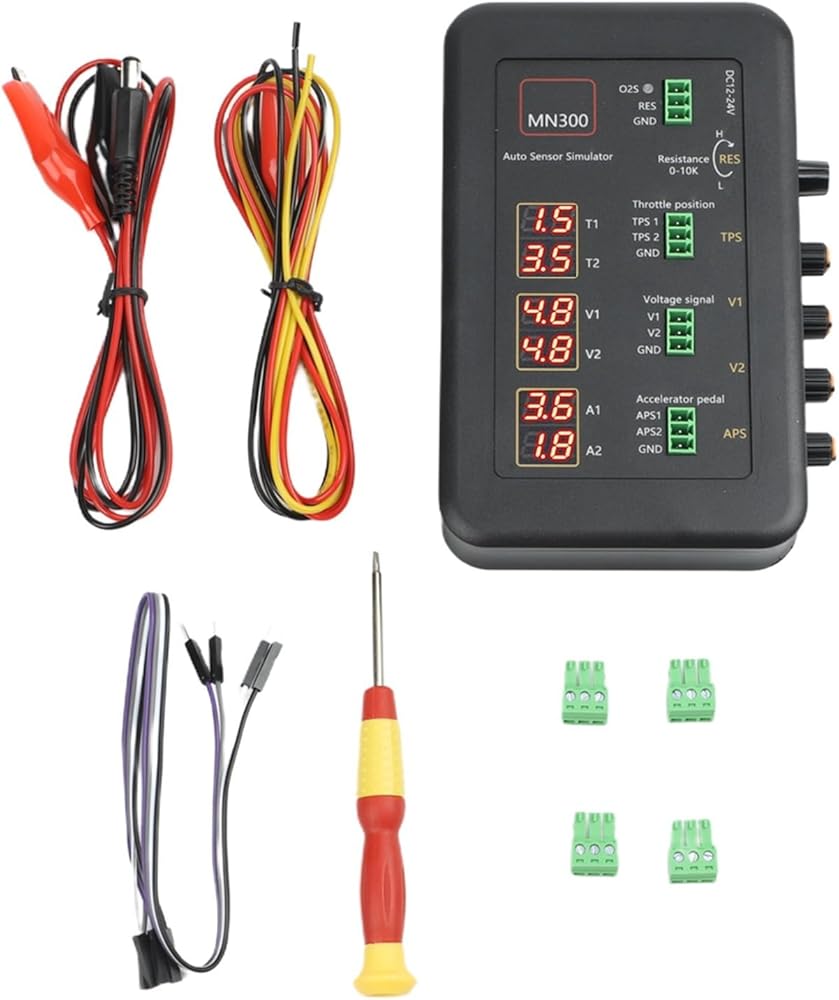

Package Contents:
1* host.
1 *power cord.
3* for alligator clip wires.
4 *wires.
4* connectors.
1 *instruction manual.
