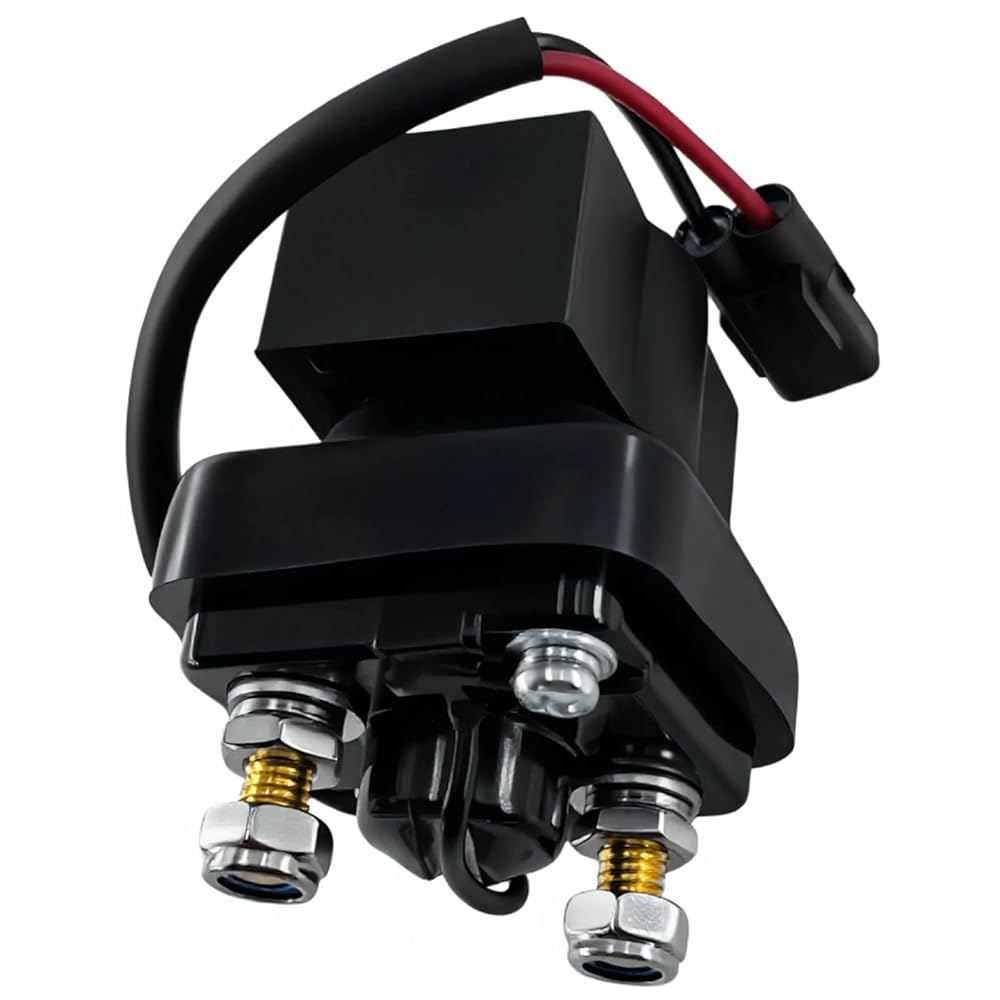

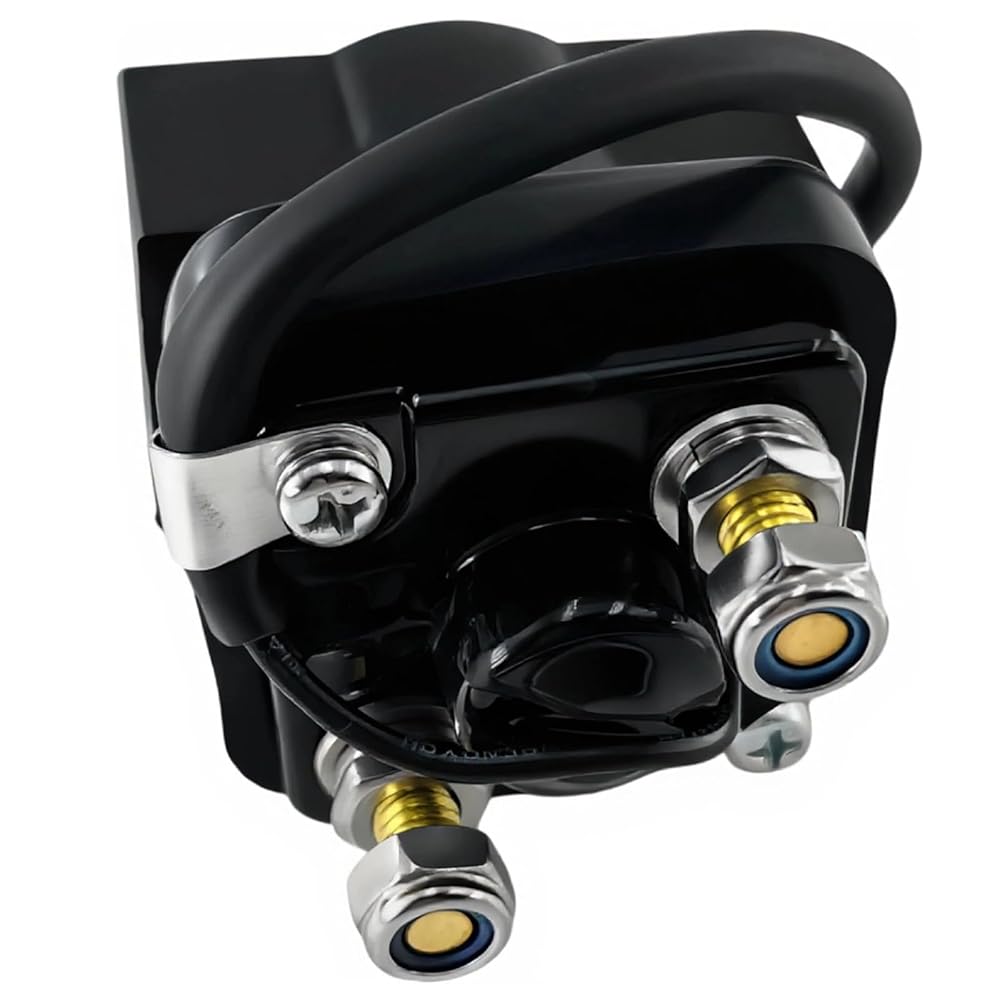

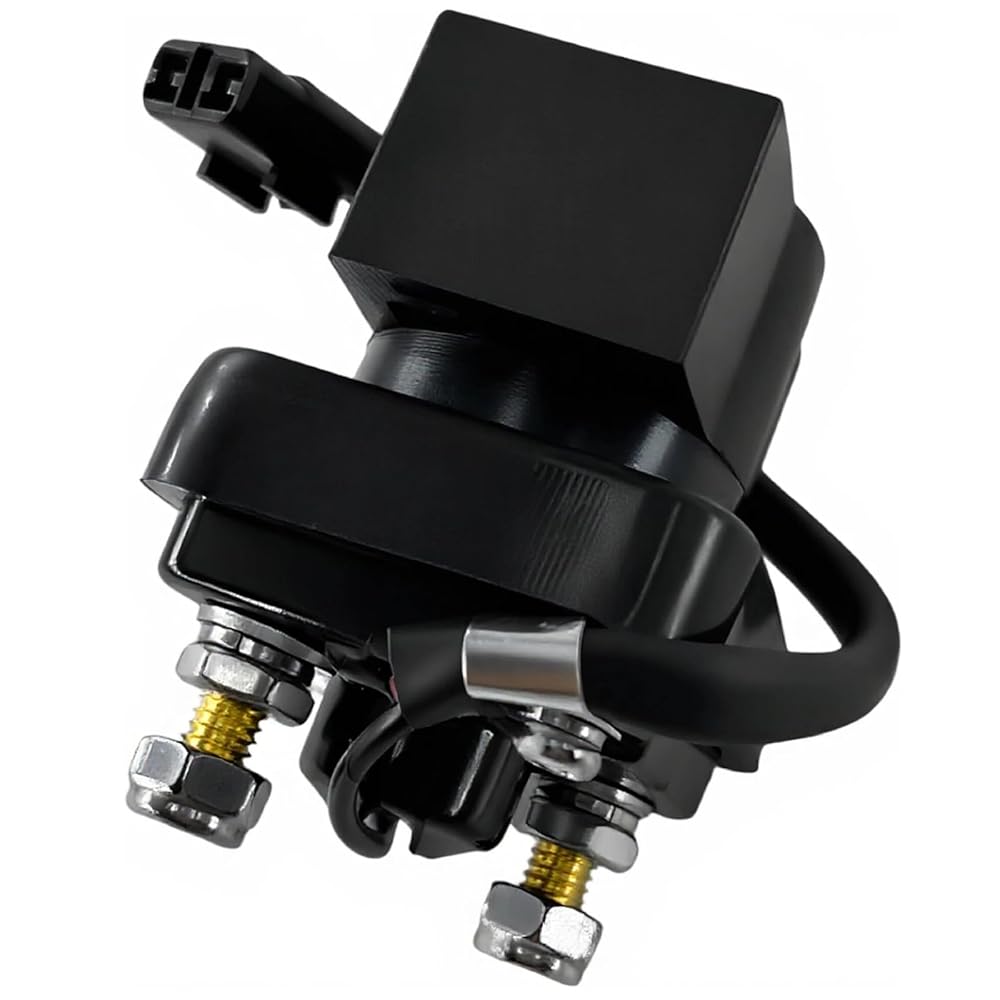

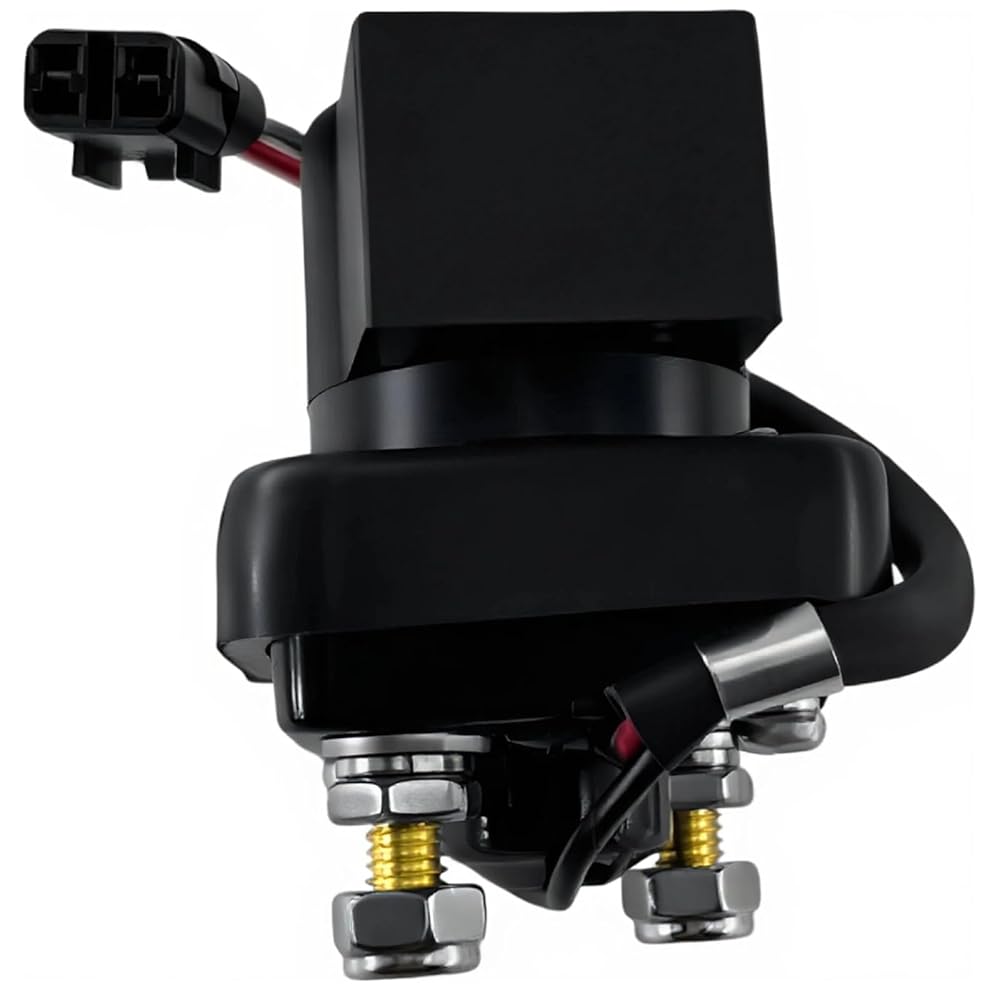

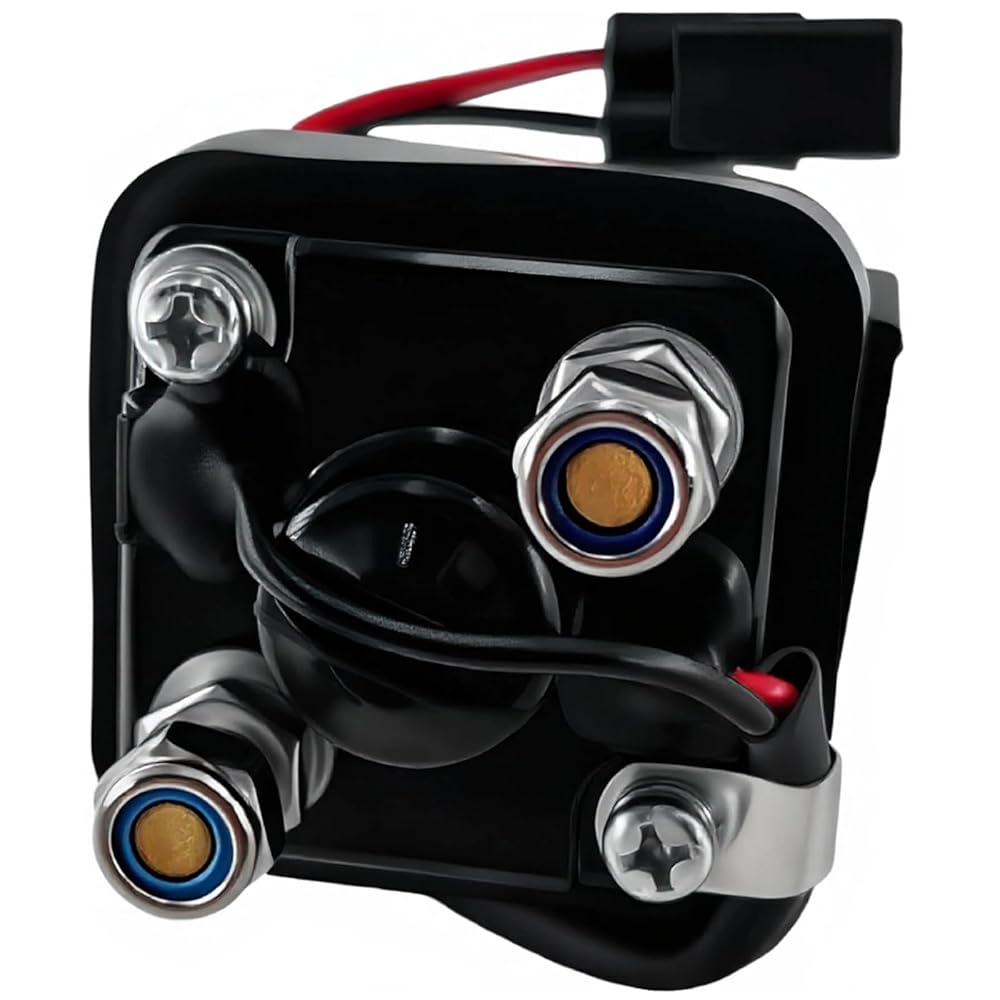

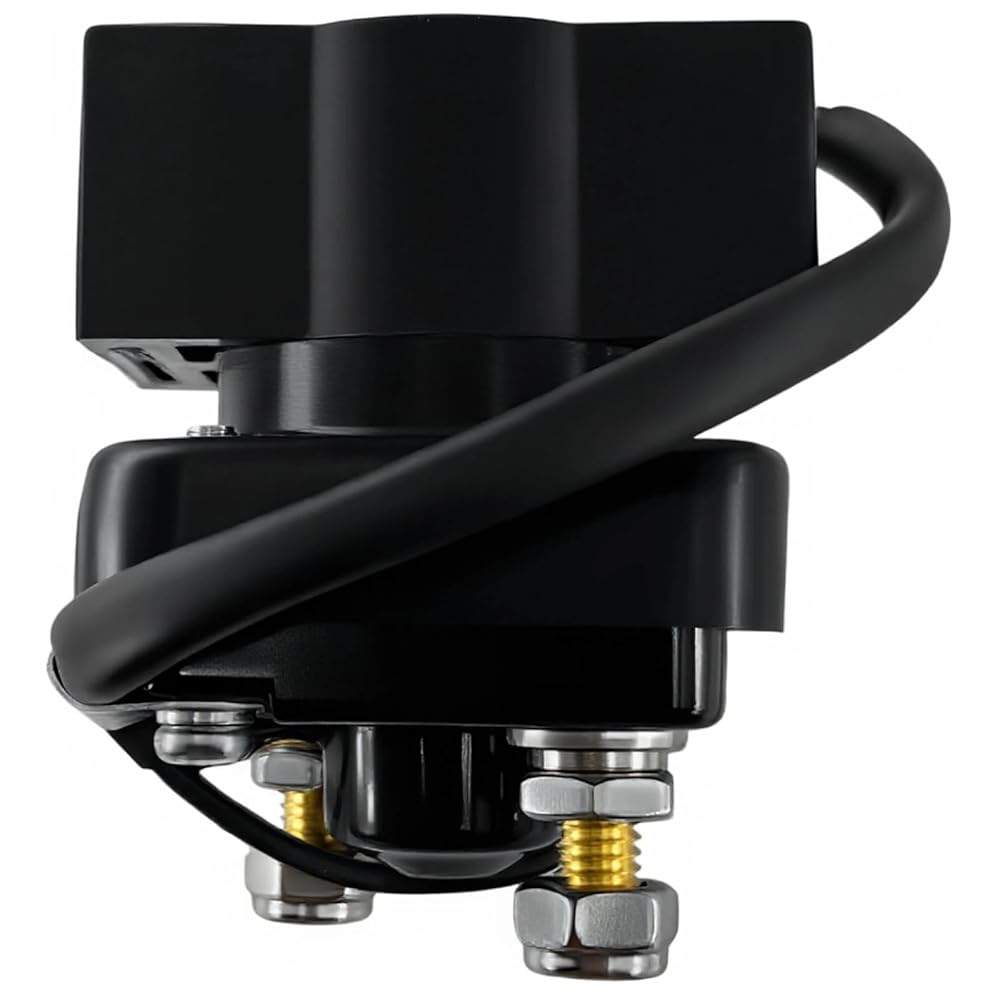

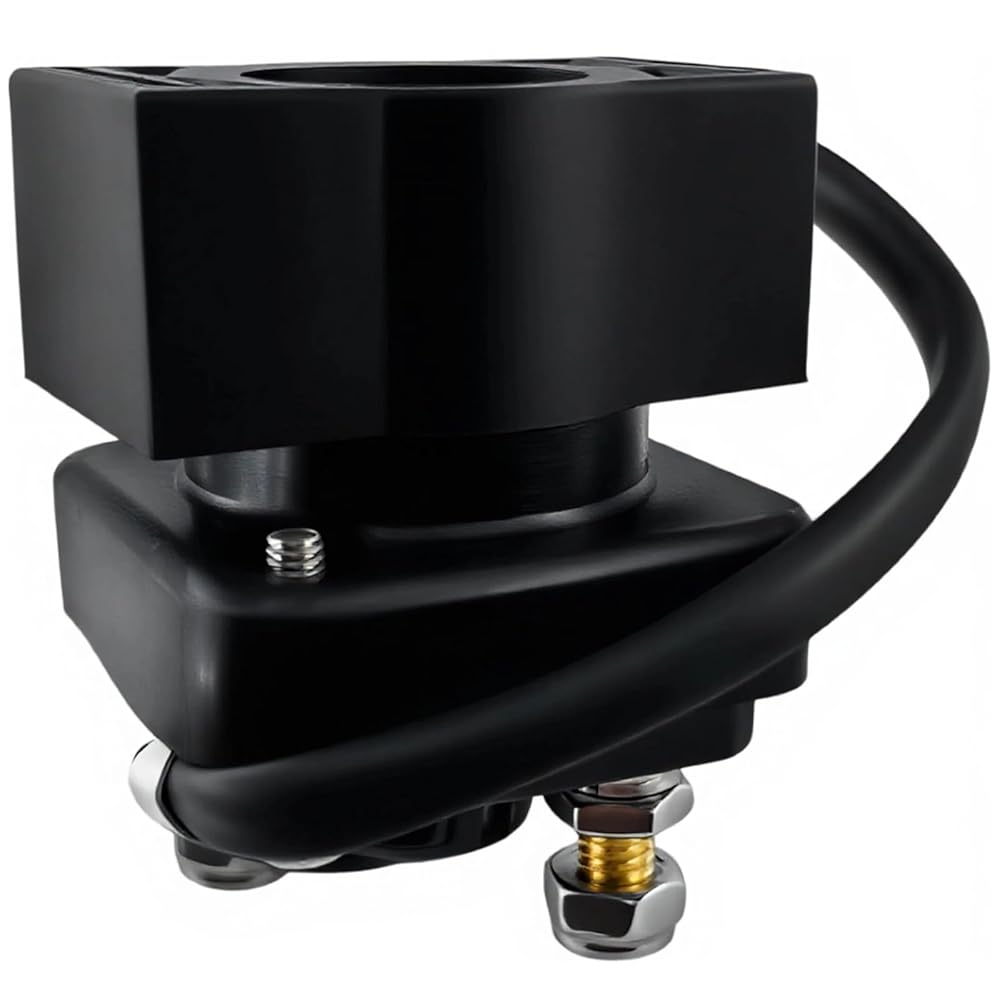

Part number: 9DSV-150510-5001
Product type: starter relay solenoid switch / starter relay for ATV starting circuit

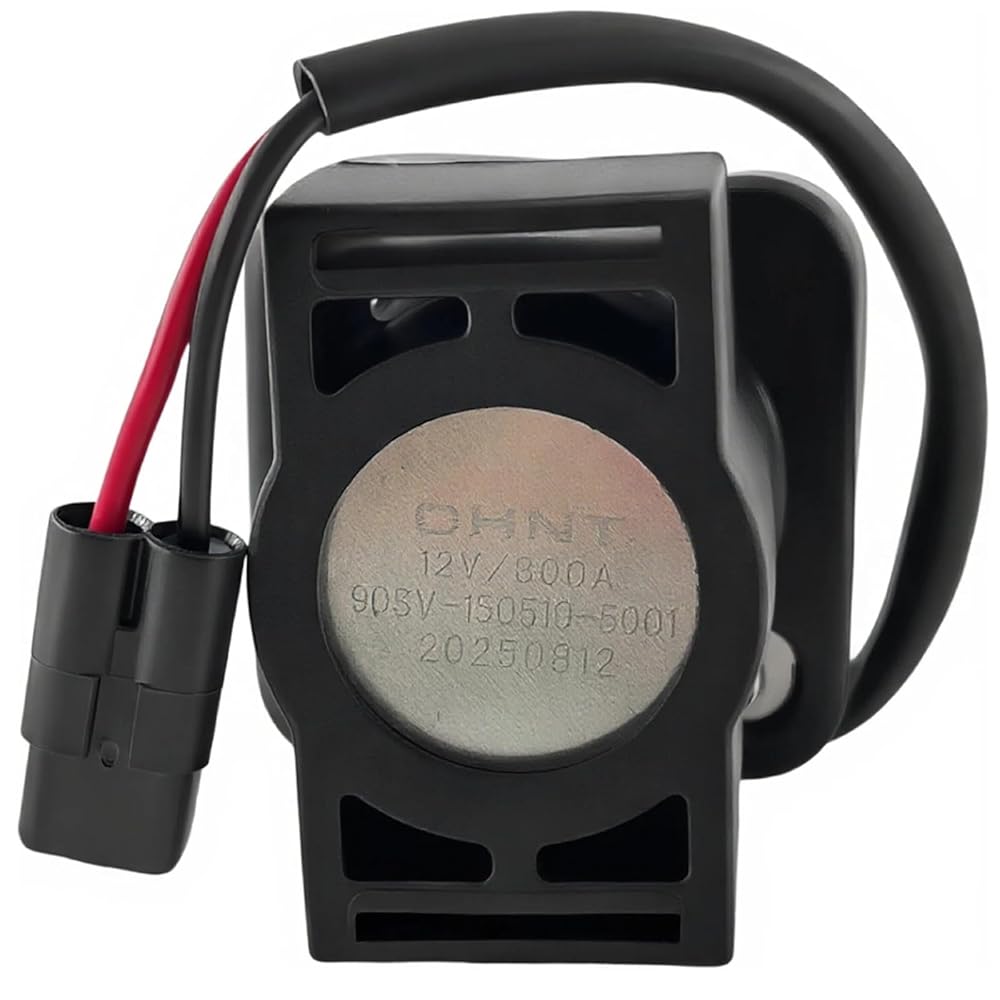

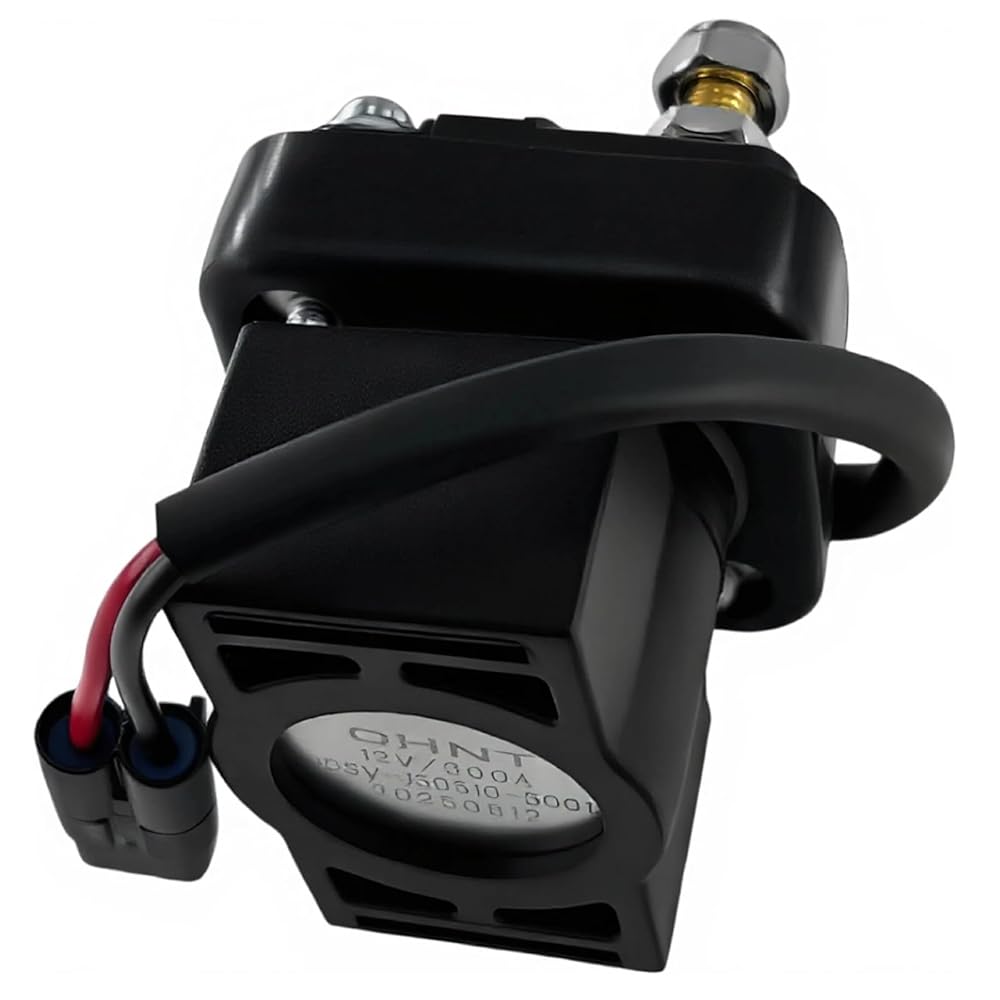

Visible electrical marking: 12V / 300A
Package: 1 starter relay
Connector layout: 2-pin trigger connector with two large power studs; match the original relay before ordering
Match part number 9DSV-150510-5001 on the original relay, parts diagram or service information.
Confirm a 12V starter relay with two large power studs and a 2-pin trigger connector.
Compare plug shape, locking tab, stud spacing, mounting bracket, cable direction and relay body shape.
Do not use this relay if your vehicle uses a different part number, plug style, pin layout, voltage rating or current rating.
Compatible with 2024-2025 CFMOTO CFORCE 600 CF600AZ-3SA and CFORCE 600 Touring CF600AZ-3LA applications using 9DSV-150510-5001.
Compatible with 2024-2025 CFMOTO CFORCE 800 Touring CF800AZ-3 applications using 9DSV-150510-5001.
Compatible with 2024-2025 CFMOTO CFORCE 1000 Touring CF1000AZ-2 and 2025 CFORCE 1000 Overland CF1000AZ-2A applications using 9DSV-150510-5001.
Compatible with CFMOTO CFORCE 1000 MV CF1000AZ-3 applications listed with 9DSV-150510-5001; verify exact year and market by your parts catalog before ordering.
Some parts diagrams place this item in the electric system as the starter relay. Use the model code and part number together to confirm fitment.
Disconnect the battery before removing or installing the starter relay.
Pull the connector straight out and avoid prying hard against the relay housing or nearby wiring.
Inspect cable ends, nuts, washers, relay socket and wiring for corrosion, moisture, heat damage or loose terminals.
Tighten the power cable nuts securely, but do not overtighten the studs.
This replacement relay may help with starting-circuit issues only when diagnosis confirms the starter relay has failed.
No-start conditions can also be caused by the battery, starter motor, fuses, wiring, ignition switch, safety switches or control module.
Vehicle names, model names and part numbers are used only to verify compatibility.
Q: Is this for the starter relay position? A: Yes, it is intended for the starter relay position using part number 9DSV-150510-5001.
Q: Will it fit every CFORCE ATV? A: No. Confirm the exact part number, relay shape, 2-pin connector and two-stud layout before ordering.
Q: Does it guarantee a no-start repair? A: No. It may help only when the old starter relay is the confirmed failed part.
