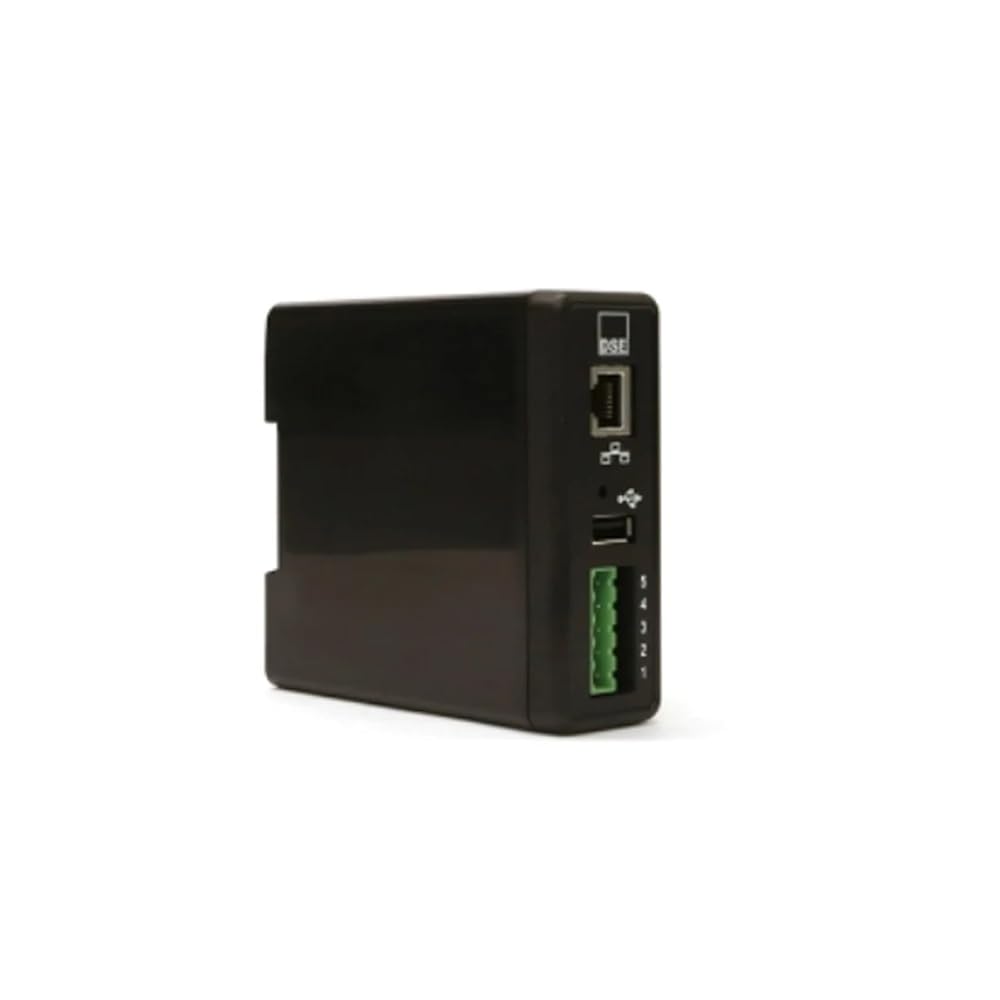

DSE855 USB To Ethernet Communications Device
function:
The DSE855communications device allows monitoring of a single DSE controller with USB connectivity over a LAN or WAN connection. To achieve this the DSE855utilises its in-built web server or MODBUS .In order to use over a LAN connection the on-site router must be configured to be accessible from any global location.
KEY BENEFITS
SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 100 mS, providingsupply was at least 10 V before dropoutand supply recovers to 5 V. This isachieved without the need for internalbatteries. LEDs and backlight will not bemaintained during cranking.
MAXIMUM OPERATING CURRENT
123 mA at 12 V
71 mA at 24 V
MAXIMUM STANDBY CURRENT
104 mA at 12 V
63 mA at 24 V
COMMUNICATIONS
USB (Single DSEController)
Ethernet
