Bearings
Outside Snap Ring (OSR) Style
G1=44mm
G2=44mm
D1=17mm
D2=17mm
Outside Snap Ring (OSR) Style
G1
D1
G2
D2
Over
Bearing cap
Over
Bearing cap
Caps
Diameter
Caps
Diameter
44mm
17mm
44mm
17mm
Universal Joints/Crucetas/Joints de cardan
Mechanical,passenger car, light, medium and heavy duty truck applications
Includes Universal Joint dimensions & related parts
Ujoints with 4 plain round bearings First measure the outside diameters of two adjacent bearings to see if they are the same or different. Locate the diameter(s) in the first column using the smaller diameter first if the bearings are of two sizes. Second, remove the seals from two bearings opposite each other and re-install the bearings on the cross. Measure the overall dimension and locate it in the second column. Note, the measured dimension should be slightly less than that shown. If necessary, note the type and location of any lube fittings.

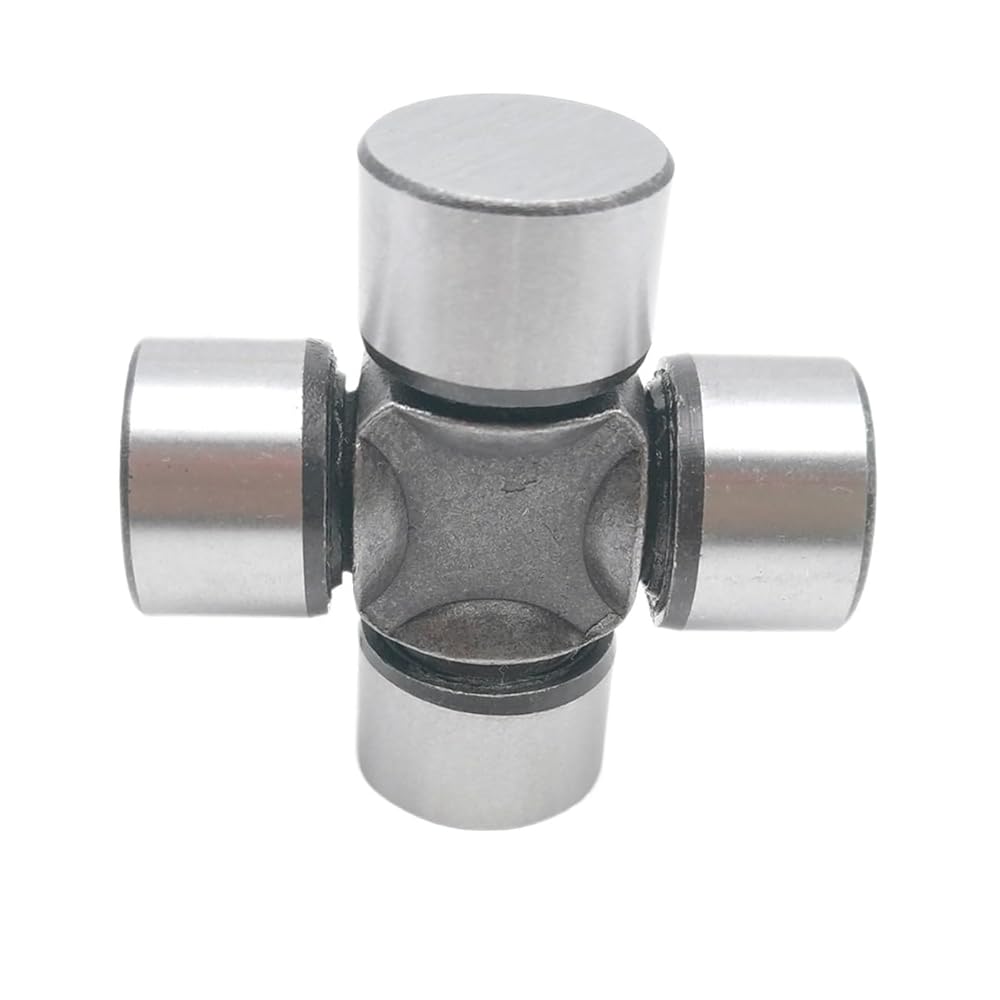

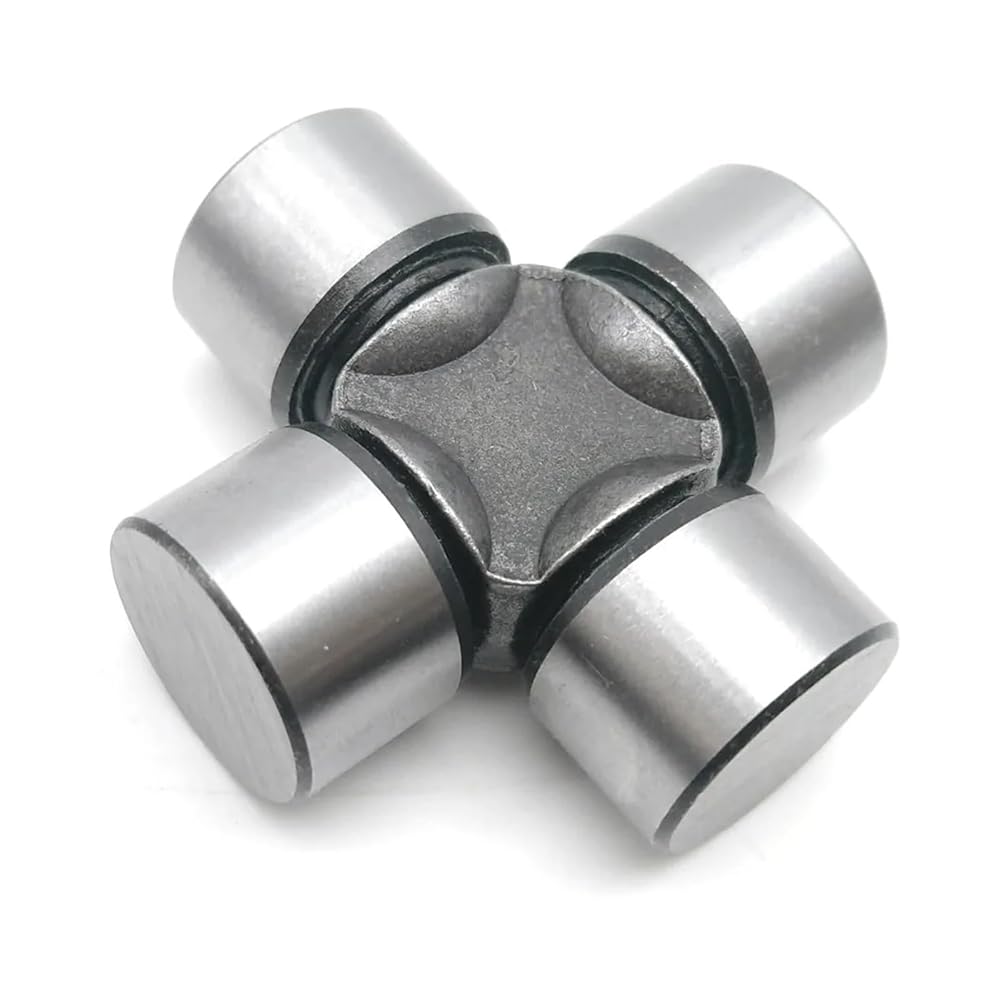

Model Number : 17X44
Material : Steel
Structure : Cross
