مميزات خاصة

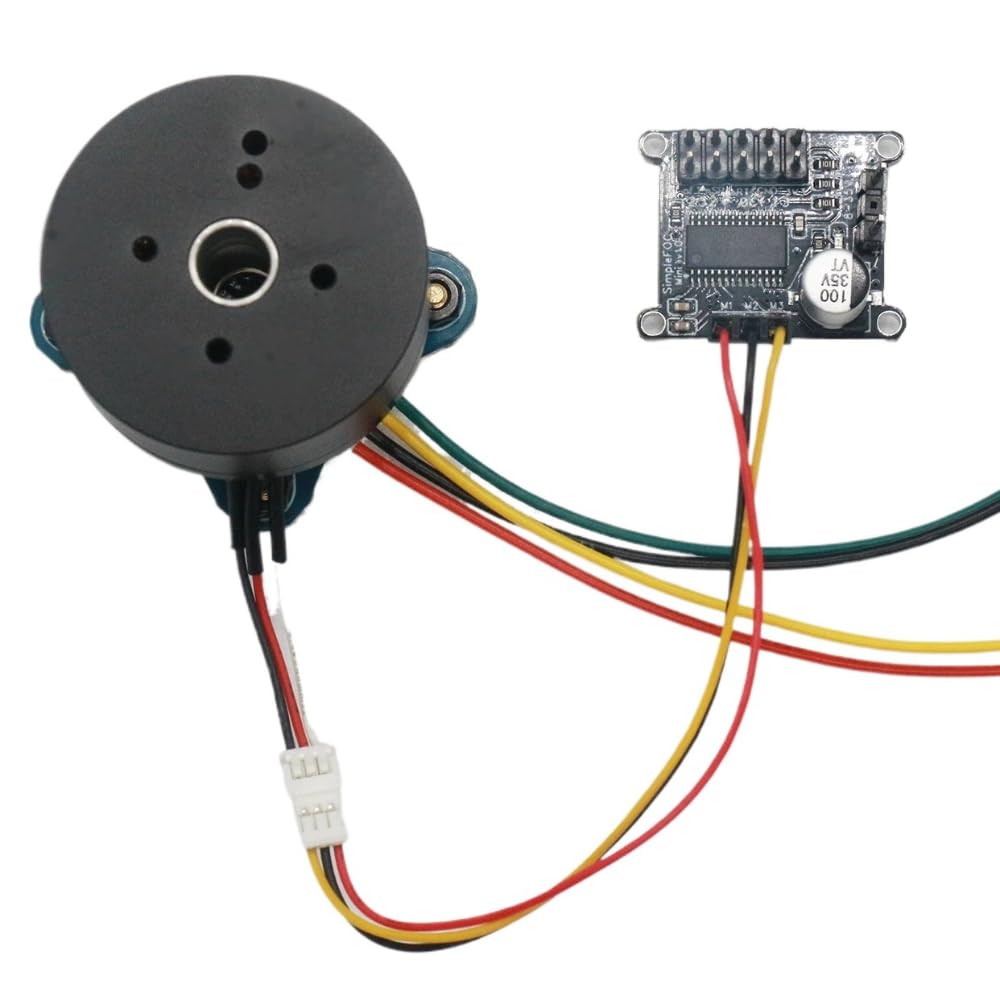

【All-in-One Brushless Motor Kit】: This 2804 brushless outrunner motor kit includes pre-matched AS5600 magnetic encoder, SimpleFOCmini driver board and full connection cables, ready to use out of the box, no extra matching parts needed.
【Smooth Ultra-Silent Precision Motion】: 12N14P structure outrunner hollow shaft gimbal motor delivers rated 300 g·cm torque with ultra-low ripple, ensuring stable rotation, minimal vibration, ultra-silent operation and low heat generation during long-time running.

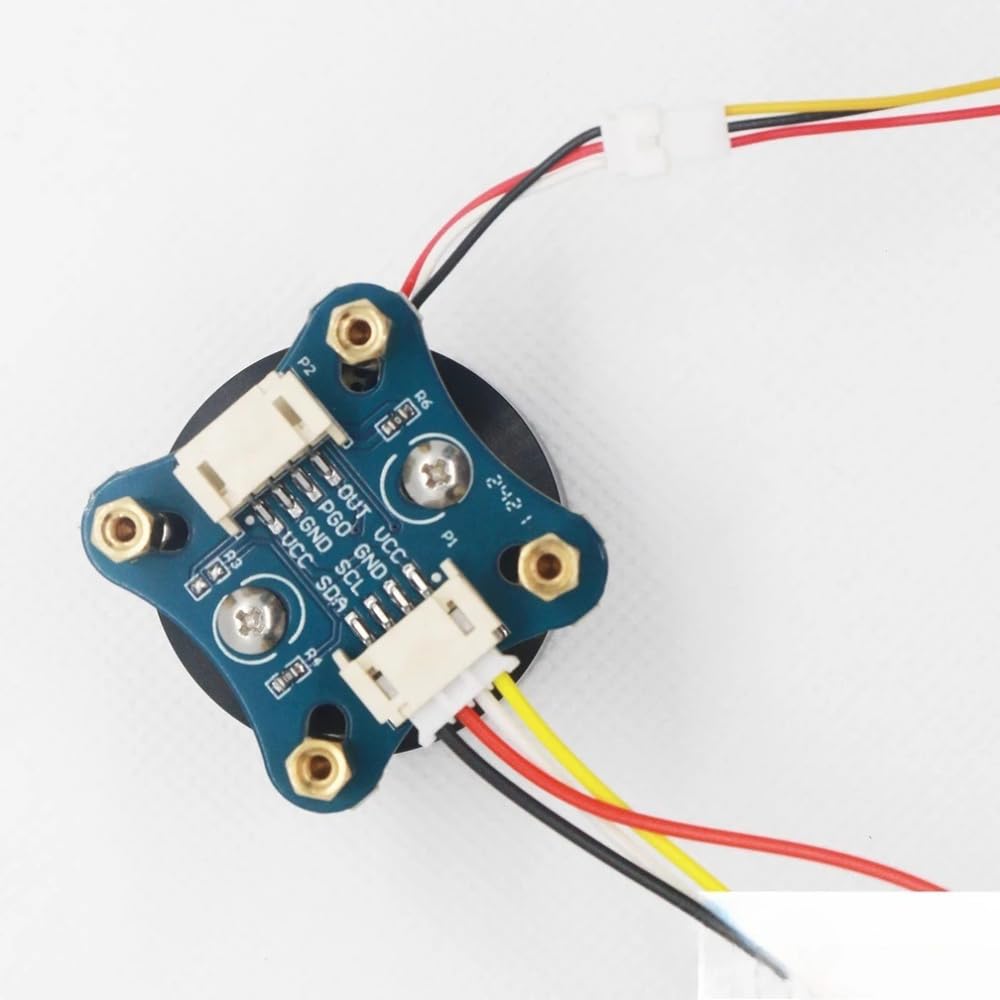

【Pre-Integrated AS5600 Magnetic Encoder】: Pre-installed magnet ring on the hollow shaft enables fast encoder setup without complex calibration. The I2C interface AS5600 encoder provides reliable angular position feedback, supporting high-precision closed-loop control and easy wiring to standard microcontrollers.
【Wide Compatibility & Multiple Control Modes】: Supports FOC, SPWM, SVPWM and trapezoidal control, fully compatible with SimpleFOC, ODrive, VESC, DengFOC, common ESCs and standard microcontrollers like Arduino.
【Hollow Shaft Design for Broad Applications】: 5.4-6.5mm inner diameter hollow shaft allows clean routing of cables or linkages through the center, ideal for camera gimbals, drone gimbals, robotics projects, DIY RC prototypes and precision motion control builds.

وصف

This brushless outrunner motor kit is designed for custom camera gimbals, drone gimbal builds, robotics projects, DIY RC prototypes, and precision motion control development.
Specifications:

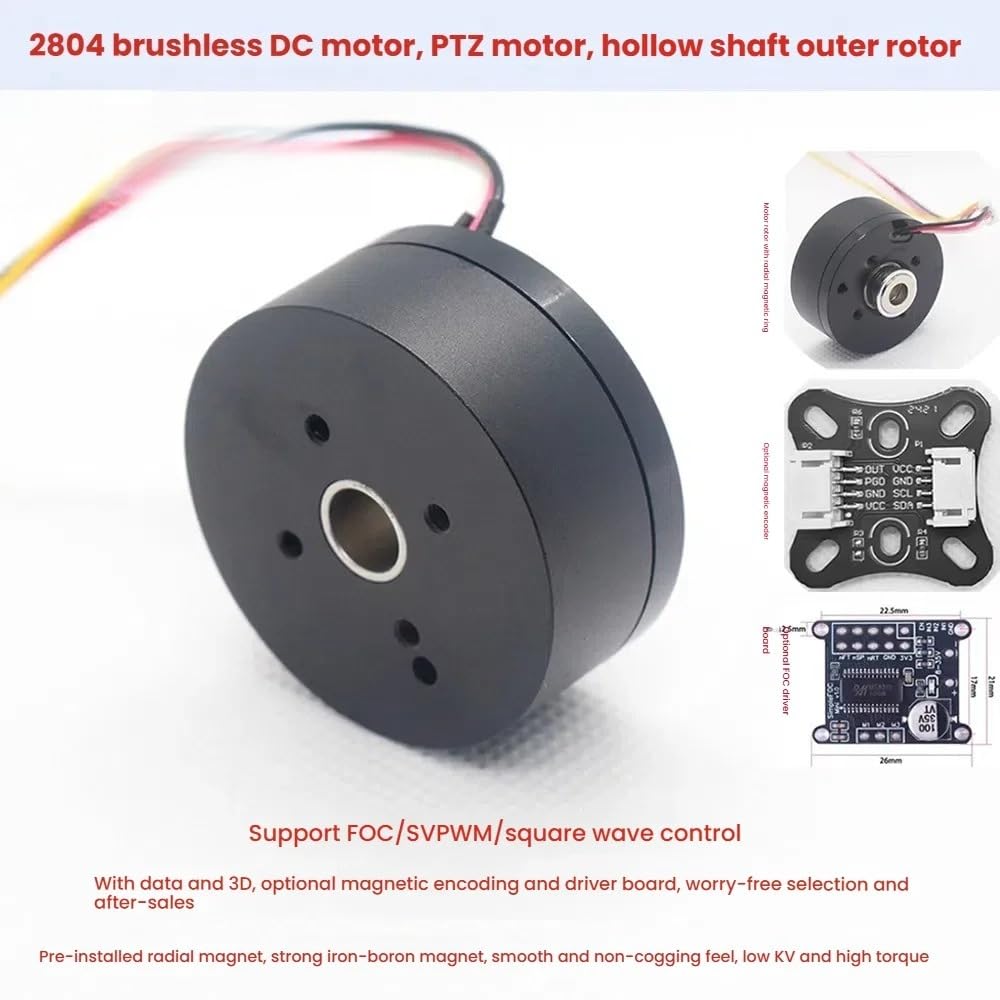

Motor Type: 2804 Brushless Outrunner Hollow Shaft DC Motor
Operating Voltage: 7.4-16 VDC (Rated 12 V, Max Instantaneous 20 V)
Stator/Rotor Structure: 12N14P (12 Stator Slots, 14 Poles, 7 Pole Pairs)
Motor Dimensions: 34.5 × 15 mm; Total Height 19.5 mm with Radial Magnet Ring
Hollow Shaft Diameter: 5.4-6.5 mm
Phase Resistance Rs: 2.55 Ω
Rated Current: 0.5 A; Maximum Current: 2 A
KV Value: 220 RPM/V
No-load Speed: 2600 RPM @ 12 V
Rated Torque: 300 g·cm (0.03 Nm)
Supported Control Modes: FOC, SPWM, SVPWM, Trapezoidal Control
Compatible Platforms: SimpleFOC, ODrive, VESC, DengFOC, Standard ESCs

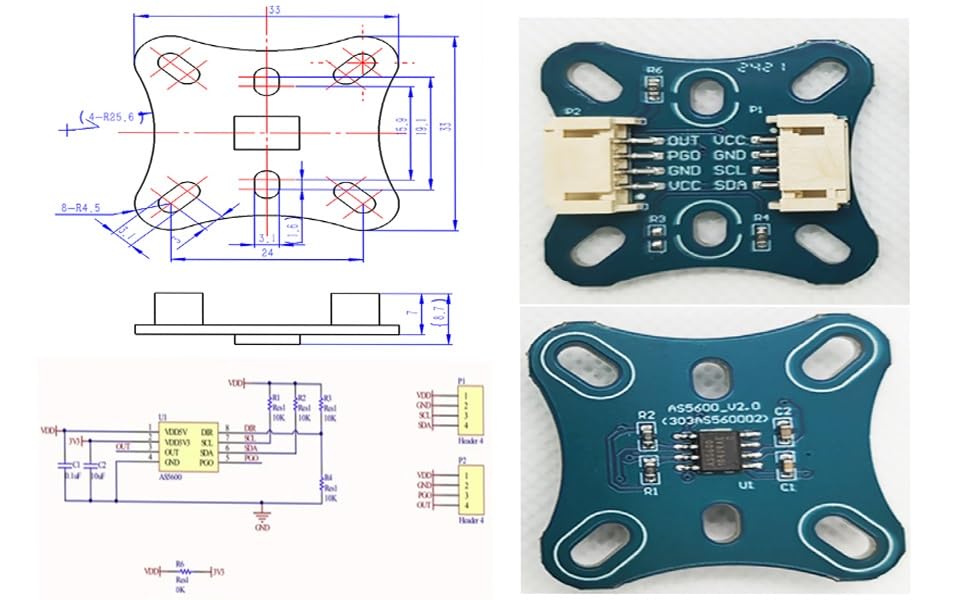

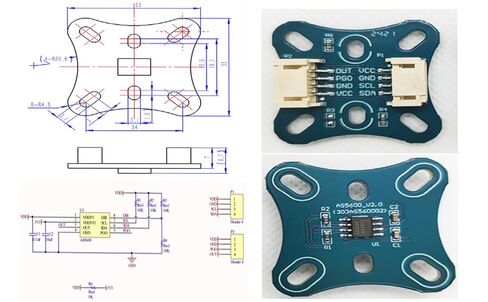

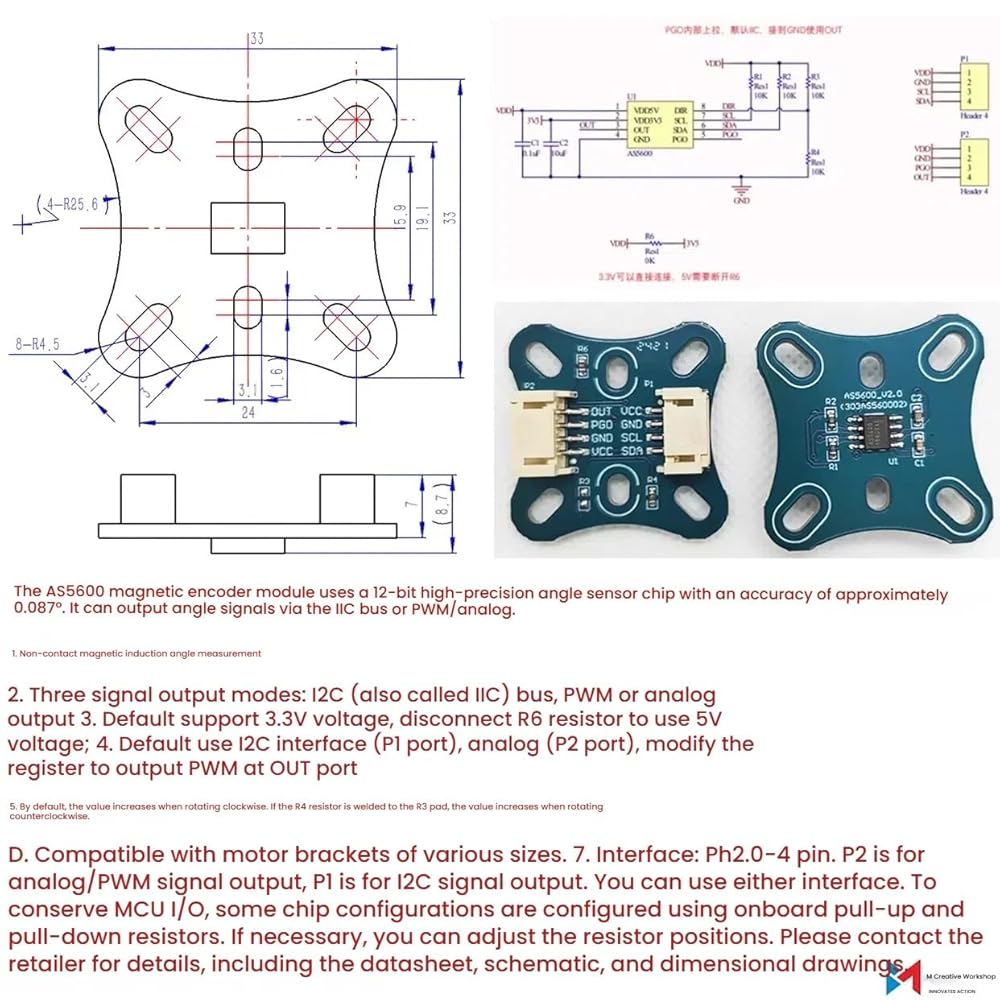

Matching Encoder: AS5600 Magnetic Encoder (I2C Interface)
Matching Driver Board: SimpleFOCmini Driver Board

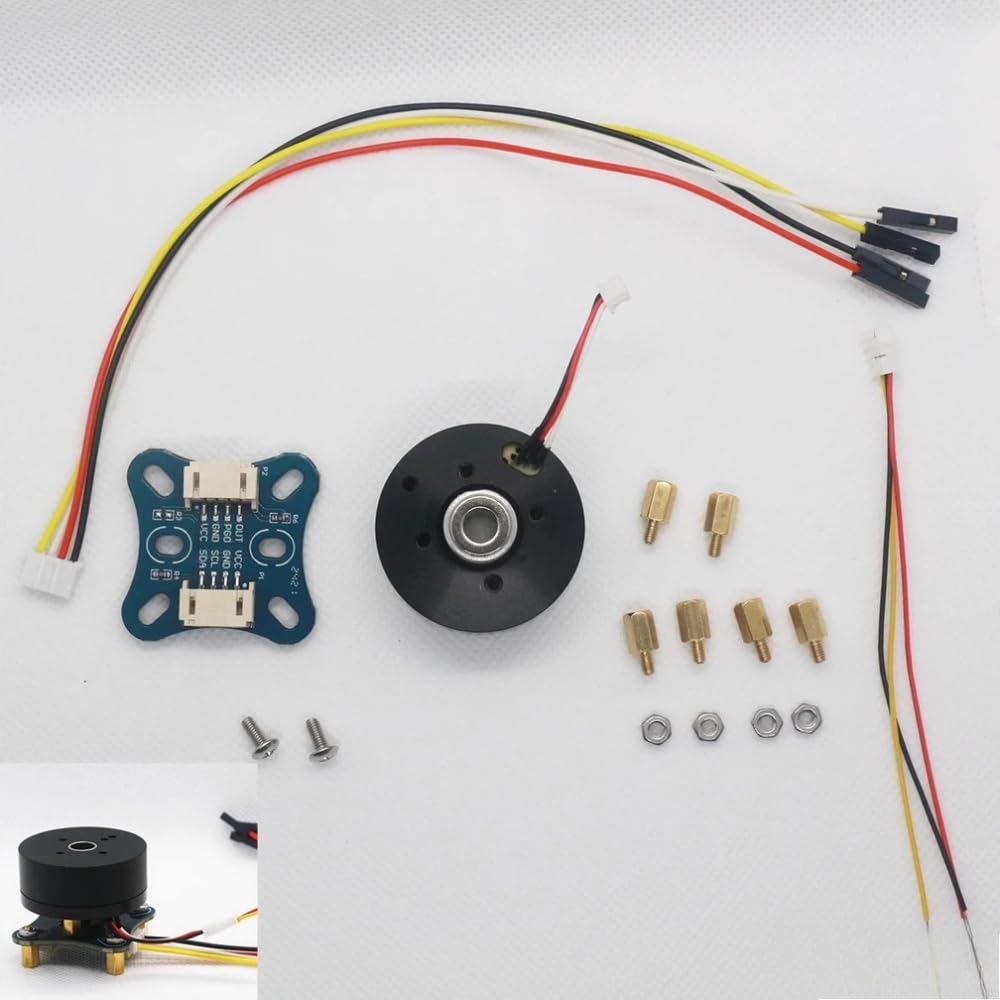

Product includes:
2804 Brushless Outrunner Hollow Shaft Motor
Pre-Installed AS5600 Magnetic Encoder with Magnet Ring
SimpleFOCmini Driver Board
3P MX1.25 Motor Connection Cable
4-Pin Encoder Connector Cable
