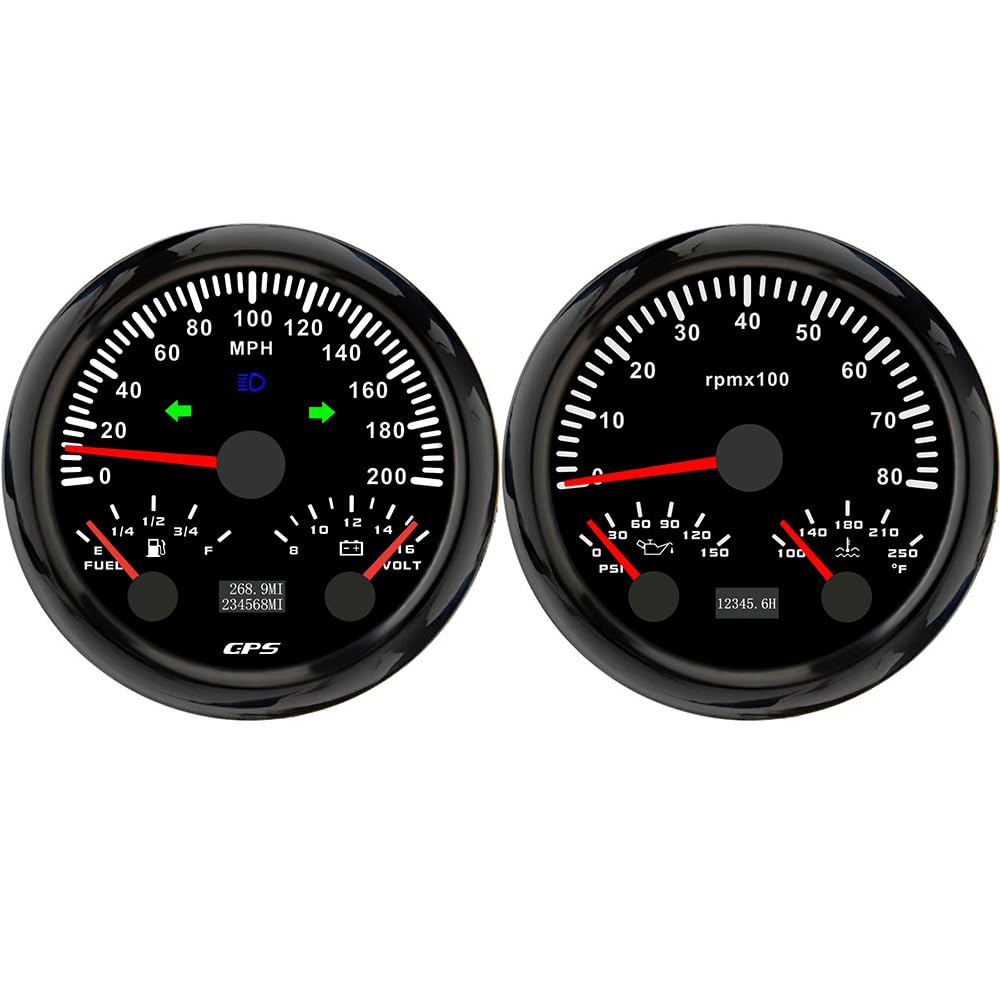

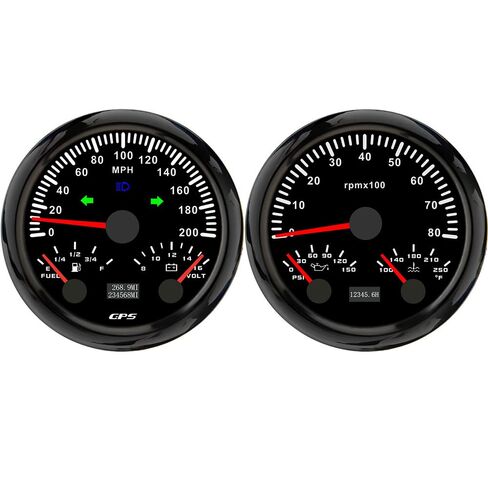

ELING 85mm 2 Gauge Set Speedometer 120MPH GPS Tachometer 8000RPM Fuel Level Water Temp. 100-250℉ Oil Pressure 0-150PSI Voltmeter with Sensor 7 Colors Backlights 12V for Tractor Van Boat in Kuwait

Black+Black 0-200MPH Gauge Set

KWD 66
Brand
ELING
Weight
1 kg
ColorBlack+black
Size0-200MPH Gauge Set
– 1 +

Special Features

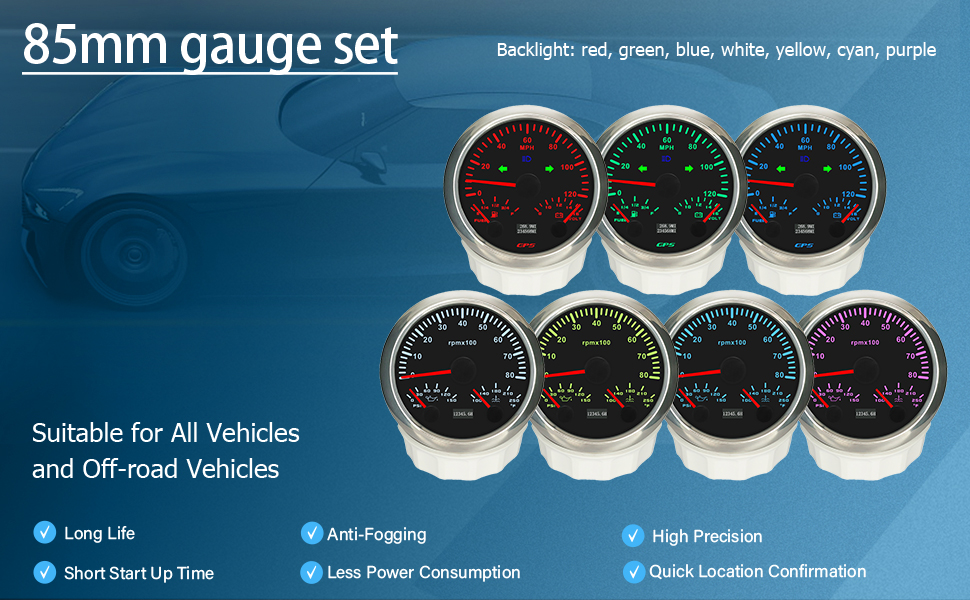

  • Gauge Set-3 in 1 Multifunctional GPS Speedometer, 3 in 1 Multifunctional Tachometer. 7 Backlights available (red, green, blue, white, yellow, cyan, purple)
  • Gauge Set-GPS speedometer indicating range: 0-120MPH, Tachometer indicating Range: 0-8000 RPM, Fuel Level Gauge indicating Range: E-1/2-F, Water Temperature Gauge indicating Range: 100-250℉, Oil Pressure Gauge indicating Range: 0-150PSI, Voltmeter indicating Range: 8-16V.
  • Gauge Set-GPS Speedometer's signal: GPS signal, Tachometer's signal: Pulse signal, Fuel Level Gauge's Signal:0-190ohm/240-33ohm/0-90ohm/10-180ohm, Water Temperature Gauge's Signal: 301-22ohm, Oil Pressure Gauge's Signal: 10-184ohm.
  • Installtion: Cut an 85mm (3 3/8") hole in the panel and allow a clearance of 55mm behind the panel to fit the gauge. Put the gauge in the hole and screw down.
  • For the GPS antenna, you should securely fasten it in the flat position, black side upwards, preferably outside (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. And do not cut cable.
