Starboard Side Piston Kit Standard Compatible with 1985-2001 Johnson Evinrude 150HP-235HP V6 Loop Charge Outboard 3.600" Bore

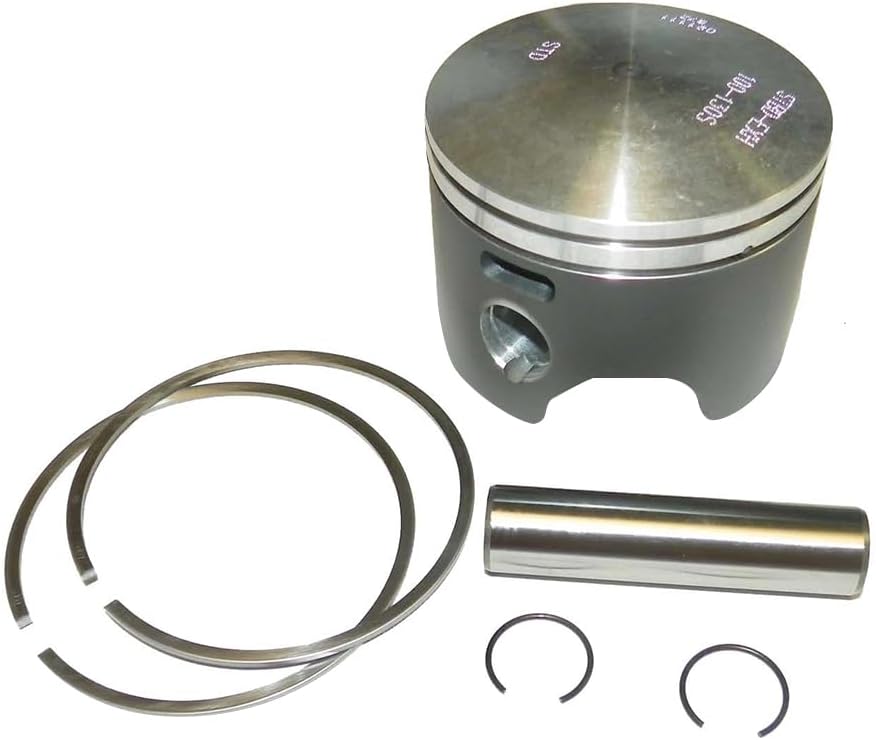

Direct replacement standard size starboard side piston kit for 1985 through 2001 Johnson and Evinrude V6 60-degree loop charge 2-stroke outboard motors with 3.600" standard bore. Kit includes cast aluminum piston machined to 3.600" bore, piston ring set, wrist pin, and circlip retainers for a complete single-cylinder rebuild. Starboard side only — order matching port piston kit separately for complete rebuild.

OEM CROSS-REFERENCE PART NUMBERS:
0434504 / 434504 (starboard standard piston)
0436243 / 436243
5006682
5006688
5006684 (ring set)
326764 (wrist pin)
326765 (circlip retainers)

SPECIFICATIONS:
Type: Starboard Side Piston Kit with Rings
Size: Standard
Bore: 3.600" Standard
Engine: V6 60-Degree Loop Charge 2-Stroke
Configuration: 60-Degree V6 Carbureted / VRO
Horsepower: 150HP-235HP
Side: Starboard (Right)
Kit Contents: Piston, Ring Set, Wrist Pin, Circlip Retainers
Material: Cast Aluminum

APPLICATIONS:
150HP V6 Loop Charge (1985-2001)
175HP V6 Loop Charge (1985-2001)
200HP V6 Loop Charge (1985-1998)
225HP V6 Loop Charge (1986-2001)
235HP V6 Loop Charge (1986-1994)

NOTES:
This is the STARBOARD side piston only — order matching port piston separately
Kit is for ONE cylinder — V6: order 3 port + 3 starboard pistons

⚠️ Verify OEM part number from your original engine before ordering.
