DO926 RACING DASHBOARD
This product is the upgraded version of DO908! alarm function (water temperature, oil temperature, oil pressure, boost, voltage) and seven-color backlight!
ModelDO926
DisplayDigital
Size6.5 inch
LanguageEnglish
Operating Voltage9V-16V
ApplicationAll 12V Vehicle

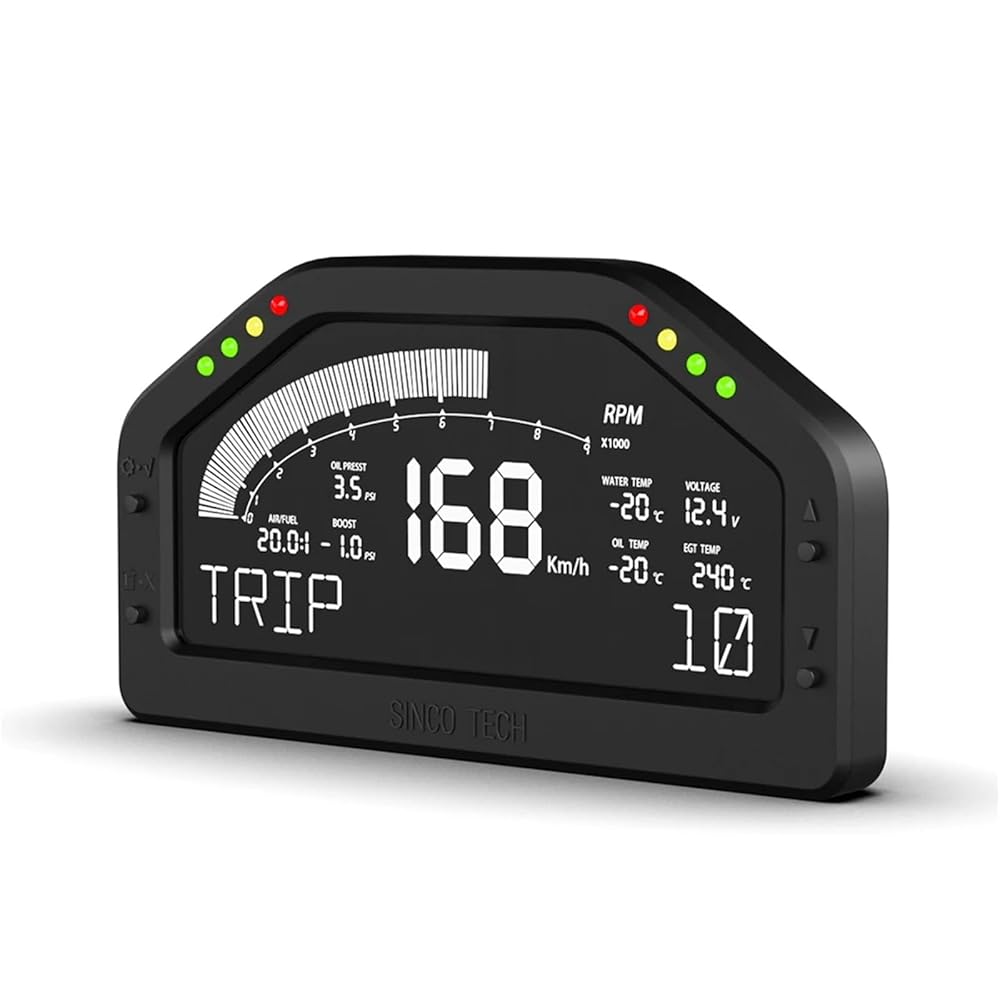

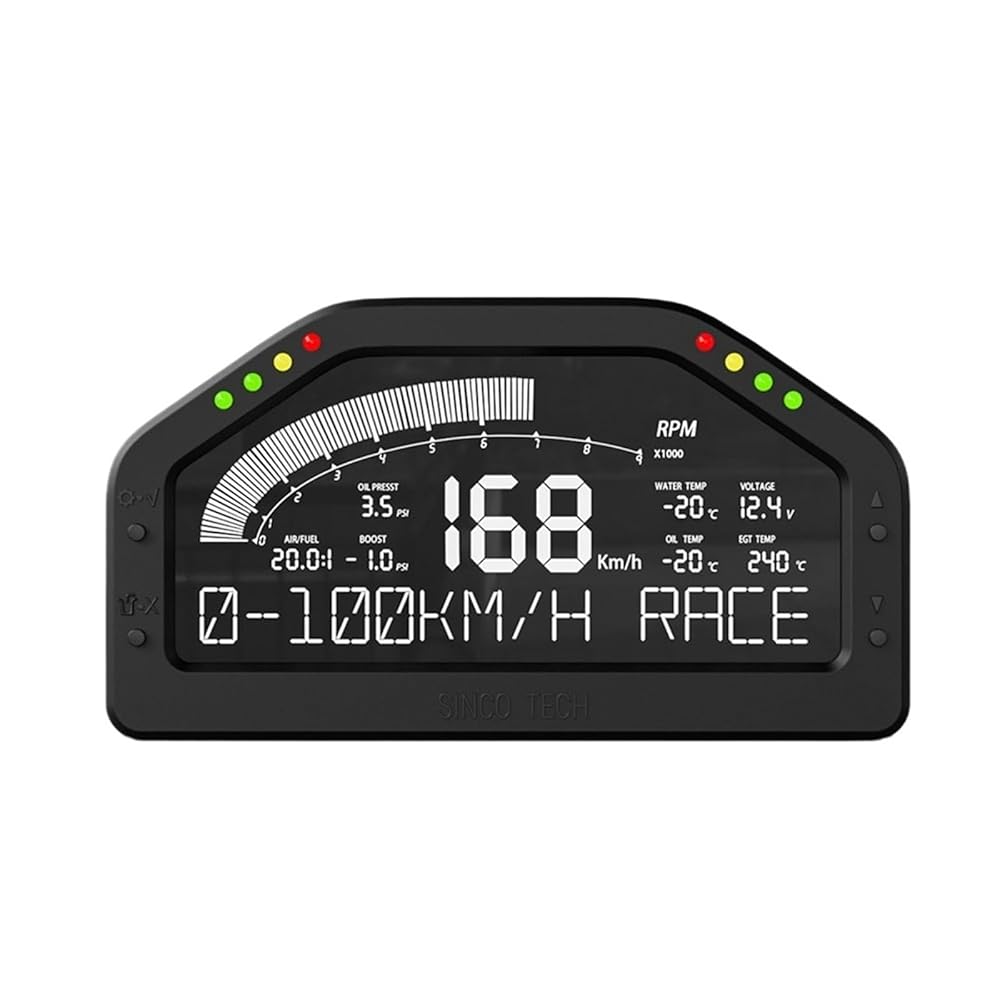

DO926 Multifunctional race dashboard features a 6.5 inch low consumptionLCD screen with high precise sensors kit . Chinese/English available, low consumption screen with black backlight with 7colorsdisplay optional,universal to all 12V vehicles( 1-8 engine cylinders), RPM to 9000 max. Four speed alarm LED lights and two button keys are designed on either side of display shell.
Functions Display1. RPM
2.Speed
3.Oil Pressure
4.Oil Temp.
5.Water Temp
6.Boost
7.Air Fuel Ratio
8.EGT
9.Voltage
10.ODO and Trip
11.0-100KM/H Testing Mode
Alarm SettingSPEED, TACHO, WATERTEMP, OIL.TEMP, OIL PRESSURE, BOOST, VOLT
Dimension
186mm*102mm*22mm

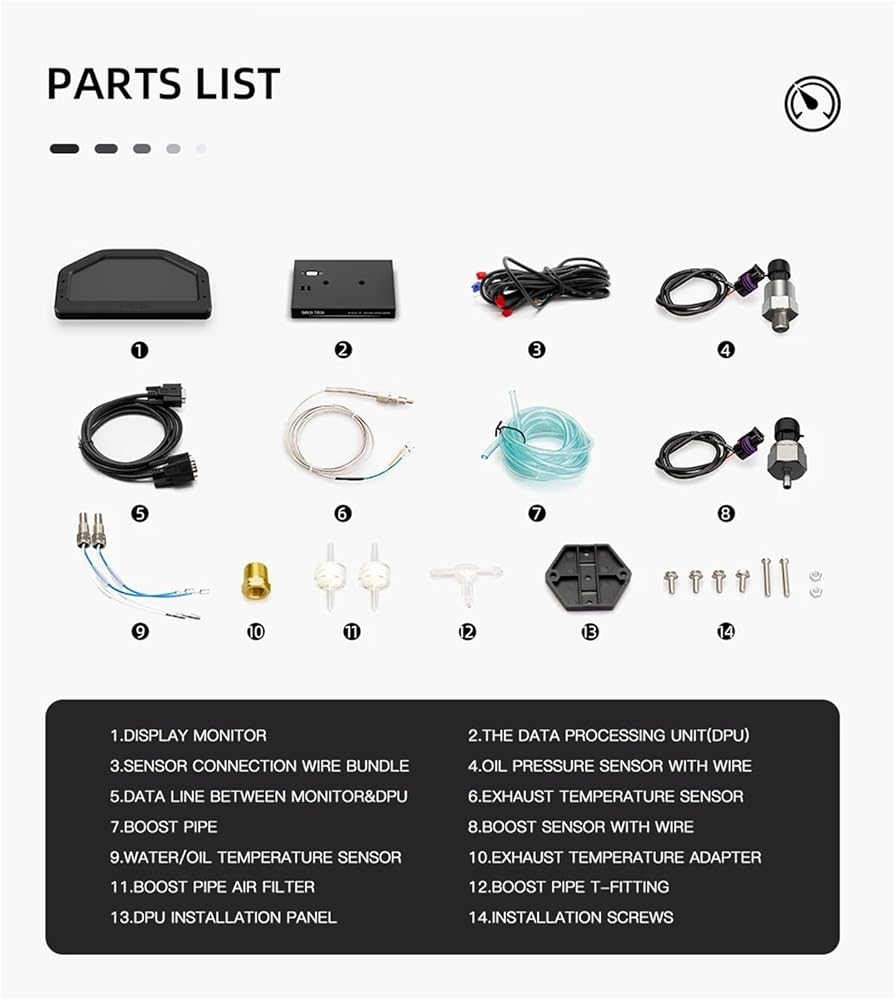

Parts List
1. Displaymonitor
2. Data processing unit (DPU)
3.Sensors and wiring.
4. Instructions manual
Features
Low consumption screen
8 LED lights with sequential indicator function
With a advanced system

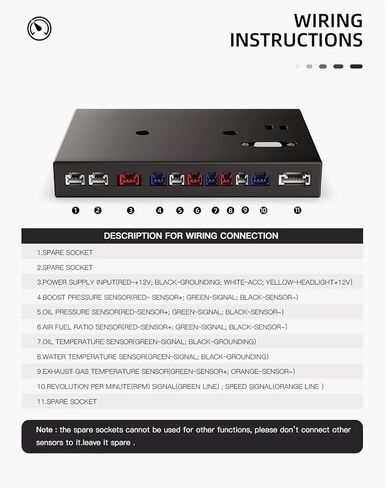

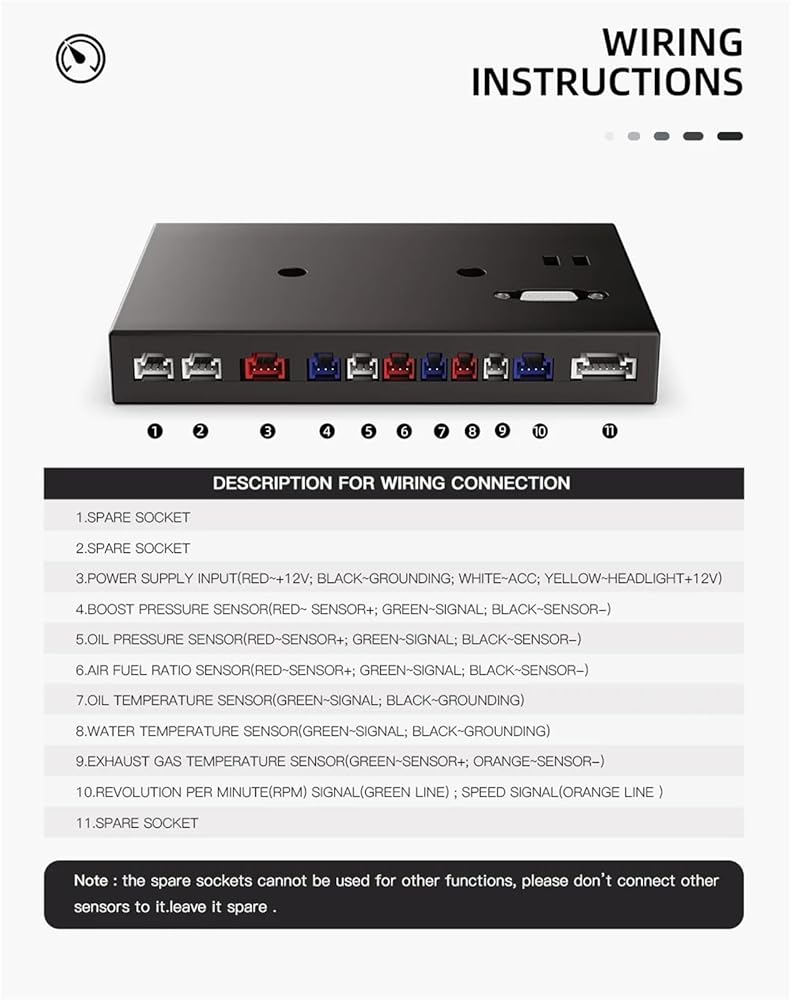

Harness wiring
ODO and Trip display
waterproof
Time clock function
Backlight Dimmeradjustedby manual
7 Color adjustable ,11 backlight modes optional
==========
High-concerned chemical : None
Other Part Number : Full Sensor Kit Car Meter Rally Gauge
Placement on Vehicle : FRONT
Country/Region of Manufacture : CN
Interchange Part Number : DO926
Special Features : Waterproof
Item Weight : 1.4KG
Item Height : 102MM
Item Width : 22MM
Item Length : 186MM
Part Number : DO926
Origin : Mainland
Material : ABS++METAL
NO. : BX102424
Application : ALL 12V CARS
Operating Voltage : 9V-16V
