Product Description:
Condition:100% with orginal packaging.
With high speed stepper motor ,give you a quick response.

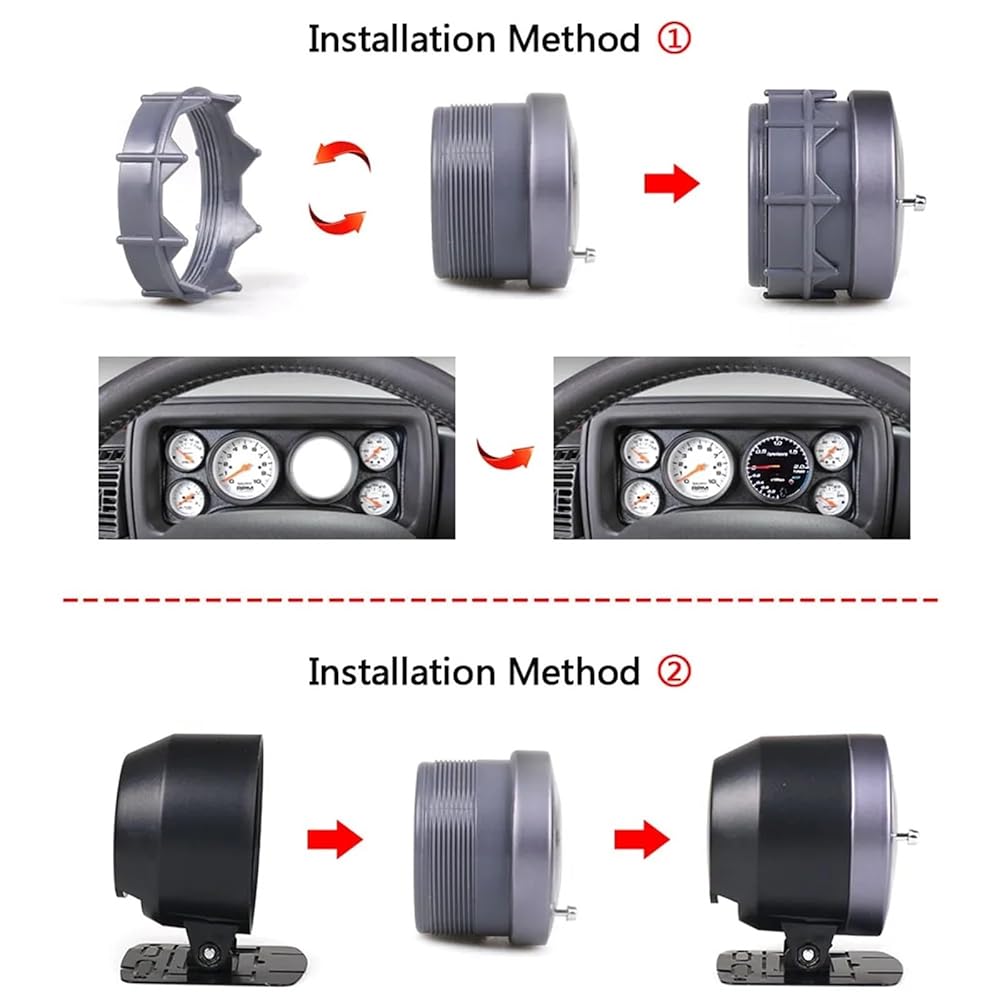

Two installation methods according to your preference.
Power:DC 12V Professional.
Diameter:2.5"/60mm.
Unit: PSI

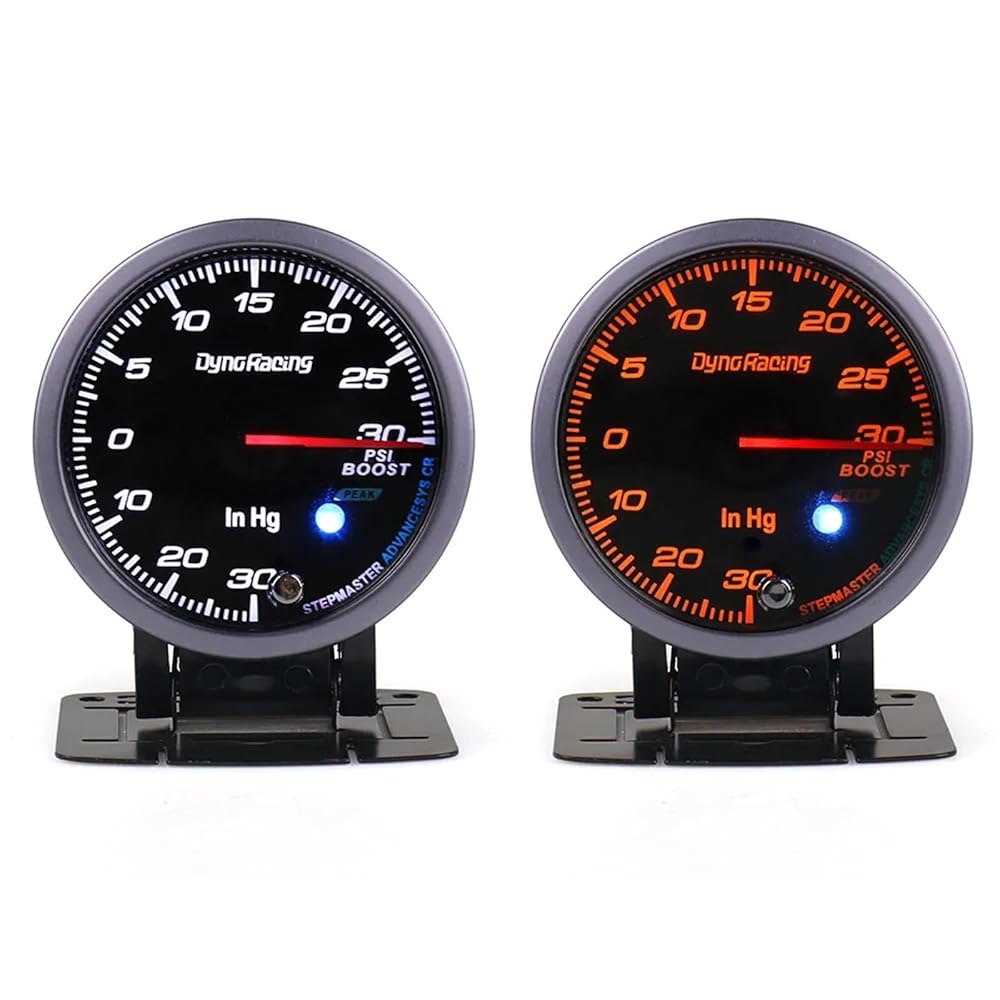

Backlight:White/Amber(you can change it by yourself by wiring)
Universal fit for: All car models with 12V power.
6 Months Warranty
Note:Easy Installation With Users Manual In English,Professional installation is Highly Recommended.
Package include:
1*Boost Gauge Psi
1*Boost Sensor
1*Vacuum pipe
1*T Joint
1*Screw Knob
2*Cables
1*Gauge Holder and mounting accessories
Question and solution(Please connect the boost sensor for subsequent setup
):
1:How to cancel the buzzing sound?
If you want to cancel the buzzing sound, just restart the power supply and hold the button until the buzzing sound disappears, then release the button. Vice versa.
2:How to set the PEAK Value
After completing the Self-checking, press the button and release, the PEAK lights up (blue light). Then hold the button again for 3 seconds, when the PEAK light flashes, release the button, PEAK value is cleared, the pointer will returns to zero after about 3 seconds.
2:How to set alarm points and cylinder:
After self-examination, hold the button for 5 seconds, the pointer lights flicker, loosen, and then press the button to set the alarm point (Press the button and fleetly for fine setting, press and hold the button for quick setting). After about 5 seconds, the pointer automatically returns to zero, you can then set the next Step.
After self-test or after the pointer returns to zero, hold the button for 10 seconds, the pointer lights flicker, loosen, and then press the button to set the cylinder, loosen, after 5 seconds, the pointer automatically returns to zero, you can set the next step.
When the meter reaches the alarm value, the lights will flicker .
==========
Placement on Vehicle : Front
Country/Region of Manufacture : CN
Interchange Part Number : Boost Gauge
Special Features : Boost Gauge
Item Weight : 0.5
Item Height : 60MM
Item Width : 60MM
Item Length : 60MM
Part Number : 6202BB BX101479
Material : ABS and Glass
Color : Black Face / White Light & AMBER Light
Power : DC 12V Professional
Measurement range : 0 - 30 psi /0 to -14.7 psi
Fitment : All 12V CAR
