1. 4 FUNCTIONS: The LCD can display oil temperature, voltage, time and speed, and supports free switching to meet your different travel needs.
2. TEMP RANGE: The temperature display range is 0-120℃. If your motorcycle's temperature exceeds 120℃, the thermometer will flash as a warning.
3. UNIT SWITCHING: Support display unit of ℃ and ℉ working temperature. Long press button to switch, easy operation and better adaptability.

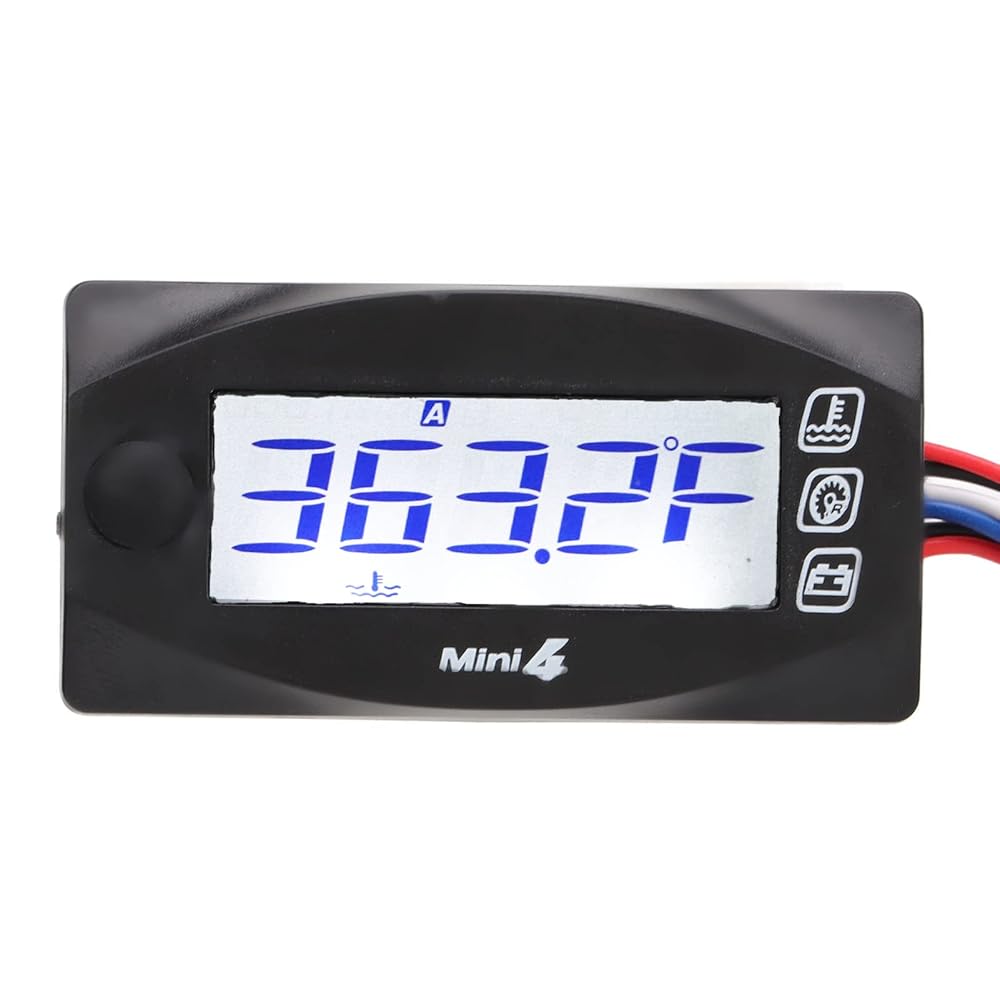

4. LCD DISPLAY: The motorcycle thermometer has an LCD digital display with blue backlight, strong light source brightness and high measurement accuracy.
5. OTHER PARTS: The kit is equipped with adapter cables, standard throttle screw and brackets, the motorcycle thermometer is easy to install, stable and reliable.

Specification:
Item Type: Motorcycle Thermometer
/>Temperature unit display: ℃ and ℉
Temperature display range: 0-120℃ (32-248℉)
Product function: voltage, time, speed, oil temperature
Thermometer size: approx. 60 x 30 x 11.5mm / 2.4 x 1.2 x 0.5in Temperature Warning: When the temperature is higher than 120°C or 248°C, the warning will flash. Blue
Applicable model: motorcycle universal
Material: ABS, LCD

Usage:
Wiring method:
1. Blue wire connection key on DC 12V main switch. (+)
2. The black cable is connected to the vehicle body. (-)
3. The red cable is connected to the DC 12V battery. (+)
4. Speed: The white signal wire is connected to the purple extension harness, and one end of the purple wire is wrapped around the ignition coil
5. Oil temperature: Install the oil temperature screw on the oil outlet and then connect the sensor to the screw.

Scope of delivery:
1 x Thermometer
3 x Adapter Cables
1x
