مميزات خاصة

Effortless Model Configuration (up to 18 channels): Free to switch types, handy with 18 channels. For the first time fixed-wing, glider, helicopter, FPV, multi-copter, and construction vehicles are all supported with one transmitter. Smash all boundaries and do things your way with the Paladin PL18.
Adjustable High Precision Hall Gimbals: Our new high-precision hall gimbals are easy to set up for or right-handed users and feature adjustable spring tension, as well as adjustments for dampening and throw.
AFHDS 3 + support for external RF modules: AFHDS 3 is our latest generation of RF technology. Developed especially for the PL18, AFHDS 3 is designed to be an all-in-one configurable, low latency (5ms), stable protocol for use at longer ranges (up to 3.6km), with stronger than ever anti-interference protections. The PL18 is also designed to be compatible with many different external RF modules making the PL18 one of our most flexible products to date.
Dual Omnidirectional Antennas: The unique design of the combination of omnidirectional and directed antennas guarantee make the signals stable, and greatly improve the control distance and antijamming capability.

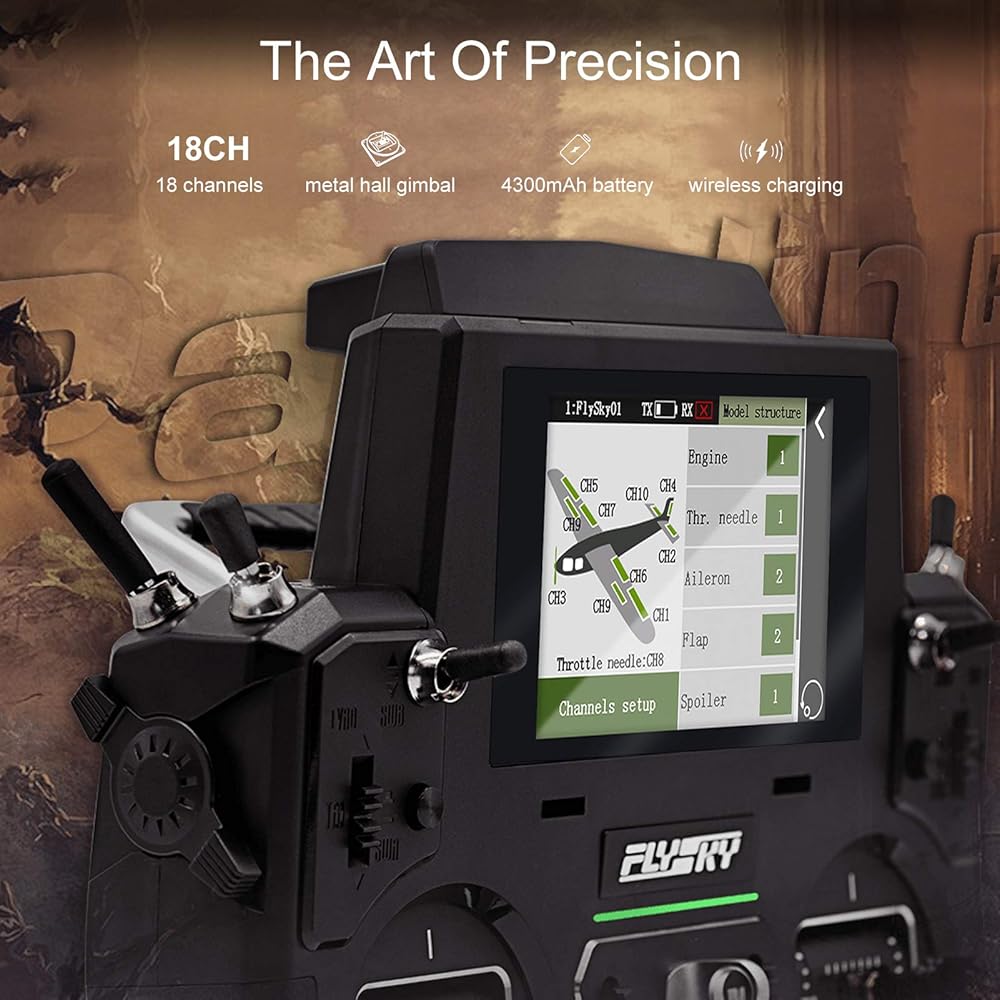

8 Hours Of Non-Stop Performance: The built-in battery has a capacity of 4300mAh, meaning that the system will get over 8 hours of use between charges; FlyskyOS: The PL18 has a 320*480 capacitive color touch screen, amazing FlySkyOS firmware available in both Chinese and English languages.

وصف

Specification:

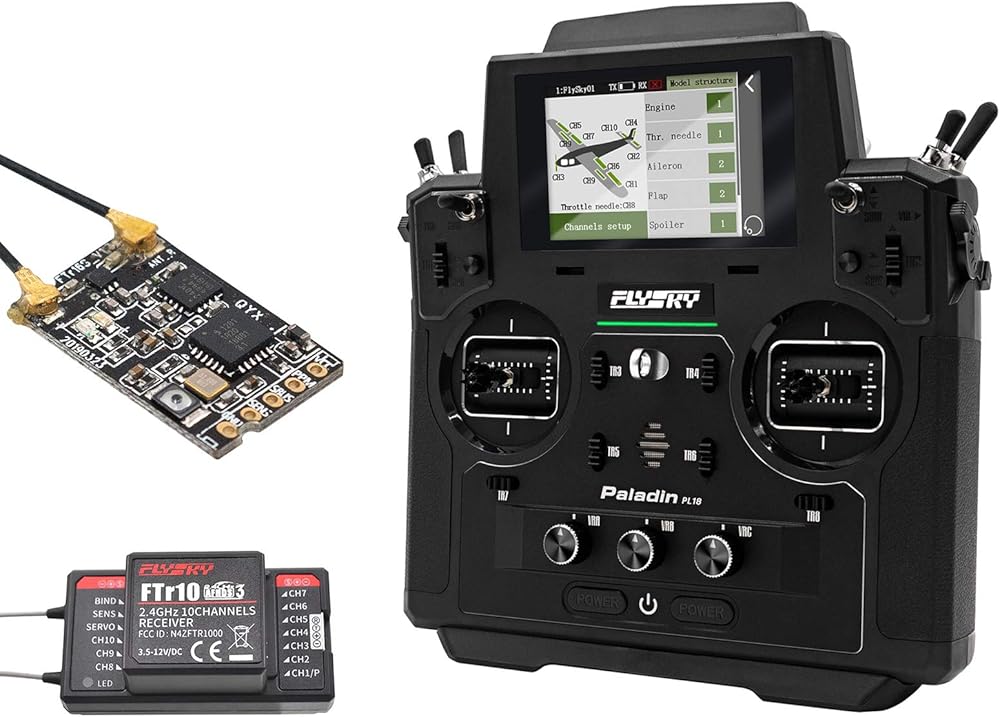

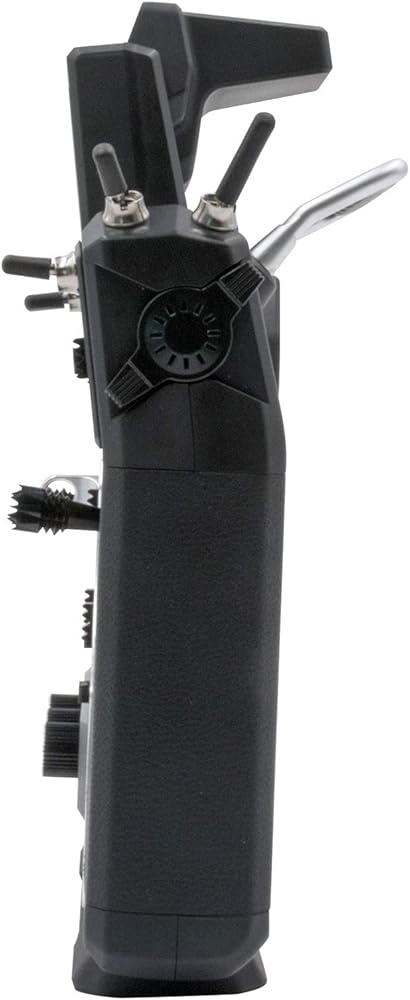

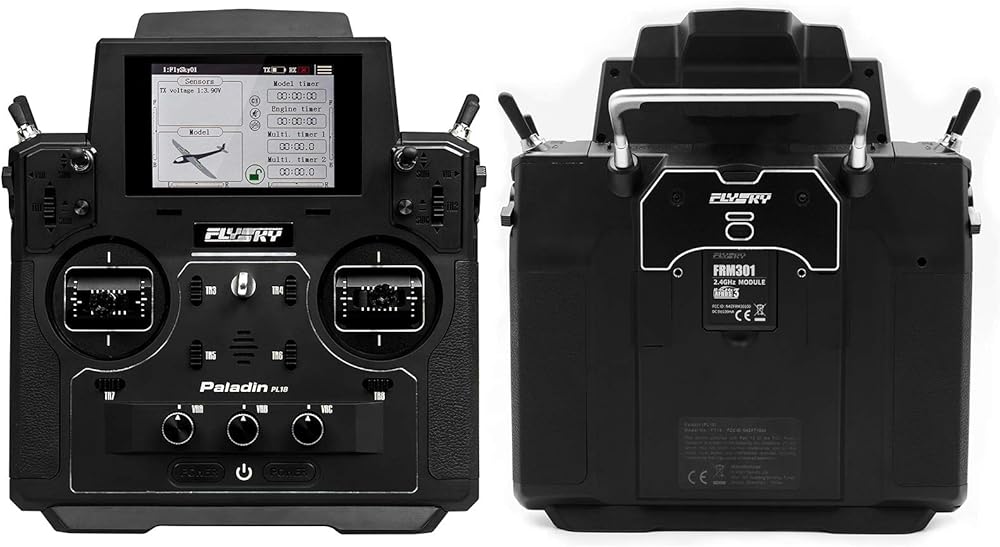

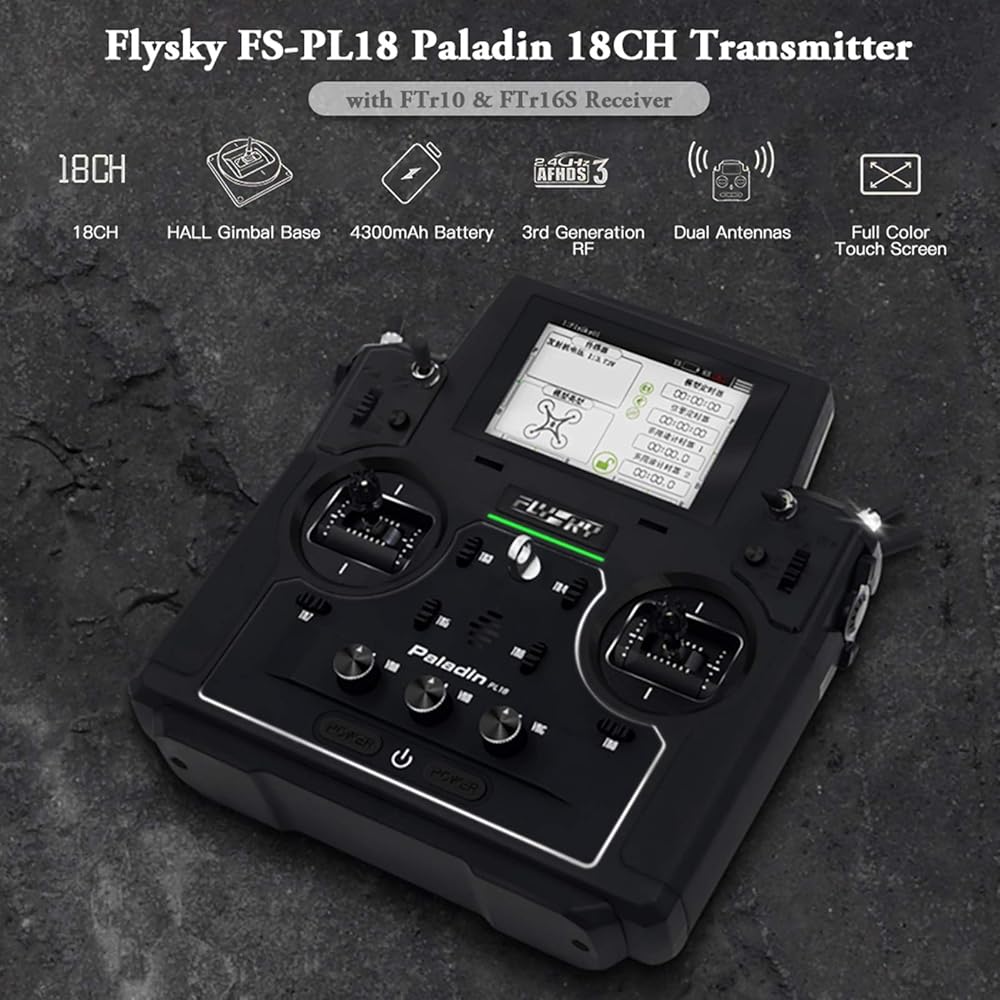

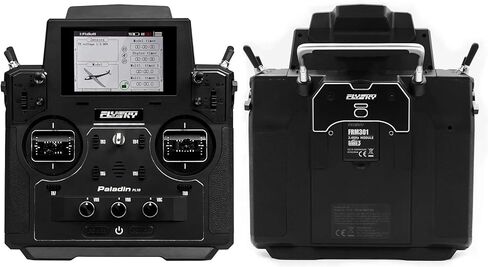

Paladin PL18 Radio Transmitter
Channels: 18
Frequency: 2.4GHz
RF: 2.4GHz
RF Power: 2.4GHz Protocol: AFHDS3
Distance: >3km
Channel Resolution: 4096
Battery : 1S (3.7V) * 4300mAh (built-in)
Charging Interface: Micro USB / wireless charging
Charging Time: 6h@5V/7h@2A (wireless charging)
Lifetime: > 8h
Low Voltage Warning: Antenna Type: Dual antenna
Display: HVGA 3.5" TFT, 320*480
Language: Chinese and English
Simulator: USB Simulator
Data Interface: USB, Non-standard interface (USART), PHJACK (PPM)
Temperature Range: -10 ° C - + 60 ° C
Humidity Range: 20%-95%
Online Update: support
Transmitter Color: black
Size (length x width x height): 214*86.5*192 mm
Bodyweight: 946g

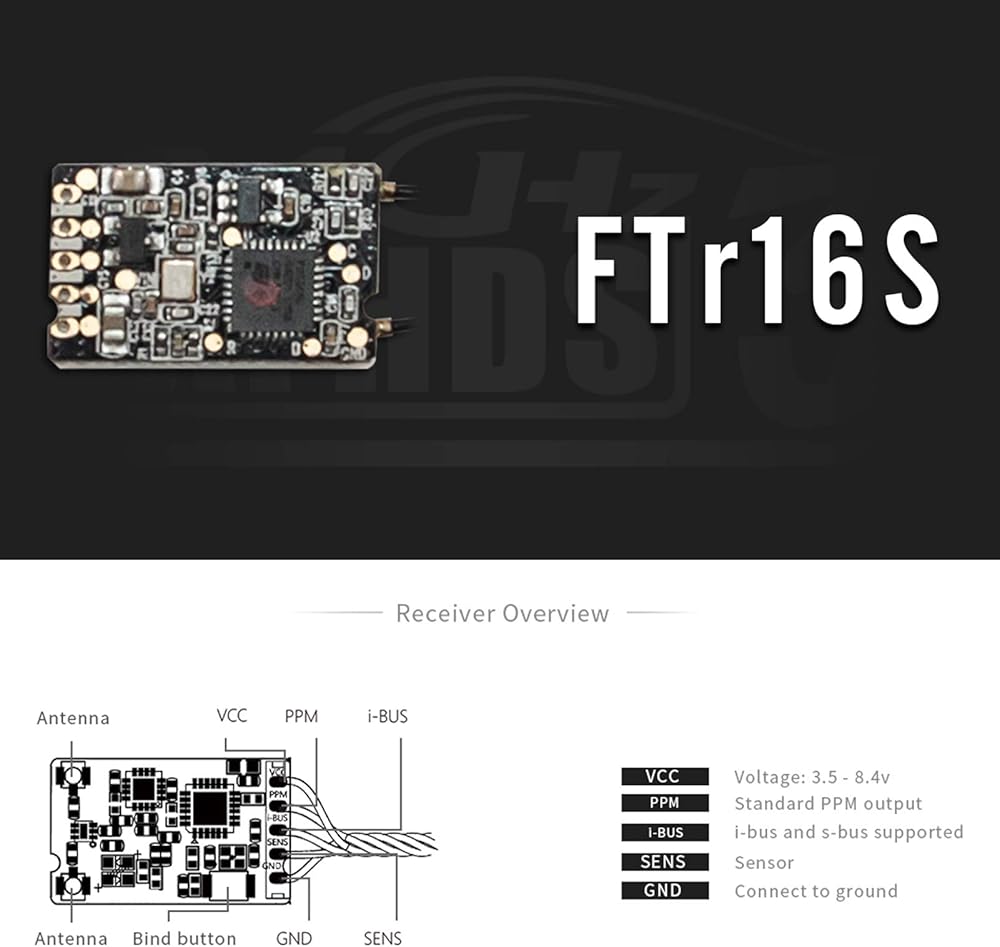

FTr16S Receiver
PWM channel: None
Wireless frequency: 2.4GHz
Wireless protocol: AFHDS 3
Range: 3500m (air)
Antenna type: dual antenna (92.5mm * 2)
Power: 3.5-8.4V
RSSI: Supported
Data port: i.bus / s.bus / PPM
Temperature range: -10 ? — + 60 ?
Humidity range: 20% -95%
Online Update: Yes
Dimensions: 20 * 12 * 3.1mm
Weight: 2g

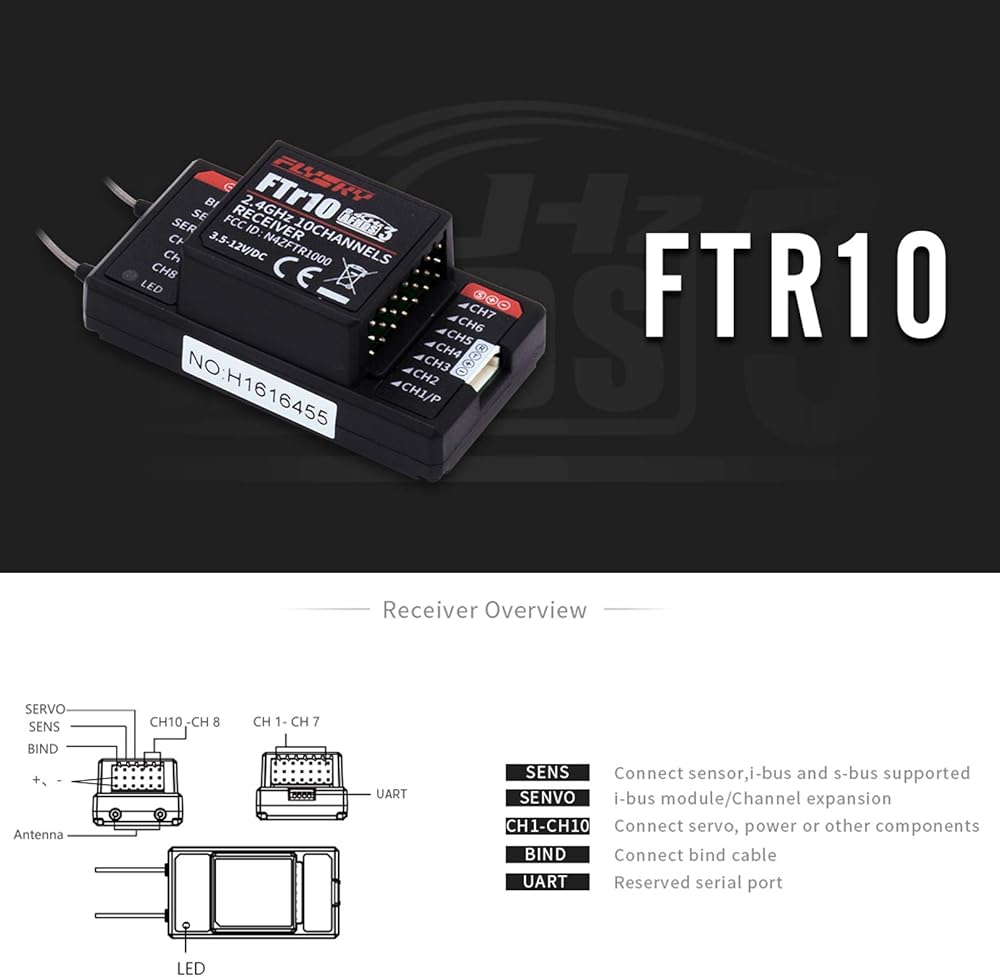

FTr10 Receiver
PWM channel: 10
Wireless frequency: 2.4GHz
Wireless protocol: AFHDS 3
Range: > 3500m (air)
Antenna type: dual antenna (103mm * 2)
Power: 3.5-12V
RSSI: Supported
Data port: PWM / PPM / i.bus / s.bus / UART
Temperature range: -10 ? — + 60 ?
Humidity range: 20% -95%
Online Update: Yes
Dimensions: 52 * 28 * 22mm
Weight: 22g

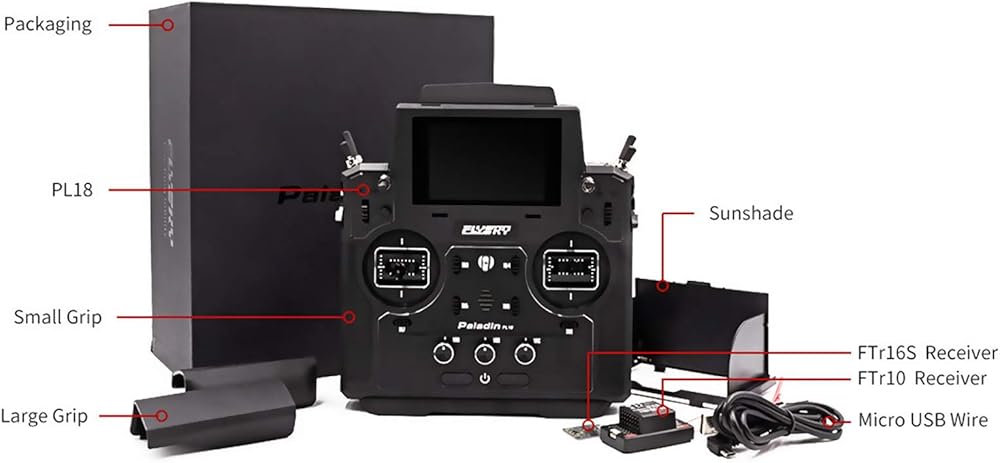

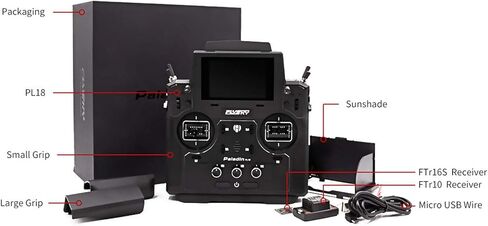

Package List:
1 * PL18 Transmitter
1 * FTR10 Receiver
1 * FTR16S Receiver
1 * Sunshade Cover
2 * Big Hand Grip
1 * USB Cable
