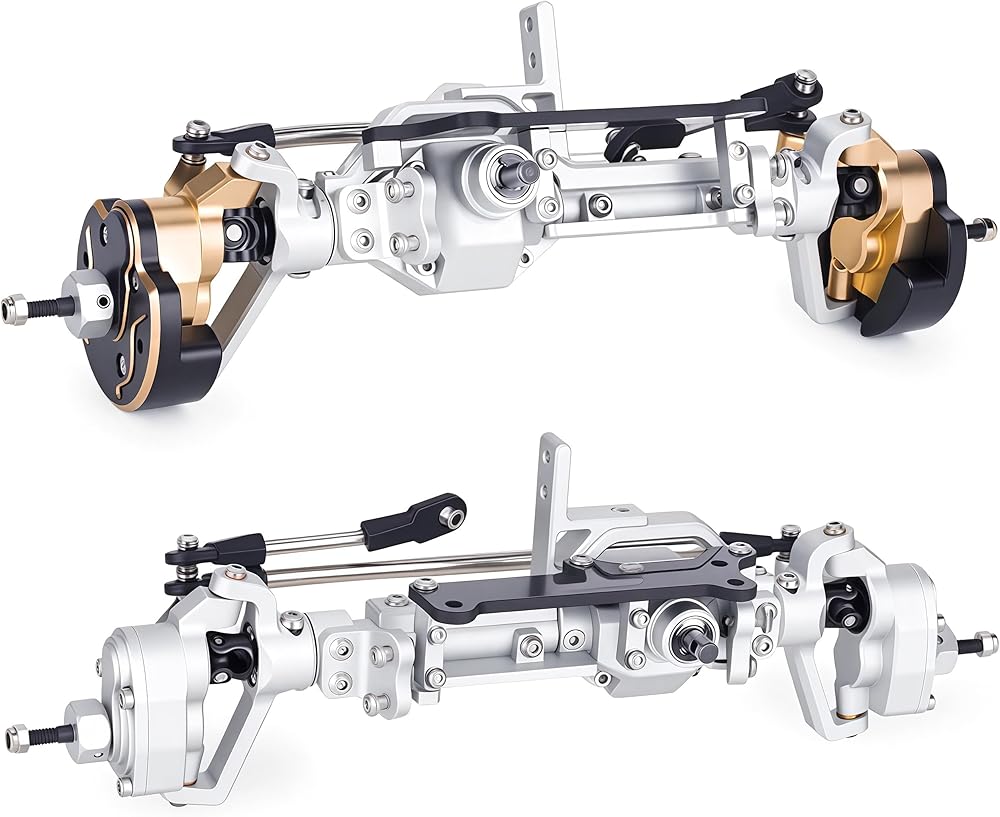

AMK Capra 1.9 Portal Axles Kit 857G, 4WS Front & Rear Axles with Isokinetic 3-Section CVD Shafts, 52° Max Steering Angle, Low CG Battery Tray for Axial Capra 1.9 UTB10 1/10 RC Crawler Upgrade (Black) in Kuwait

Silvery

KWD 72
Brand
AMK
Weight
0.9 kg
ColorSilvery
– 1 +

Special Features

  • Built for Axial Capra 1.9 UTB10 Upgrades: Front and rear portal axle complete set designed for 1/10 RC crawler builds, cheater rigs, and LCG chassis conversions, giving your Capra a stronger axle foundation for technical rock crawling
  • 52° Max Steering with Smooth Power Delivery: The front axle features a 3-section isokinetic CVD that helps minimize binding and jerky movement during sharp turns. Combined with a bent stainless steel tie rod and increased caster, it provides over 50 degrees of steering angle for sharper response, smoother handling, and greater control on tight technical lines.
  • True 4WS Capability & Adjustable Mounting Options: Designed to support a true 4-wheel steering setup with adjustable upper link mounts for fine-tuning suspension geometry. Additional mounting holes on the rear truss allow more custom configurations, while compatibility with Capra 1.9 UTB links and shocks gives you greater flexibility for different crawler builds
  • Optimized Axle Width & Integrated Battery/ESC Mount: Built with an axle width close to the stock Capra setup at approximately 202mm hex-to-hex and 238mm overall width. Includes a carbon fiber plate that securely mounts a battery up to 60mm wide, such as a 3S 850mAh pack, along with an ESC or receiver for a cleaner layout and lower center of gravity
  • Heavy-Duty Aluminum & Brass Construction: CNC-machined aluminum axle housings are paired with brass steering knuckles to reinforce key load points while adding low-mounted weight for improved traction and a more planted feel on technical climbs. Front axle weight is approx. 537g (18.94oz), and rear axle weight is approx. 320g (11.29oz).
  • High Gear Ratio for Enhanced Torque: Features a 7.19:1 total gear ratio with 8T/30T bevel gear set and 12T/23T portal gear set, providing increased torque and crawling capability for challenging terrain and steep inclines

Description

Features:
CNC-machined aluminum axle housings with brass steering knuckles
Black / silver anodized finish
Over 50 degrees of steering angle
One-piece molded bearing retainers
Adjustable upper link mounts
One-piece machined bearing retainers
Additional mounting holes on the rear truss for custom applications
Bent stainless steel tie rod for increased steering angle
Includes all hardware needed for assembly
Includes a carbon fiber electronics mounting plate for clean and low-CG setup
Approx. 202mm hex-to-hex width, similar to the stock Capra axle width
Compatible with Capra 1.9 UTB suspension links and shocks
Specifications:
Material: Aluminum + Brass
Color: Black / Silver
Size: As shown
Weight:
Front axle: 537g
Rear axle: 320g
Output shaft: 5mm
Wheel hex: Standard 12mm hex
Total width: 238mm / 9.37 in
Gearing:
Bevel gear set: 8T / 30T
Portal gear set: 12T / 23T
Total gear ratio: 7.19:1
