SurpassHobby 2435 3200KV Brushless Motor High Speed Waterproof Shaft 2mm Motor and for 1/16 1/18 Remote Control Cars Trucks Off-Road Vehicle in Kuwait

Motor 4800kv

KWD 9.500
– 1 +

Special Features

  • Suitable for 1/16 &1/18 RC Car: Our 2435 Brushless motor designed for 1/16&1/18 RC cars with M2.5 and M3 screw mounting holes such as on-road car /off-road/ buggy/ monster, cool black appearance; It's made of High hardness aluminum CNC machined heat sink and excellent heat dissipation; with excellent start-up,acceleration and linearity features, strong resistant current capability.
  • Waterproof & Dustproof Design: Surpass Hobby 2435 brushless motor is waterproof and dustproof for all weather races. allowing for RC car handling in various environments (Note: Please remove the cooling fan before using this ESC in water; Clean and blow dry after use to prevent connector rust)
  • Upgrade Materials： These hobby brushless motor cover is made of high hardness CNC aluminum and 0.35mm thickness silicon steel sheet. The high purity and high temperature resistant copper coil effectively provides high efficiency,while the ABEC5 high-precision large bearings offer smooth and wear-resistant operation
  • Powerful Torque: precision balanced rotor,smoothness for best reliability and maximum RPM. 4 Pole 12 Slot Hi-torquerotor design,stable output power. Removable/replaceable explosion-proof high-precision balancing rotor.
  • Warning: Be sure to connect the components correctly and avoid the motor operating temperature exceeding130'C(266'F).high temperature may cause the rotor to demagnetize and damage motor.Do not touch the motor after use to avoid overheating and scalding.Wait for the motor to cool down completely before using it.

Description

FEATURE:

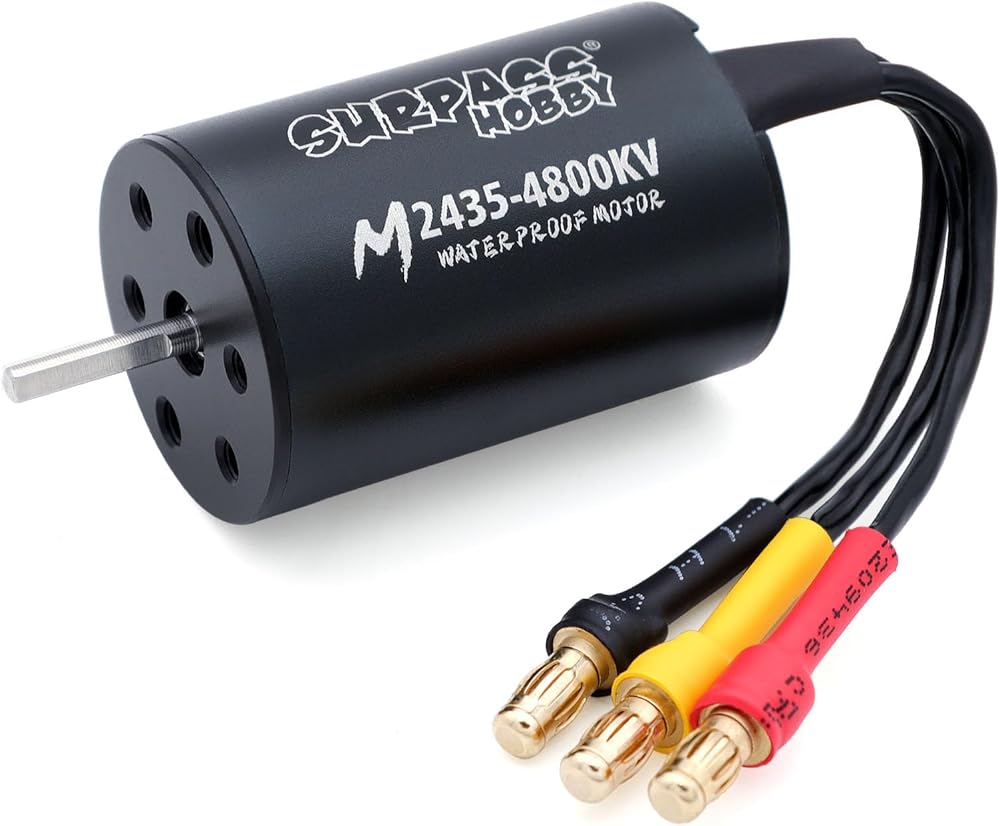

2435 Brushless Motor
1. Fits all 1/16th or1/18th scale BL cars,M2.5 or M3 screw mounting holes
2.High hardness aluminum CNC case,0.35mm stator.
3.High Purity High temperature resistance Copper Windings Maximizes Efficiency .
4.High precision and high quality ABEC5 large bearing, smooth and wear-resistant.
5.Removable/replaceable explosion-proof high-precision balancing rotor.
6.4 Pole 12 Slot Hi-torque rotor design,stable output power.

Specifications:
Motor:
Watts: 300W
Max voltage:
Max Amps: 19A
KV(RPM/Volt): 3200KV
Max RPM: 60000
Plug type: 3.5mm golden banana plug
Shaft length: 12mm
Shaft diameter: 2.0mm
Diameter: 24mm
Length: 35mm
Weight: 59g
Including :
1* SurpassHobby 2435 Brushless Motor
WARNINGS:
1.Before using , Ensure that the power system is reasonable. Unreasonable power matching will cause the motor to be damaged due to overload.
2.Do not over tighten the screws when installing the motor. Be sure to use the appropriate mountings crews.
3.Before connecting the motor, Ensure that The insulated parts are well treated, Short circuit will destroy the product.
4.Full throttle operation is prohibited before the gear is installed. High-speed operation without load may damage the motor.
5.Be sure to connect the components correctly. Wrongly connected remote control car may not work properly, or the components may be damaged or other unpredictable conditions.
6.Avoid the motor operating temperature exceeding 130°c (266'F). High temperature may cause the rotor to demagnetize and damage motor.
7.Do not touch the motor after use to avoid overheating and scalding. Wait for the motor to cool down completely before using it.
