Spec:

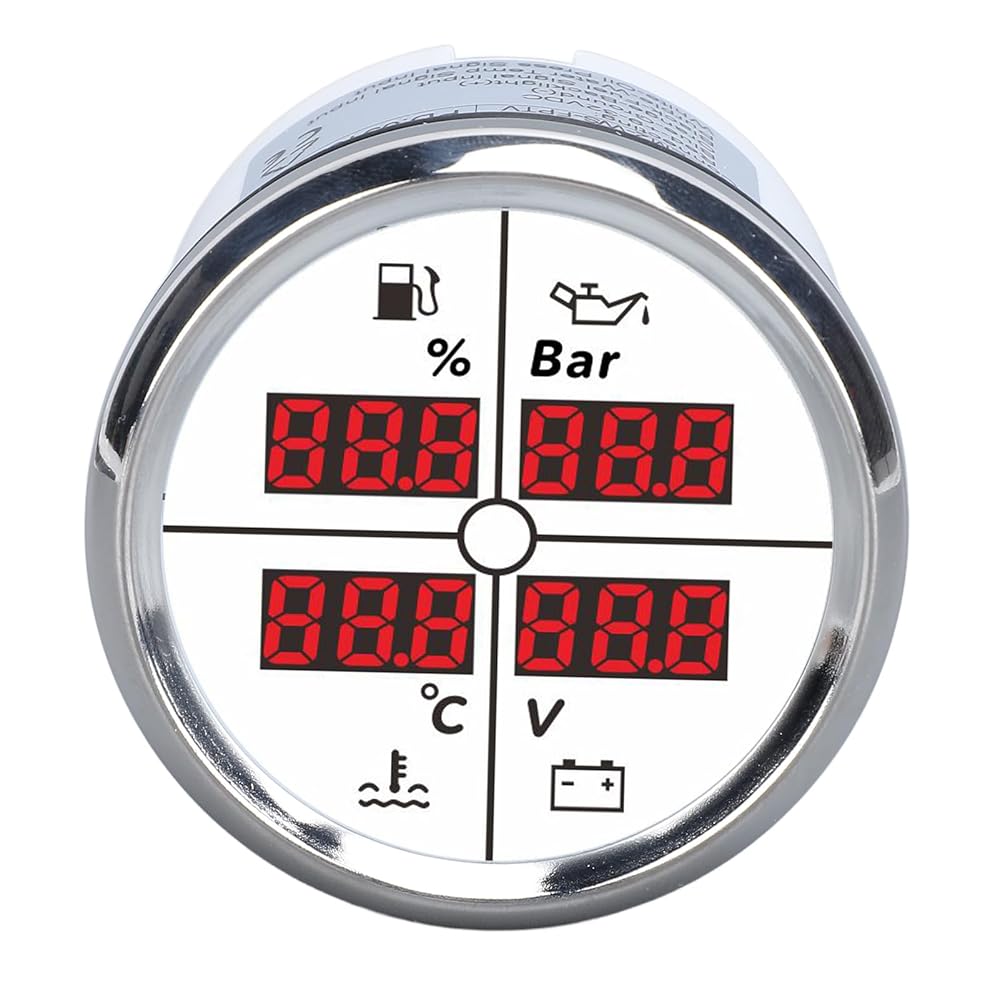

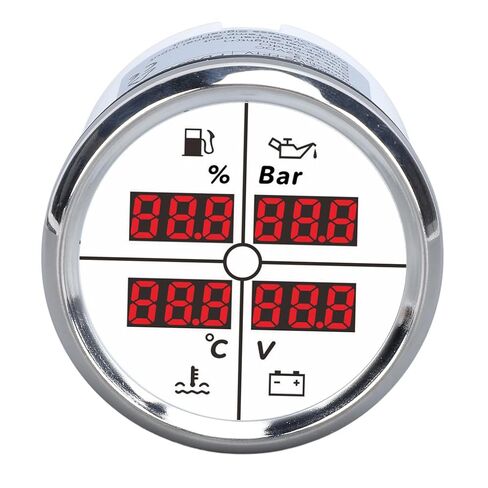

Item Type: Boat Gauge
Material: Stainless Steel 316L Bezel + Anti Fog Glass
Guard Rating: IP67, fully waterproofing with excellent anti fog function
Display: Fuel Level + Oil Pressure + Water Temperature + Voltage
Backlight Color: Red (default), Green, Blue, White, Yellow, Yellow-Green, Orange, Purple (color changeable)
Operating Voltage: 9-32VDC
Operating Current: ≤60mA
Operating Temperature: -30°C to +70°C
Storage Temperature: -40°C to +85°C
IP Rating: IP67, can operate underwater at 1m
Fitment: For Boats, yachts, motorhomes, trucks, motorcycles
Wiring:
1. Red Wire: +9-32VDC
2. Black Wire: Oil Level Signal Input
3. Orange Wire: Backlight (+)
4. Blue Wire: Power Supply Negative (-)
5. White Wire: Oil Pressure Signal Input
6. Purple Wire: Water Temperature Signal Input

Package List:
1 x Gauge
1 x Wire
1 x Mounting Base
2 x Nut
1 x User Manual

How To Use:
Installation Steps:
Step 1: Drill a 52‑53mm diameter hole in your center console or other pre installed location, leaving at least 70mm of space behind!
Step 2: Place the gauge into the drilled hole.
Step 3: Align the bracket screw holes with the screws on the back of the gauge, then tighten with screws, clamp the panel with the bracket and frame.
Step 4: Plug the power harness directly into the back of the gauge wiring interface, then connect the corresponding sensors and harnesses according to the instructions provided and connect the power supply.

Note:
Ensure there is at least 70mm of space behind the opening after it has been made!
