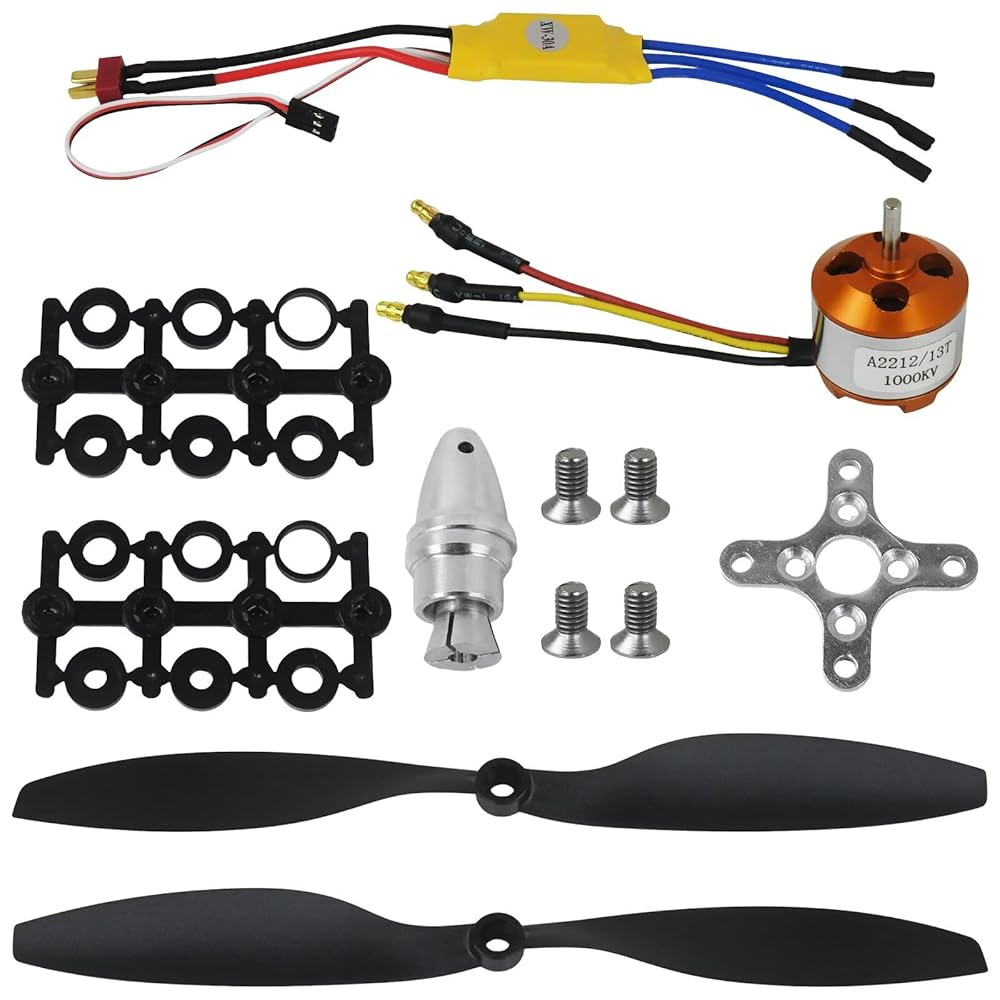

Qblahip 1000KV RC Brushless Motor A2212 13T with 30A Brushless ESC 1045 Propeller CW CCW Kit Mount Compatible with RC Plane F450 550 for Quadcopter,Safe Start,Temperature Protection

Name: A2212 2200KV Brushless Outrunner Motor W/ Mount
Applicable: For RC Aircraft /Copter
Model: A 2212
KV: 2200
Shaft(m)m: 3.17
Weight: 47g
Min Current: 4A
Max Current: 10A
Max Efficiency: 80%
Battery: 2-3 Li-Poly 27.5 x 30mm
Motor Dimensions: 4/6 axis copter
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: Φ27.5 x 30mm
Shaft Diameter: Φ3.17mm

Attension:
When first time to use this ESC and motor replacement or you are not skillful or professional to play for RC Plane Quadcopter Helicopter , Plese follow these steps to set your throttle stroke calibration.otherwise incorrect using will cause ESC hot ,smoke or burn How to set Throttle stroke calibration:
1.Connect the ESC with motor ,another end connect with receiver.
2.Turn on the remote controller and push the throttle to the highest point
3.Plug the ESC into batteries
4.There has double click sound (the highest point of the throttle confirm)
5.After get the click sound take the throttle stick to the lowest point
6.Confirm the three click sound that means OK
Note: The three lines of the brushless ESC can be connected at will. If the steering is not correct, you can adjust any two of them.
