Complete Front Wheel Setup. One Order.

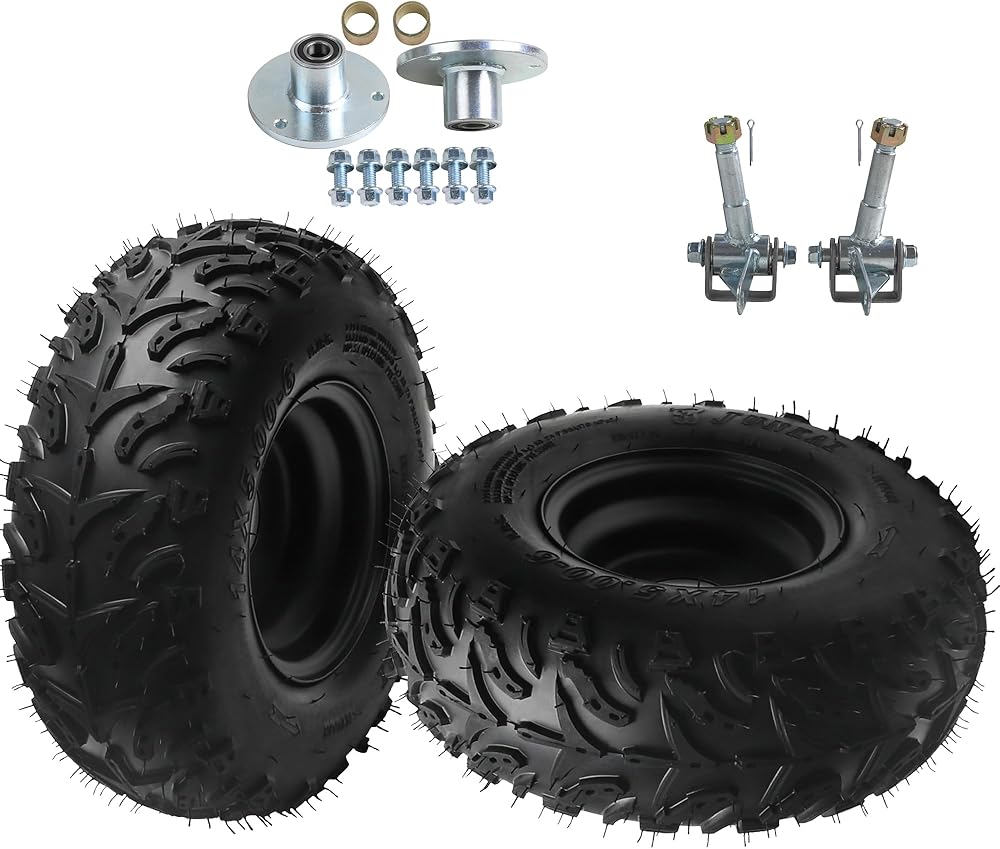

Replacing or upgrading the front wheels on an ATV, go-kart, or mini bike typically means sourcing tires, rims, hubs, and steering knuckles separately — matching bolt patterns, spindle diameters, and rim sizes across multiple suppliers. This complete front wheel package eliminates that process entirely. Two pre-mounted 14x5.00-6 tubeless tire and rim assemblies, two 17mm steering knuckles, and two 3-stud 78mm front wheel hubs ship together in one package, dimensioned and matched for direct front axle installation.

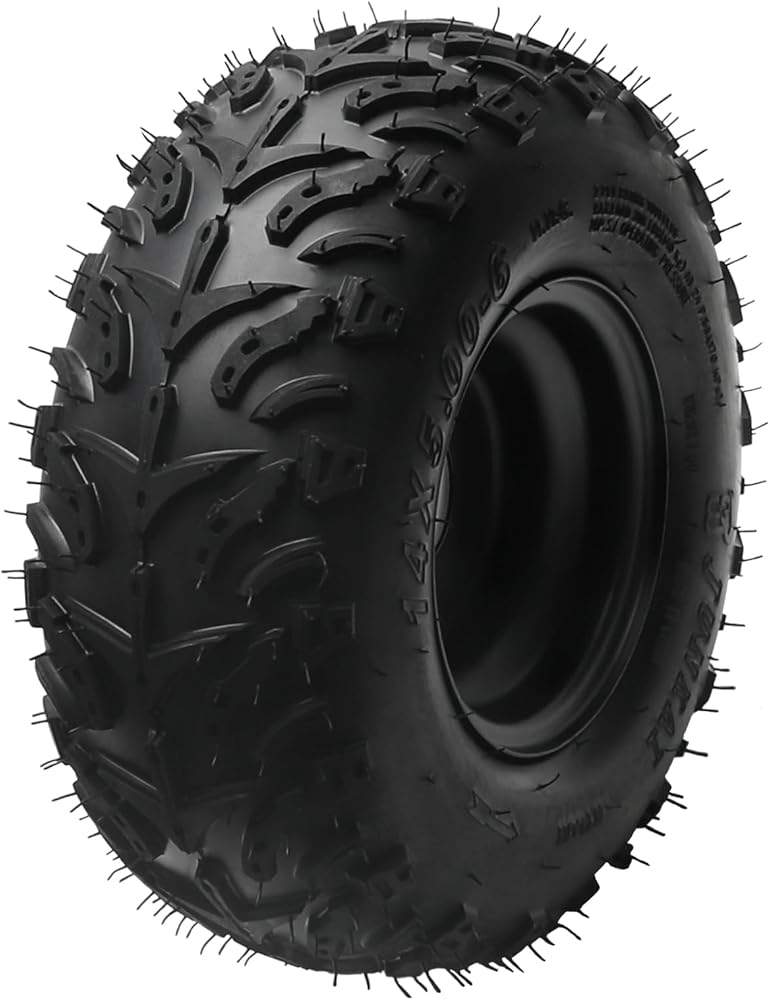

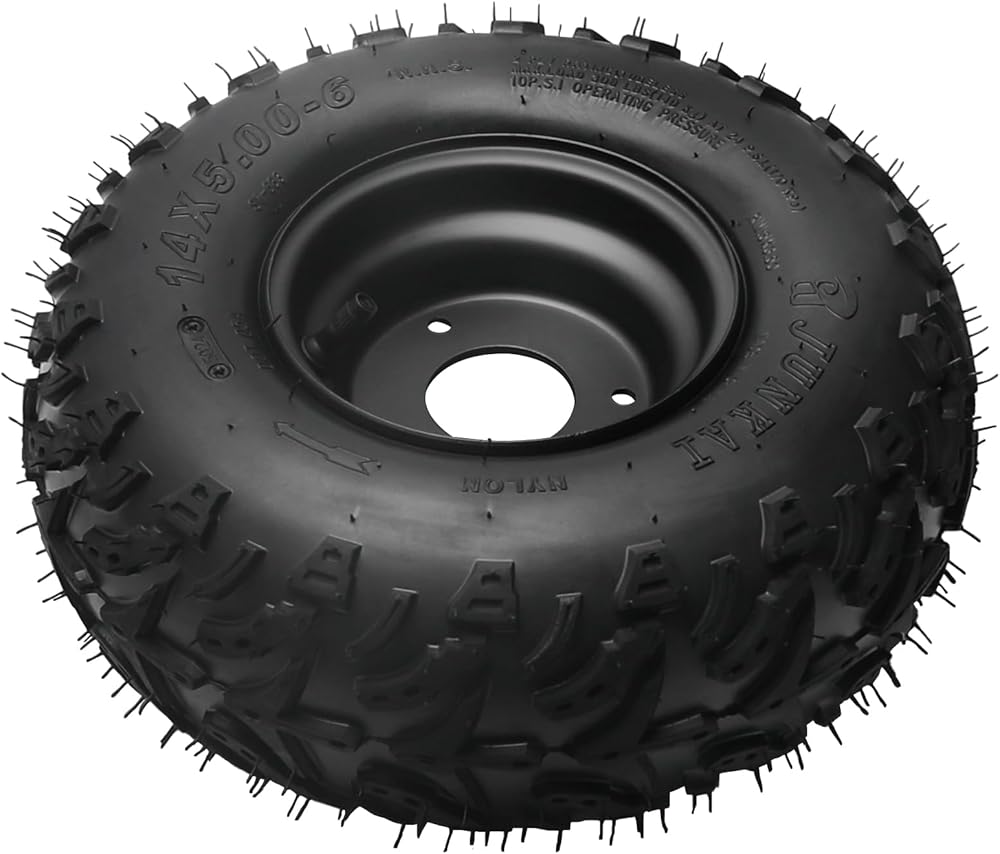

The 14x5.00-6 tubeless tires are 2-ply rated for a maximum load of 308 lbs (140 kg) per tire at 24 PSI — appropriate for the front axle load requirements of ATVs, go-karts, quad buggies, and mini bikes in both recreational and light utility applications. Tubeless construction means no inner tube to pinch, replace, or maintain. Air retention is more consistent, and the risk of sudden pressure loss from tube failure is eliminated entirely.

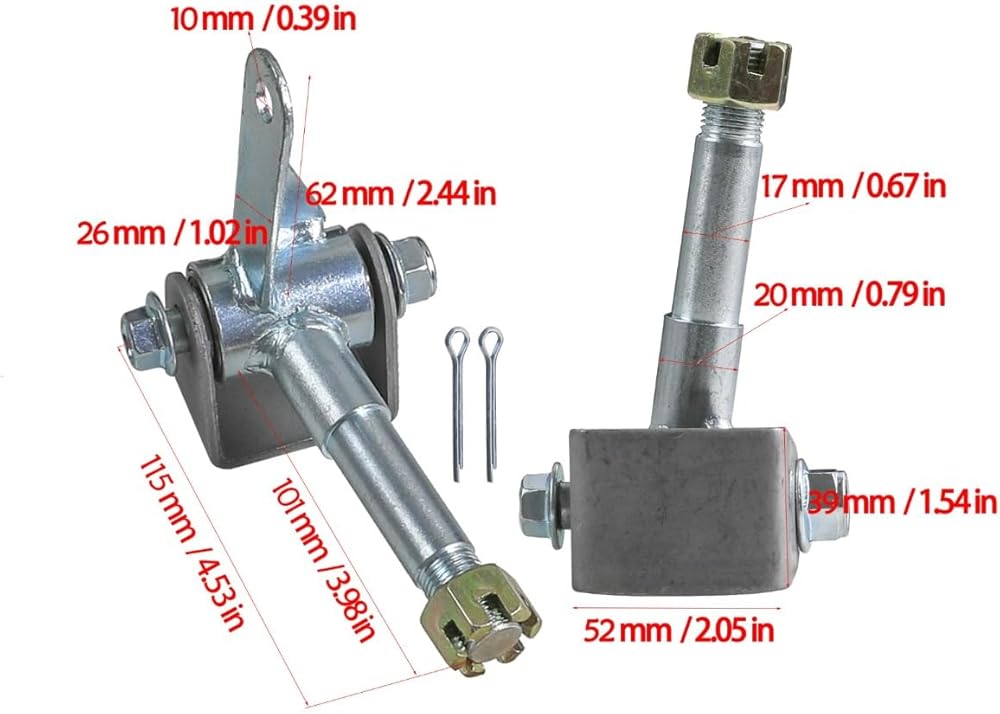

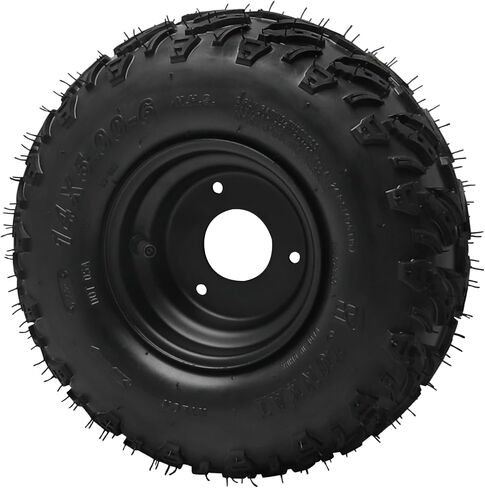

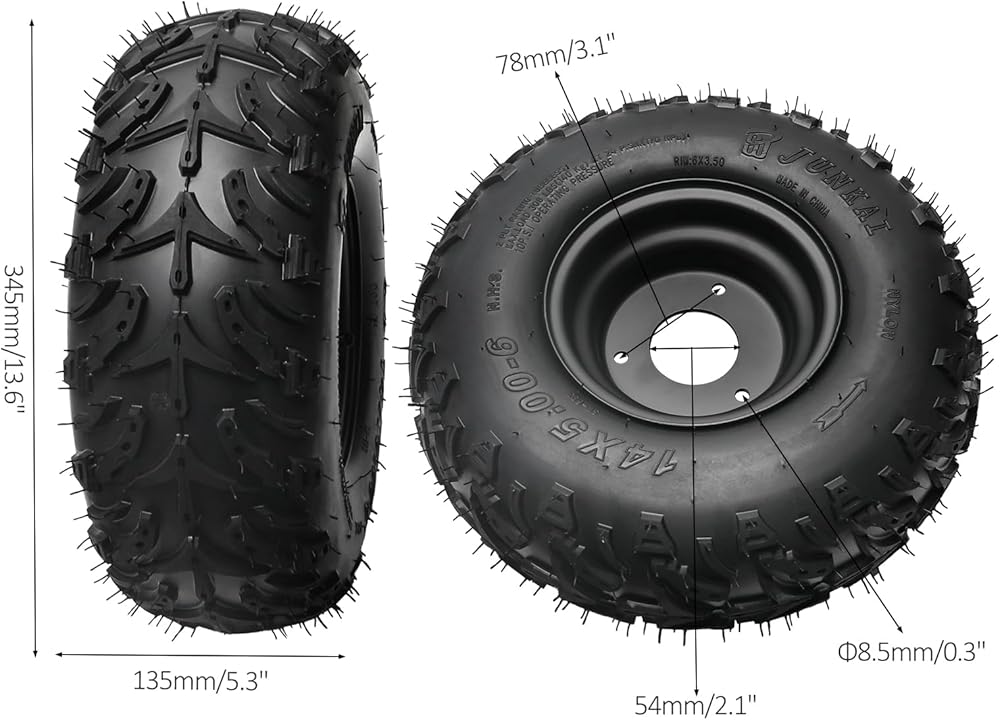

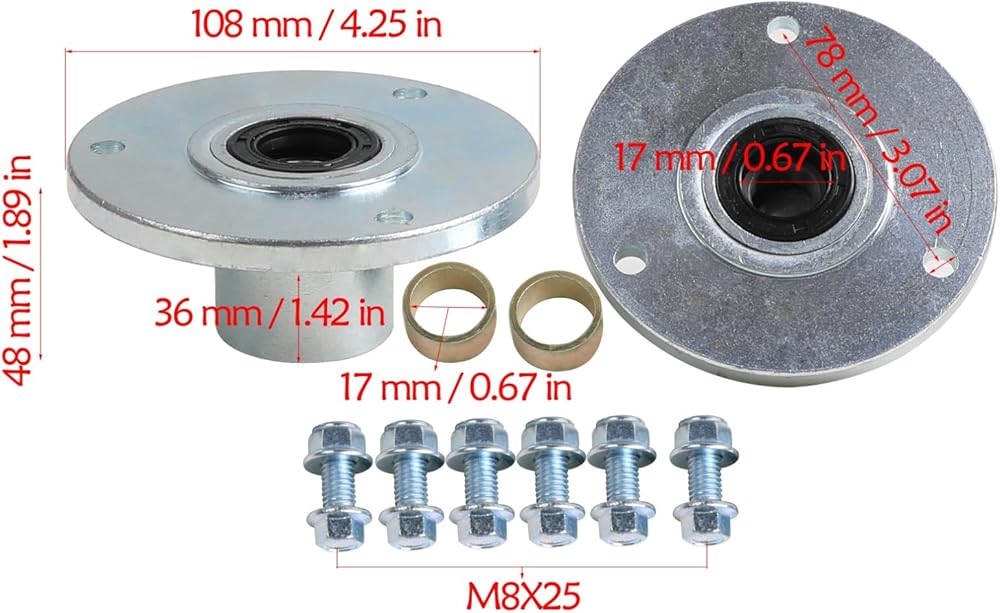

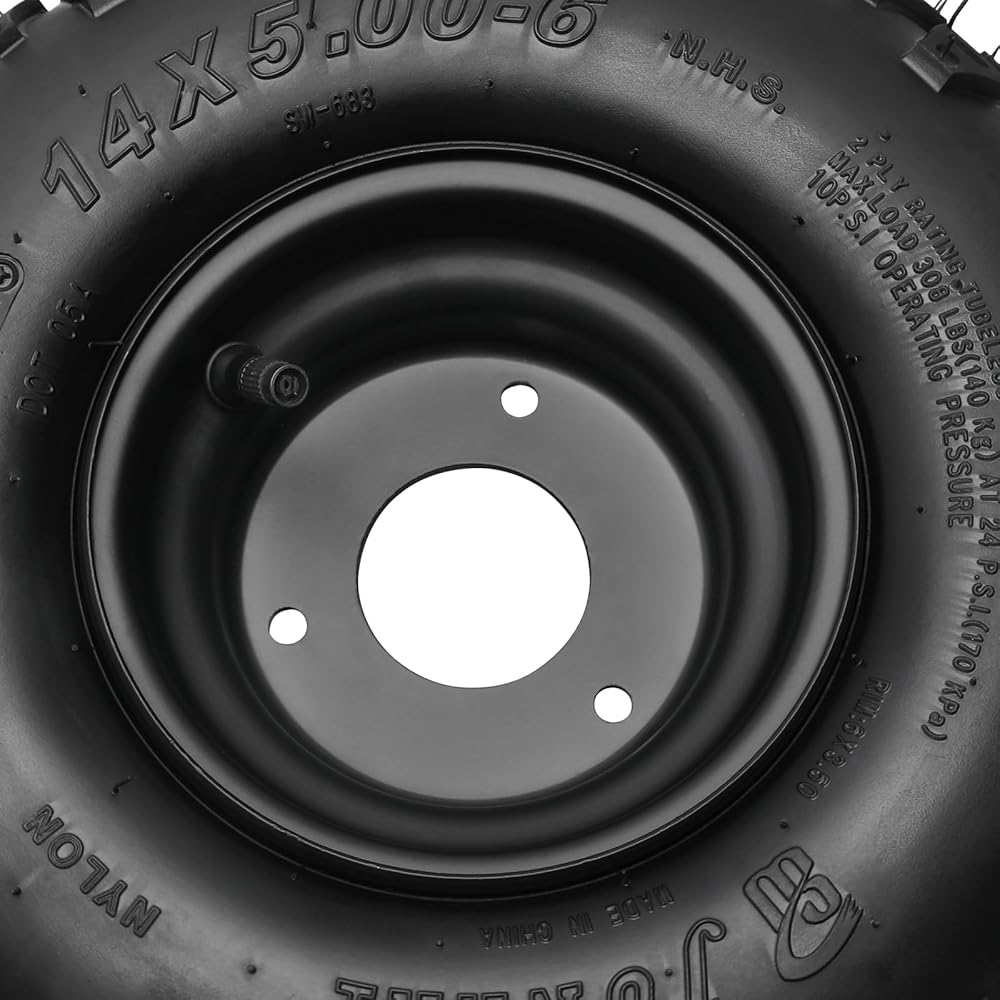

The 3-stud iron rims are dimensioned to the standard 6-inch 3-lug specification: 78mm bolt spacing, 54mm center bore, 345mm overall outer diameter, and 135mm section width. The included front wheel hubs match this bolt pattern directly, and the 17mm steering knuckles fit the hub spindle bore for a complete, self-contained front end assembly.

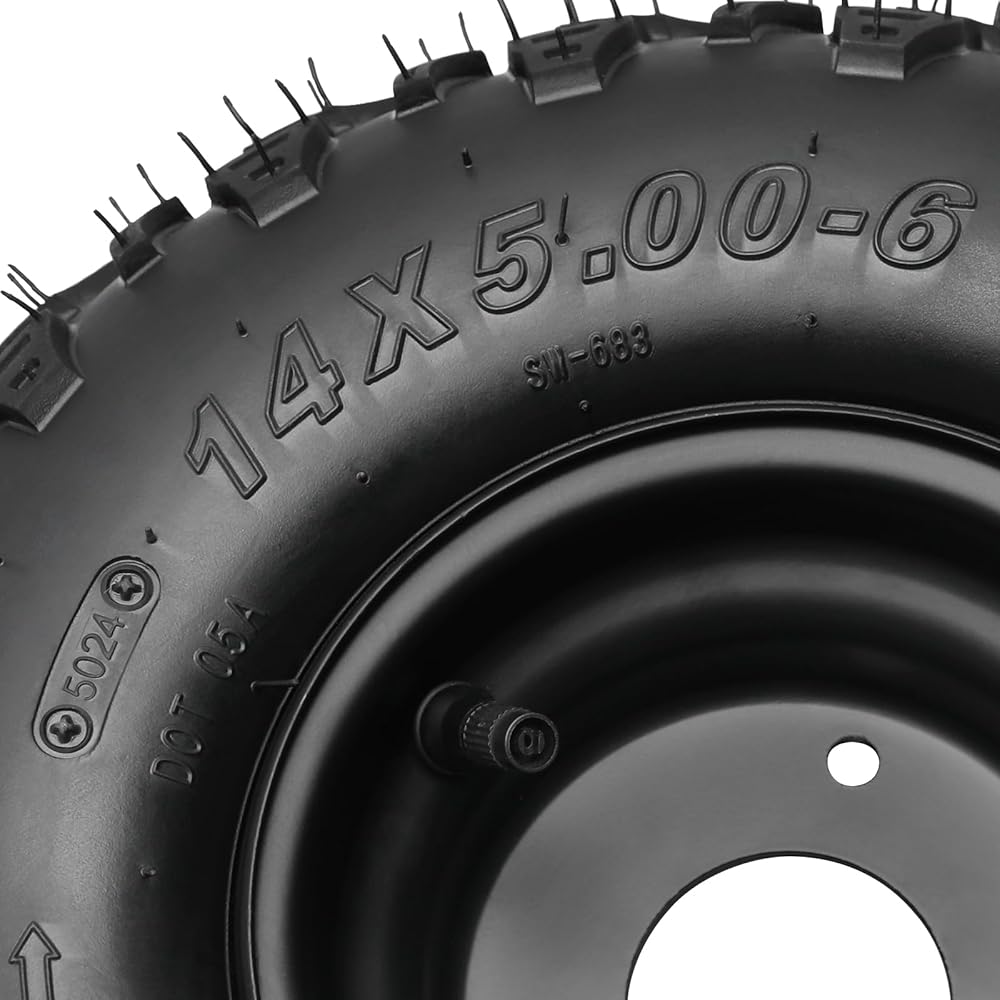

This tire size is sold under multiple equivalent size designations — 14x5.00-6, 14/5.00-6, 14x5.00x6, and 14x5x6 all refer to identical tire dimensions. If your vehicle's current tires or owner's manual references any of these codes, this assembly is the correct replacement size.
Both tires arrive pre-mounted on their rims. Fit the hubs to the knuckles, bolt on the wheels, torque to your vehicle's specification, and the front axle is ready. A complete, matched front wheel solution for ATVs, go-karts, mini bikes, quad buggies, snow blowers, lawn mowers, and garden tractors running standard 6-inch 3-lug front wheel hubs.
Spec Summary: 14x5.00-6 Tubeless | 2-Ply | 308 LBS Max Load Per Tire | 24 PSI Max | 10 PSI Operating | 3-Stud Iron Rim | 78mm Bolt Spacing | 54mm Center Bore | 345mm OD | 135mm Section Width | 17mm Steering Knuckles | 3-Stud 78mm Front Hubs | Set of 2 Complete Assemblies
