ATC Power Module
1. Typical performance
Constant voltage input, isolated unregulated output 2W power
Isolation Voltage: 1500VDC
Low no-load power consumption: 0.025W (Typ.)
Efficiency: up to 90% (Typ.)
Working temperature: -40 ~ +85
MTBF3.5million hours(3500000Hrs)
Output short circuit protection: continuous short circuit protection, recovery
Small SIP Package, Plastic Housing
International standard pin method
Ripple / Noise ( 20MHz bandwidth ) : 30mVp-p (Typ.)

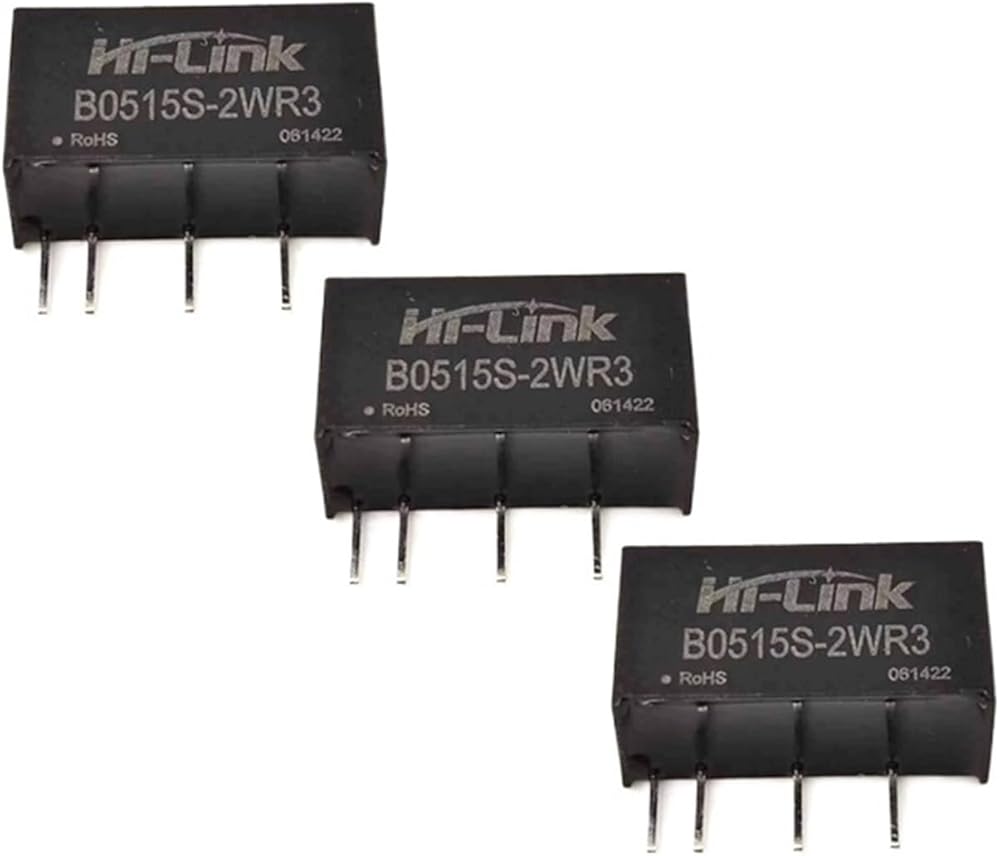

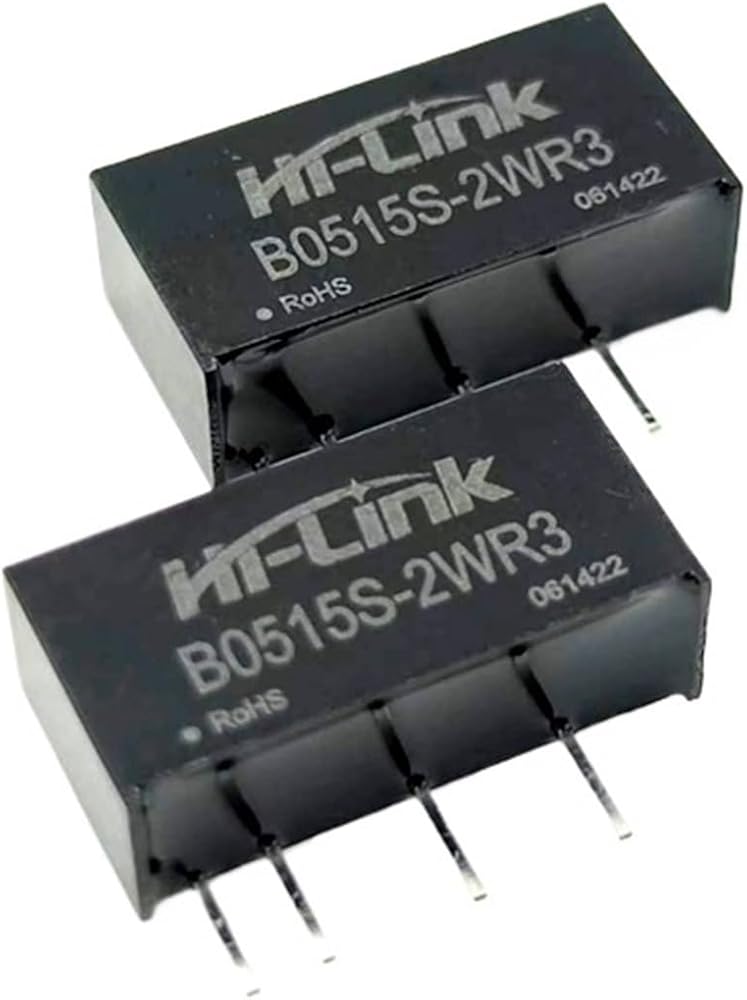

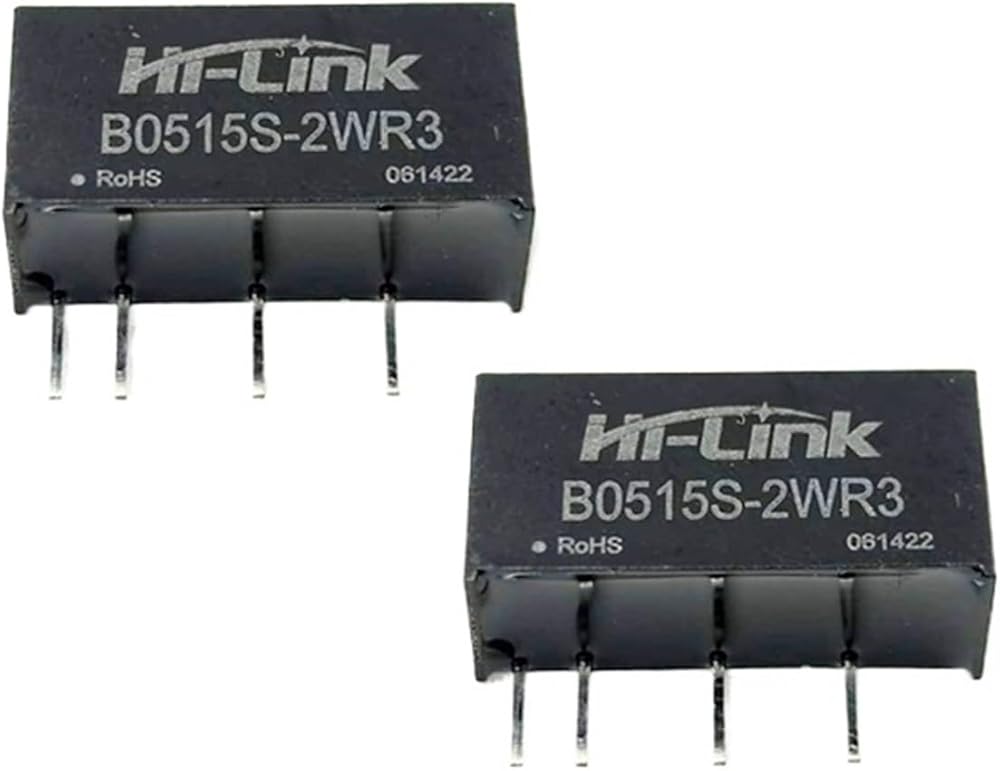

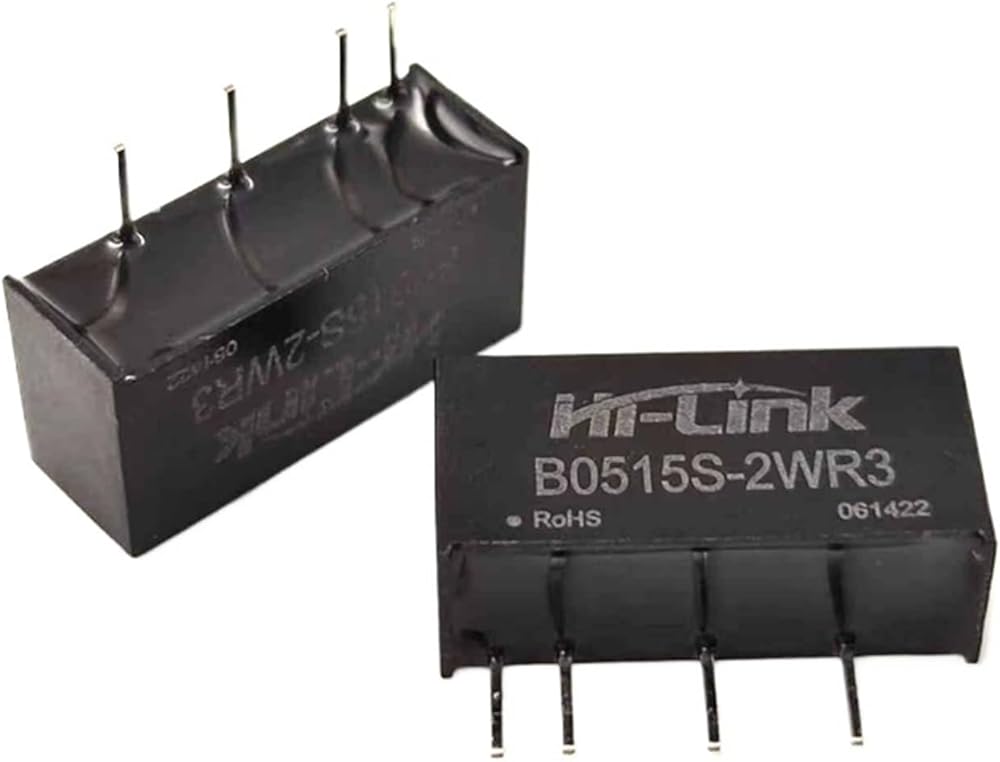

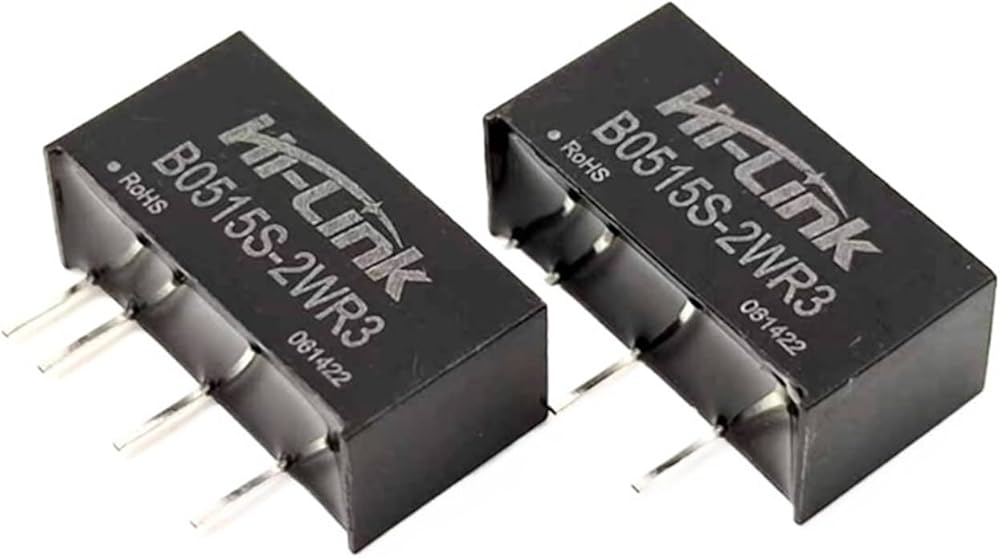

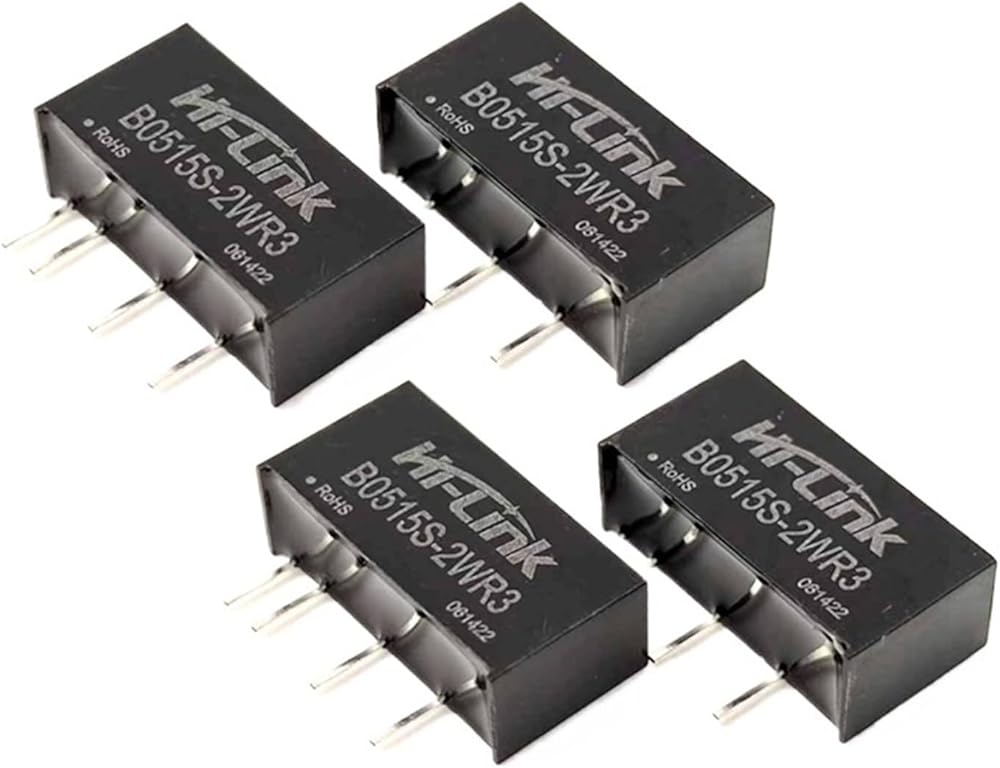

B_S-2WR3 series is a small size, high-efficiency micro-power, constant voltage input, isolated and unregulated single-channel output provided by to customers.DC/DC module power supply.
