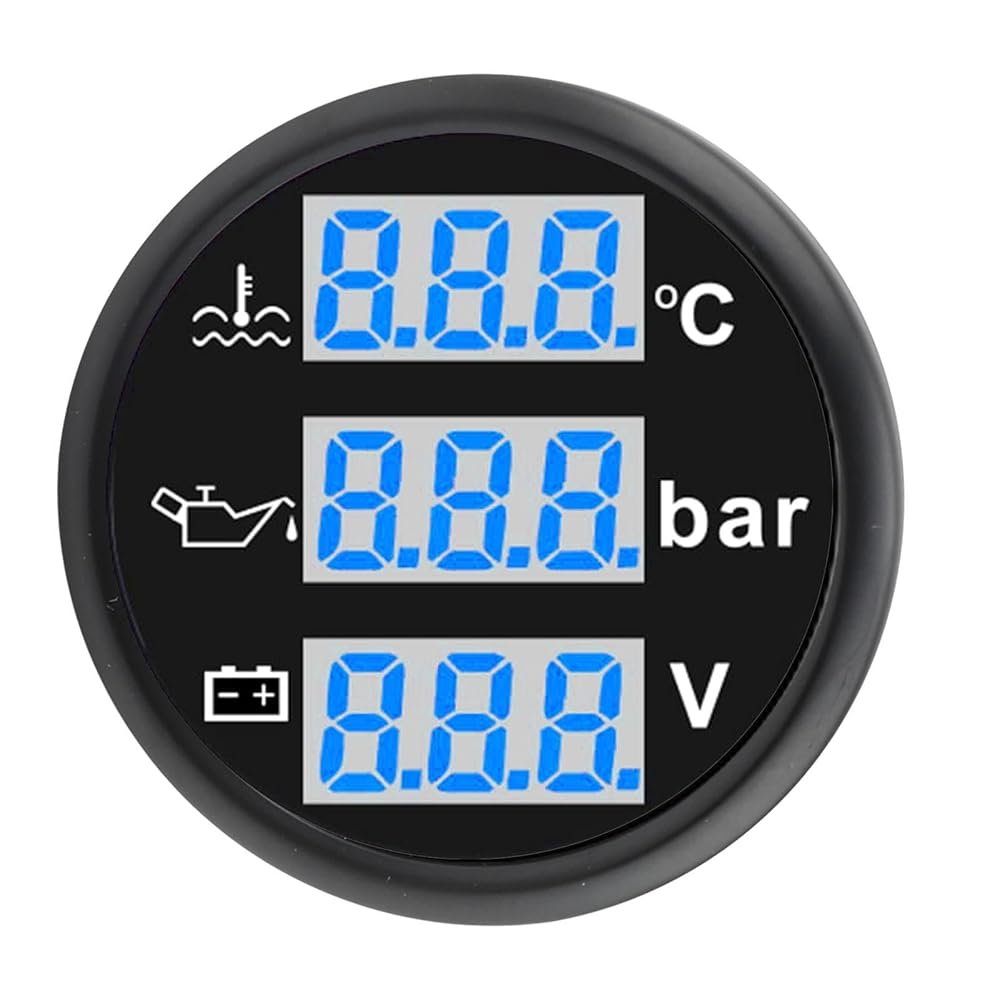

【Triple Monitoring】Boat triple gage set combines water temperature oil pressure and voltage in one 52.2mm display. Blue lettering supports quick reading for marine and vehicle dashboards.
【Wide Measuring Range】Digital boat water temp oil pressure voltmeter reads coolant temperature from 32 to 248°F and oil pressure from 0 to 10Bar, helping track engine status in real time.
【Built for Harsh Use】ABS housing with IP67 water proof rating and 5G shockproof level suits boat yacht car RV truck and motorcycle use. Fits panels needing a 2 1 16in gauge size.
【Sensor and Wiring Setup】Includes NPT 1 8in water temperature sensor thread and NPT 1 8in pressure sensor thread. Wiring is direct with black negative red DC yellow temp and white pressure.
【Broad Application】Designed as a boat marine meter kit for yacht helm or vehicle dash. Operates at up to 60mA in temperatures from minus 22 to 176°F and stores from minus 40 to 185°F.

Item Type: Boat Water Temp Oil Pressure Voltmeter
Display Color: Blue Lettering
Material: ABS
Gauge Diameter: 52.2mm (2 1/16in)
Measurement Content: Water Temperature, Oil Level, Voltage
Engine Coolant Temperature Measurement Range: 0-120℃
Engine Oil Pressure Measurement Range: 0-10Bar
Water Temperature Sensor Thread Specification: NPT 1/8in
Pressure Sensor Thread Specification: NPT 1/8in
Operating Current: ≤60mA
Operating Temperature: -30℃ to +80℃
Storage Temperature: -40℃ to +85℃
Water Proof Level: IP67
Shockproof Level: 5G
Applicable Scope: Car, RV, Truck, Ship, Yacht, Motorcycle
Wiring Method:
1. Black Wire: Power Negative (-)
2. Red Wire: DC Voltage
3. Blue Wire: NC Not Connected
4. Yellow Wire: Water Temperature Sign Wire
5. White Wire: Oil Pressure Sign Wire
1 x Three In One Meter
1 x Water Temperature Sensor
1 x Pressure Sensor
1 x User Manual
