Package Includes:

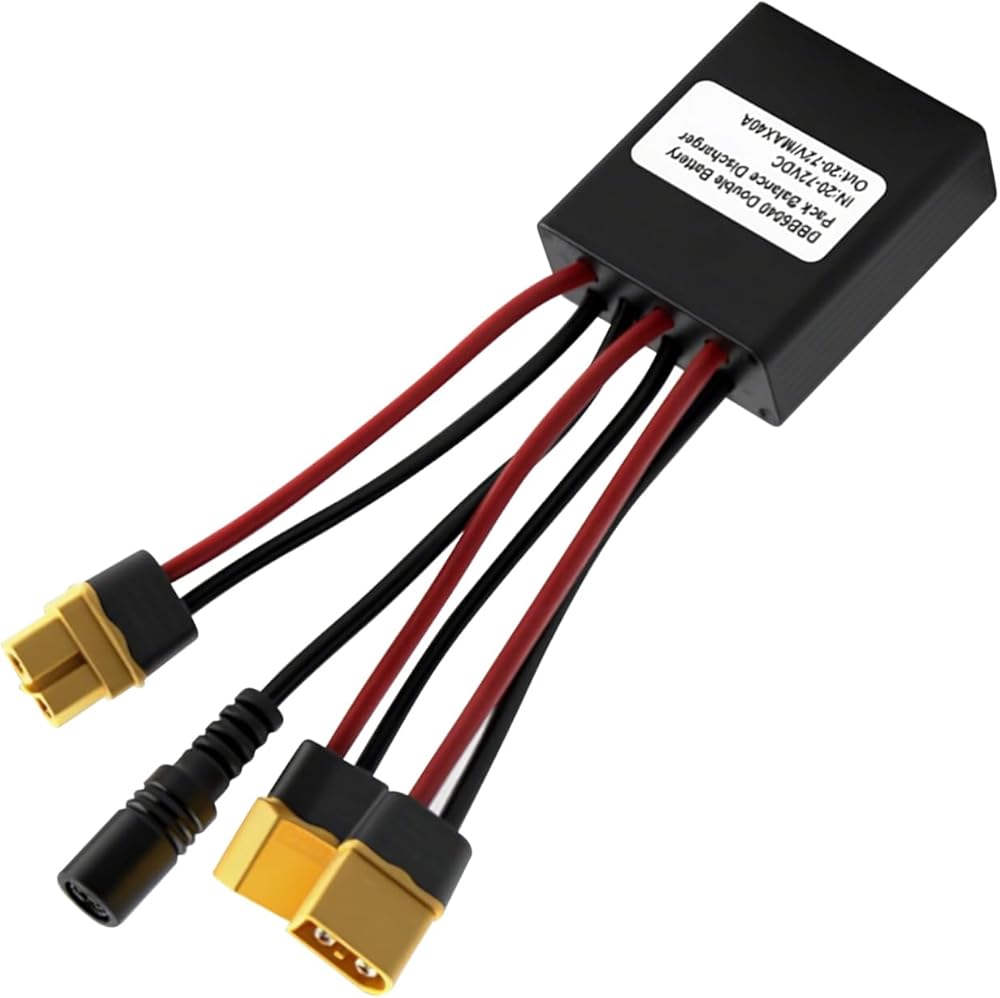

1 × Dual Battery Parallel Module (Black, Aluminum Housing)
1 × Integrated Charging Port (allows direct charging of both batteries through one port)

Material:
Housing: High-strength anodized aluminum alloy – excellent heat dissipation and durability
Internal Components: High-current PCB with thick copper traces, industrial-grade MOSFETs

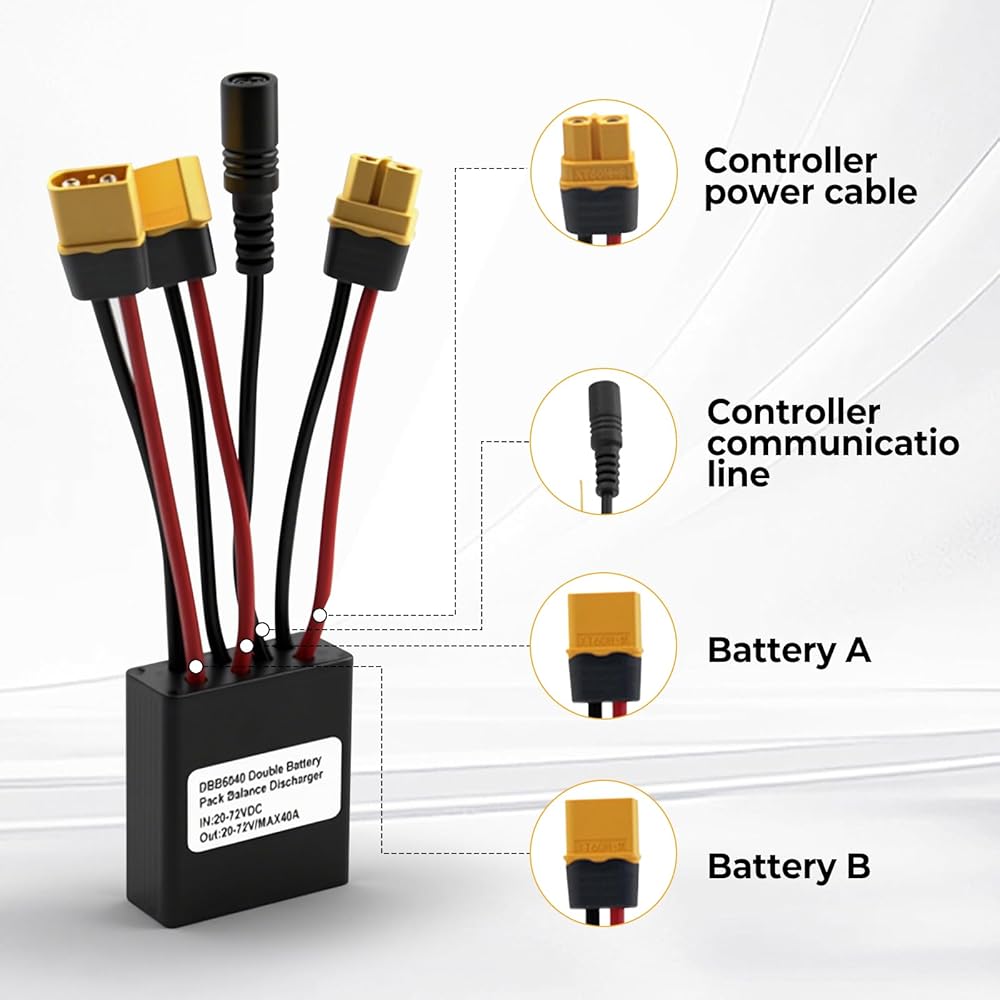

Connectors:XT60H-M (High-current, male-type) for main output; standard DC barrel or XT-style for charging port (as configured)

Color:
Matte black anodized finish

Dimensions & Specifications:

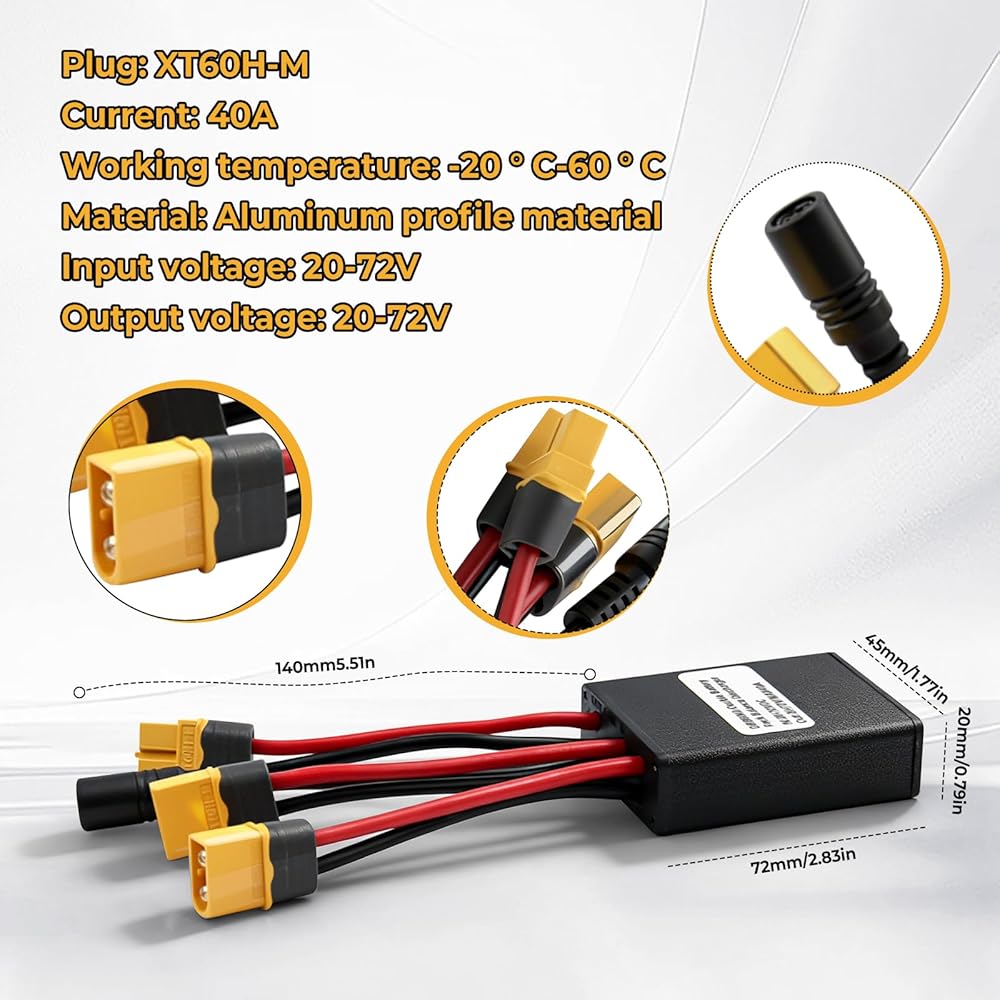

Size:72 mm × 45 mm × 20 mm (Compact and lightweight for easy mounting)
Input Voltage Range:20–72V DC (Compatible with 24V, 36V, 48V, 52V, 60V, 72V battery systems)
Output Voltage: Matches input (20–72V DC)
Continuous Current Rating:40A max – supports high-power motors up to 1000W+
Operating Temperature:-20°C to +60°C (-4°F to 140°F)
Plug Type:XT60H-M (High-temp, secure locking design)
Charging Function: Built-in shared charging port – charge both batteries simultaneously without disconnecting

Features:
True Parallel Balancing – Automatically equalizes voltage between two batteries during discharge and charge
40A High-Current Design – Handles demanding loads from 750W, 1000W, or even higher BBS/BBSHD mid-drive motors
All-in-One Charging – Single charging port powers both batteries safely and efficiently
Robust Aluminum Enclosure – Superior thermal management prevents overheating under load
Wide Voltage Compatibility – Works with 24V to 72V lithium-ion or LiFePO₄ packs
Plug-and-Play with XT60H-M – Industry-standard connector ensures secure, spark-resistant connection
Compact & Vibration-Resistant – Ideal for e-bikes, cargo bikes, and off-road conversions
