Matched Rear Wheels and Axle Hubs. One Package.

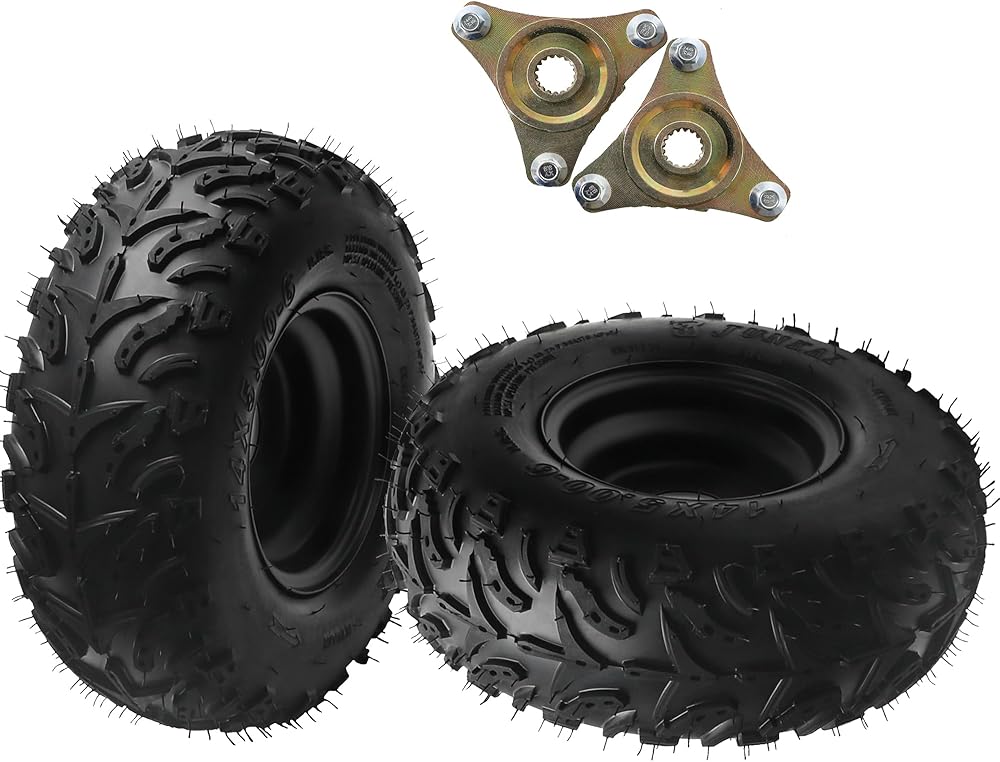

Sourcing rear wheels for a go-kart or ATV means matching tire size, rim bolt pattern, and axle hub spline count across separate purchases — and getting any one of those wrong means the assembly won't fit. This complete rear wheel package removes the guesswork. Two pre-mounted 14x5.00-6 tubeless tire and rim assemblies and two splined rear axle hubs — in your choice of 17T or 23T — ship together, dimensioned and matched for direct rear axle installation on standard 6-inch 3-lug configurations.
The spline hub selection is the critical fitment decision. 17-tooth and 23-tooth spline counts are the two most common rear axle specifications on go-karts, mini bikes, and small ATVs. Count the splines on your existing rear axle or reference your vehicle's specification before selecting — fitting a 17T hub to a 23T axle or vice versa will prevent installation. Both hub options use the same 3-stud 78mm bolt pattern as the included rims, so the tire-to-hub interface is identical regardless of which spline count you choose.
The 14x5.00-6 tubeless tires are 2-ply rated for 308 lbs (140 kg) maximum load per tire at 24 PSI — appropriate rear axle load ratings for go-karts, mini bikes, quad buggies, and light ATVs in recreational and utility use. Operating pressure of 10 PSI provides the right balance of load support and ground contact for typical off-road and mixed-surface rear wheel applications. Tubeless construction eliminates inner tube maintenance and reduces the risk of sudden rear wheel deflation under drive load.
The 3-stud iron rims are dimensioned to the standard 6-inch 3-lug specification: 78mm bolt spacing, 54mm center bore, 345mm overall outer diameter, 135mm section width. Both tires arrive pre-mounted — no bead seating equipment needed. Fit the splined hubs to the axle, bolt on the pre-mounted wheels, torque to specification, and the rear axle is ready.
This tire size is referenced under multiple equivalent designations: 14x5.00-6, 14/5.00-6, 14x5.00x6, and 14x5x6 are all the same tire size. If your vehicle manual or current tires use any of these size codes, this assembly is the correct dimensional match.
Spec Summary: 14x5.00-6 Tubeless | 2-Ply | 308 LBS Max Load Per Tire | 24 PSI Max | 10 PSI Operating | 3-Stud Iron Rim | 78mm Bolt Spacing | 54mm Center Bore | 345mm OD | 135mm Section Width | Rear Axle Hubs: 17T or 23T Spline | 3-Stud 78mm Hub Bolt Pattern | Set of 2 Complete Assemblies
