One Order. Four Wheels. Front and Rear Hardware Included.

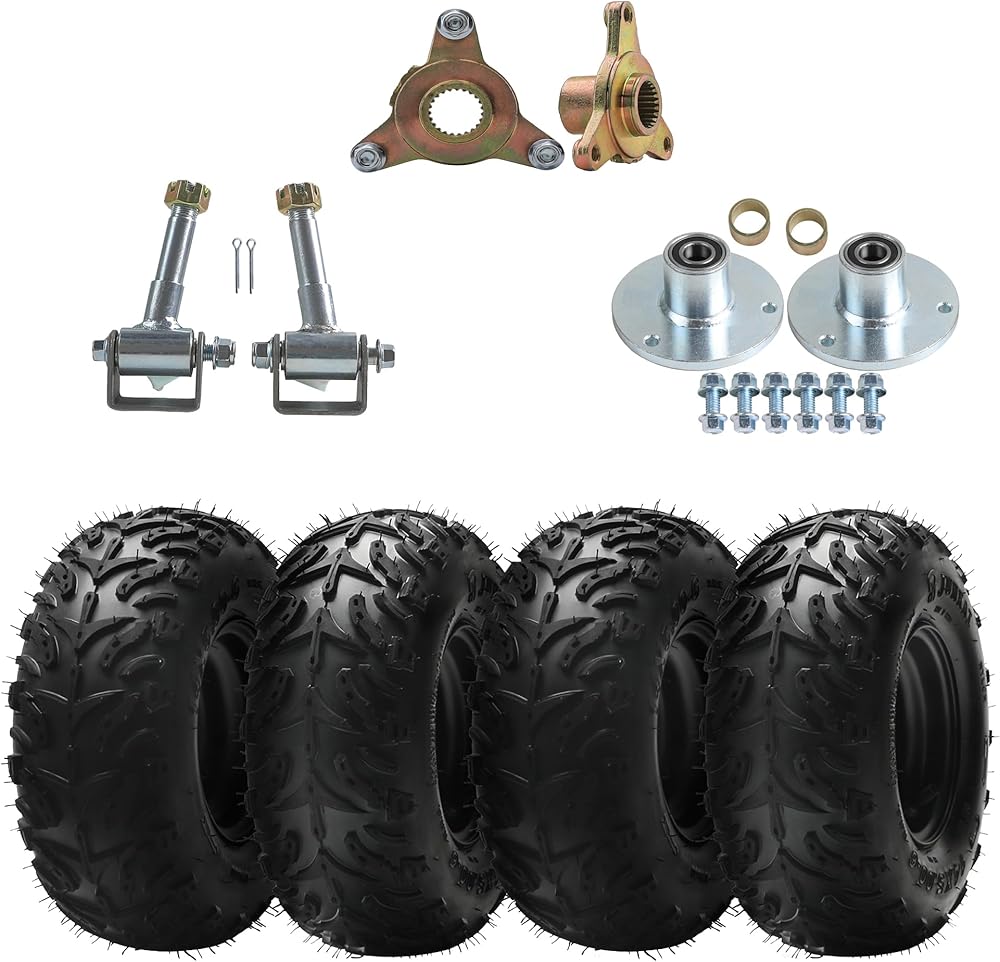

Building or fully re-wheeling a go-kart, ATV, or quad buggy from scratch means sourcing tires, rims, front spindles, front hubs, and rear axle hubs separately — matching bolt patterns, spindle diameters, and axle spline counts across multiple suppliers with no guarantee of compatibility until everything arrives. This complete four-wheel package eliminates every one of those sourcing steps. Four pre-mounted 14x5.00-6 tubeless tire and rim assemblies, two rear splined axle hubs, two 17mm front steering spindles, and two front wheel hubs ship together in one matched package, ready for complete front and rear axle installation.
Rear Axle Hub Selection — Important The rear axle hubs are available in 17-tooth (17T) or 23-tooth (23T) spline configurations. These are the two most common rear axle spline counts on go-karts, mini bikes, and small ATVs. Count the splines on your existing rear axle or check your vehicle specification before selecting your spline option at checkout. Both hub options use the same 3-stud 78mm bolt pattern as the included rims — the tire-to-hub interface is identical regardless of spline selection.
Front Axle Assembly The two 17mm steering spindles fit standard 17mm front spindle bore suspension assemblies used across most go-kart and mini bike front end configurations. The included 3-stud 78mm front wheel hubs bolt directly to the pre-mounted tire and rim assemblies using your existing lug hardware. Front installation is straightforward: mount spindles to your front suspension, press or fit hubs to spindles, and bolt on the pre-mounted wheels.
The 14x5.00-6 tubeless tires carry a 308 lb (140 kg) maximum load rating per tire at 24 PSI with a 10 PSI recommended operating pressure — appropriate for all four wheel positions on go-karts, mini bikes, quad buggies, and light ATVs in recreational and utility applications. All four tires arrive pre-mounted on their matched iron rims. No bead seating, no mounting press, no specialist tools required at any stage of installation.
This tire size is referenced equivalently as 14x5.00-6, 14/5.00-6, 14x5.00x6, and 14x5x6. All four designations describe identical tire dimensions. If your current tires or vehicle documentation reference any of these codes, this assembly is the correct dimensional replacement.
Full Spec Summary: 14x5.00-6 Tubeless | 2-Ply | 308 LBS Max Load Per Tire | 24 PSI Max | 10 PSI Operating | 3-Stud Iron Rim | 78mm Bolt Spacing | 54mm Center Bore | 345mm OD | 135mm Section Width | Rear Hubs: 17T or 23T Spline | Front Hubs: 3-Stud 78mm | Front Spindles: 17mm | Qty: 4 Tires + 2 Rear Hubs + 2 Front Spindles + 2 Front Hubs
