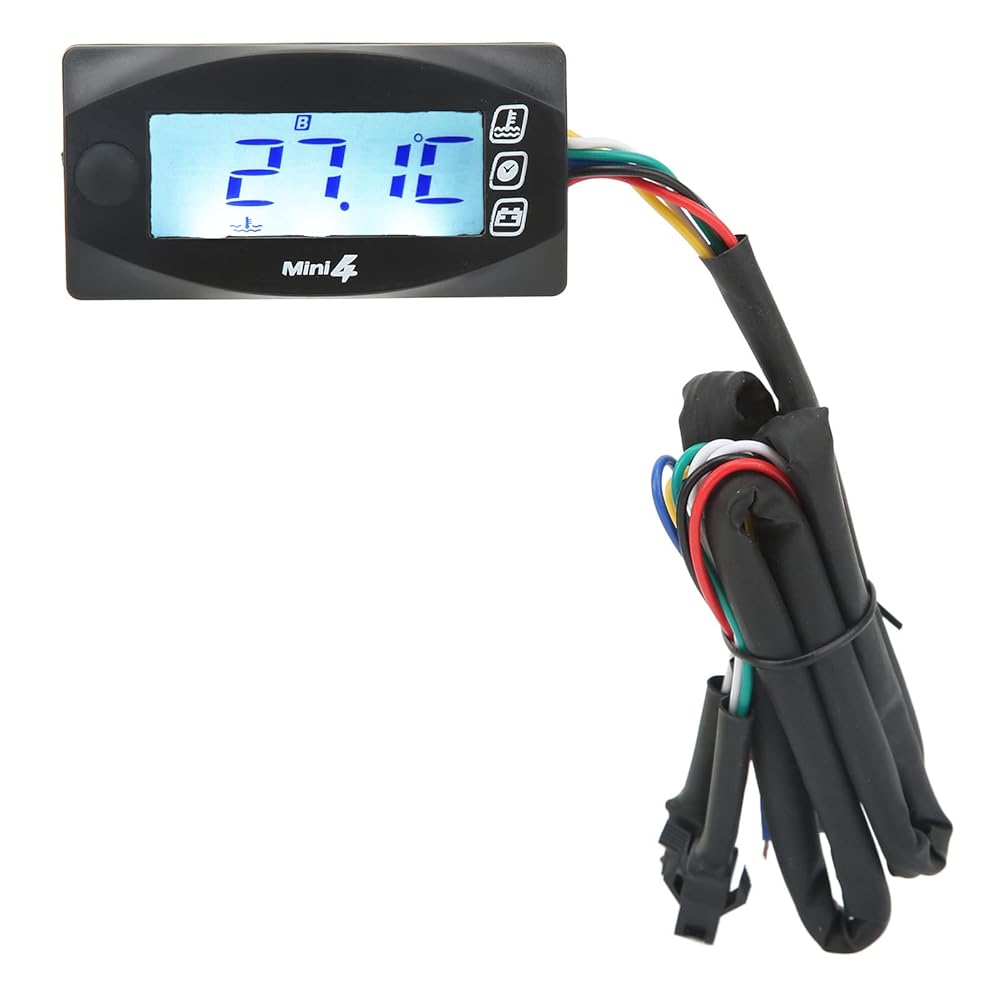

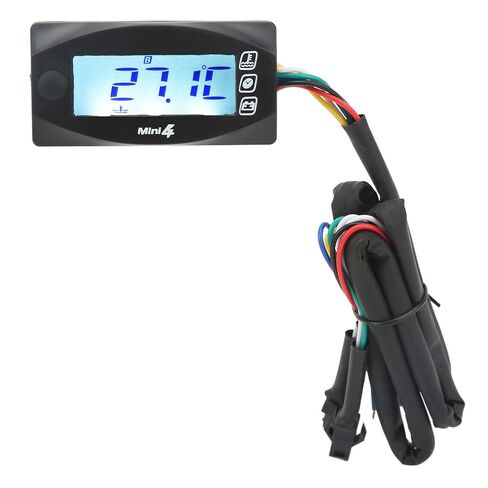

Specifications: Item Type: Motorcycle Thermometer Material: Plastic + LCD Temperature Unit Display: ℃ or ℉ Temperature Display Range: 0-120℃ (32-248℉) Tee Adapter Size: Approx. 22mm / 0.87in Dimension of Thermometer: Approx. 60 x 30 x 13mm / 2.36 x 1.18 x 0.51in Temperature Warning: Flashing when the temperature is higher than 120℃, 248 ℉ Effective Working Voltage: DC12V Backlight: Blue Applicable Model: Universal for motorcycles Voltage Parameter How to Use Wiring method: 1. Temp A‑Yellow wire and white wire. 2. Temp wire and white wire. 3. Blue wire connect to key on DC 12V main power switch.(+) 4. Black wire connect to the vehicie body.(‑) 5. Red wire connect to the battery DC12V.(+) 6. Water temperature: the tee needs to be connected to the cooling water pipe, and then the sensor is connected to the tee 7. Oil temperature: install the oil temperature screw at the oil outlet, and then connect the sensor with the screw Package List 1 x Motorcycle Thermometer 2 x Sensor Harness 2 x Extension Cable 1 x Instructions 1 x Tee 1 x Oil Outlet Screw 2 x Clamp 2 x Wire Terminal 1 x Gasket 1 x Double Sided Adhesive Block
