Parameters:
Voltage: 220V, 50Hz
Motor: 1.5kw
Reducer: K47
Input speed: 25 rpm
Input torque: 400Nm
Input shaft diameter: φ35
Blade specifications and materials: Φ 90*8,9CrSi
Number of blades: 21 pieces

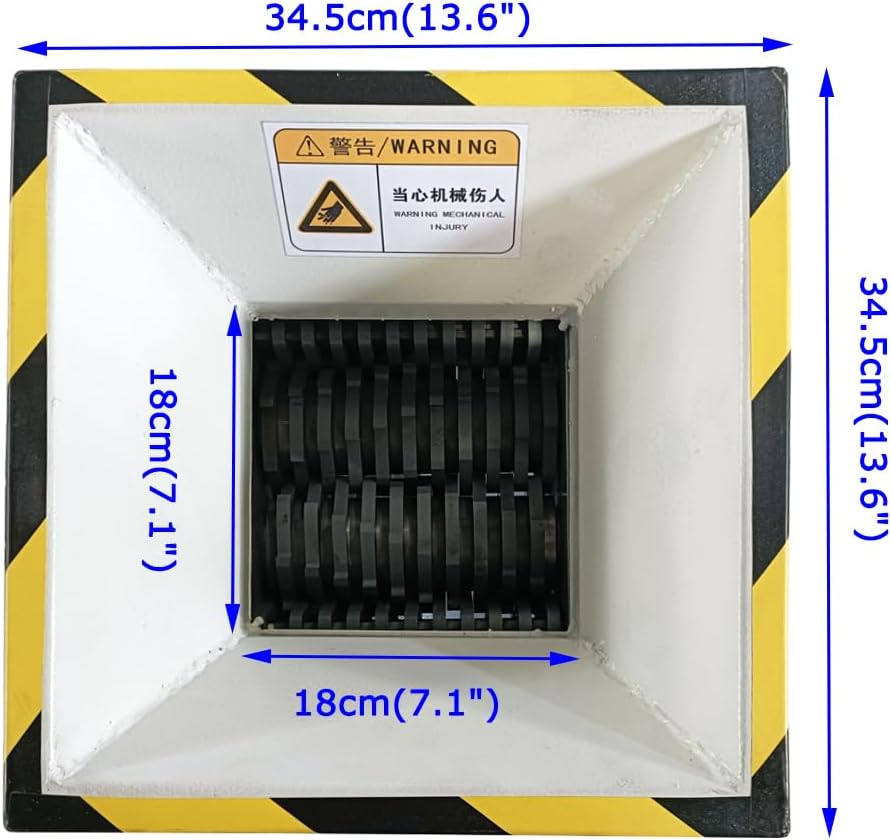

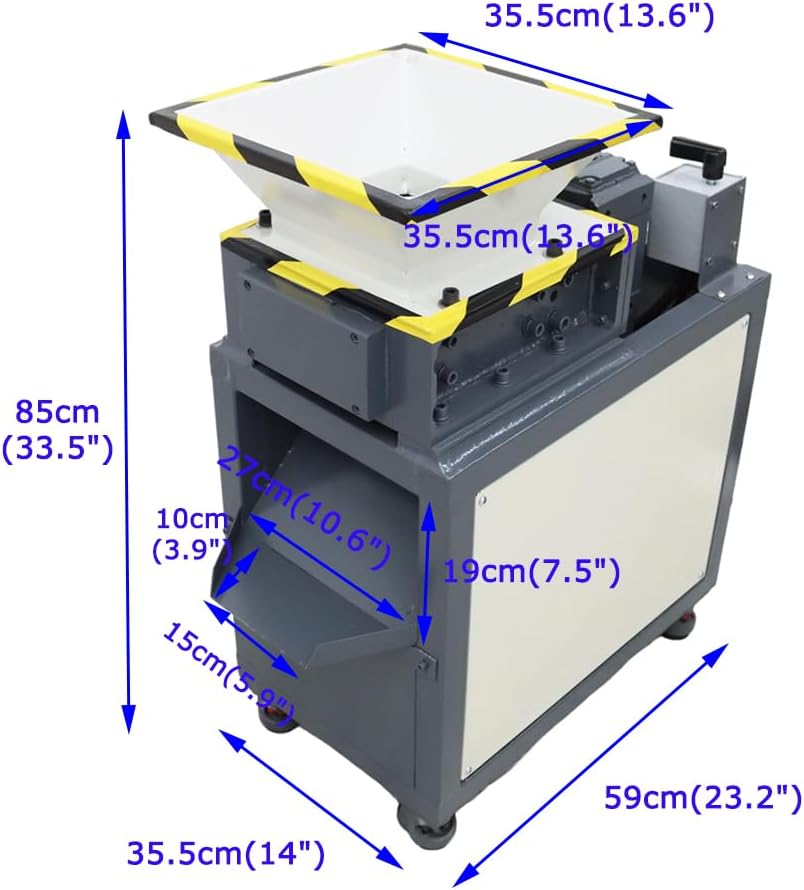

Inner cavity size: 180 * 180mm
Cutting mouth width: 270mm
Height of cutting mouth from the ground: 200mm
Note：
A.Each time the material is placed, it should not exceed 20-30 cubic decimeters (0.02-0.03 cubic meters) and should not exceed one third of the hopper. Do not fill the hopper with materials at once.
B.The material should be placed once at the interval of about one minute to avoid jamming due to the excessively high speed of material placement.
C.If the machine gets stuck due to excessive material placement, immediately reverse the machine for a few revolutions and turn it forward again (black button). Do not feed until the machine is running normally.
D.Check the lubricating oil in the reducer every month to ensure that the lubricating oil is in the position of the oil window.
E.Inject appropriate amount of lubricating oil into the nozzle of the four bearing seats every week.
F.When the machine is not in use, it should be turned on to idle for a few minutes every few days, (positive and negative alternately) so that the residue can be cleaned away as soon as possible.
Package content: SAY021536

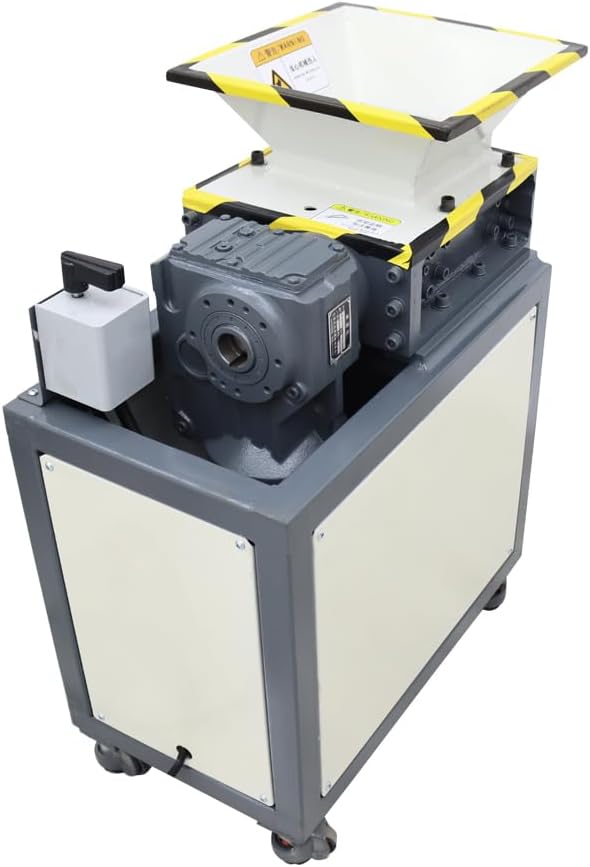

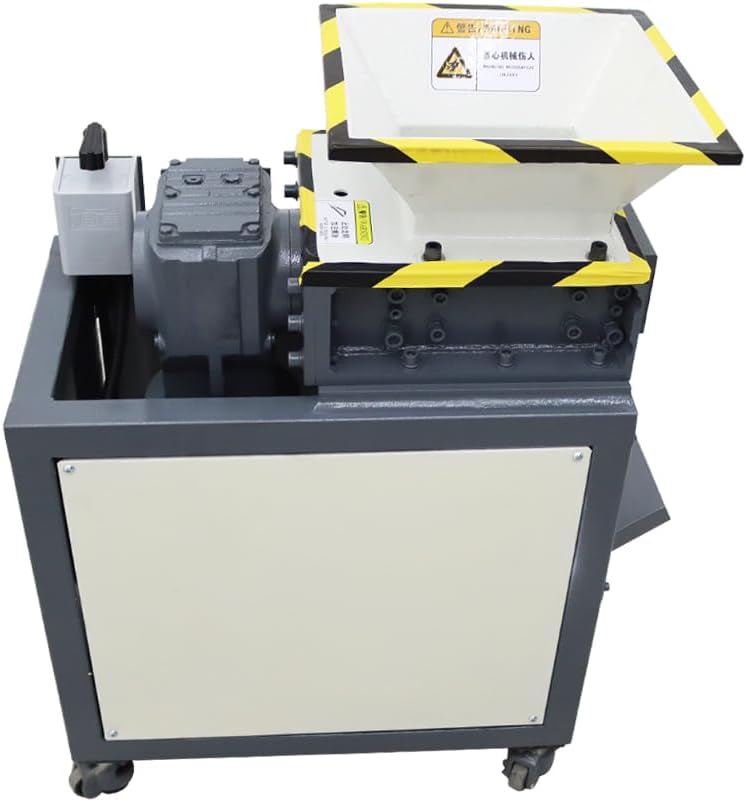

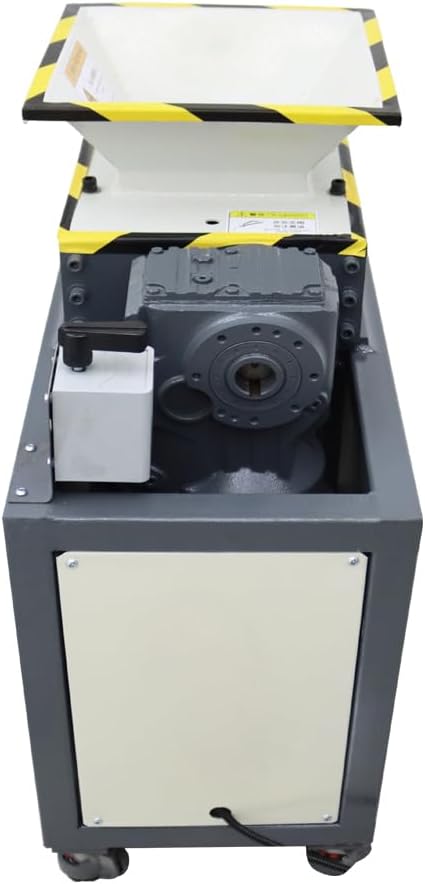

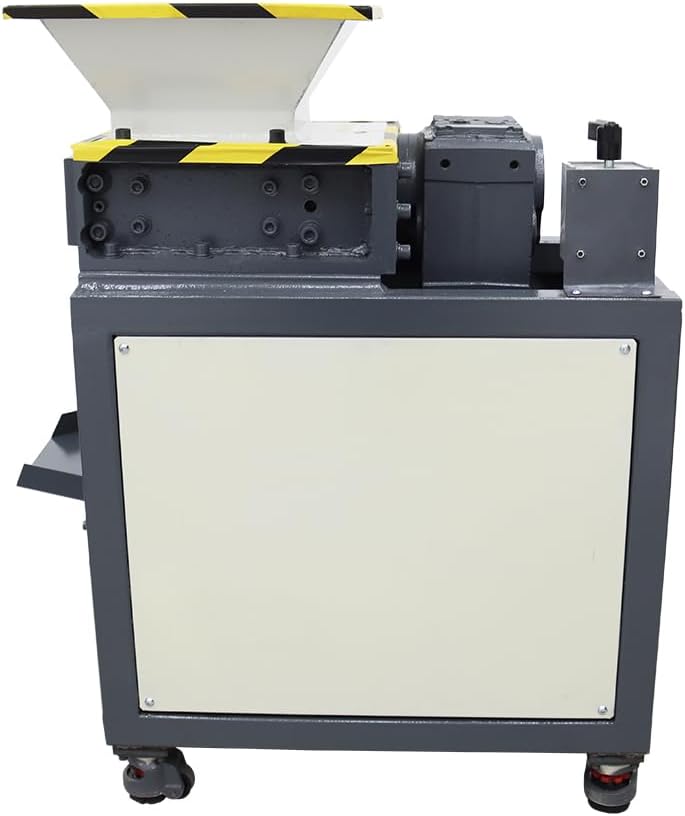

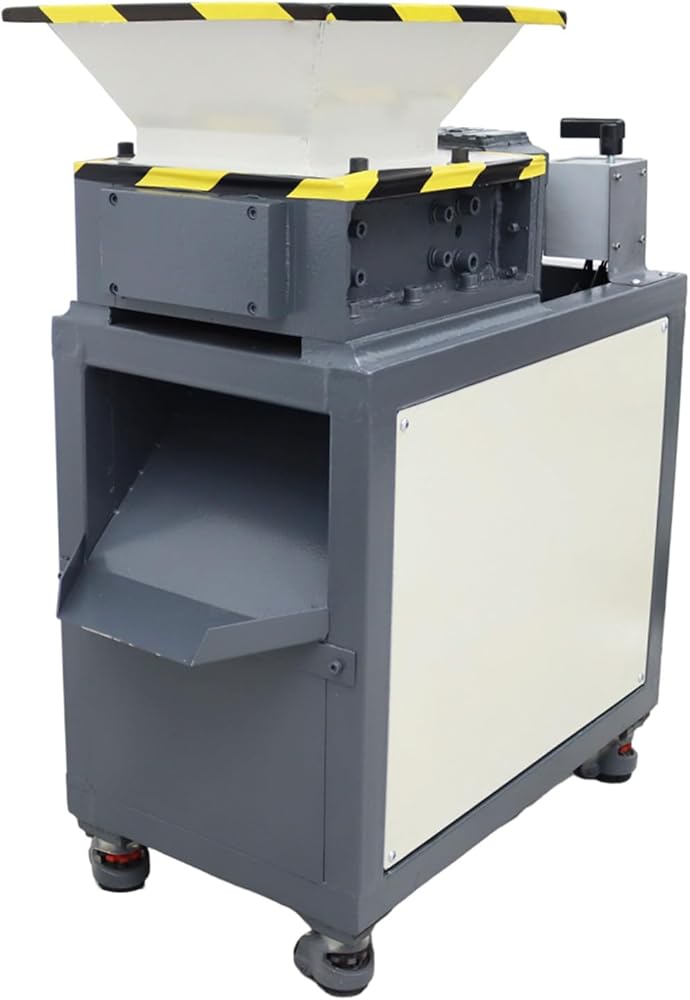

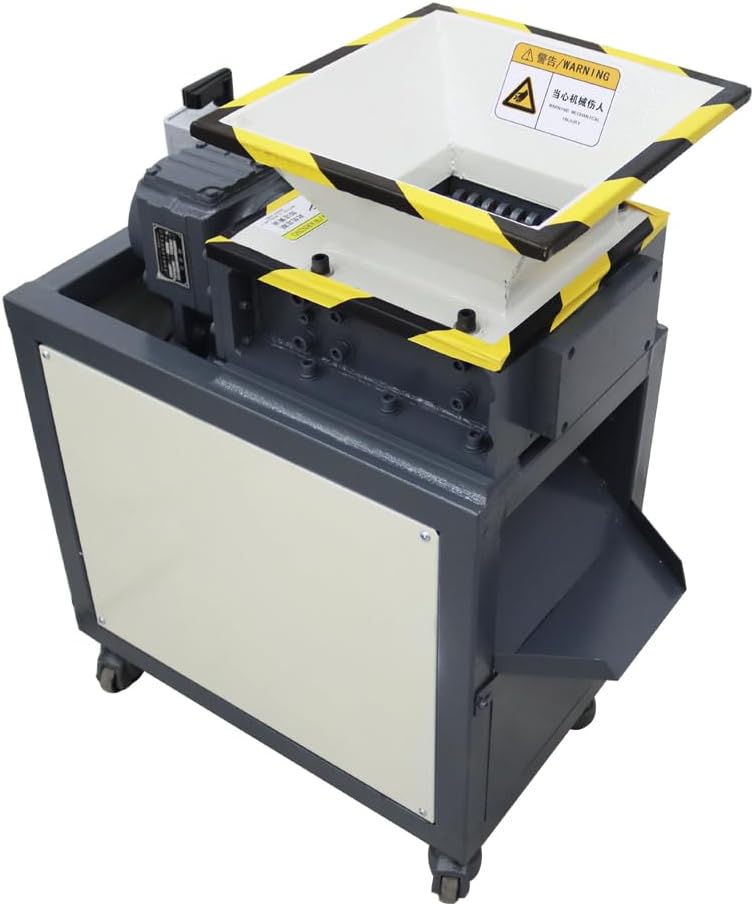

1 x Universal Shredder
