Oil Pressure Gauges

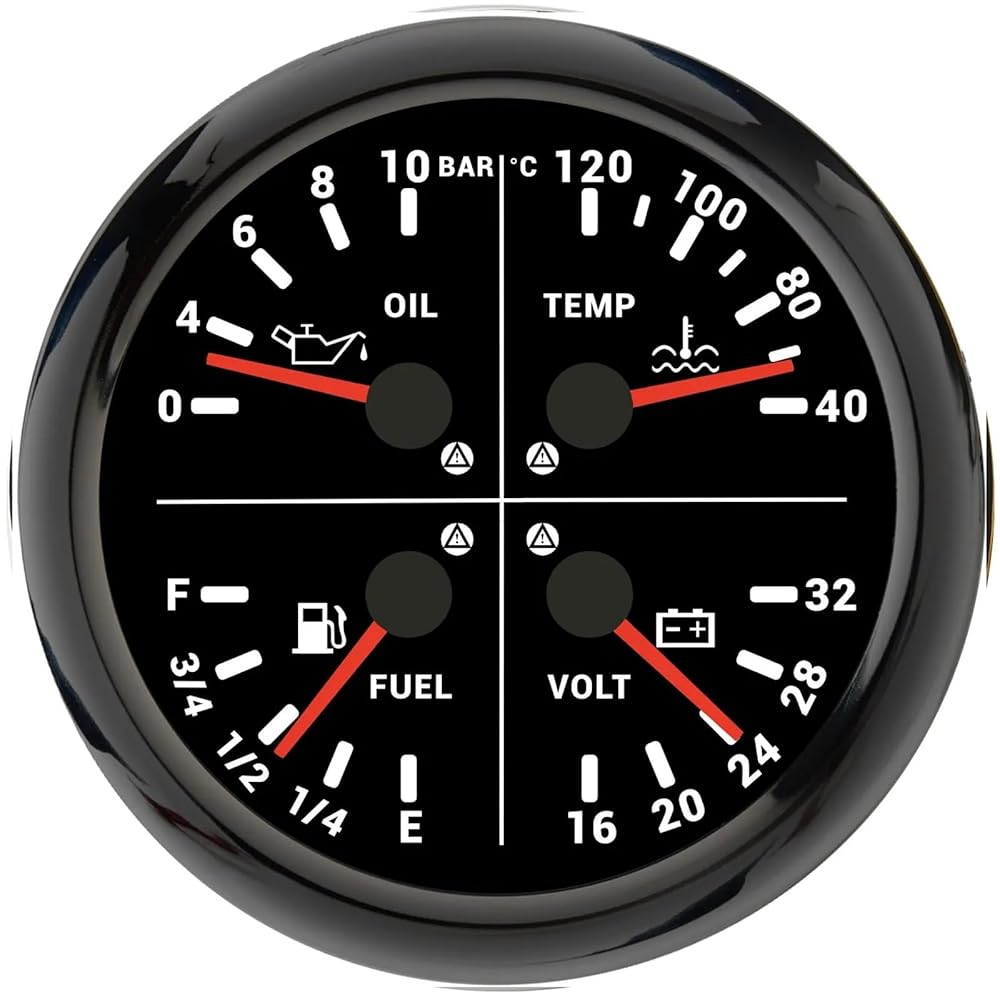

Internal pointer 4-in-1 16-32V (BAR/) 0-190
- Item: Internal pointer 4-in-1 16-32V (BAR/) 0-190
- Fixed size: 110mm
- Indication range: 16-32v
- Operating voltage: (12V/24V)
- Backlight: Red backlight
Fixing dimension: 110mm
Indicating Range: Oil press meter: 0-10 Bar
Water temp meter: 40-120
Fuel level meter: 0-190ohms/240-33ohms, empty-full; (The signal can be adjusted)
Voltmeter: 8-16V
Working Voltage: 12V
Backlight: Red
- 10-184ohms for 0-150PSI oil pressure meter;
- 0-190ohms for fuel level meter;(Default 0-190ohms, can adjust to 240-33ohms)
- 8-16V voltage meter;
- Input Signal 287.4-22.4ohms for water temperature meter
- Protection grade is IP67, the whole body is completely waterproof;
- Excellent antifogging function;
- 316 Stainless steel bezel with curved glass;
- Convenient Installation by multi-plug socket connecting way;
- Accessories: matched with connectors, Installation Instruction
The package contains:
1 x 110mm gauge
==========
High-concerned chemical : None
