Resistor Units
Wattage
Product Link
Simplified Title
100W-800W
Link 3

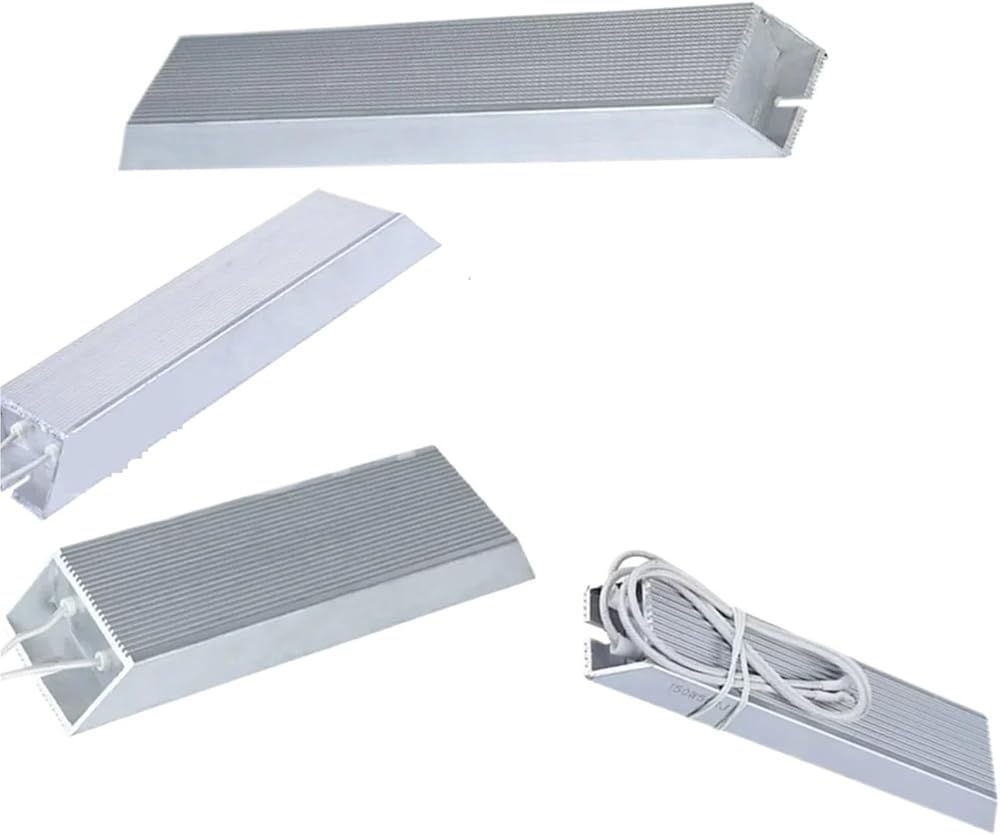

RXLG Aluminum Shell Braking Resistor 100W-800W 10R-300R
1000W-1500W
Link 2
RXLG Aluminum Shell Braking Resistor 1000W-1500W 10R-400R
2000W-3000W
Link 4
RXLG Aluminum Shell Braking Resistor 2000W-3000W 10R-100R
4000W-5000W
Link 6
RXLG Aluminum Shell Braking Resistor 4000W-5000W 10R-100R
6000W
Link 5
RXLG Aluminum Shell Braking Resistor 6000W 10R-100R
10kW
Link 1
RXLG Aluminum Shell Braking Resistor 10kW 10R-100R
FD Power (kW)
Recommended Brake Resistors
0.4 kW
60 W, 200
80 W, 200
0.75 kW
100 W, 200
80 W, 750
1.5 kW
300 W, 100
300 W, 400
2.2 kW
300 W, 70
300 W, 250
3.7 kW
300 W, 50
400 W, 150
5.5 kW
500 W, 100
500 W, 150
500 W, 200
7.5 kW
1000 W, 75
1000 W, 50
1000 W, 30
1000 W, 20
1000 W, 100
11 kW
1000 W, 50
15 kW
1500 W, 40
18.5 kW
4800 W, 32
Power (W)
Terminal
Wire
L (mm)
P (mm)
W (mm)
H (mm)
50
M6
400mm 1.5 mm²
100
85
40
20
80
M6
400mm 1.5 mm²
100
85
40
20
100
M6
400mm 1.5 mm²
140
125
40
20
120
M6
400mm 1.5 mm²
165
150
40
20
150
M6
400mm 1.5 mm²
165
150
40
20
200
M6
400mm 1.5 mm²
165
145
60
30
300
M6
400mm 1.5 mm²
215
195
60
30
400
M6
400mm 1.5 mm²
245
225
60
30
500
M6
400mm 1.5 mm²
245
225
60
30
600
M6
400mm 2.5 mm²
265
245
60
30
800
M6
400mm 2.5 mm²
330
310
60
30
1000
M6
400mm 2.5 mm²
330
310
60
30
1200
M6
400mm 2.5 mm²
420
400
60
30
1500
M6
400mm 2.5 mm²
420
400
60
30
2000
M6
400mm 4 mm²
450
430
50
107
2500
M6
400mm 4 mm²
450
430
50
107
3000
M6
400mm 4 mm²
550
530
50
107
4000
M6
400mm 4 mm²
550
530
50
107
5000
M6
400mm 4 mm²
550
530
50
107
6000
M6
400mm 4 mm²
700
680
50
107
7000
M6
400mm 4 mm²
700
680
50
107
8000
M6
400mm 6 mm²
700
680
50
107
10000
M6
400mm 6 mm²
1000
980
50
107
Height * width * length
100W 20*40*140
150W 20*40*180
200W 30*60*165
300W 30*60*215
500W30*60*245
800W30*60*330
1000W 30*60*330
(50*100*300)
1500W30*60*420
(50*100*400)
2000W50*100*450
3000W 50*100*550
5000W 50*100*700
6000W50*100*700
7000W50*100*900
==========
Accuracy : 5%
Resistance Tolerance : 5%
Type : Aluminum shell resistor
