Resistor Units
Resistance Explanation: 1K = 1,000 (1K equals 1 thousand ohms)
1M = 1,000,000 (1M equals 1 million ohms)

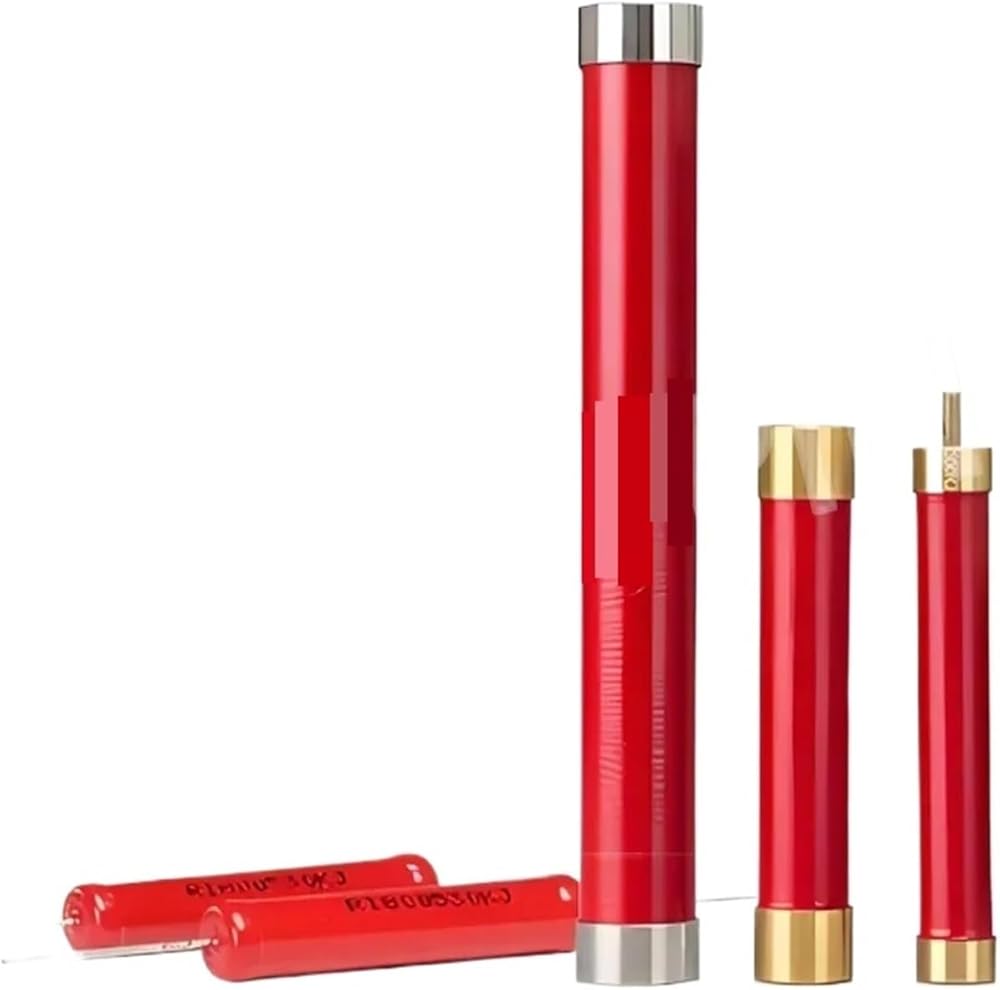

RI80 High-Voltage Resistor
Features This product uses more than 95% high-quality ceramics. The resistor film layer is made of noble metals such as silver, palladium, and platinum. It is sintered at a high temperature of 850°C. It has good thermal conductivity and stable electrical performance. The lead terminals are made of tinned copper wire or brass. The glass enamel medium is encapsulated and can be used in air, paint, and epoxy resin.
Basic Parameters Name Non-Inductive Precision Resistor
Model RI80
Resistance Tolerance 1% - 10%
Lead Material Anti-oxidation Tinned Copper
Base Material
96% Isostatic Pressure Aluminum Oxide Ceramics
Voltage Coefficient
0.5% 1000V (Operating Voltage)
Cap Cover Material
Brass H62 Tinned
Applicable Standard
T5727-2003
Special Requirements
Customizable lead and resistor sizes
Performance Indicators and Test Methods
Test Item
Performance Requirements
Test Method
Resistance Temperature Coefficient
±200 (×10^-6/°C)
Test Temperature: -55°C - 225°C
Pulse Heat Resistance
R±(0.5%R + 0.05)
260±5°C, 10±1s
Stability Test
R±(2%R + 0.1)
+40±2°C, Humidity 95% - 98%, 240h
Rapid Temperature Change
R±(1%R + 0.05)
-55°C/+125°C, 5 Cycles
Vibration
R±(1%R + 0.05)
10-500Hz 98m/s²
Long-Term Load
R±(5%R + 0.1)
+40±2°C, VR 1000h
Lead Strength
R±(0.5%R + 0.05)
1GN, Bend Twice
Additional
210°C
When the temperature rises to 300°C, the effective power load of the resistor is reduced to 0
Resistors Specifications
Rating
Structure
Dimensions (mm)
Resistance Range
Temperature Coefficient
Tolerance
Withstand Voltage (KV)
RI80-150W
B ()
D: 28, L: 210/260, d: M6
1K ~ 1G
±400
±5%
35KV
RI80-200W
B ()
D: 28, L: 260, d: M6
1K ~ 1G
±400
±5%
80KV
RI80-300W
B ()
D: 33, L: 310, d: M6
1K ~ 1G
±400
±5%
80KV
Accuracy : 5%
Type : Metal Film Resistor
