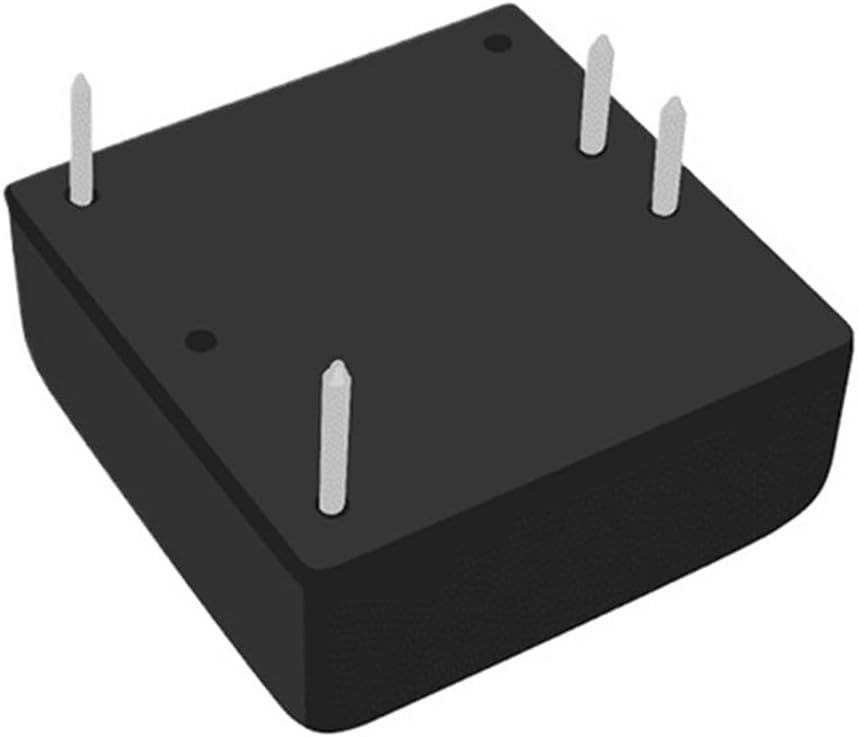

ATC Power Module
1. Ultra-small series power module
Wide voltage range input (4:1), output: 12W
Conversion efficiency : 91% (Typ.)
Isolation voltage :1500Vdc
Ultra-low standby power consumption: 0.036W(Typ.)
Quick start: 1mS (Typ.)
Working temperature range: -40°C~+85°C
Input undervoltage, output short circuit, over current, over voltage protection
Metal shell, low output ripple
International standard pins, PCB board in-line installation

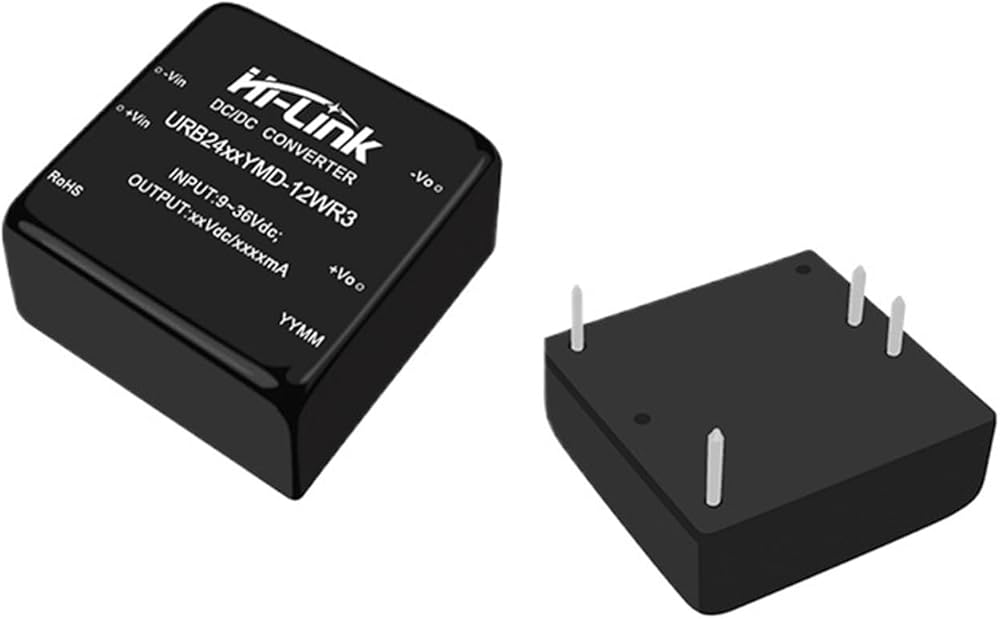

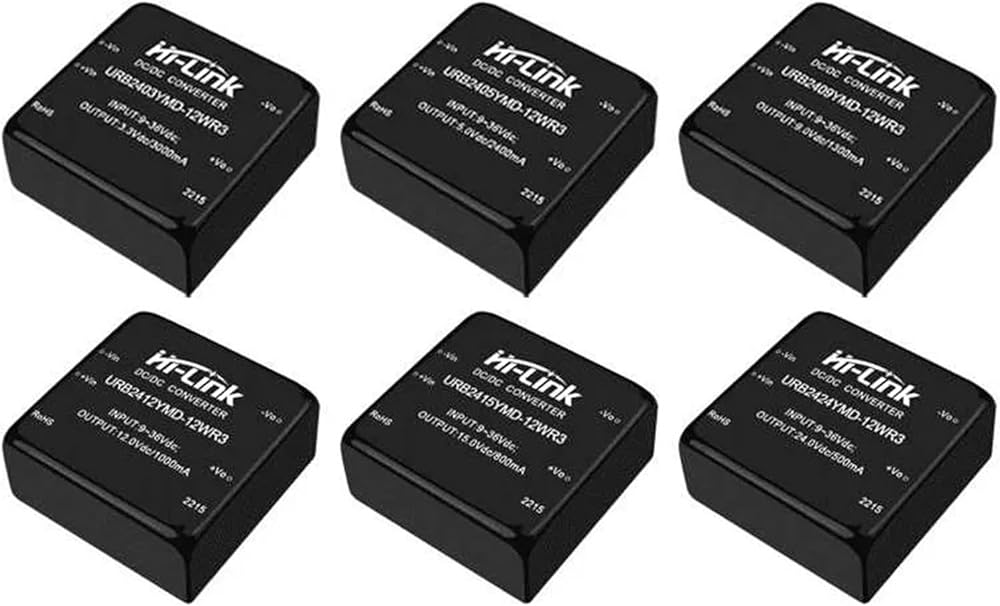

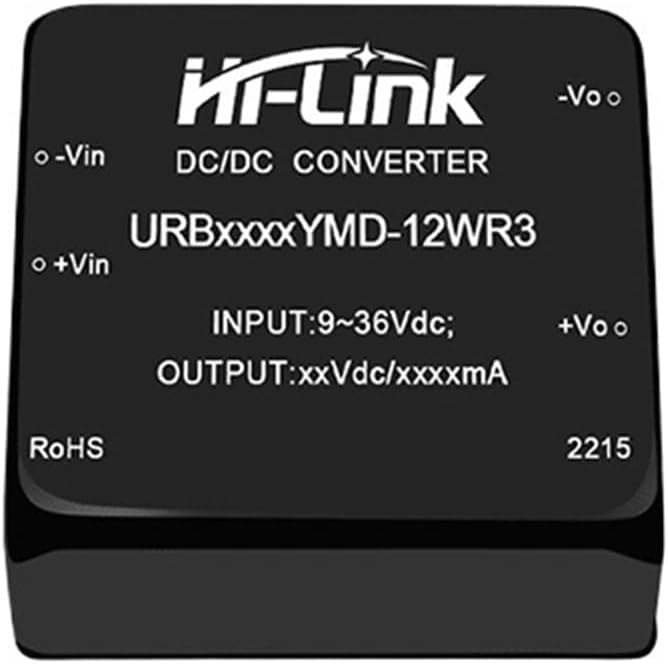

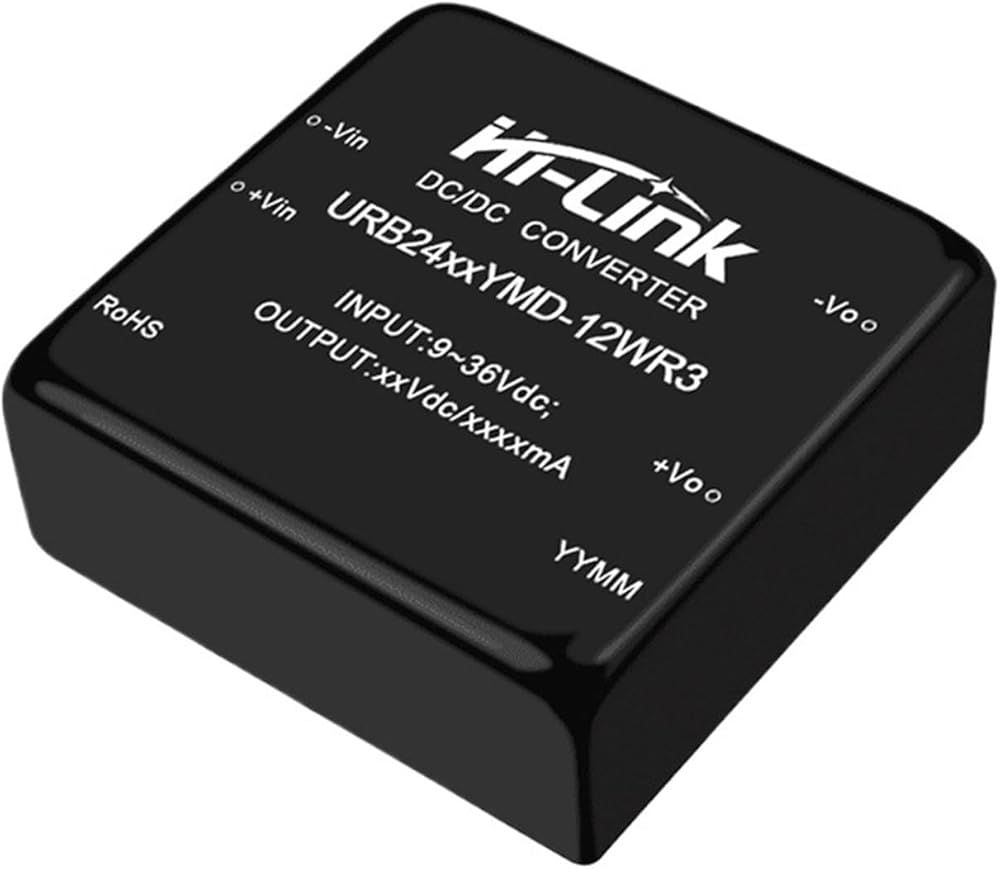

The output power of UR(A)B_YMD-12WR3 series products is 12W, 4:1 wide voltage input range, efficiency up to 91%, 1500VDC conventional isolation voltage, allowable operating temperature -40to+85, with input under-voltage protection, Output overvoltage, overcurrent, short circuit protection functions, bare metal meets CISPR32/ EN55032CLASSA, widely used in medical, industrial control, electric power, instrumentation, communication, railway and other fields.
