مميزات خاصة

The Principle of Heat Generation: When the thermal energy is discharged from the low temperature side through the thermoelectric power generation piece, part of the thermal energy flowing into the device does not , and becomes electric energy in t
High Reliability: The SP1848-27145 thermoelectric peltier TEG module has no extra moving parts, easy to move, light weight, and can be used for a long time.
Usage: One side of TEG peltier(with word) is close to the heat dissipating (cold end), the non-word side is placed on the heat absorbing (hot end), the red line is connected to the positive pole, the black line is connected to the negative
This power generation plate is a low temperature, temperature difference, power generation, cost-effective, relatively
Work Function: The power strip can generate electricity when there is enough temperature difference, it can increase voltage in series and increase current in parallel.

وصف

Specifications:
Model: SP1848-27145
Color : White
Lead Length: about 300mm
Size: 40mm x 40mm x 3.4mm
20 Degree Temperature Difference: Open-circuit Voltage
0.97V,Generated Current: 225MA
40 Degree Temperature Difference: Open Circuit Voltage 1.8V,
Generated Current: 368MA
60 Degree Temperature Difference: Open Circuit Voltage 2.4V,
Generated Current: 469MA
80 Degree Temperature Difference: Open Circuit Voltage 3.6V,
Generated Current: 558MA
100 Degree Temperature Difference: Open Circuit Voltage 4.8V,
Generated Current: 669MA
The values are for reference only, the wiring in actual use, and the step-up board, there will be loss of current.

Package included:

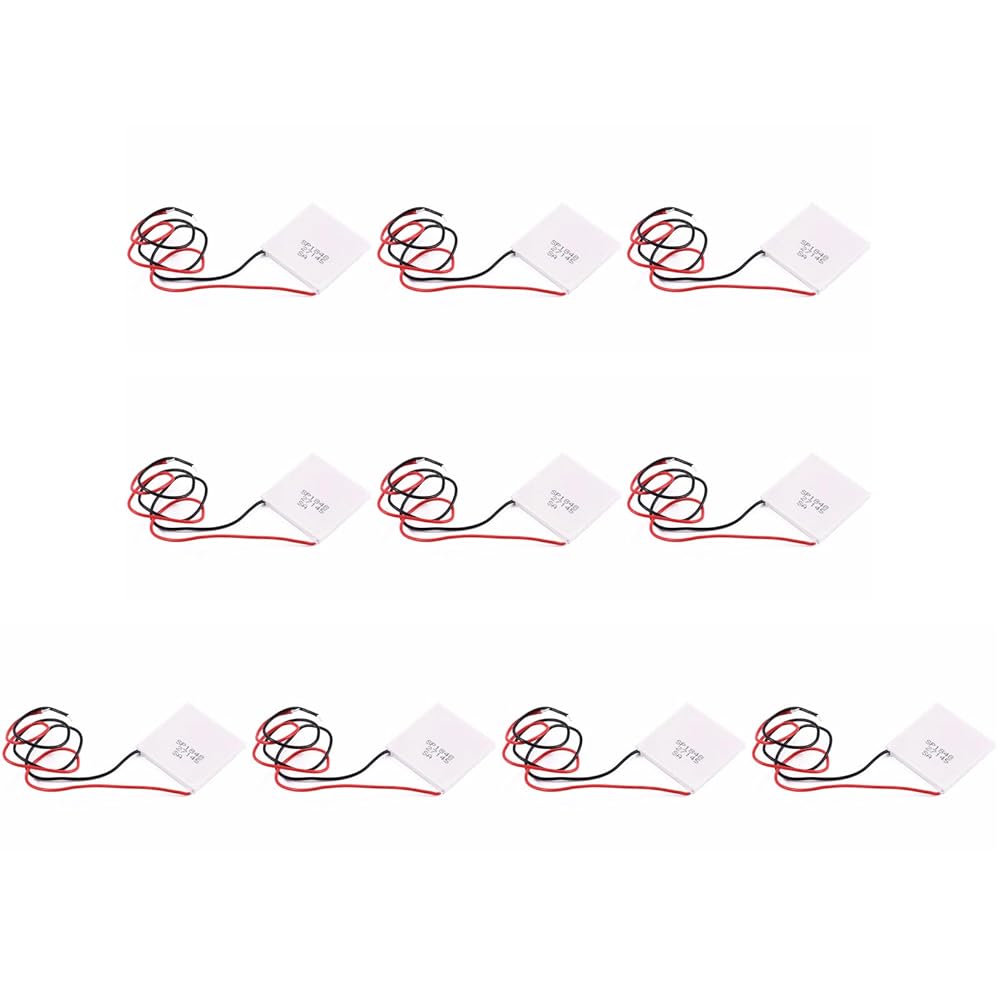

10 x Thermoelectric Power Module
