Item details:

* Colour: Black
* Waterproof rating: IP67, designed for stable operation in both vehicles and home environments
* Built with a HD 7070 mirror imaging sensor to deliver for CRISP and clear images without grid lines

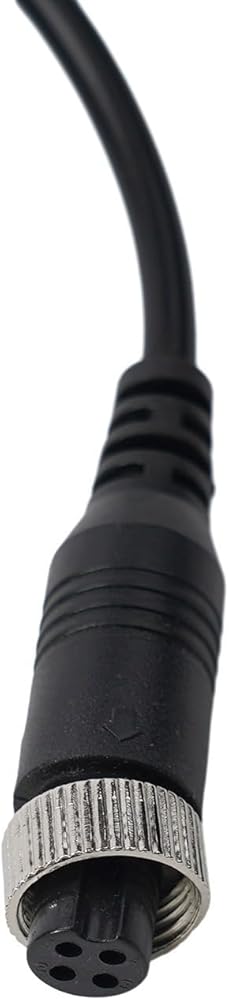

* 4Pin video output connector for secure and stable side view transmission
* Can be used with 700 TVL cables
* Supports for PAL video system

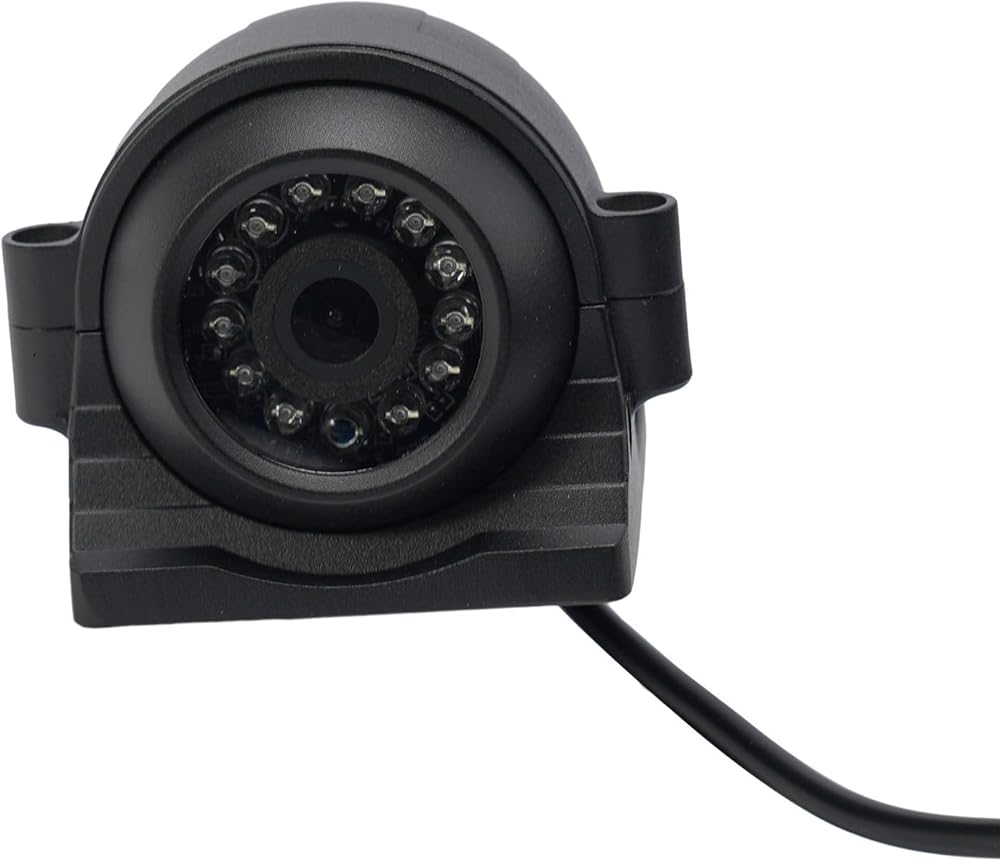

* Integrated 12 IR LEDs for enhanced , illuminating up to 10-15 ft for confident reversing in darkness
* 2.8mm lens with a wide 120° diagonal field of view to cover larger blind spots

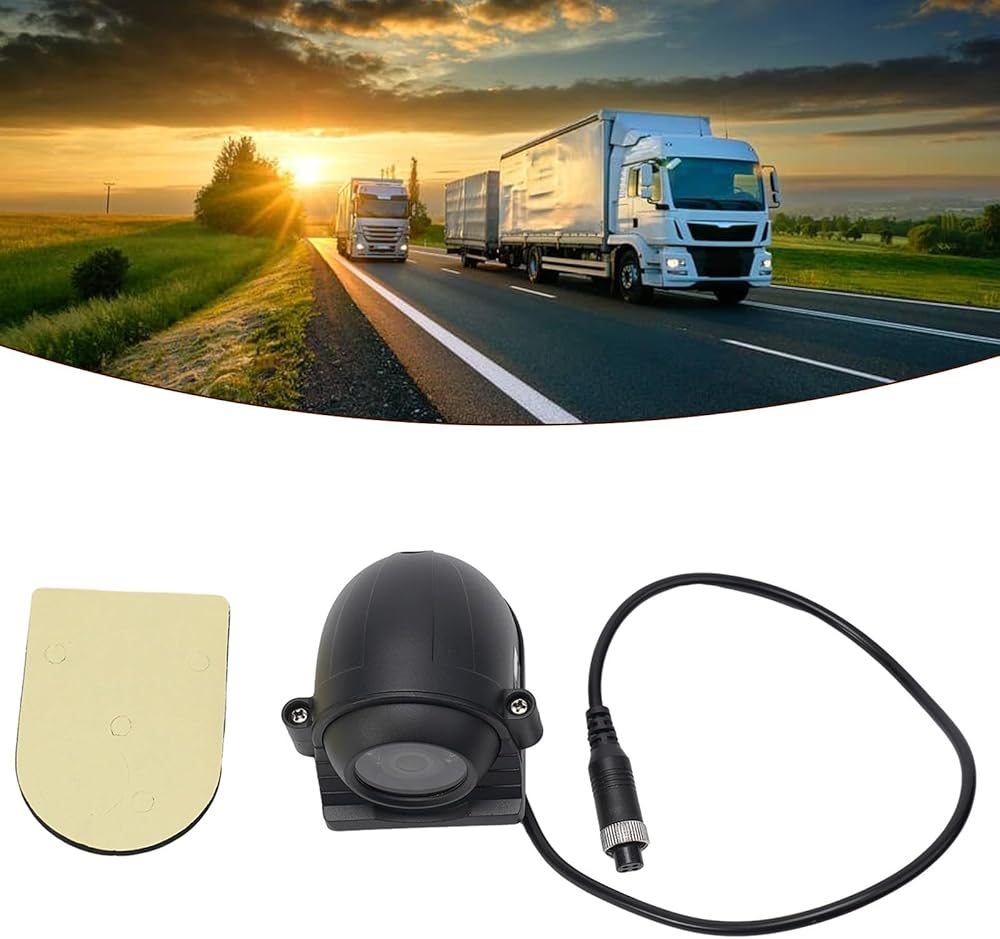

* Compatible with many vehicles including cars, buses, trucks, RVs, motorhomes, and vans
* Designed to reduce the risk of vehicle wear and incidents by increasing peripheral visibility
* Installation process is straightforward for quick setup

Specifications:

* Image sensor: AHD 1080P
* Horizontal Resolution: 700TVL
* Minimum illumination: 0Lux (IR ON)
* Pixel count: 896(H) x 685(V)
* Lens: 2.8 mm
* Diagonal viewing angle: 120 degrees
* Signal to Noise Ratio: >48dB (AGC off)
* TV system: for PAL
* Scanning frequency: 50-60Hz
* Electronic shutter: 1/60~1/15,000 sec.
* Backlight compensation: Automatic
* White balance: Automatic tracking
* Automatic Gain Control: Automatic
* for support: Yes
* Usage: for INTERNATIONAL applications
* Operating temperature: -20°C to +60°C
* Protection class: IP67

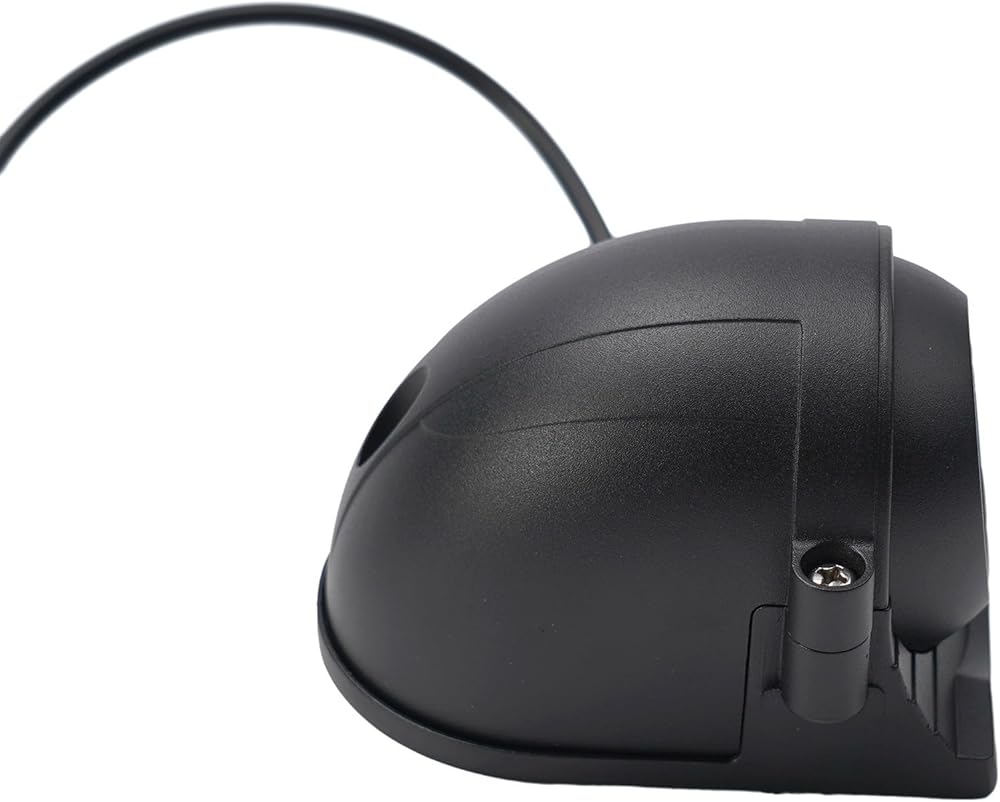

* Housing: Iron/Aluminium
* Video output: 4-pin connector, 1.0Vp-p, 1.5Ω
* Power supply: DC 12V-24V
* Current consumption: Less than 50mA

Package Contents:

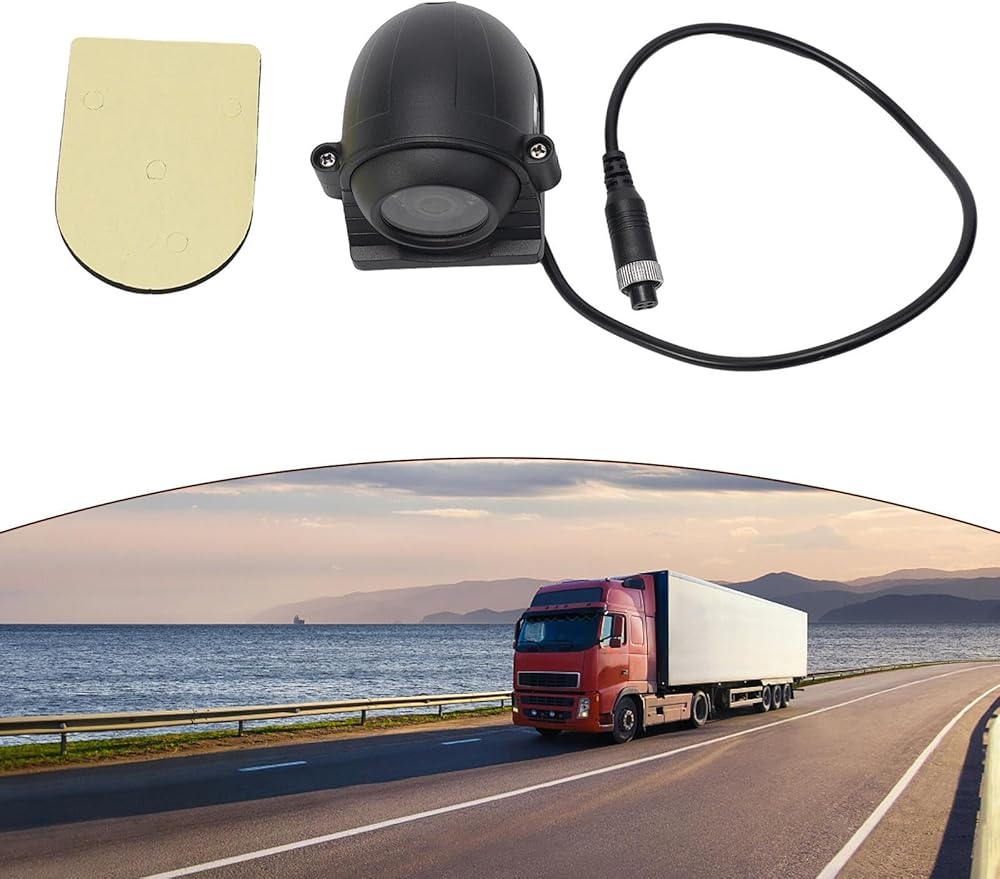

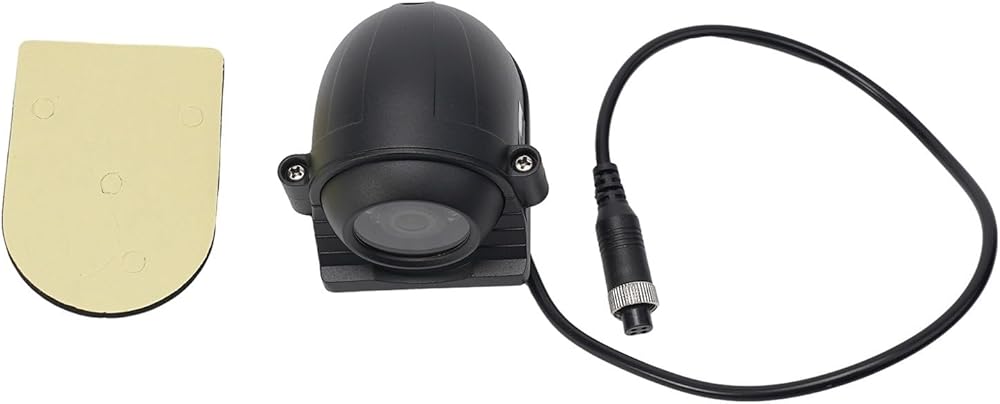

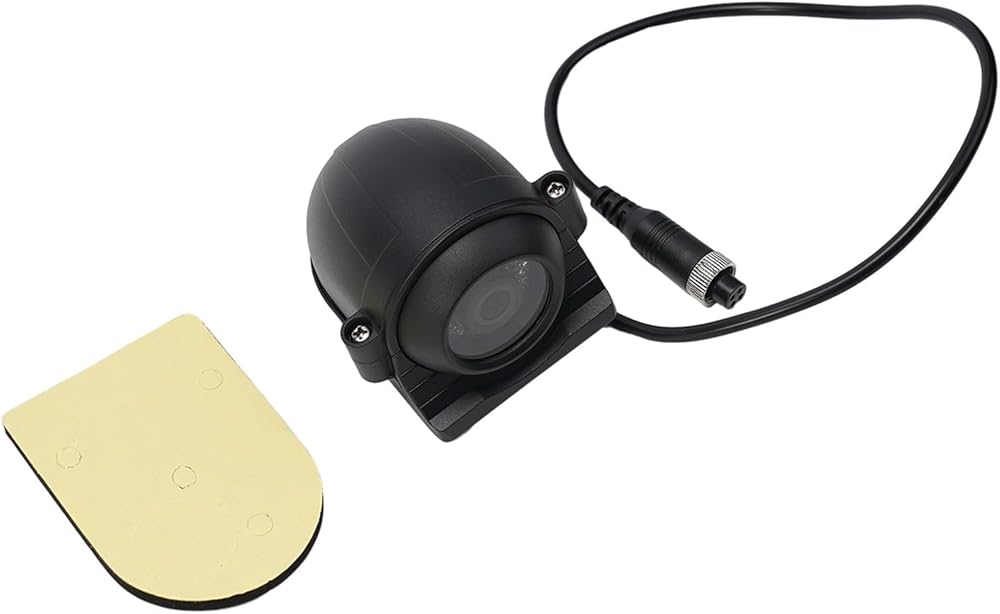

1* Reverse camera (front view)

Caution

1. Actual item colour may vary slightly from website images due to lighting and monitor characteristics.
2. Please allow for measurement variations due to manual processes.
