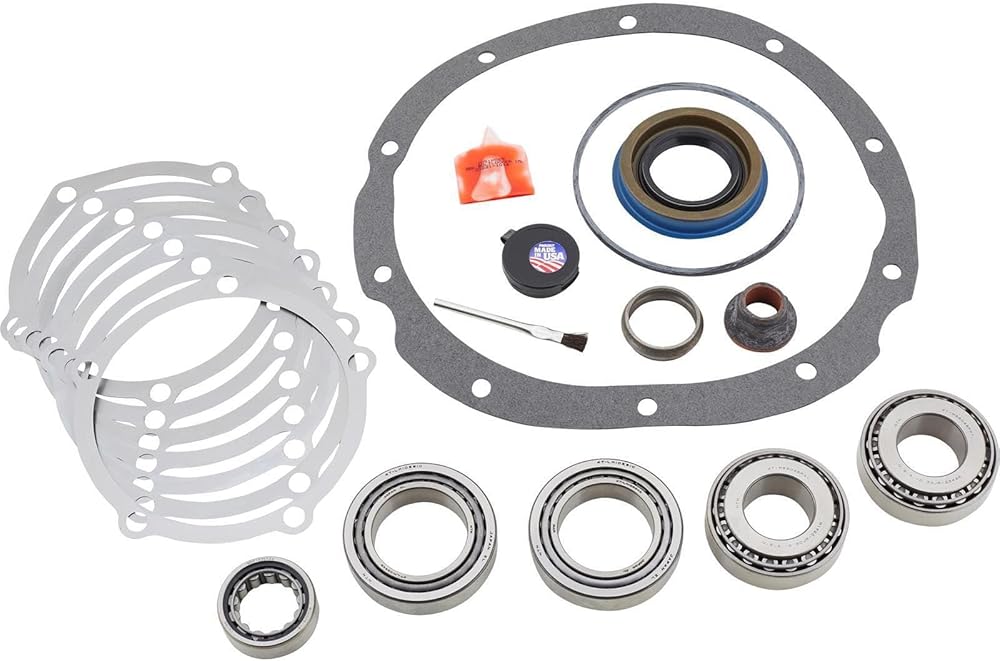

This 9" overhaul kit includes: pinion , pinion shaft, pinion nut, pinion , gasket, shims, crush collar, sealant, gear marking , brush and . Ring gear not included.
NOTE: All 9" full spools use overhaul kit 9190950-31, even if they are a 28- spool. The 9190950-31 contains the large I.D. O.D. bearings and pinion bearings needed for use with our full spools.
If you are using the H.D. nodular iron center section which uses the large diameter bearings, order kit 9190950-31s, which also includes the large pinion bearings for use with the pinion support.
- Double check your bearing p/n.
9190950-28
Includes bearing # LM501349
28- axles DO NOT that the LM501349 bearings are used in the . If in doubt, double check the bearings used and then order accordingly.
9190950-31
Includes bearing # LM102949
31- axles DO NOT that the LM102949 bearings are used in the . If in doubt, double check the bearings used and then order accordingly.
9190950-31S
bearing # LM603049 -CONE- and LM603011 -CUP- TM88048 -CONE-
Outer pinion bearing TM88010 -CUP-
Large "" inner pinion bearing HM89443 -CONE-
Race # HM89410 -CUP-
LM603049 CONE : 1.781 "
LM603011 CUP OD: 3.063 "
TM88048 CONE : 1.308 "
TM88010 CUP OD: 2.687 "
HM89443 CONE : 1.308 "
HM89410 CUP OD: 3.00 "
