Application:
CHEVROLET BLAZER 1969-1972
CHEVROLET C10 PICKUP 1968-1972
CHEVROLET C10 SUBURBAN 1968-1972
CHEVROLET C20 PICKUP 1968-1972
CHEVROLET C20 SUBURBAN 1968-1972
CHEVROLET C30 PICKUP 1968-1972
CHEVROLET G10 1969-1971
CHEVROLET G20 1969-1971
CHEVROLET G30 1971
CHEVROLET K10 PICKUP 1968-1972
CHEVROLET K10 SUBURBAN 1968-1972
CHEVROLET K20 PICKUP 1968-1972
CHEVROLET K20 SUBURBAN 1968-1972
CHEVROLET K30 PICKUP 1968-1972
CHEVROLET P10 1971-1972
CHEVROLET P20 1971-1972
CHEVROLET P30 1971-1972
GMC C15/ C1500 PICKUP 1968-1972
GMC C15/ C1500 SUBURBAN 1968-1972
GMC C25/ C2500 PICKUP 1968-1972
GMC C25/ C2500 SUBURBAN 1968-1972
GMC C35/ C3500 PICKUP 1968-1972
GMC G15/ G1500 VAN 1969-1971
GMC G25/ G2500 1970-1971
GMC G35/ G3500 VAN 1971
GMC JIMMY 1970-1972
GMC K15/ K1500 PICKUP 1968-1972
GMC K15/ K1500 SUBURBAN 1968-1972
GMC K25/ K2500 PICKUP 1968-1972
GMC K25/ K2500 SUBURBAN 1968-1972
GMC K35/ K3500 PICKUP 1968-1972

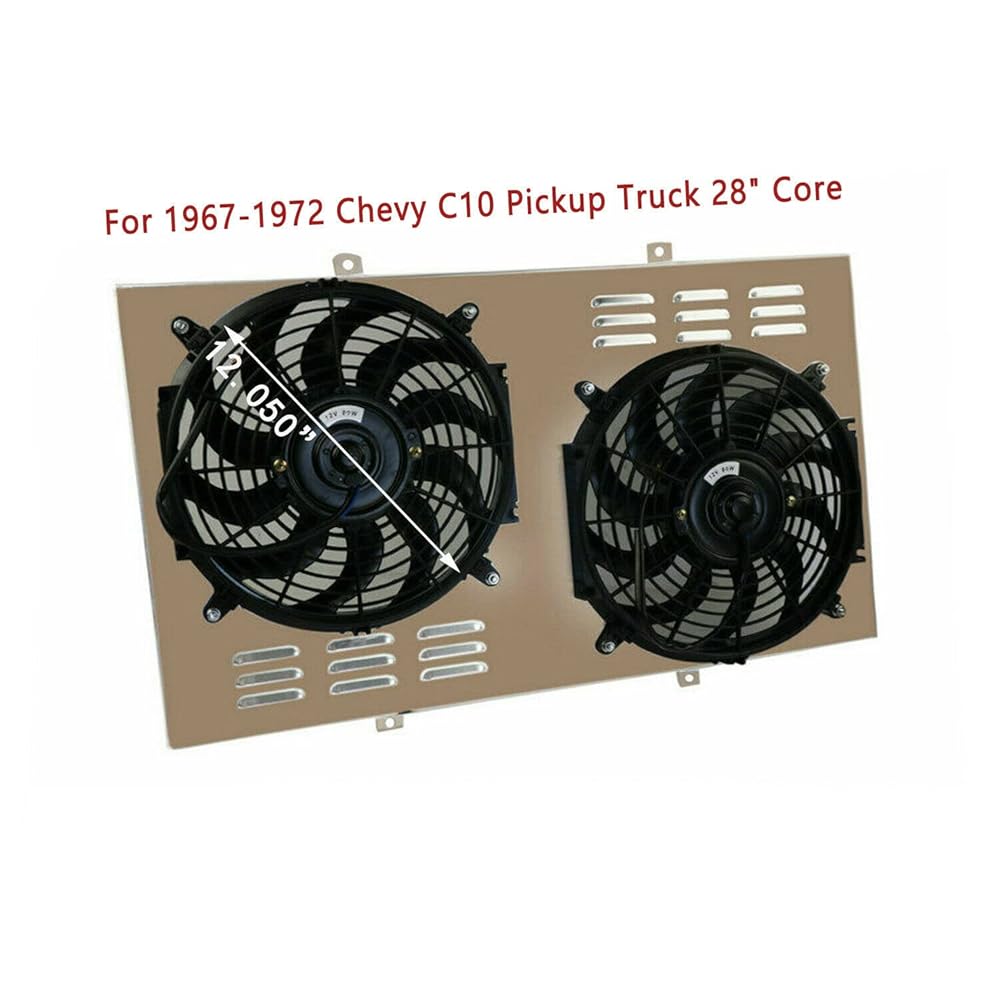

Fits L6 V6 V8 Models with 28.25" Wide Core Radiators;
Interchange Part Number: DPI369,CC369,CU369,0369AA,369;
Other Part Number: KKS369 ,CUC369 ,R369 ,RR369 DRMC369 MC369
OEM Part Number: RA-CK67-3, RA-CK67-2 8010369, 433366

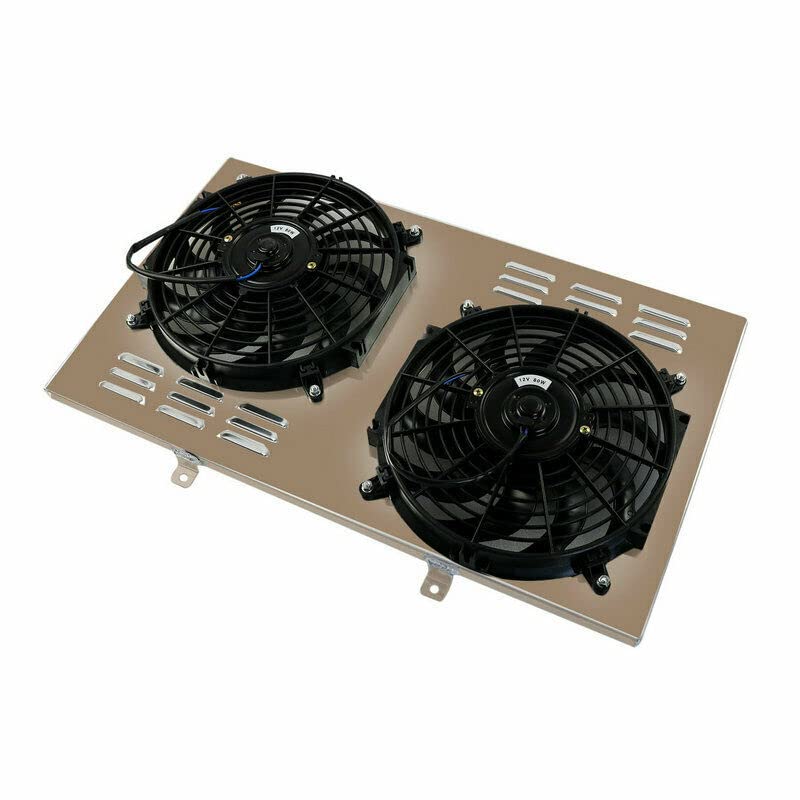

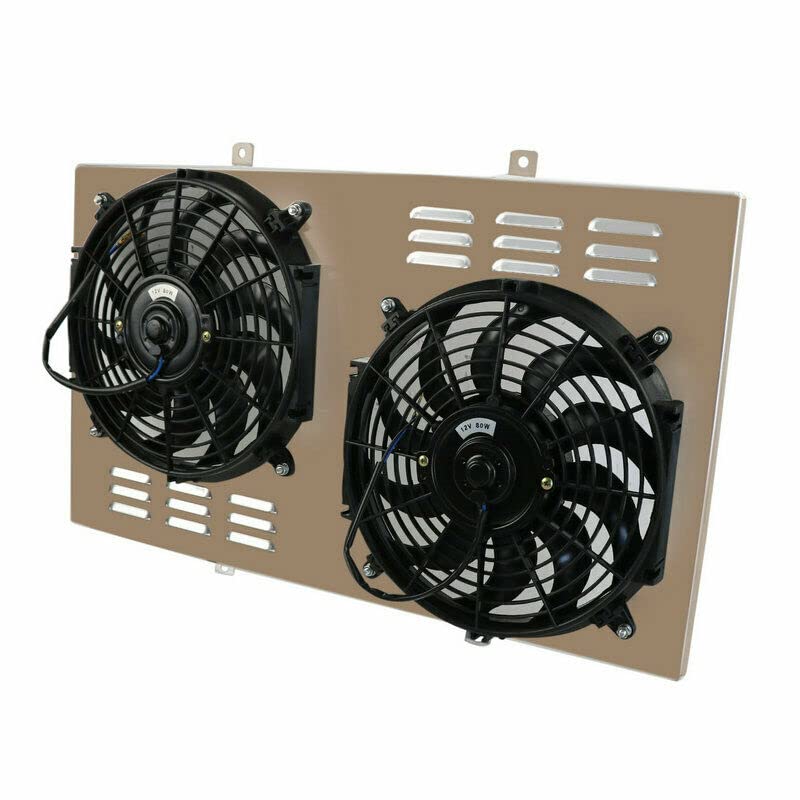

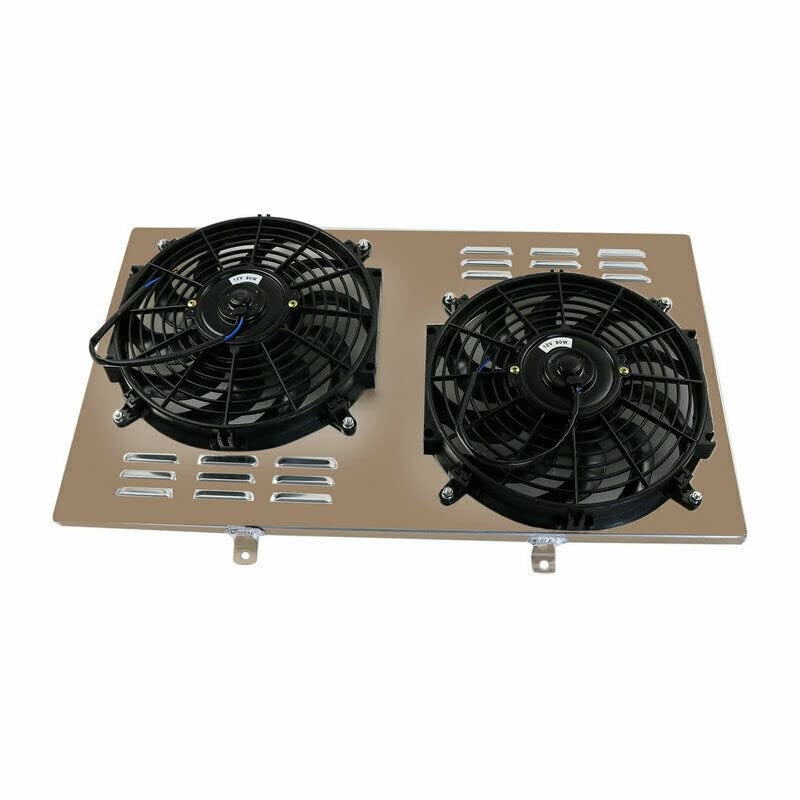

Fan Specification:
Diameter : 12'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 80W
Fan Thickness: 2.5"

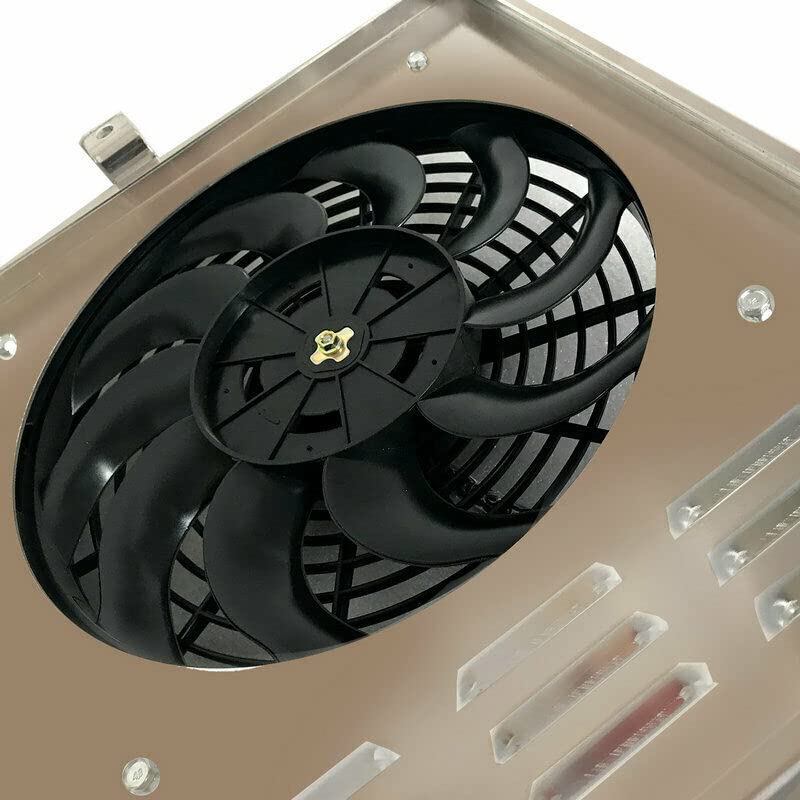

Number of Blades: 10 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 2150cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 80 watt motor will keep your engine cool.

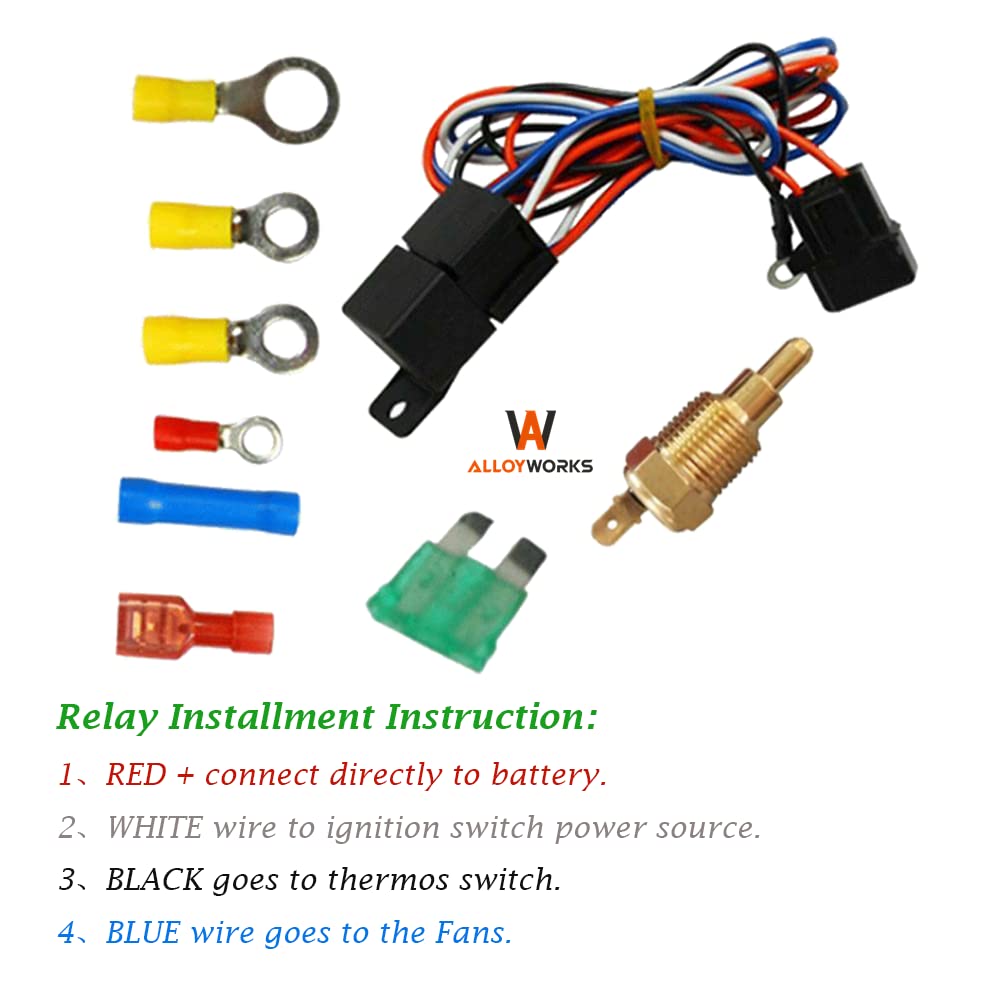

Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.

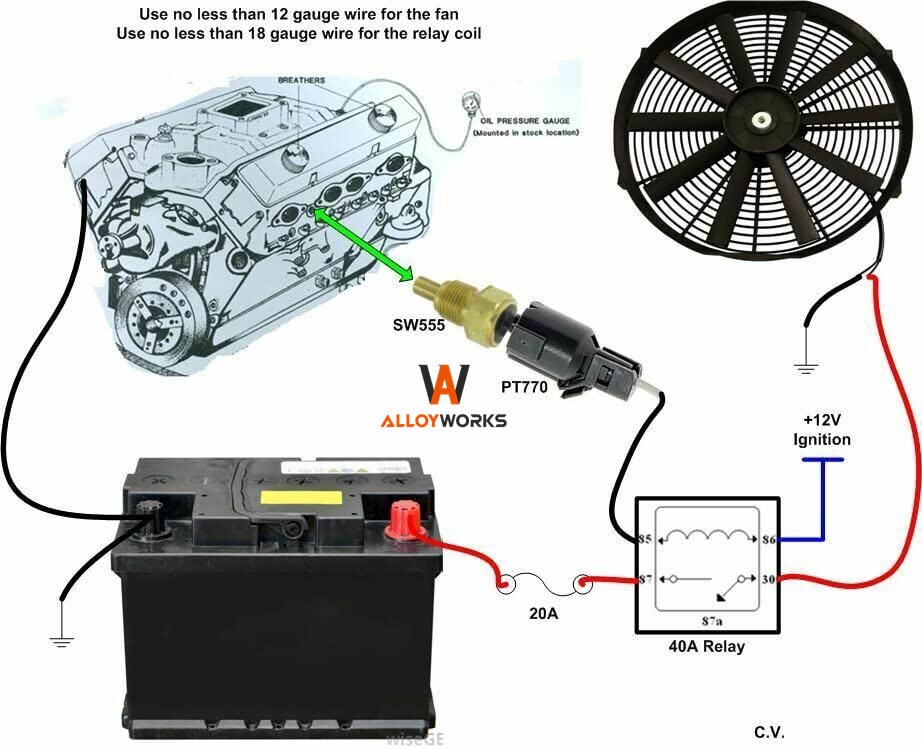

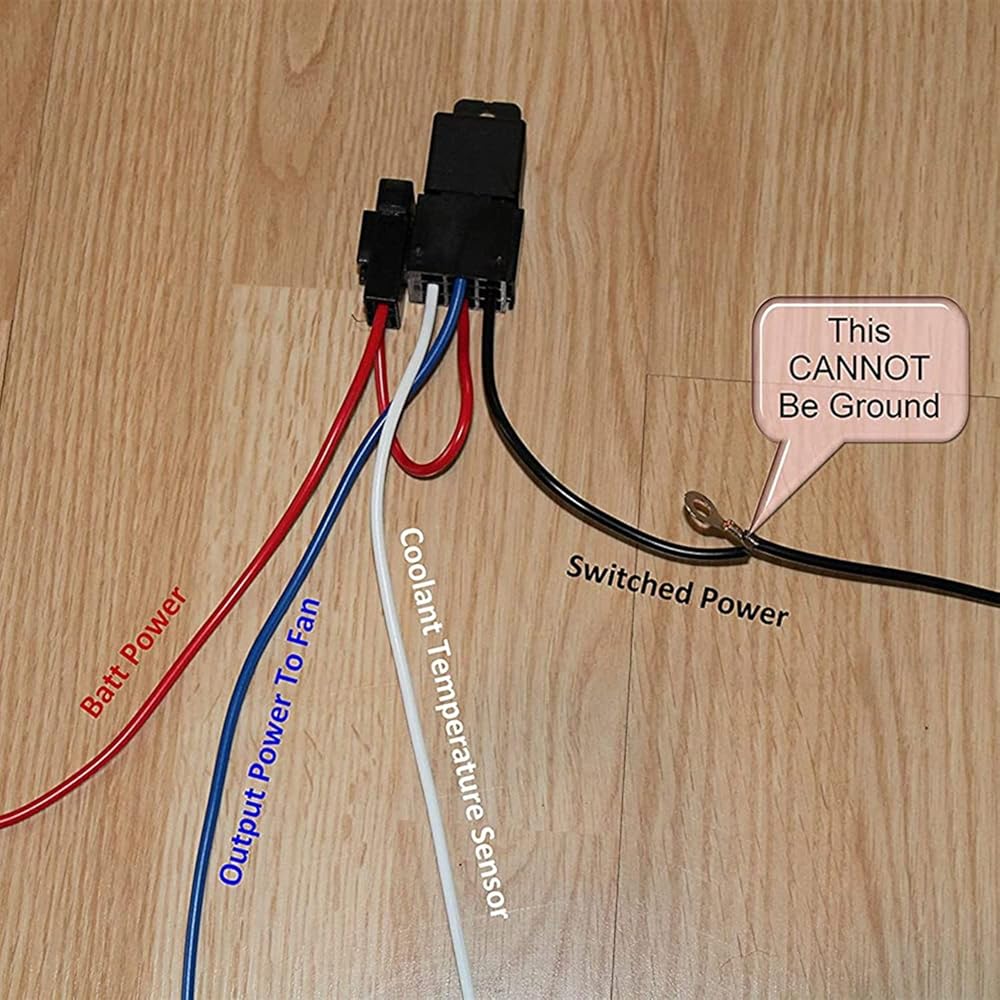

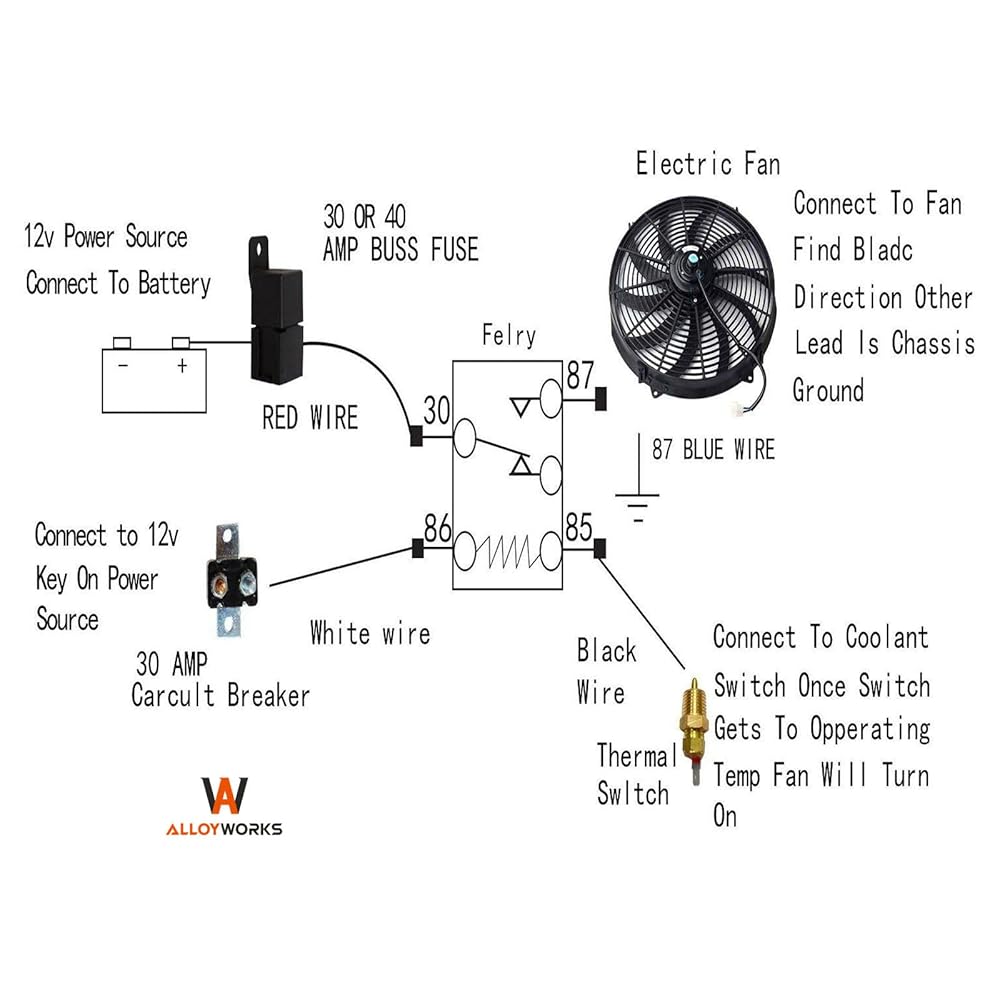

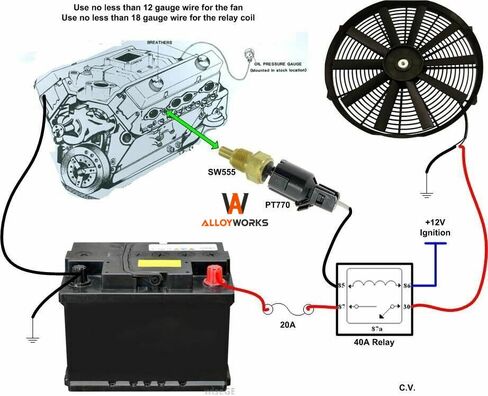

Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

Gentle Hint:
Parameters Meticulous Prior to Ordering.
Pls compare the overall width with your original radiator.
Warranty: 1 Year Warranty against manufacture defect and damage in transit.
Professional installation is highly recommended! No Fitting Instructions Supplied!
Please contact us for installation video or other any problem.
