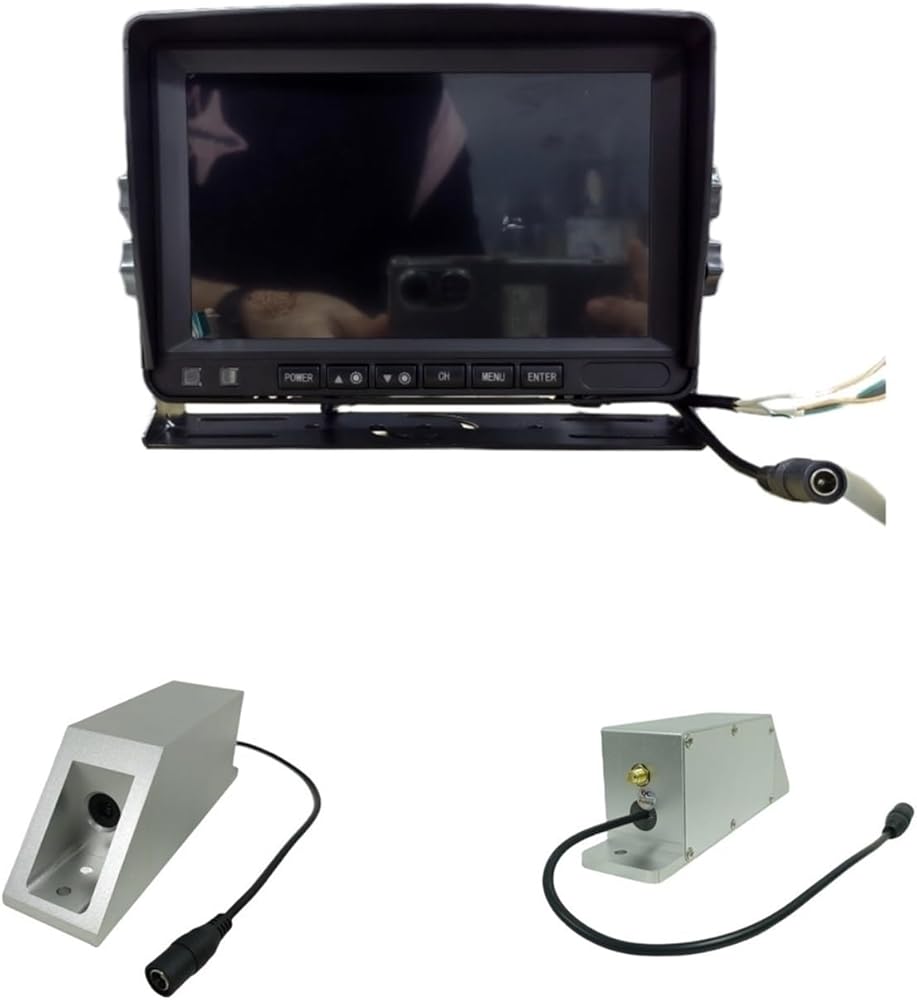

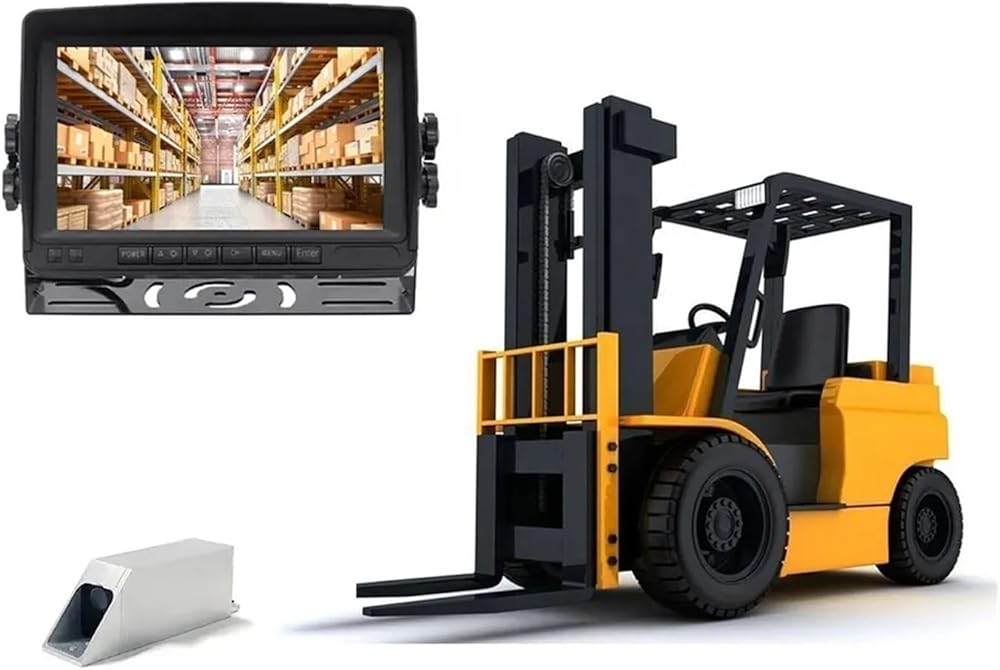

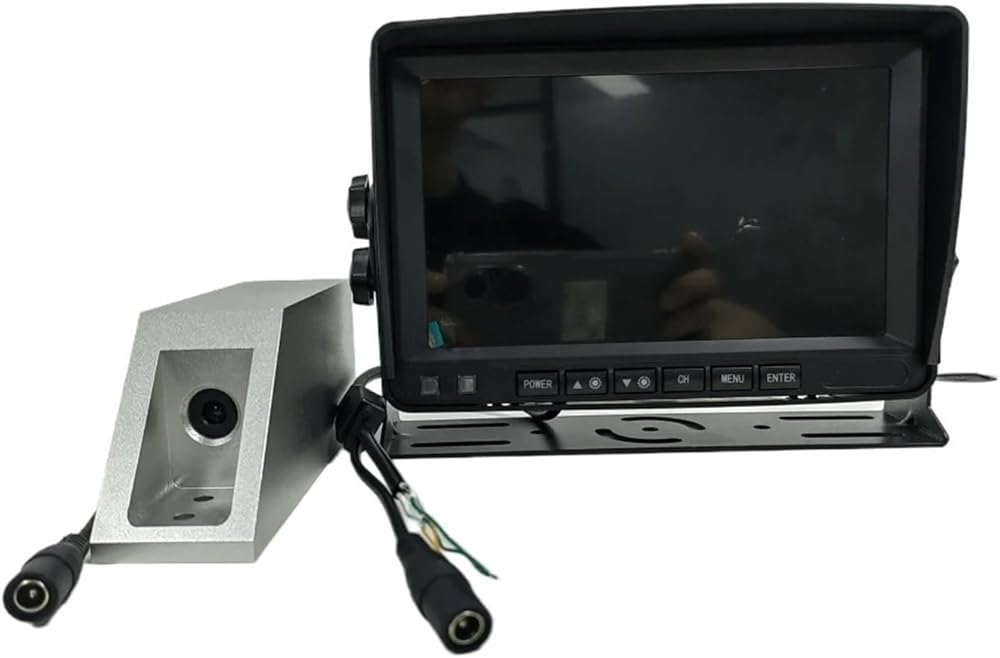

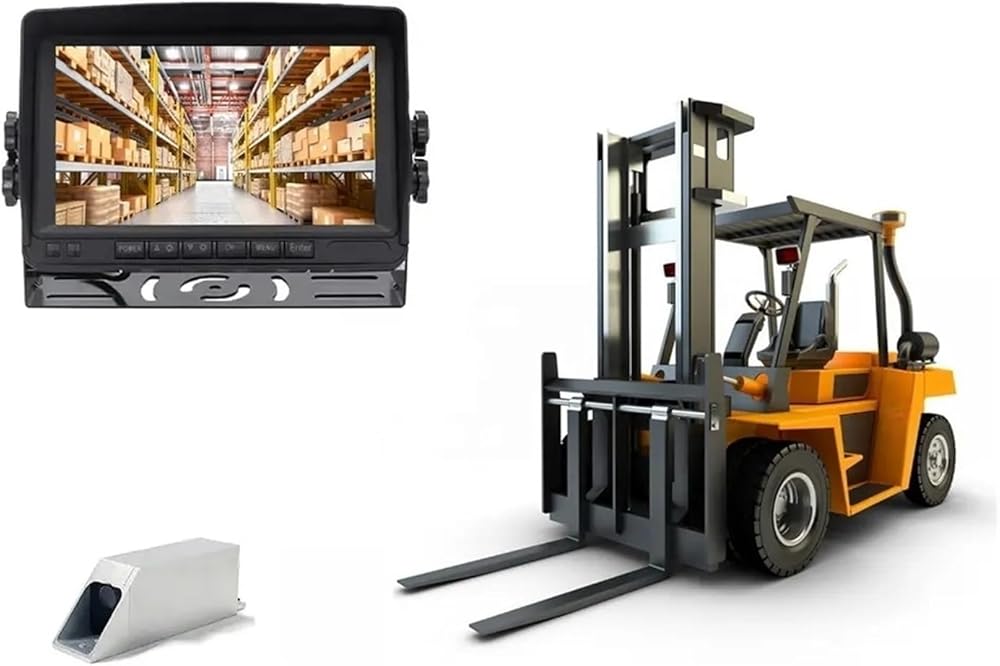

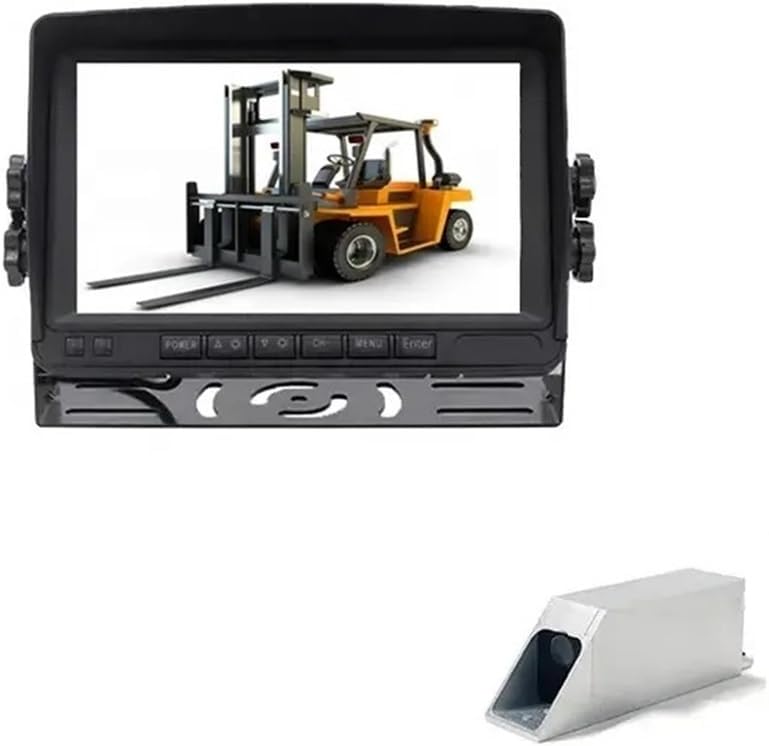

Wireless Forklift suit is 1080P, digital audio and video receiver, designed for the installation process to avoid wiring trouble, in the working environment can clearly view the situation, use wireless monitoring applications and integration. MPEG4 Codec, frequency hopping baseband, RF transceiver, AD, FLASH ROM, CCIR656 format camera, automatic recognition of video system, single-channel display 1080P, multi-channel display 720P mode. Up to 4 triggers can be achieved, magnifying the screen separately.Storage conversion: a video dynamic video for 1 hour takes up about 180MB.
direct-current characteristic
service voltage
+9~+30V
Power consumption
TYPE:300mA, Max.380mA
work environment
working temperature
-10~+60 ºC
Storage temperature
-30~+85 ºC
Working humidity
85%RH
Baseband Digital Specifications
available machine time
2SMax.
delay time
120mSMax.
Storage video
Support for SD card video recording, up to 256GB
resolution
1920*1080
Video frame rate
25FPS
Video compression
AVI
Enter the video system
AUTO
Identity (ID) / digit (BIT)
Code (Pairing) / 22 (4 KK)
system architecture
RISC(32Bit) SOC
RF specifications
Screen antenna
2*7DBM
Operating frequency range
2400 ~ 2483.5MHz*
Antenna input / output impedance
50, Typ.
distance
>200M
Input / output standing wave ratio
2:1
transmitting power
20D Bm with Power control
RF transmission speed
4Mbps
modulation mode
FSK/GFSK
Expansion mode
Frequency hopping (FHSS)
Total number of frequent trips
125
Jump frequency rate
1200/S
Pnumber of CRC detection
16
transmission distance
>200M
receiving sensitivity
--88dBm@4MHZ
RSSI, to display the series
4

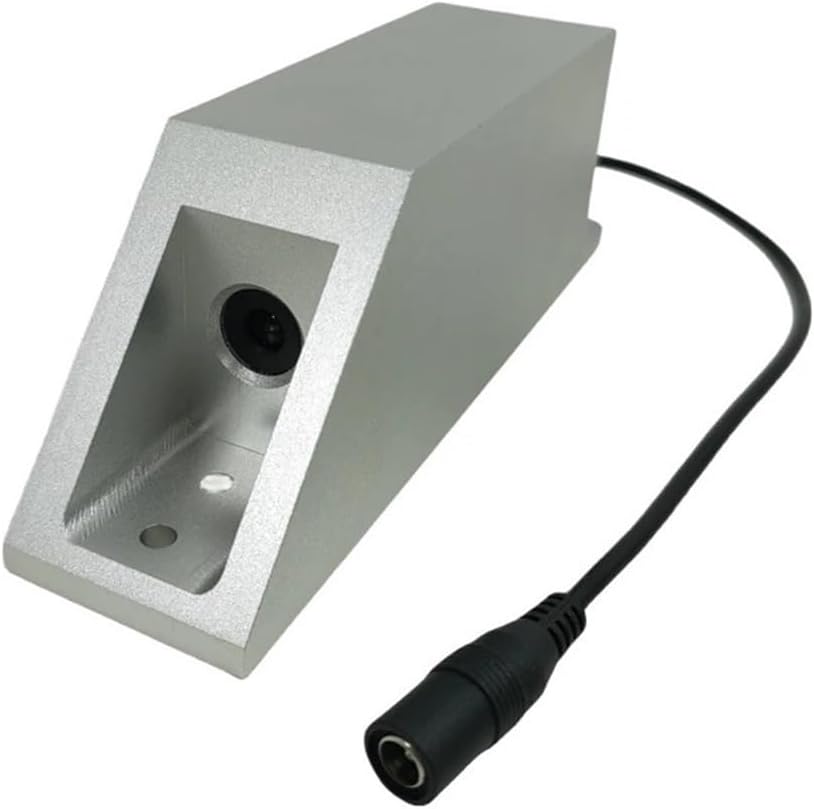

Camera video
Video input impedance
75, Typ.
Video pixels
1080P
camera lens
2.8MM
LED infrared lamp
18 night vision infrared auxiliary lights
Video frequency response
±7 dB, Max.50Hz ~ 6MHz
voltage range
12V-24V
