Resistor Units
Verticalcement resistance dimensions:
5W :Long 10*wide 13*high 25MM
7W : Long 13*wide 10*high 39MM
10W : Long 12*wide 16*high 35MM
15W : Long 12*wide 16*high 35MM
20W : Long 12*wide 16*high 35MM
25W : Long 12*wide 16*high 35MM
Horizontal cement resistance dimensions:
5W : Long 22*wide 9*high 9MM
7W :Long 35*wide 10*high 10MM
10W : Long 48*wide 10*high 10MM
15W : Long 48*wide 10*high 10MM
20W : Long 62*wide 12*high 12MM
25W : Long 62*wide 12*high 12MM
30W : Long 62*wide 12*high 12MM
30W : Long 75*wide 19*high 19MM
40W : Long 85*wide 19*high 19MM
50W : Long 85*wide 19*high 19MM
100W: Long 135*wide 25*high 22MM
Resistance Size of Aluminum Shell:
5W :Long 19*wide 11*high 10MM
10W : Long 19*wide 21*high 10MM
25W : Long 27*wide 27*high 16MM
50W : Long 50*wide 27*high 16MM
100W: Long 60*wide 22*high 16MM
200W: Long 100*wide 52*high 29MM
300W: Long 195*wide 52*high 29MM
==========

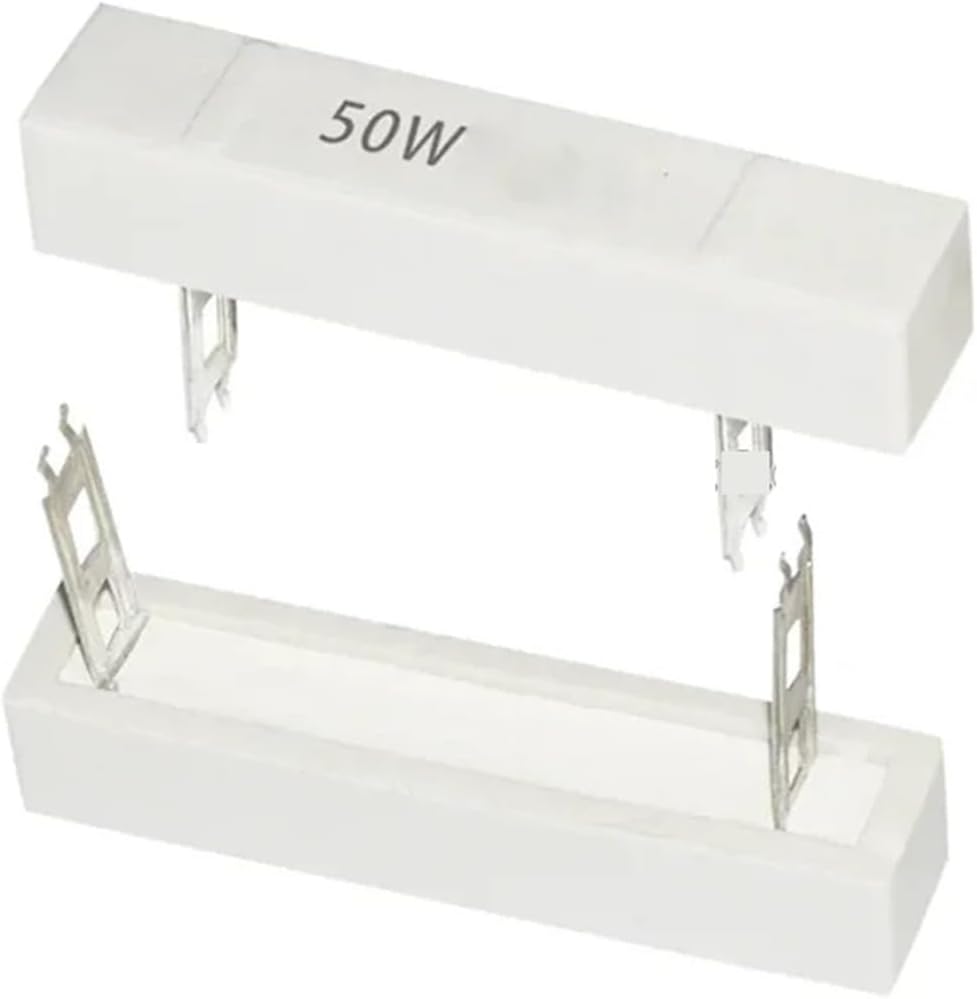

Rated Power : 50W
Resistance Tolerance : 5%
Model Number : 50W ceramic cement resistor
Technology : Ceramic Composition
Type : Wirewound Resistor
