Engineered for Uninterrupted FPV: The TECHTOO Triple Feed Patch Antenna delivers a supremely stable and reliable signal. Its directional circularly polarized design maximizes radiation efficiency to lock in your connection

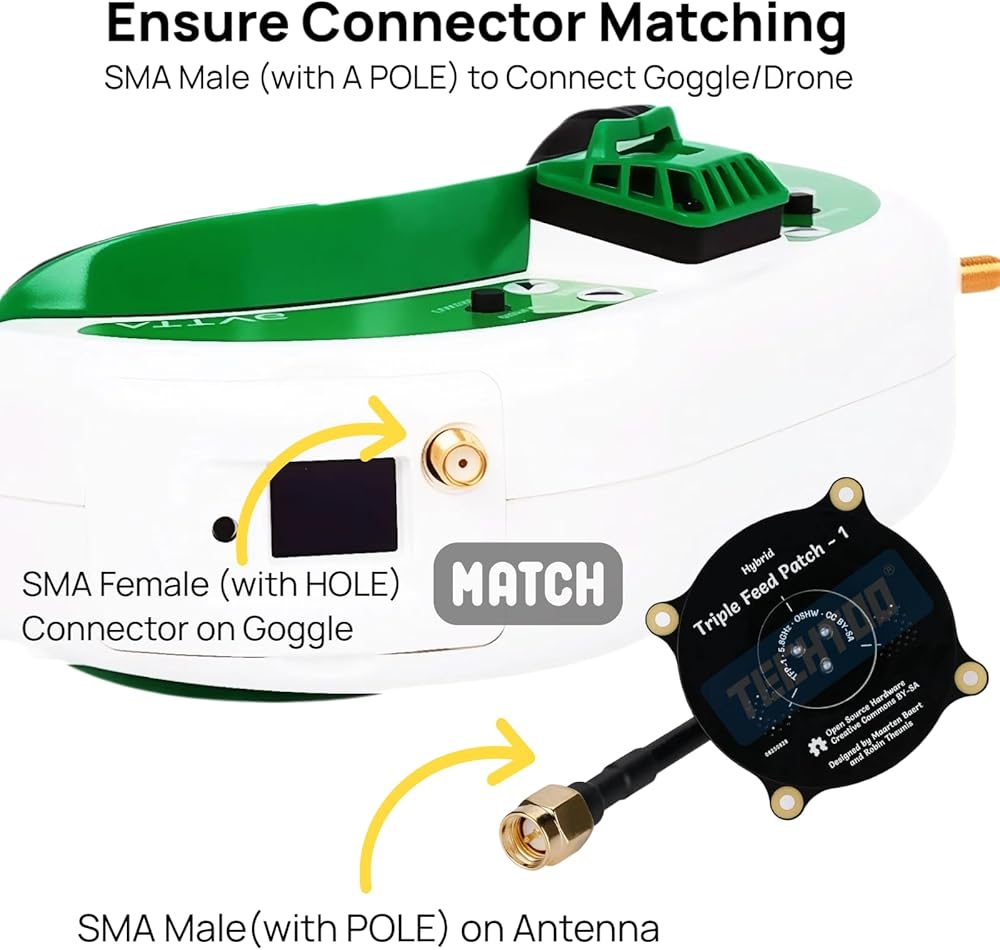

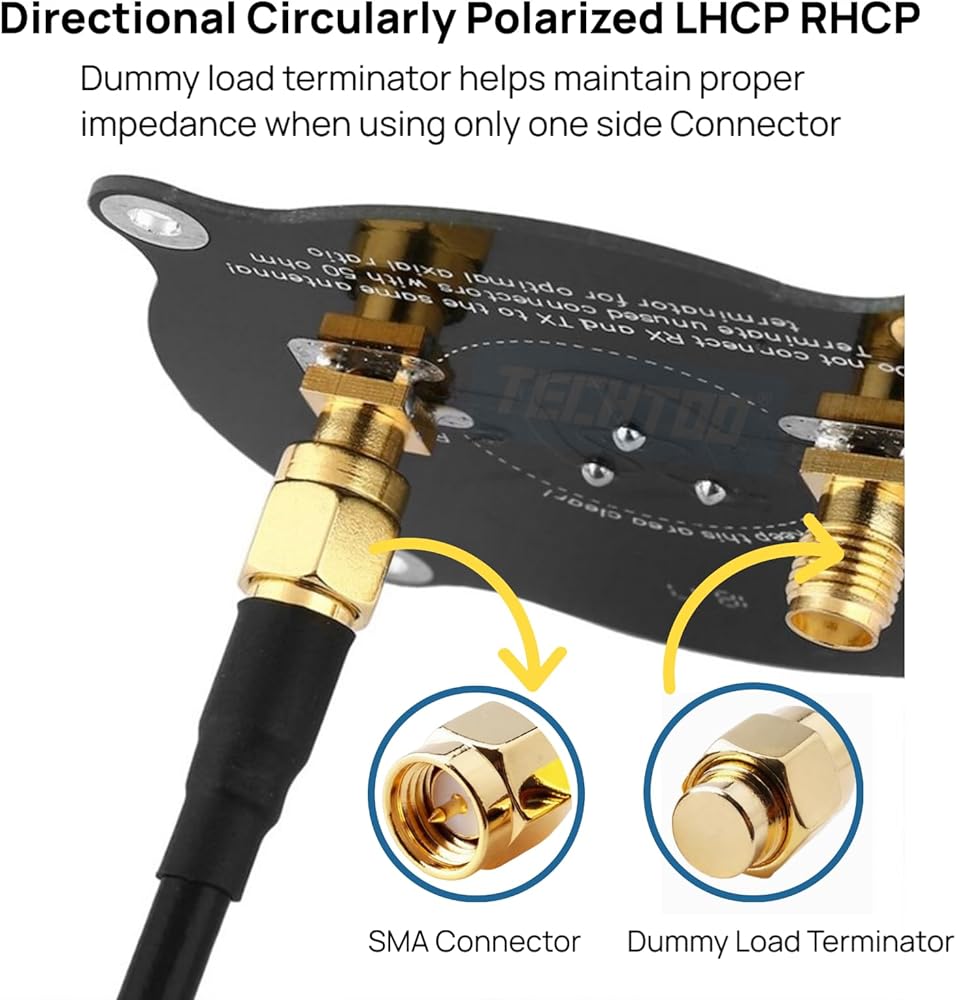

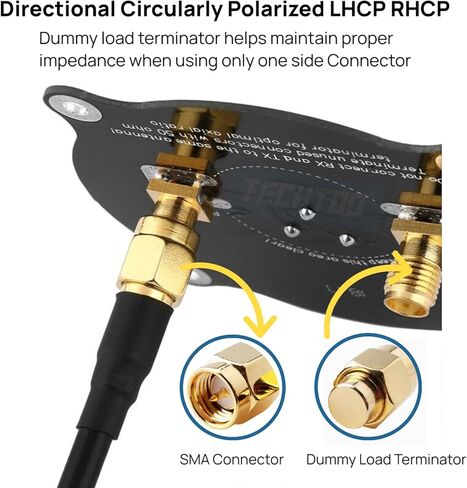

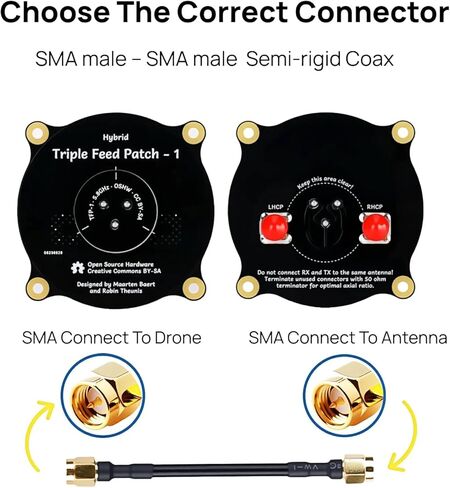

Connector Type: SMA Male to SMA Male. Includes dummy load terminator for unused antenna connections. Why it matters: Terminating open ports maintains signal integrity and maximizes board performance

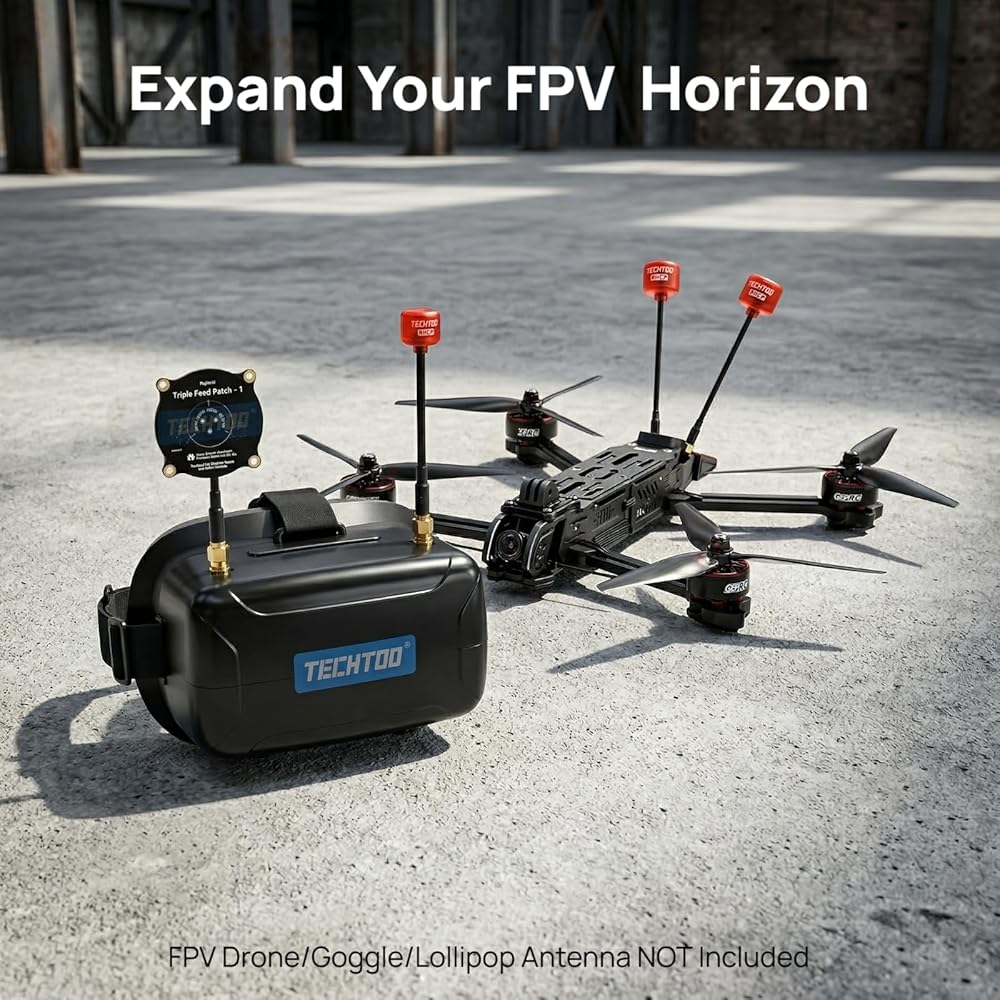

Featuring a 5.8GHz center frequency and directional circular polarization, this antenna is designed for excellent radiation efficiency, greatly enhancing both range and video clarity for FPV racing drones

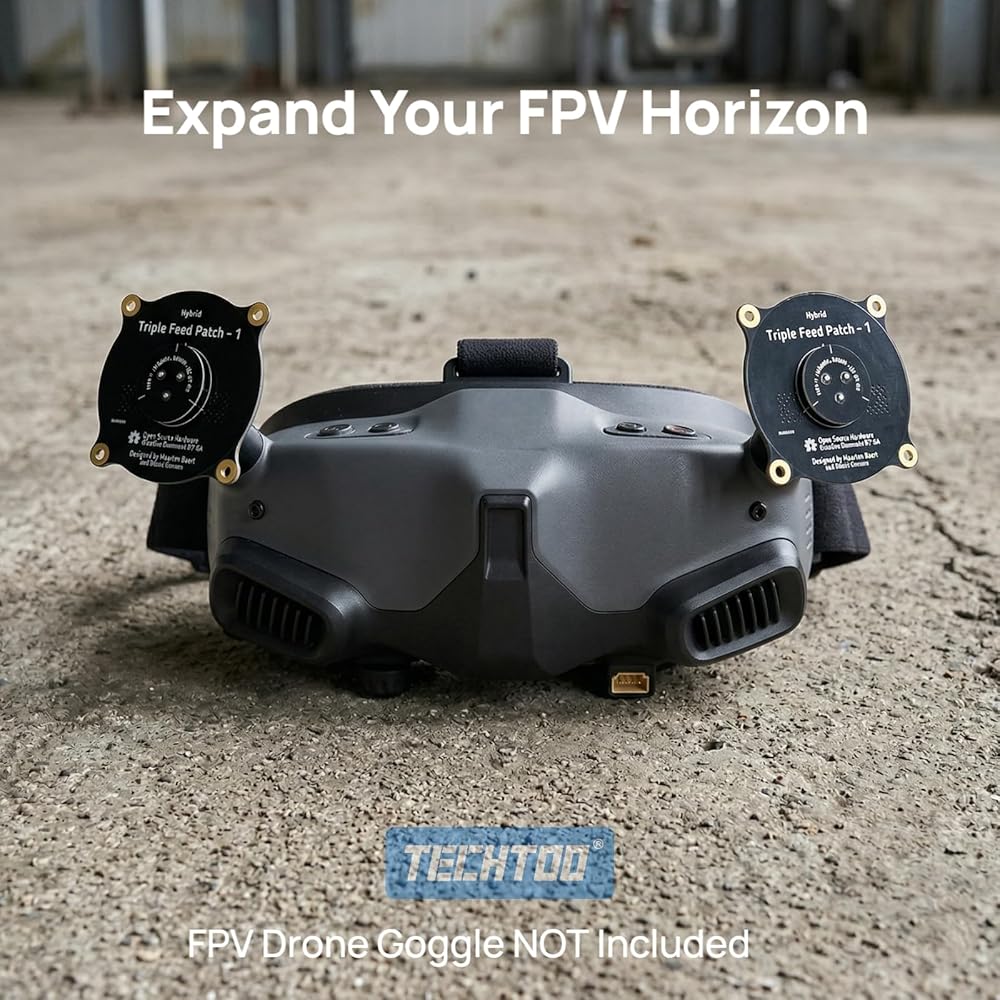

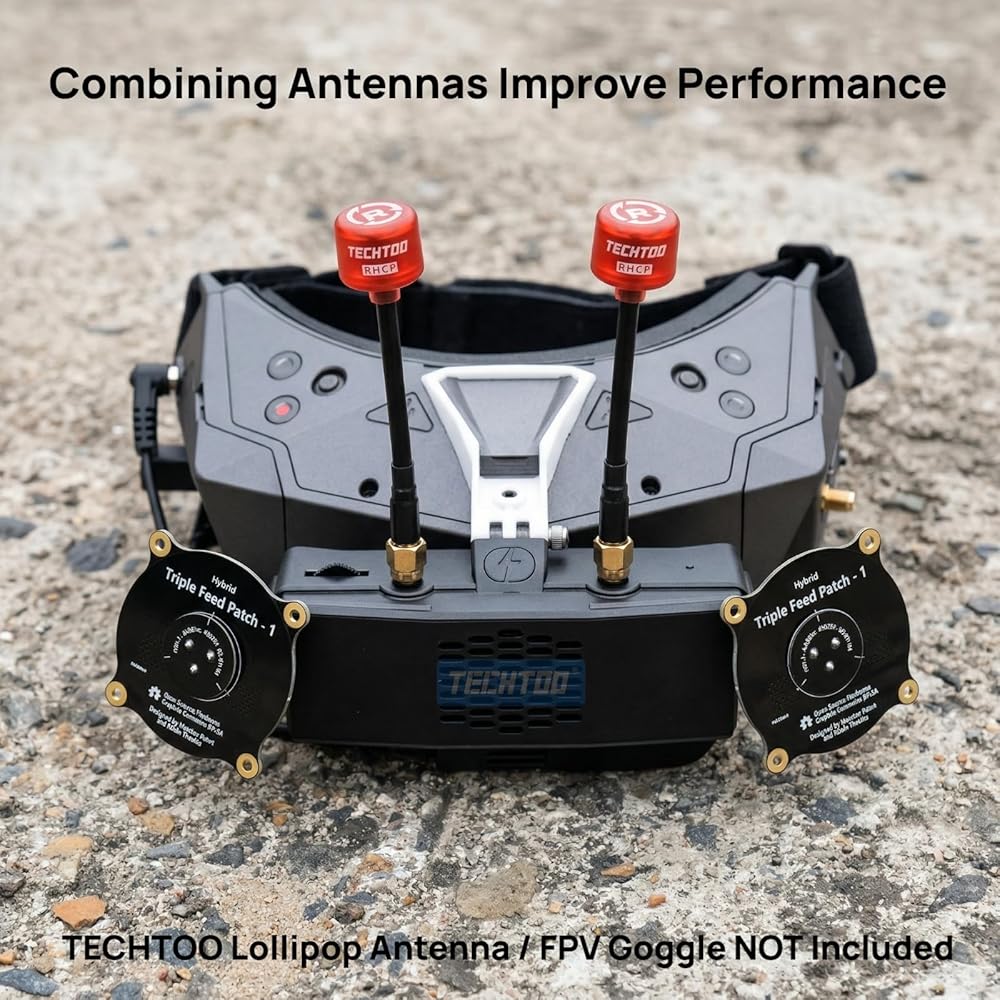

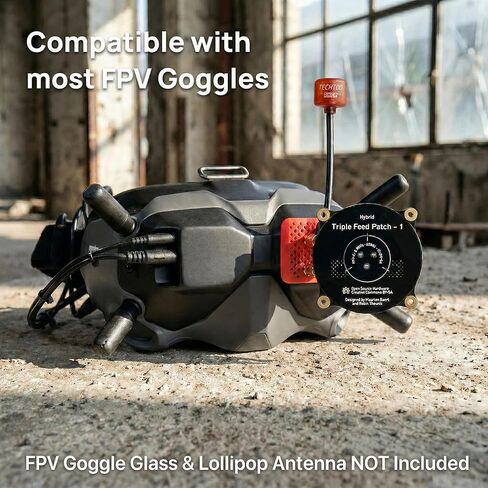

Boost your FPV experience with our high-gain patch antenna. Designed for seamless compatibility with a wide range of goggles, such as the Eachine EV800D, EV200D, EV100, VR006, and Cobra X

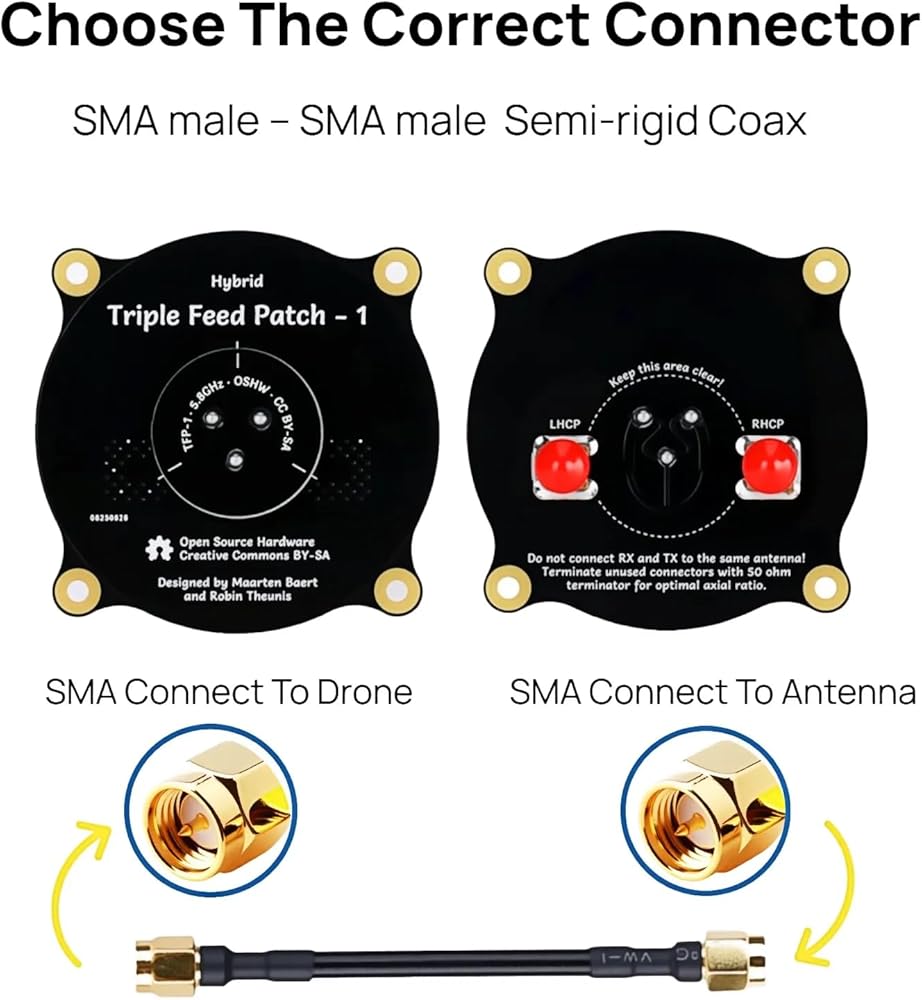

Choose Between RHCP and LHCP Configurations. Switch According to Your Needs. (Use one type at a time)
Engineered for Peak Performance: Get a clear signal advantage with our antenna's 9.4 dBi gain and 83.5% radiation efficiency. Its wide 660 MHz bandwidth (5.47-6.13 GHz) and superior matching (S11<-20 dB, VSWR<1.22) ensure maximum power and minimal loss. Experience reliable, consistent coverage thanks to a low 1.3 axial ratio and a symmetrical 55° beamwidth.
Packing List: 1 x Triple Feed Patch Antenna; 1 x Semi-rigid Coax (SMA male – RP SMA Female); 1 X 50 Ohm Dummy Load Terminator le); 1 X 50 Ohm Dummy Load Terminator
وصف
TECHTOO FPV Triple Feed Patch Antenna is a Highly Directional Circularly Polarized Antenna with Exellence Radiation Efficiency.
When Facing the Antenna Towards the Drone It will Getting Much More Stable Signal, When It turn Away Signal will Going Down.
Make Sure the Antenna Direction Facing the Drone to Get the Best Signal Strenght.
Specifications
Center frequency: 5.8 GHz
Antenna gain: 9.4 dBi
Half power beam width: 55° (horizontal and vertical)
Bandwidth: 660 MHz (5.47 – 6.13 GHz)
Matching: S11
Axial ratio:
Radiation efficiency: 83.5%
Size: 59.7 x 59.7 x 99.1mm

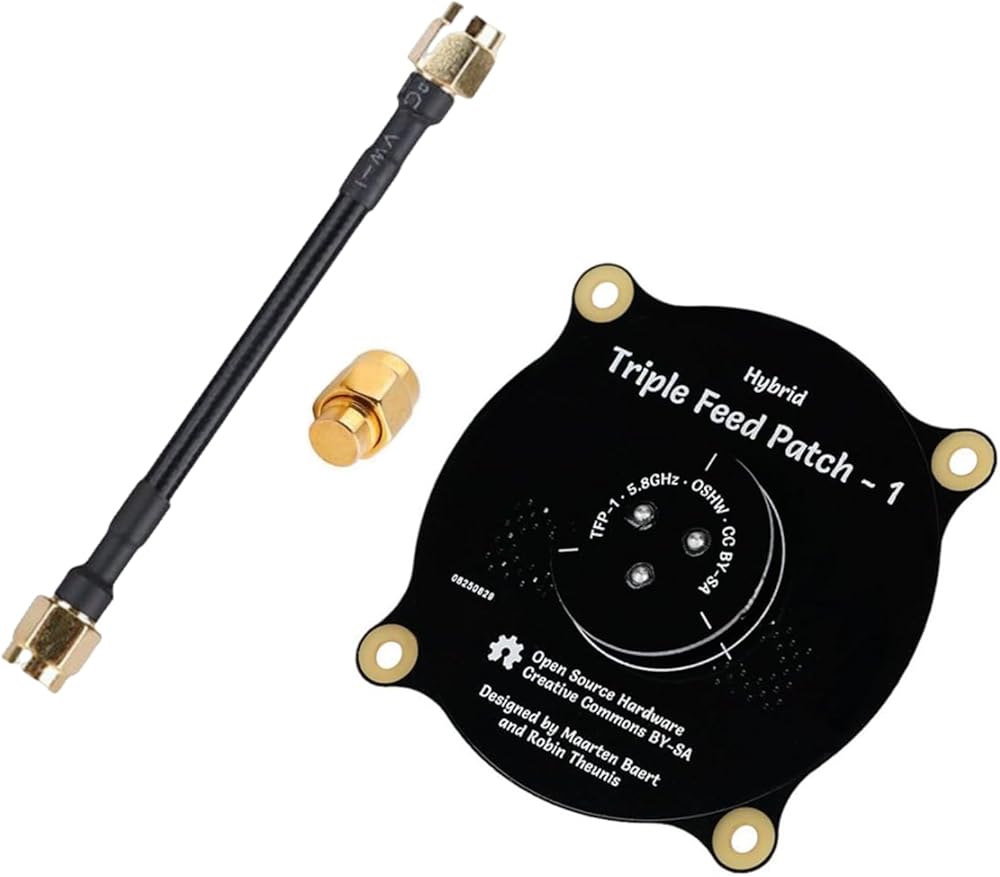

Packing List:
1 x Triple Feed Patch Antenna
1 x Semi-rigid Coax (SMA male – RP SMA Female)
1 X 50 Ohm Dummy Load Terminator.
