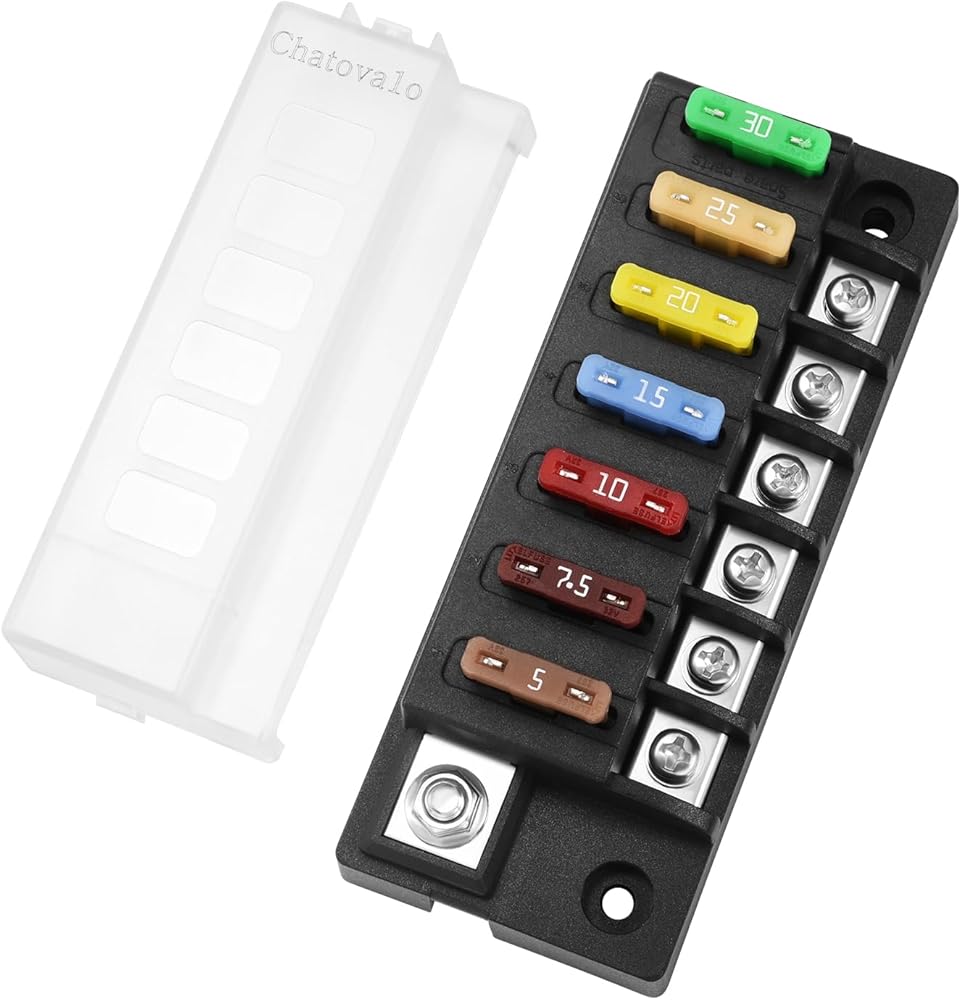

Designed for Reliable Auxiliary DC Distribution
Direct Fuse Path: No integrated LED indication circuit connected in parallel with the fuse.
Single-Sided Wiring Layout: Keeps wiring organized and easier to service during installation or future maintenance.
Covered Terminal Design: Helps reduce accidental contact while keeping wiring protected and organized.
Applications: Suitable for auxiliary DC loads including LED lighting, cooling fans, radios, pumps, and control modules. Ideal for automotive, marine, RV, solar, and off-grid electrical systems.

Installation
Wiring: Supports 4–6 AWG feed and 10–16 AWG branch wiring.
Mounting: Supports M5/#10 studs and M4/#8 mounting screws.
Recommended Protection: Use a properly sized slow-blow main fuse close to the battery. Select branch fuse values based on wire gauge, load requirements, and duty cycle.

48V System Compatibility
Included blade fuses are 32V rated and intended for standard 12V/24V systems.
For 48V applications, use appropriately rated DC blade fuses (not included).
Alternatively, install the panel on the 12V/24V output side of a DC-DC converter or MPPT charging system. This keeps fuse protection aligned with the actual operating voltage of the circuit.
