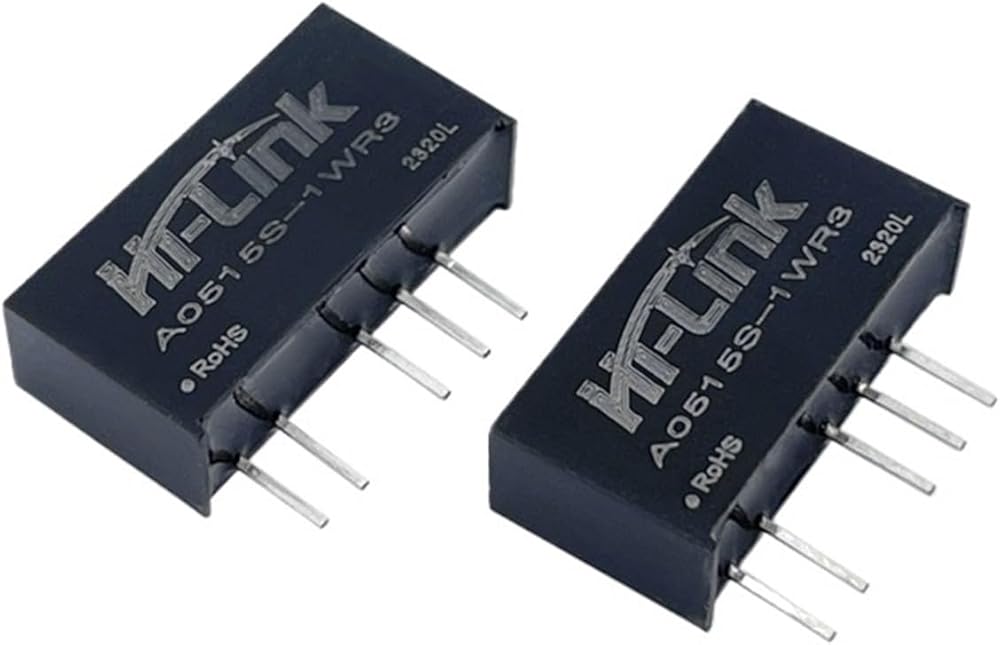

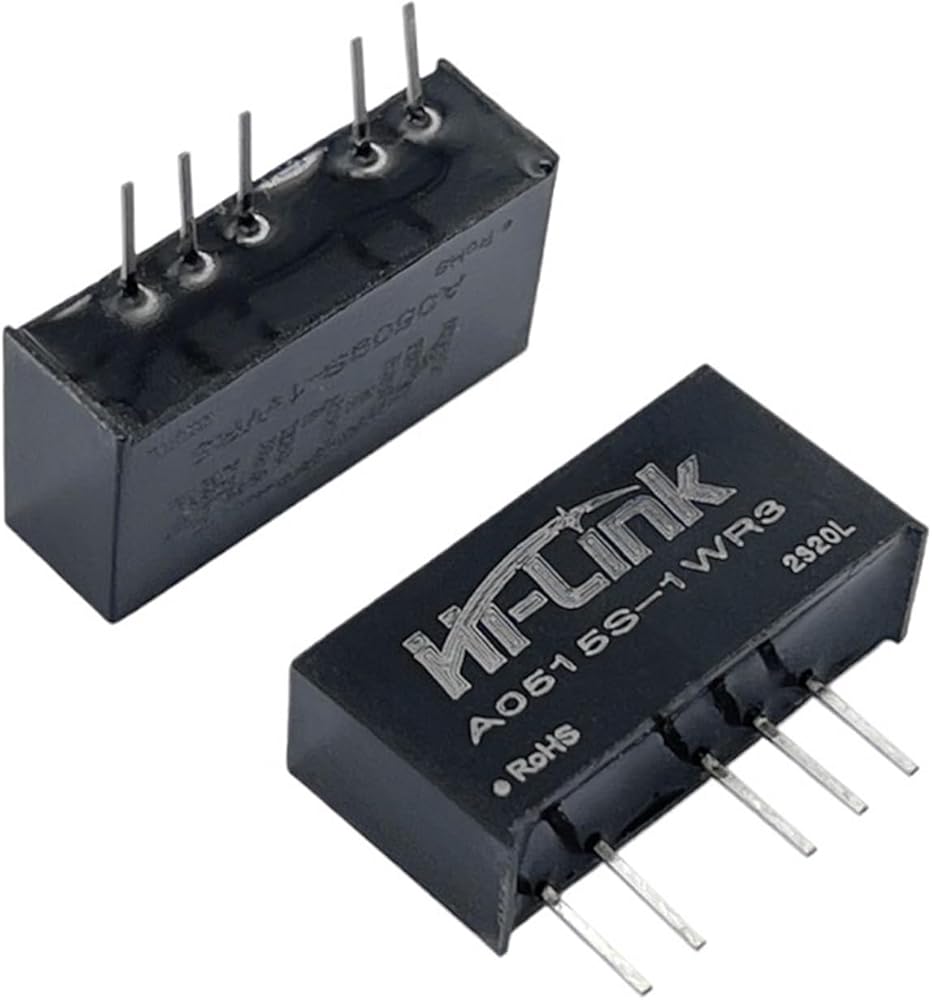

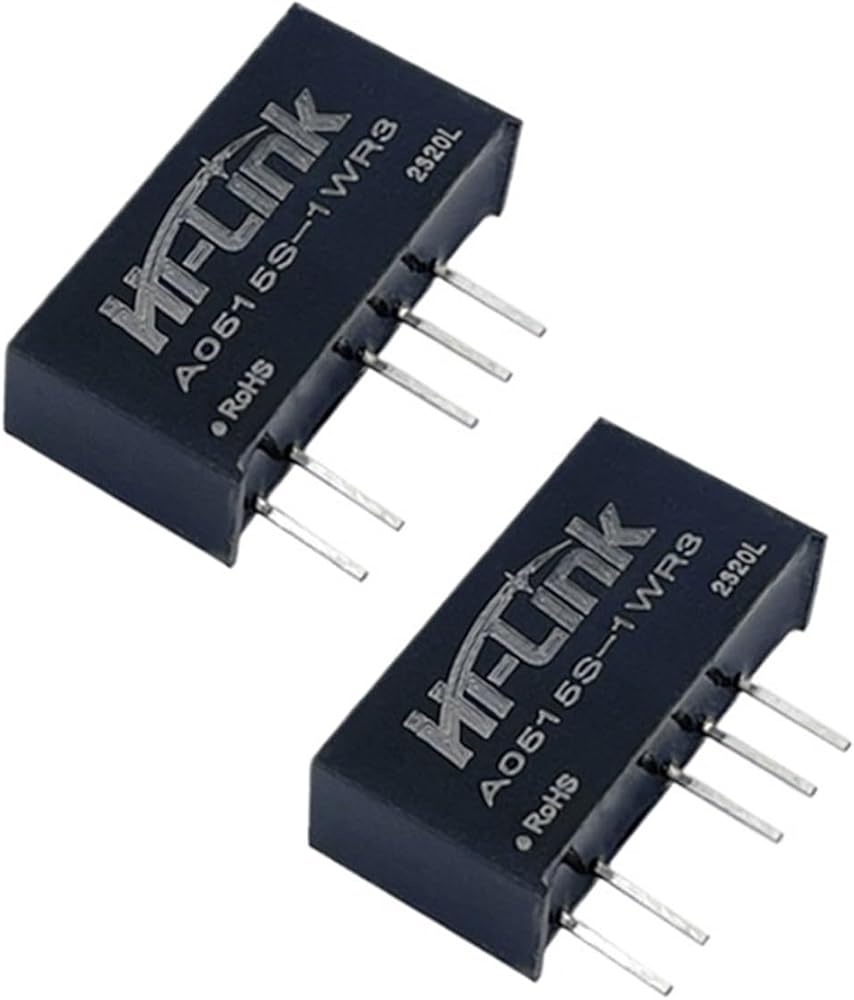

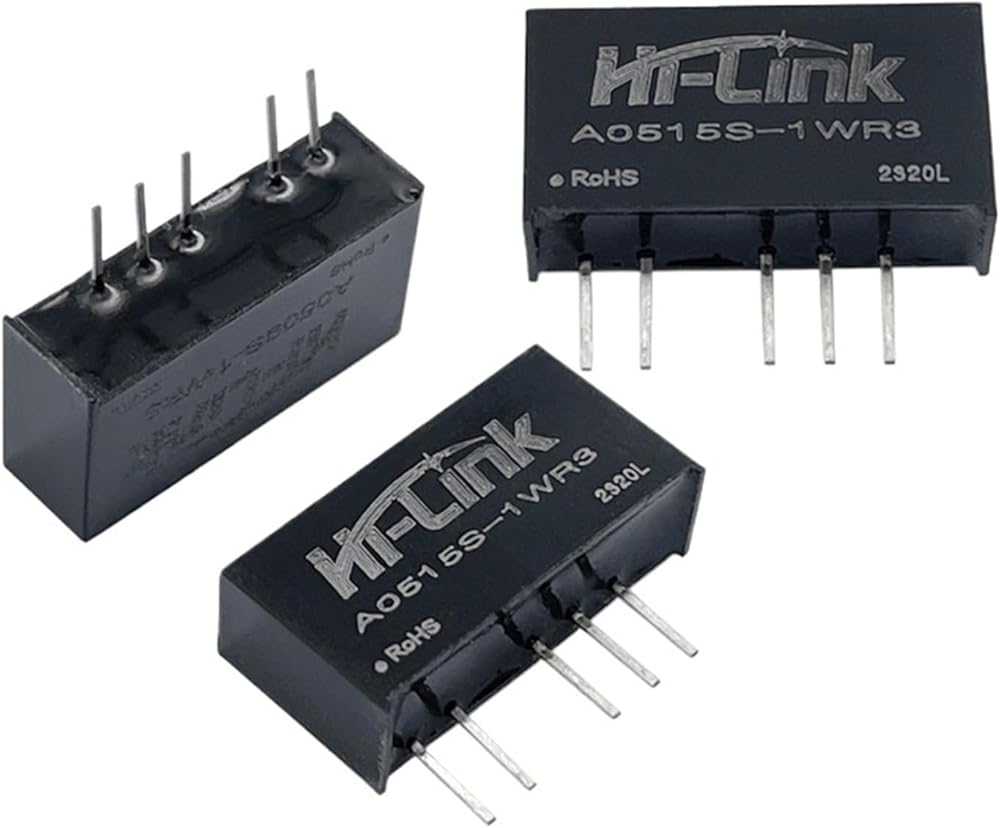

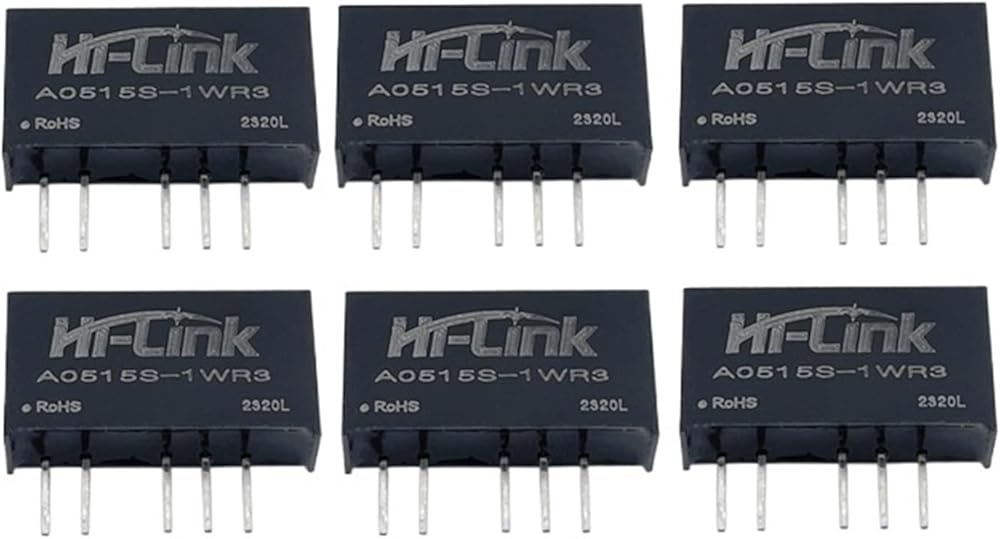

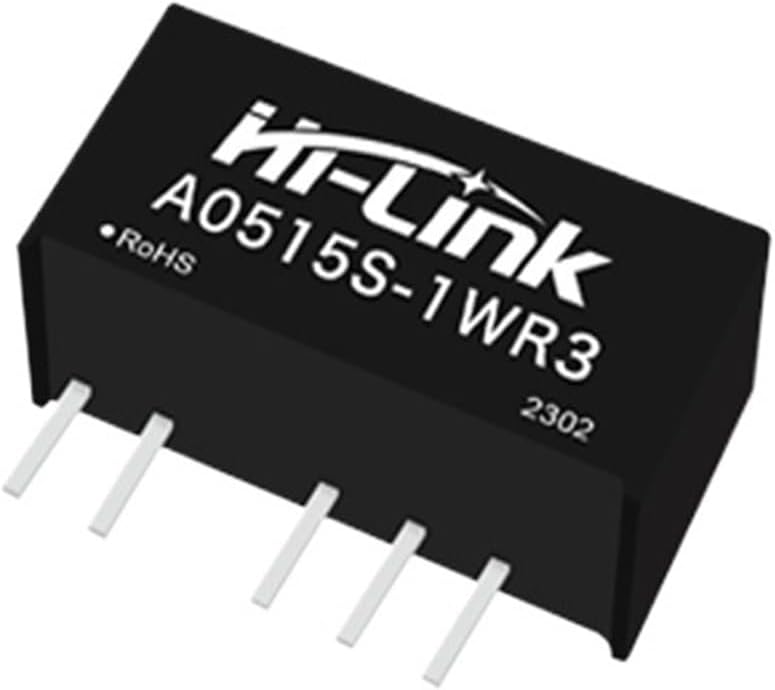

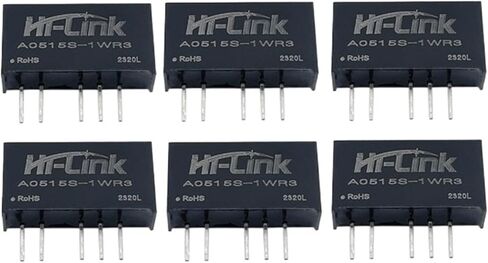

ATC Power Module
1. Typical performance
Constant voltage input, isolated unregulated output, power 1W
Isolation voltage: 1500VDC
Low no-load power consumption: 0.025W (Typ.)
Efficiency: up to 90%
Working environment temperature: -40-+85
Failure-free time MTBF3.5 million hours (3500000Hrs)
Output short circuit protection: continuous short circuit protection, recovery
Small SIP package, plastic housing
International standard pin mode
Ripple/Noise (20MHz bandwidth): 30mVp-p(Typ.)
A_S-1WR3 series are small size, high-efficiency power, constant voltage input, isolated and unregulated single/dual output, DC/DC module power supply provided by . This series of products is specially designed for applications in on-board power systems that need to generate a set of voltages that are isolated from the input power supply.
