Model KP-4KCH-VM
Pixel 8.3 Million Pixels
Output Method HDMI、USB3.0
Sensor 8.3M
Sensor Size 1/1.8＂CMOS
Resolution Ratio 3840X2160
Output Frame Rate 60FPS
Pixel Size 2.0μmX2.0μm
Photographic Resolution 3840X2160,(Photo can be Manually and Automatically Named file Name) JPG Format
Video Resolution 1080P 30 Frames (1920X1080) MP4 Format

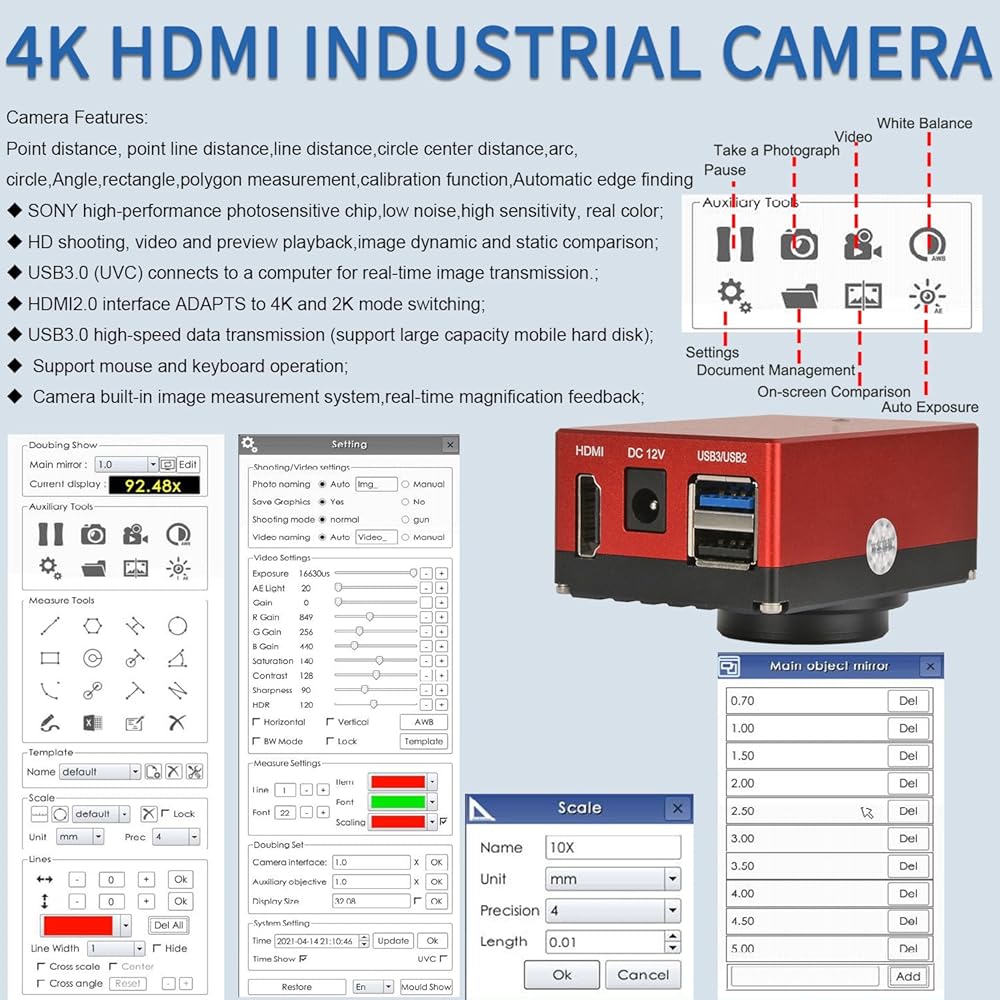

Image Adjustment Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback
Color Adjustment R、G、B
White Balance Auto/Manual
Exposure Auto/Manual
Menu Operation Mouse Operation

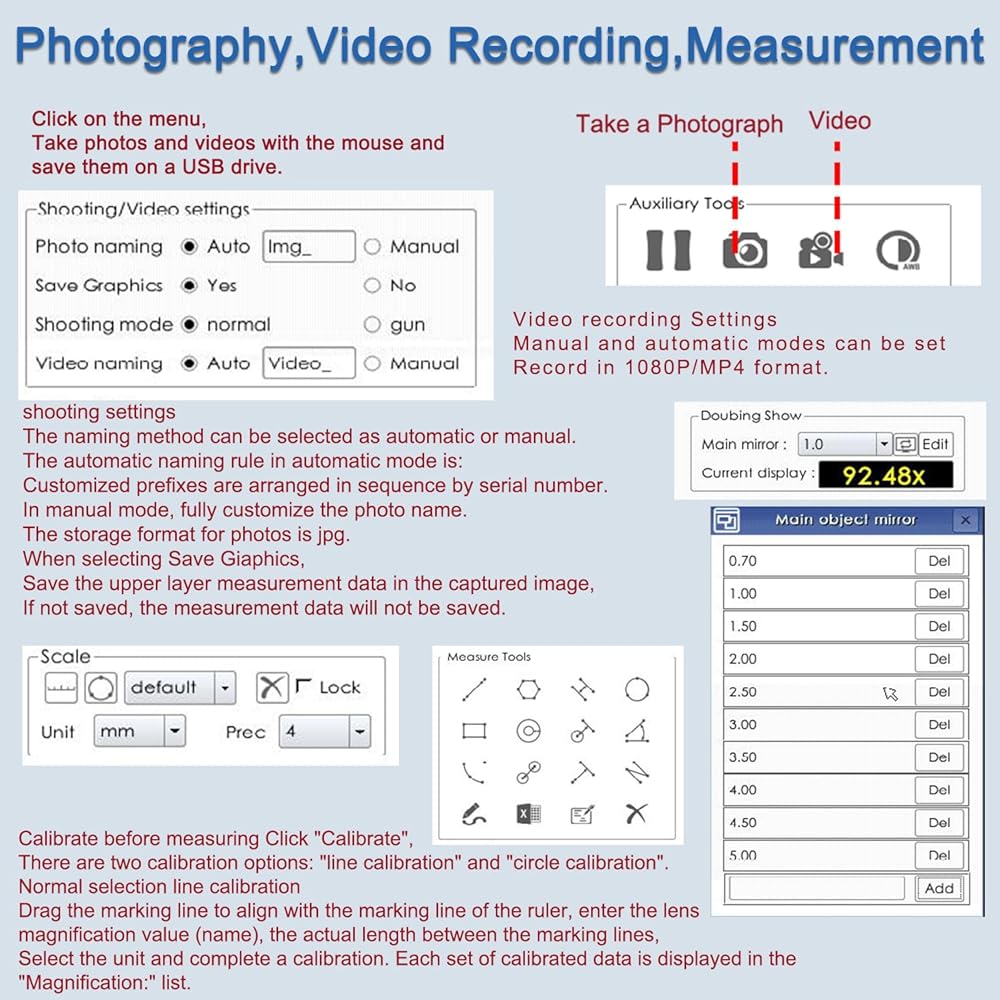

Storage Mode U disk.Can Take Pictures.Video,and Measure
Reticle lines 100 Groups Horizontal and vertical lines
Camera Interface C Interface
Power Supply AC100V-240V DC-12V
USB3.0 By connecting to a computer via a USB3.0 interface, image stitching and depth synthesis can be achieved.

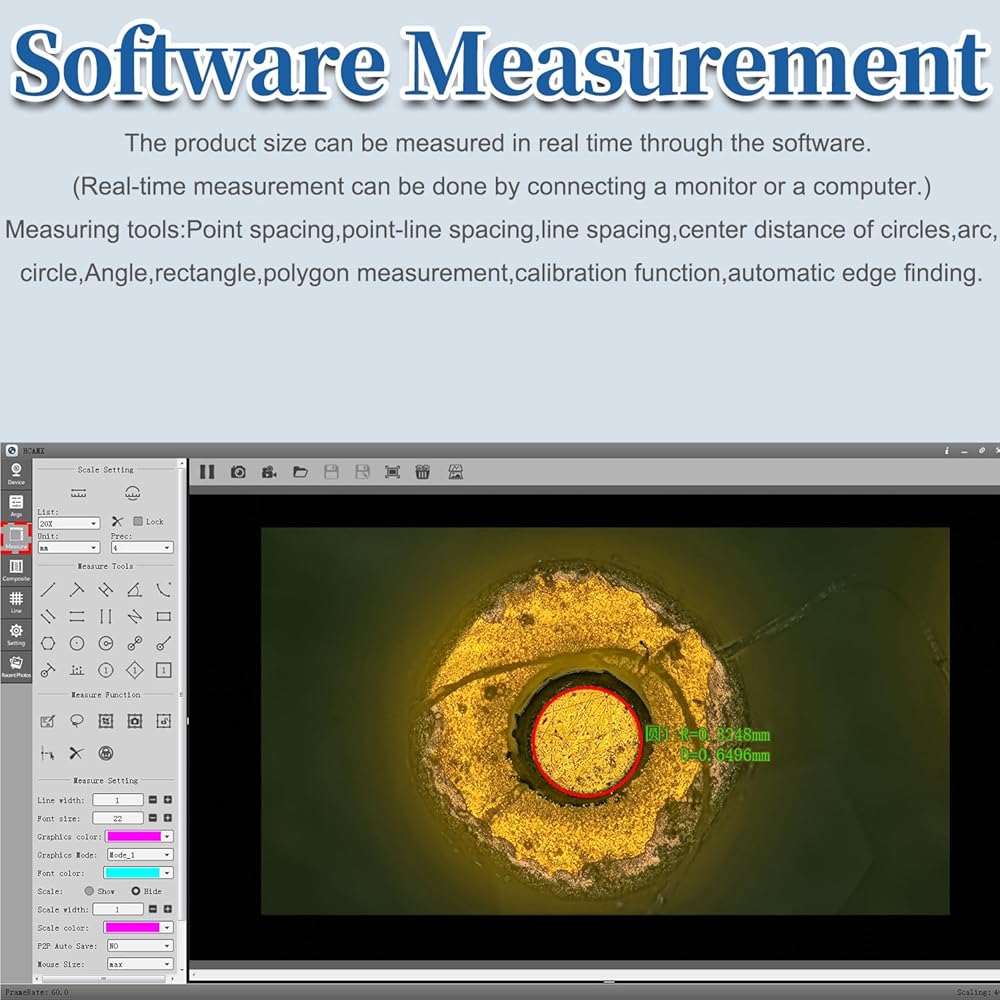

Measuring Function Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching

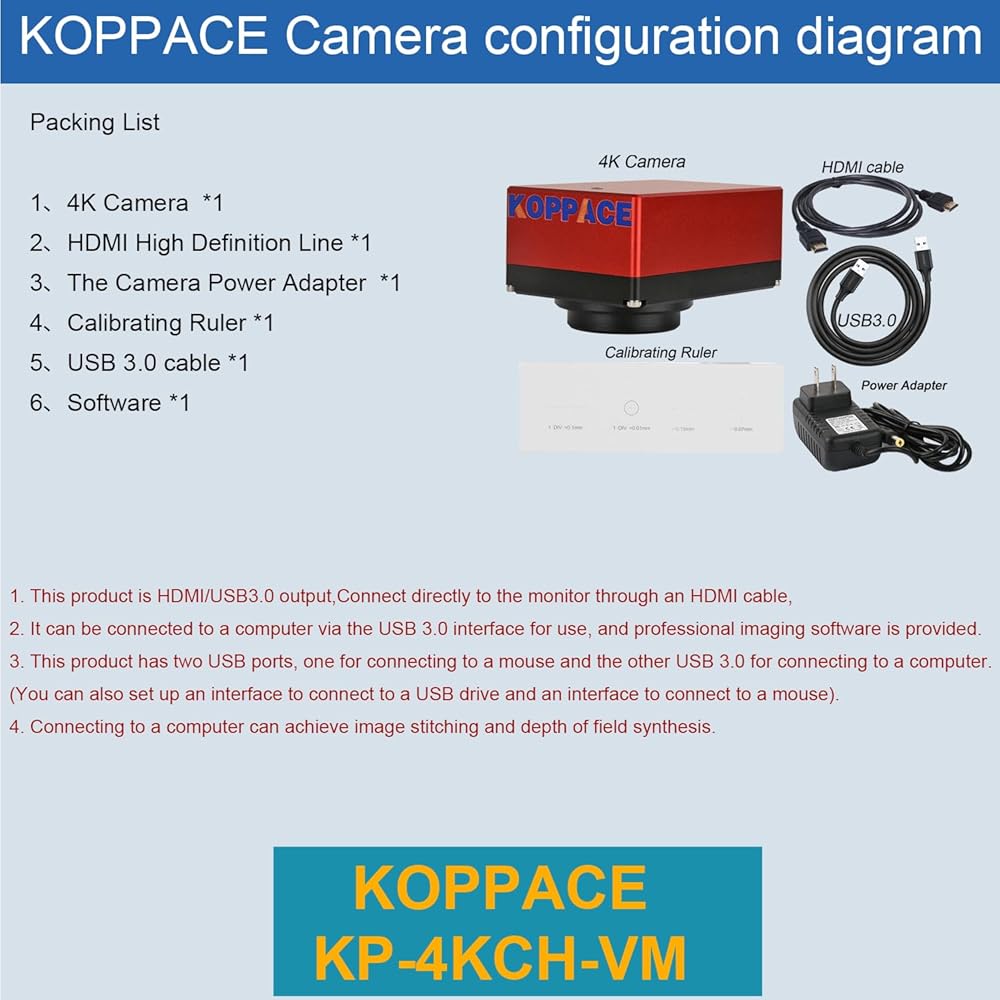

Packing List
1、4K Camera *1
2、HDMI HD Line *1
3、The Camera Power Adapter *1
4、Calibrating Ruler *1
5、USB 3.0 cable *1
6、Software *1

Note

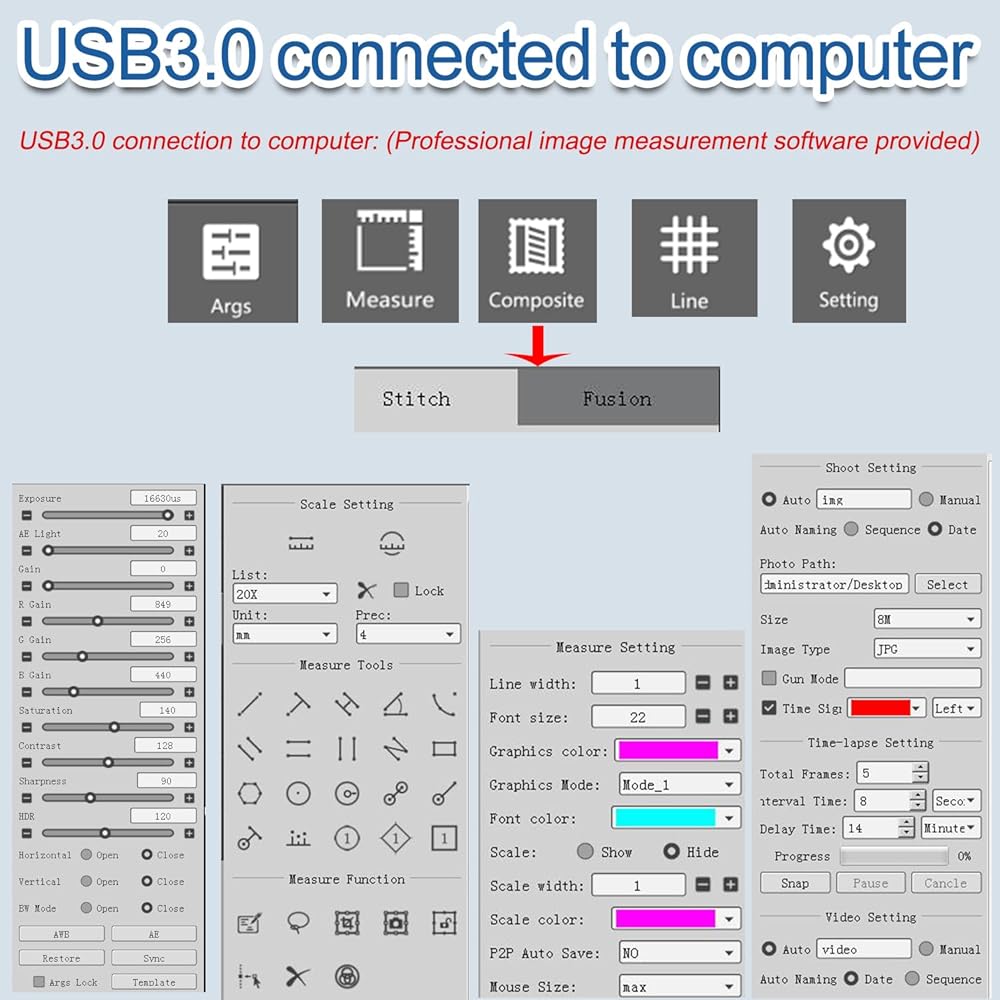

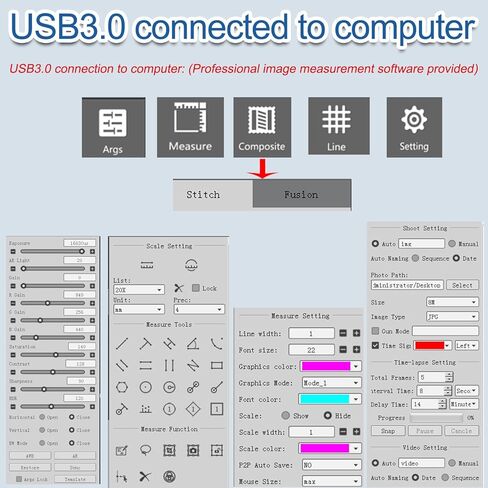

1. This product features HDMI/USB3.0 output. It can be directly connected to a monitor via an HDMI cable or connected to a computer via a USB3.0 interface for use.Provide professional imaging software.

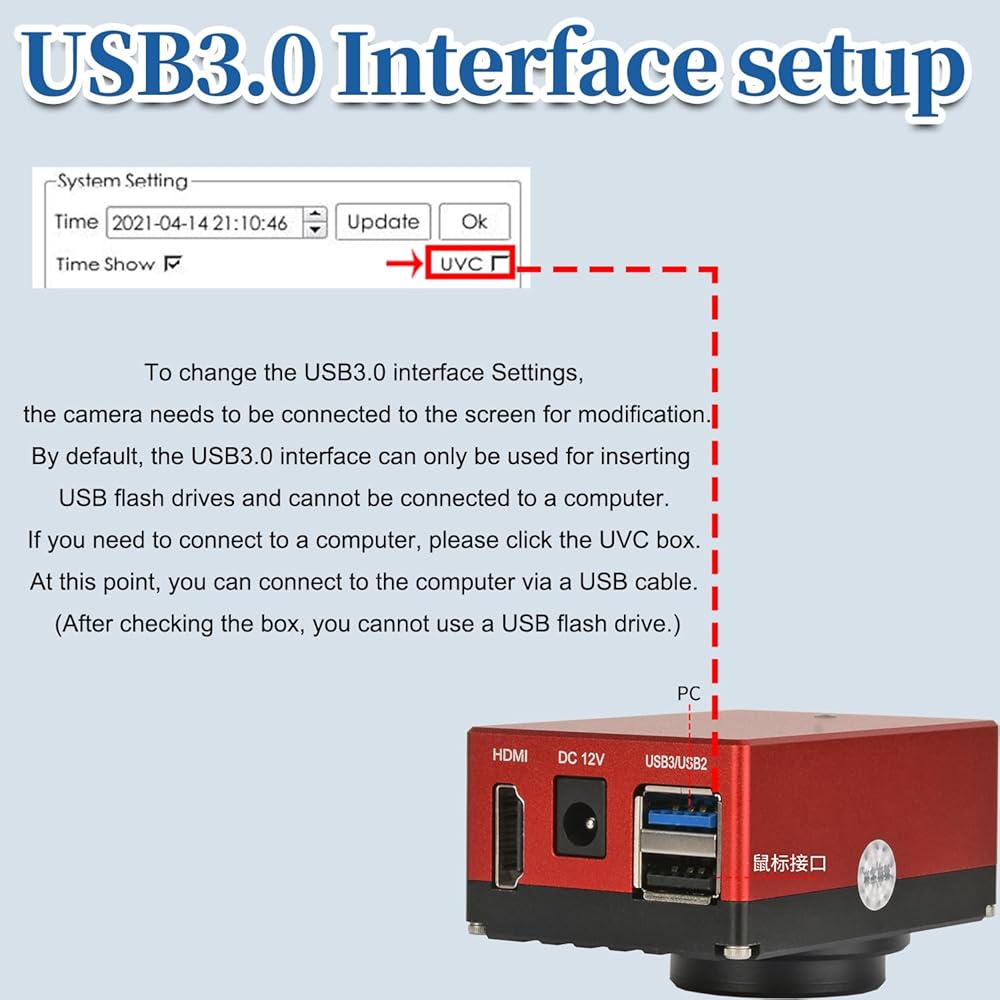

2. This product has two USB ports, one for connecting to a mouse and the other USB 3.0 for connecting to a computer. (You can also set up an interface to connect to a USB drive and an interface to connect to a mouse).

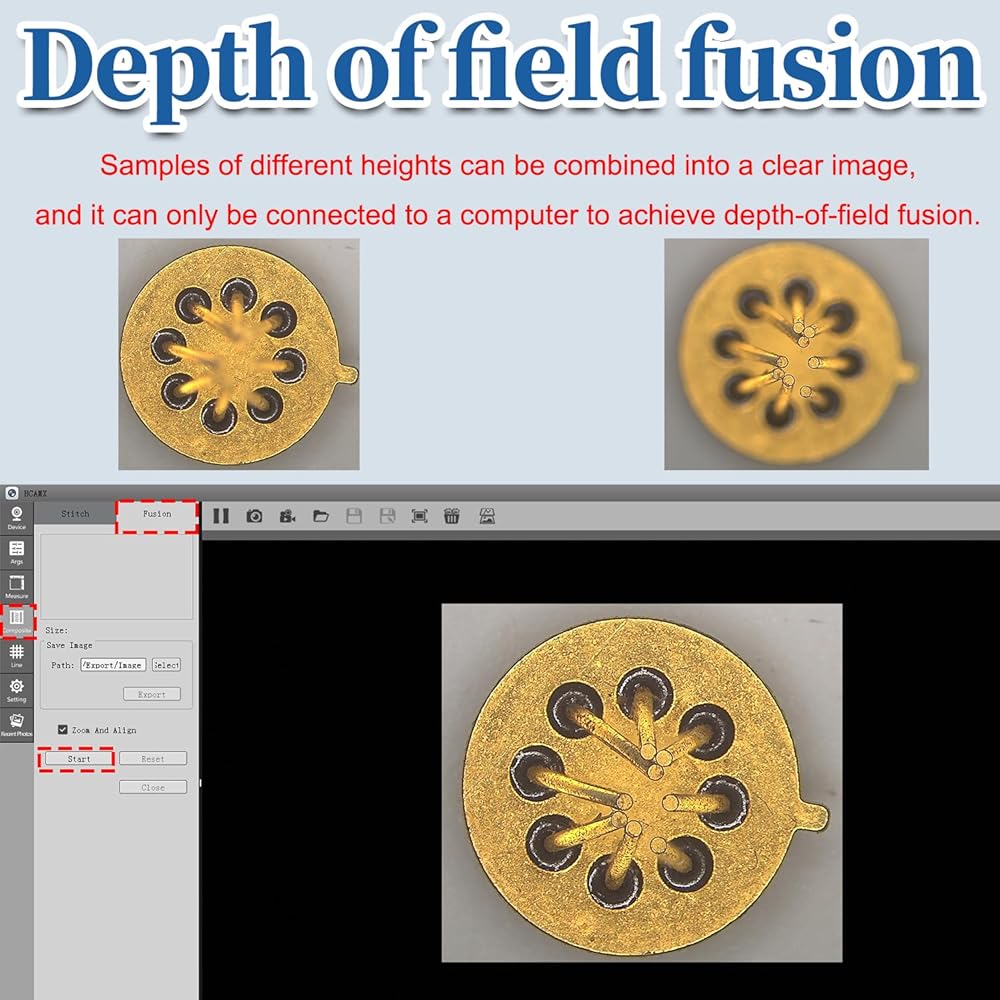

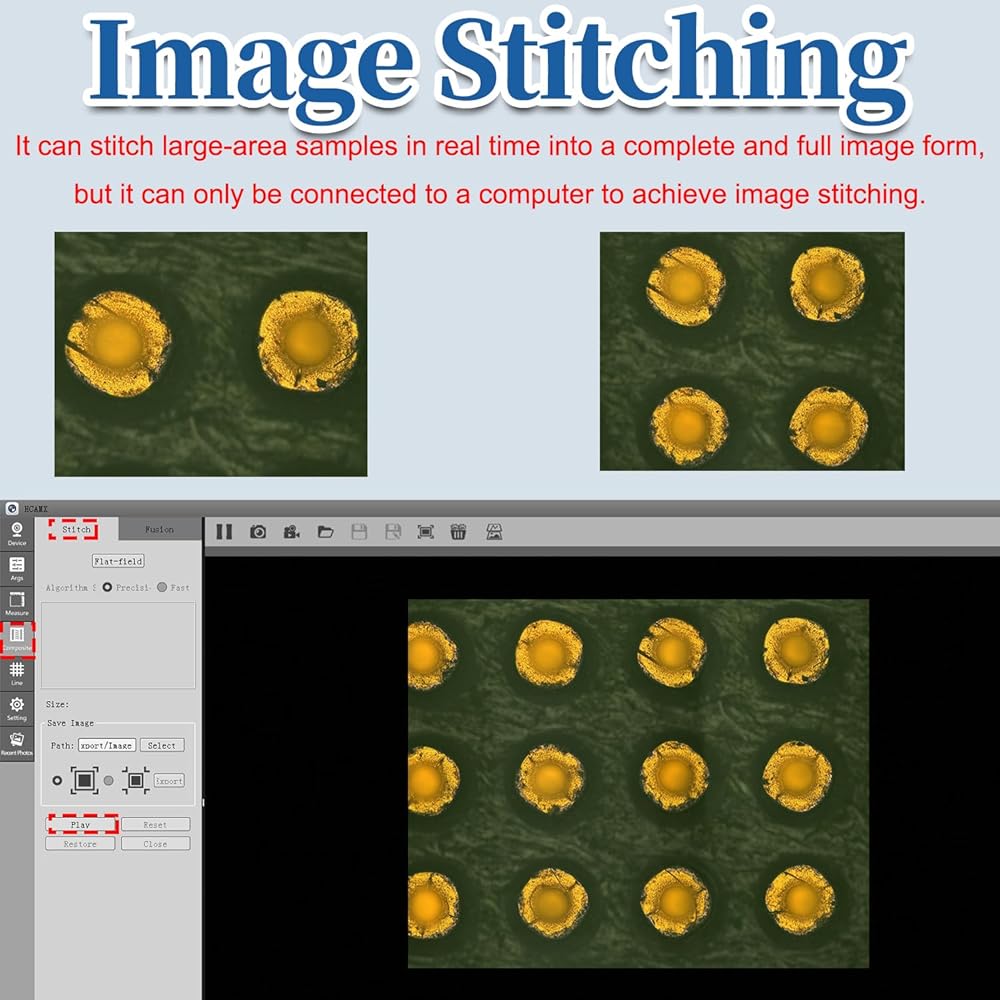

3. Connecting to a computer can achieve image stitching and depth of field synthesis.
