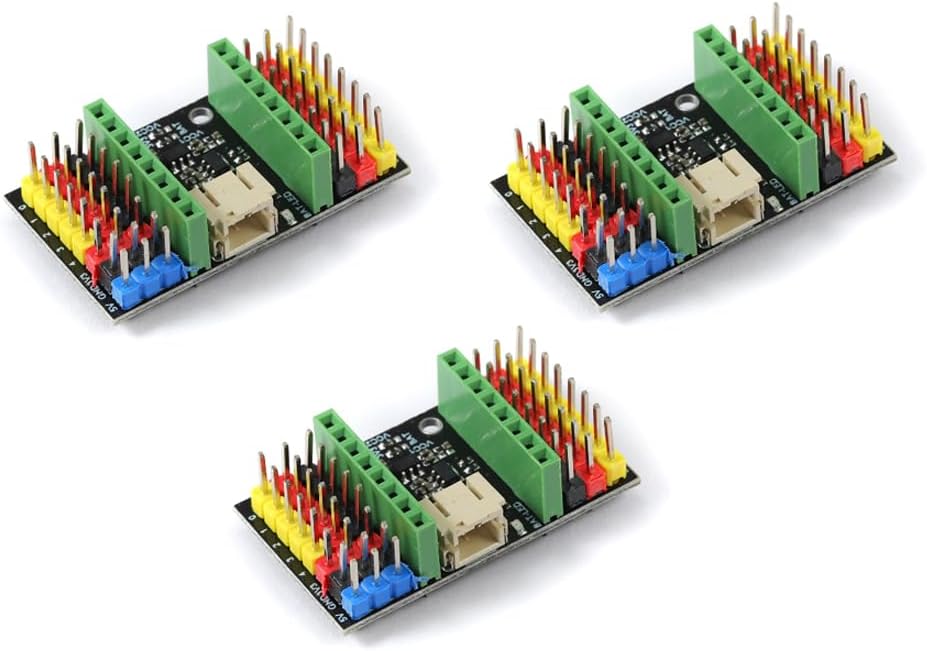

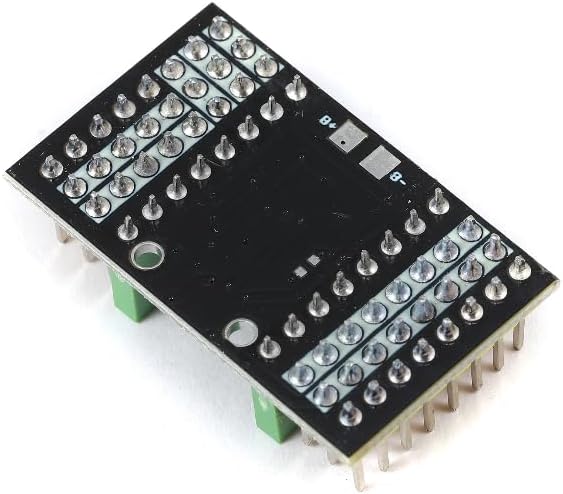

Teyleten Robot Supermini ESP32-C3 Development Expansion Board ESP32 Expansion Edition ESP32-C3 Expansion Board 3pcs in Kuwait Teyleten Robot Supermini ESP32-C3 Development Expansion Board ESP32 Expansion Edition ESP32-C3 Expansion Board 3pcs in Kuwait

Teyleten Robot Supermini ESP32-C3 Development Expansion Board ESP32 Expansion Edition ESP32-C3 Expansion Board 3pcs

KWD 5
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • ESP32C3supermini expansion board can be accessed 3.7V lithium battery (PH2.0 interface lithium battery)
  • ESP32C3supermini expansion board to provide users with a better power supply solution, the expansion board has a total of VCC1, VCC2 two power supply. Default VCC1, VCC2 output voltage is 3.3V, when you need to output a higher voltage, you can short the PCB, at this time, VCC1, VCC2 output voltage is the power supply voltage 3.7 V. Default factory is the use of the 0R resistor connected to the 3.3V, if you need to output 3.7V, remove the 0R resistor directly to the three pads shorted with tin.VCC1, VCC1, VCC2 respectively control the voltage output, need to be used to take one, which one can be dealt with.

Description

ESP32C3 Supermini expansion board is a special ESP32C3supermini development board designed for an expansion board, he made up for the many shortcomings of the ESP32C3Supermini development board, the use of the expansion board can be connected to a 3.7V lithium battery, support for charging the lithium battery through the USB, charging the green indicator is lit, when the green indicator light off when the lithium battery is fully charged. When the green light is off, the lithium battery is fully charged, the expansion of all the IO ports, user-friendly section of a variety of sensors.
