Special Features
[IMPORTANT: POWER CONFIGURATION] By default, the onboard jumper (J1) on the back is OPEN, requiring a 5V power supply for VCC and Backlight (BL). To operate the board strictly on 3.3V, you MUST solder the J1 jumper closed. Please verify your voltage before powering on.

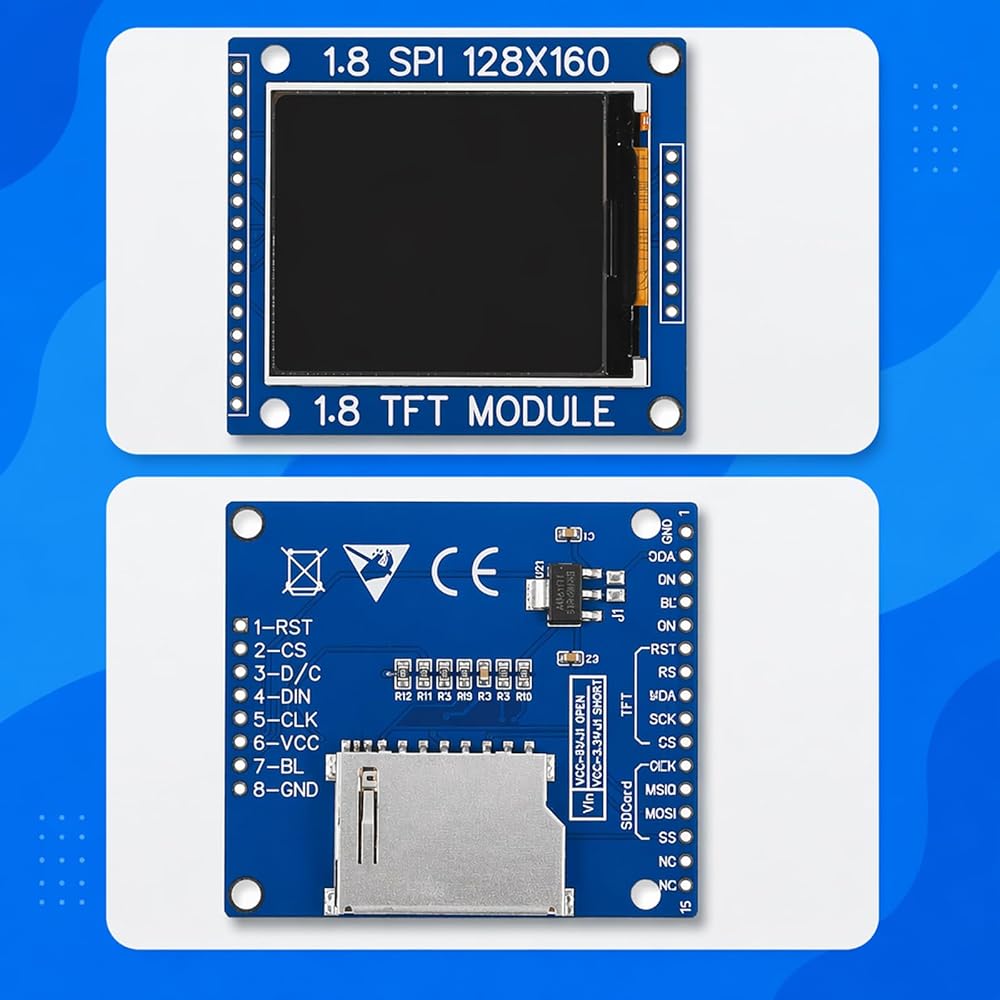

[STRICT PINOUT VERIFICATION] Do not rely on universal wiring diagrams; pin directions (Pins 1-16) on this module may be reversed compared to other ST7735 screens. Always verify the silkscreen labels on the back of your specific PCB before connecting to your microcontroller.

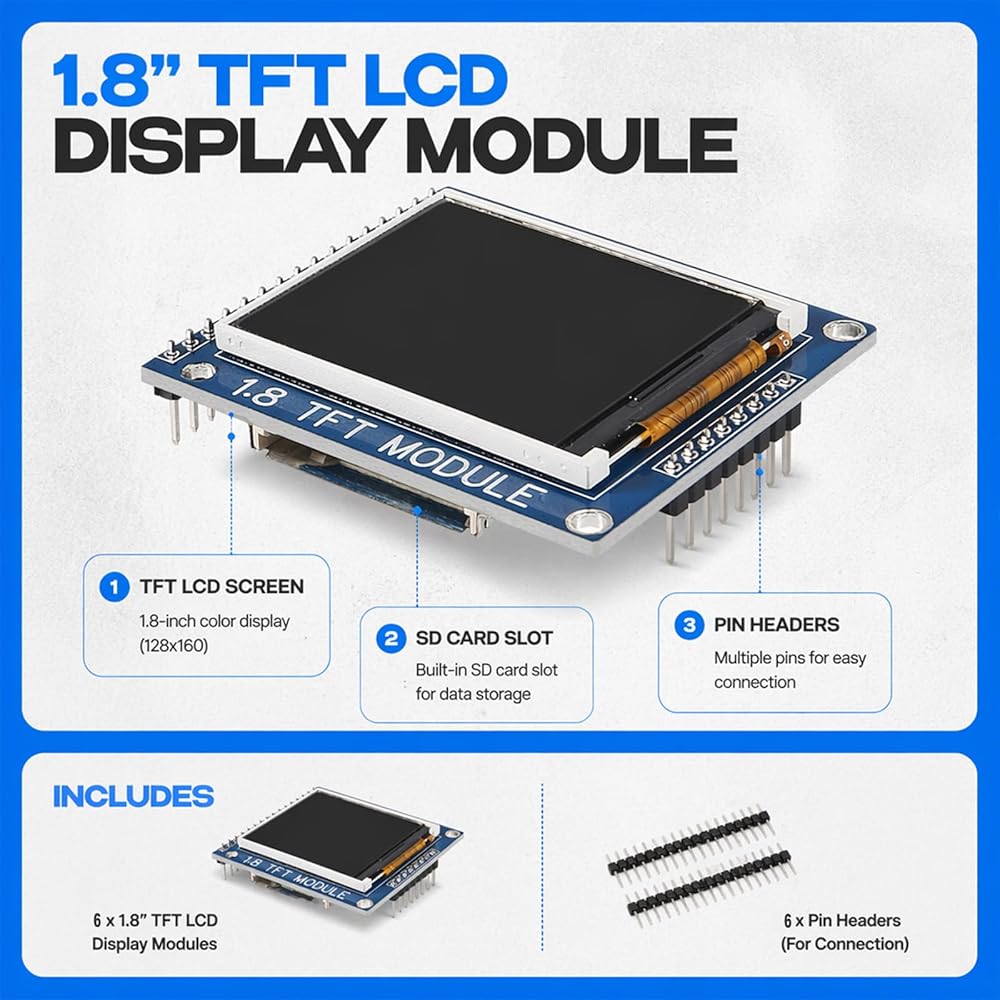

[DUAL-ROW EXPANDABILITY] Row 1 comes with pre-installed headers for display functions. Row 2 consists of unpopulated pin holes that break out the Integrated SD Card Slot and additional TFT pins; soldering is required to enable SD storage.
[3.3V LOGIC COMPATIBLE] Even when powered by 5V VCC, this module's logic interface is fully compatible with 3.3V systems like ESP32 and STM32, as well as 5V systems like Arduino Uno.
【Only online documents available】To support eco-friendly packaging, paper user manuals will no longer be provided. You can contact the seller's customer service to obtain the complete pin diagram, library files and technical manual.
