JMT ADT-F9G F4C F4Q OcuLink SFF-8612 to M.2 NVMe / PCIe X16 Extension Card PCIe4.0 64Gbps External Graphics Card Adapter

Product Detail:

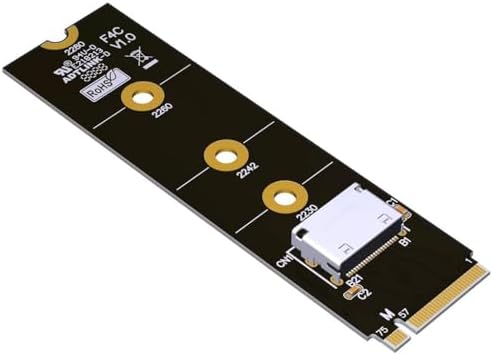

Product Model: F9G , F4C, F4Q

Product Name: OcuLink SFF-8612 to M.2 NVMe / PCIe X16 Extension Card

Bandwidth speed: F4C and F9G PCIe 4.0 x4, 64Gbps. F4Q Pcie5.0 X4 128Gbps.

Product use: for graphics card external or other PCIe devices

Product Description: Oculink is an interface that is adapted from the NVME SSD slot on the motherboard of the computer, NVME takes the pure PCIe channel, so the Oculink external graphics docking station also takes the PCIe channel, which has a small performance loss. Compared to traditional Thunder bolt-compatible adapter solutions, Oculink's effective bandwidth can reach 64Gbps under PCIe 4.0 x4, far exceeding Thunder bolt-compatible solutions.

Friendly reminder: OcuLink does not support hot-swap

Power supply: Support standard ATX 500W power supply, power supply needs to be prepared by the buyer.

Purchasing tips: Be sure to buy 1~2 samples to test and verify that there is no error before purchasing large quantities.

The switch on the F9G:
Switch toggle to 1 is auto-start, you can follow the startup; toggle to 2 is forced startup, directly powering the graphics card docking station, which is risky, toggle to 1 auto-start can be enough.

D1 light represents cable detection, some cables will cause the D1 light does not light.

D2 light represents the power supply status of the docking station, light means that the docking station is in the startup state.

D3 light may not light up when using some AMD-compatible graphics cards.

D4 light is off under normal conditions, only in the opening and closing will blink a little.
