General information
Type
CPU / Microprocessor
Market segment
Desktop
Family
ph II X4
Model number ?
920
CPU part numbers

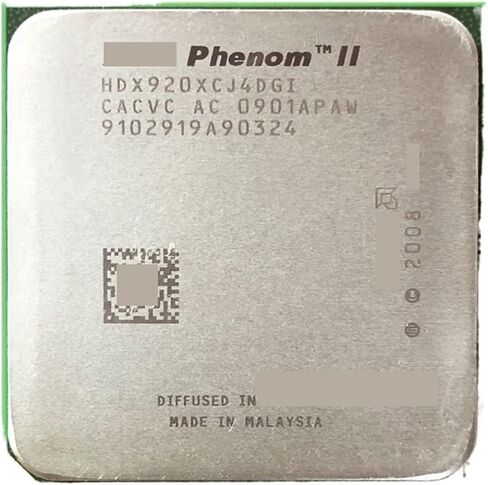

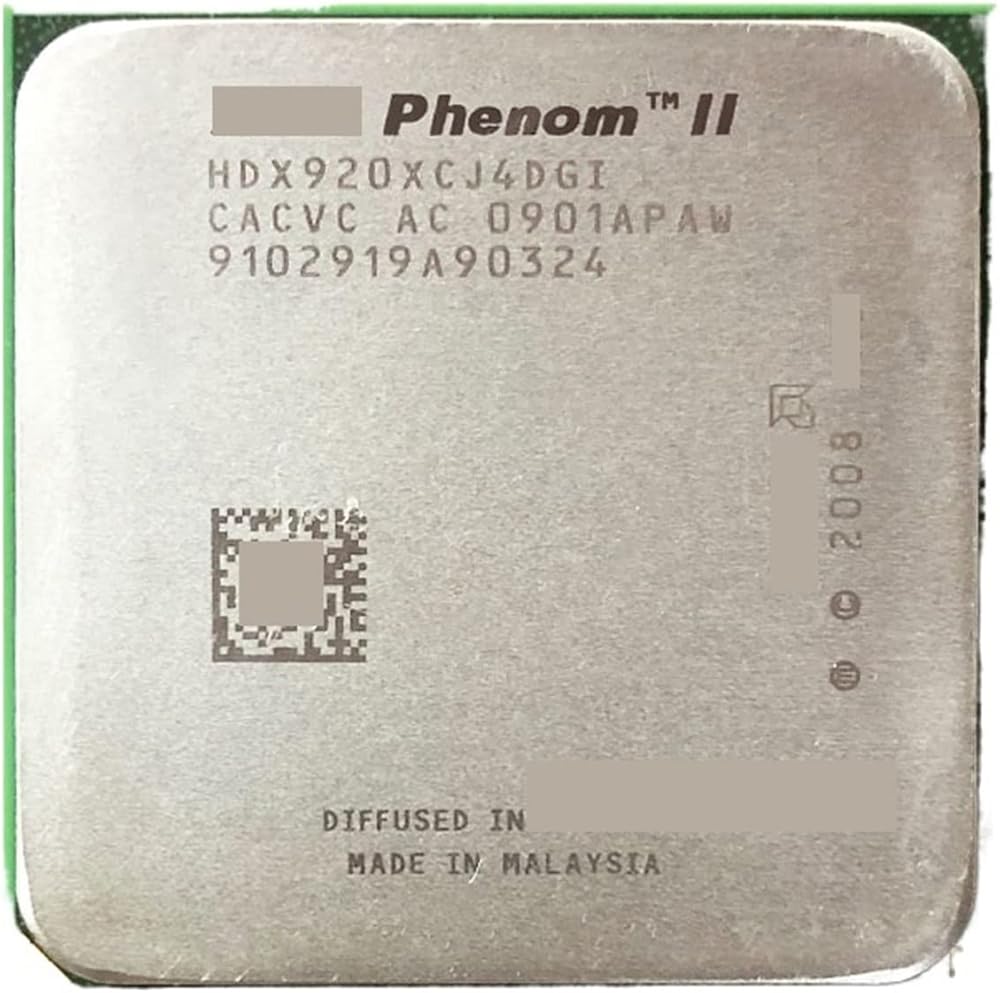

HDX920XCJ4DGI is an OEM/tray microprocessor
HDX920XCGIBOX is a boxed microprocessor with fan and heatsink
Stepping codes
AACSC ACCACVC AC
Frequency ?
2800 MHz
Bus speed ?
533 MHz Memory controller
One 1800 MHz 16-bit HyperTransport link (3.6 GT/s)
Clock multiplier ?
14
Package
940-pin organic micro-PGA
Sockets
Socket AM2Socket AM2+
Architecture / Microarchitecture
Microarchitecture
K10
Platform
Dragon
Processor c ?
Deneb
c stepping ?
RB-C2
CPUID
100F42
Manufacturing process
0.045 micron silicon-on-insulator (SOI) technology
758 million transistors
Die
258mm2
Data width
64 bit
The number of CPU cores
4
The number of threads
4
Floating Point Unit
Integrated
Level 1 cache size ?
4 x 64 KB 2-way set associative instruction caches
4 x 64 KB 2-way set associative data caches
Level 2 cache size ?
4 x 512 KB 16-way set associative exclusive caches
Level 3 cache size
Shared 6 MB 48-way set associative cache
Cache latency
3 (L1 cache)
Virtual memory
256 TB
Multiprocessing
Uniprocessor
Features
MMX instructions
Extensions to MMX
3DNow! technology
Extensions to 3DNow!
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSE4a ?
Low power features
Cool'n'Quiet 3.0
CoolCore Technology ?
Dual Dynamic Power Management ?
c C1 and C1E states
Package S0, S1, S3, S4 and S5 states
Integrated peripherals / components
Integrated graphics
None
Memory controller
The number of controllers: 1
Memory channels: 2
Channel width (bits): 72
Supported memory: DDR2-1066
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 17.1
Other peripherals
HyperTransport 3 technology
Electrical / Thermal parameters
V c ?
1.225V - 1.425V
V NorthBridge
1.15V - 1.3V
Maximum operating temperature ?
55°C - 62°C
Thermal Design Power ?
125 Watt (Socket AM2+/Socket AM3)
140.8 Watt (Socket AM2)
