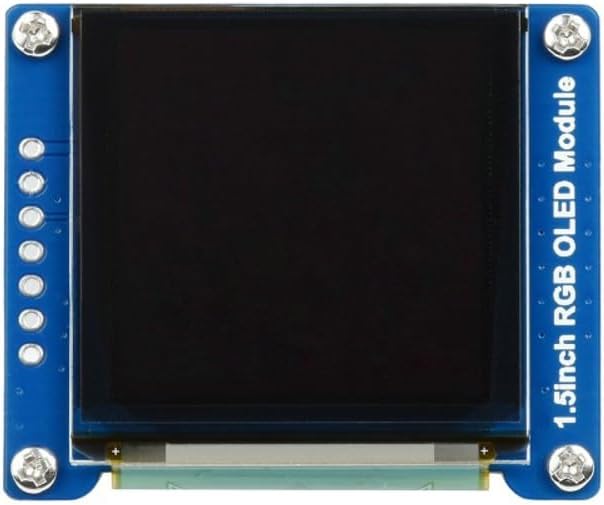

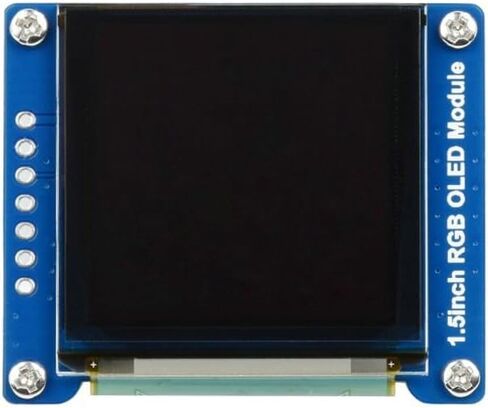

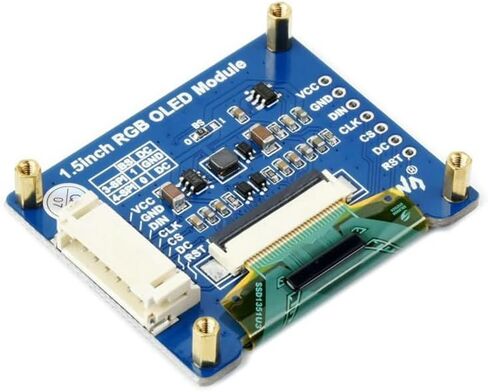

1.5inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interface

Overview
This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.

Features:

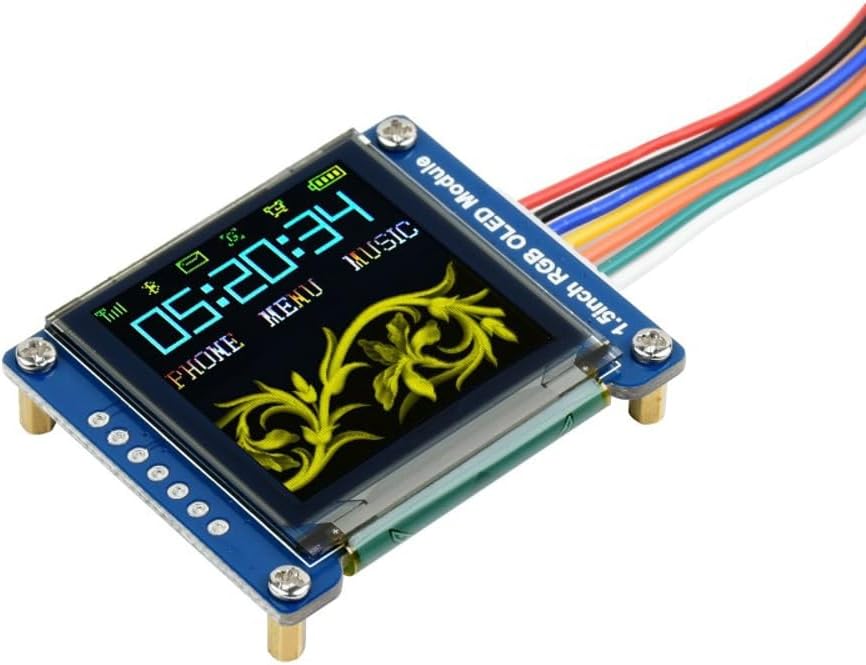

➤128x128 high resolution, 65K colors, clearly displays colorful images

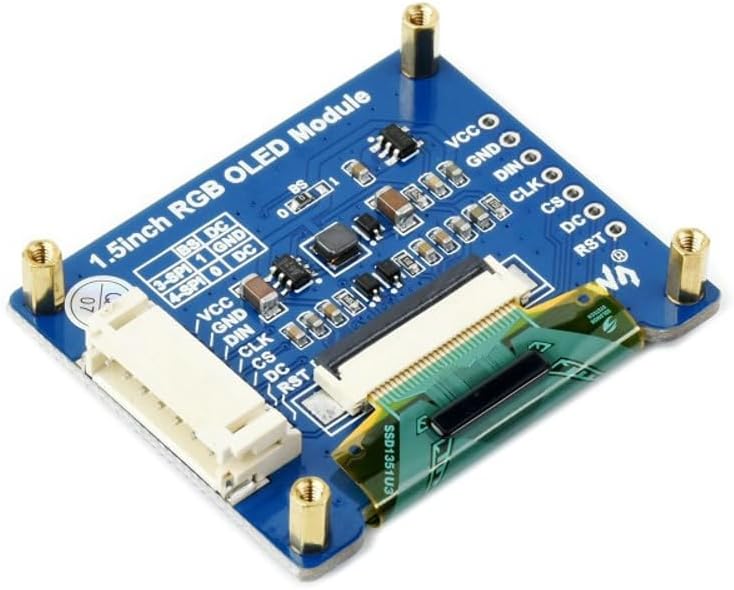

➤ Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
➤Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications:
➤Operating voltage: 3.3V/5V (Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)
➤Support interface: 4-wire SPI, 3-wire SPI
➤Controller: SSD1351
➤Resolution: 128(H)RGB x 128(V)

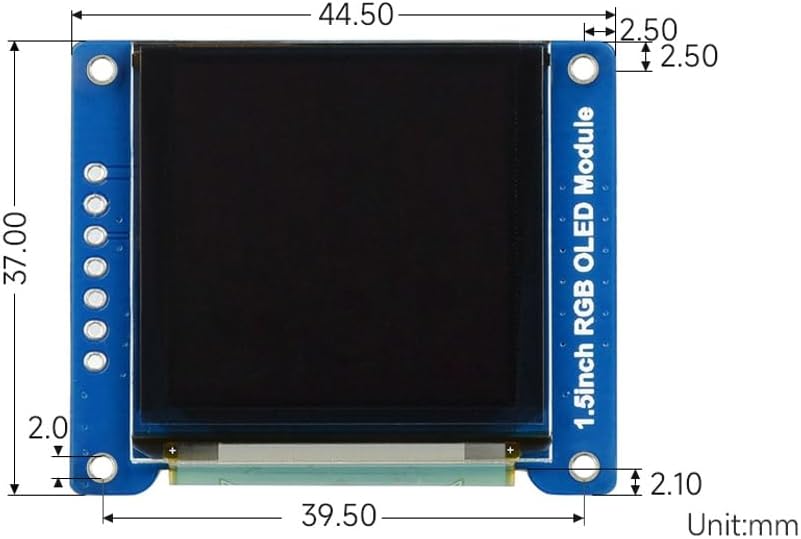

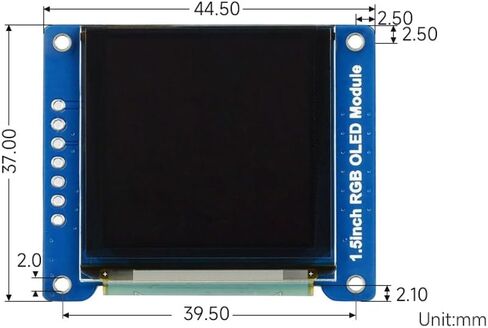

➤Dimension: 26.855（H）x 26.855（V）mm
➤Pixel size: 0.045(H) x 0.194(V) mm
➤Display color: 65K color

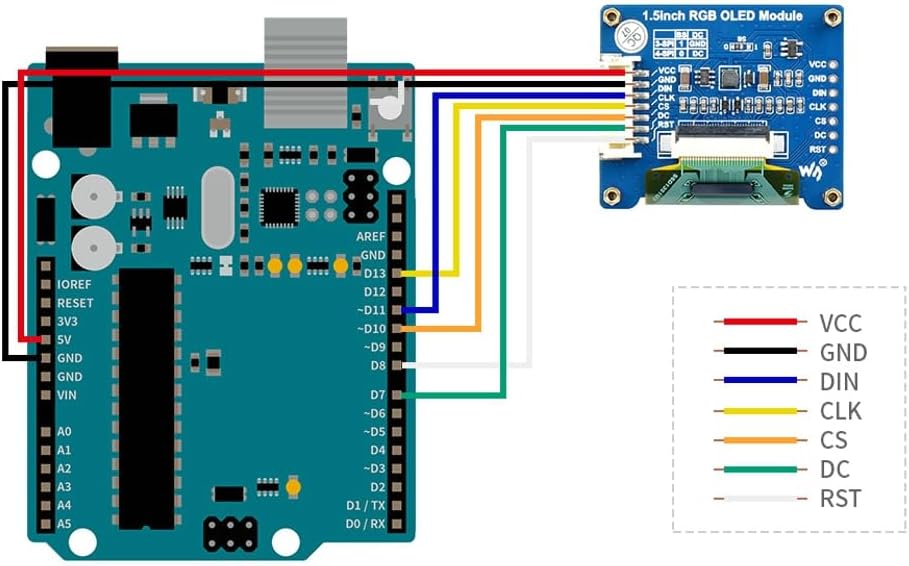

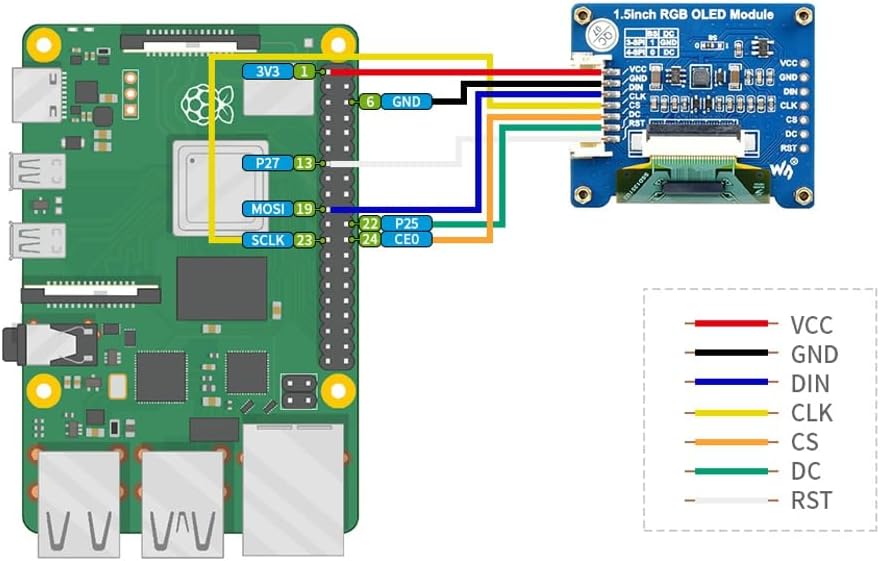

Controlled via SPI Bus:
supports controller boards like Raspberry Pi/Arduino/STM32
➤VCC: Power (3.3V/5V input)
➤GND: Ground
➤DIN: Data input
➤CLK: Clock input
➤CS: Chip selection, low active
➤DC: 4-wire
➤SPI: Data/Command selection (high for data, low for command) 3-wire SPI: connect to GND, keeping low level
➤RST: Reset, low active

OLED and its controller:
The built-in driver used by this OLED is SSD1351, which is a 128RGB * 128 Dot Matrix OLED/PLED controller with a 128*128*18bit SRAM as a display buffer area, which supports two color depths of 262k and 65k. And supports 8bit 8080 parallel, 8bit 6800 parallel, 3wire-SPI and 4wire-SPI and other communication methods. This module selects 4wire-SPI and 3wire-SPI as the communication method, which reduces the area of the module and saves the IO resources of the controller.

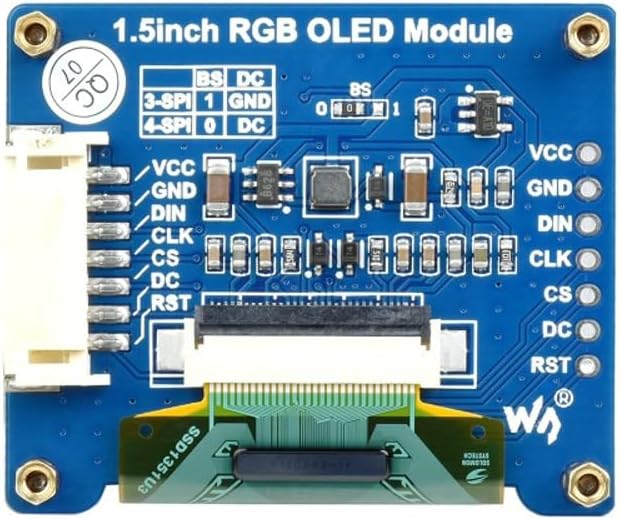

Description:
➤VCC---3.3V/5V Power input
➤GND---Ground
➤DIN---Data input
➤SCL---Clock input
➤CS ---Chip select, active low
➤DC---Data/command signal selection, low level indicates command, high level indicates data
➤RST--Reset signal, active low

Packing List:
1.5inch RGB OLED Module x1
PH2.0 7Pin x1
