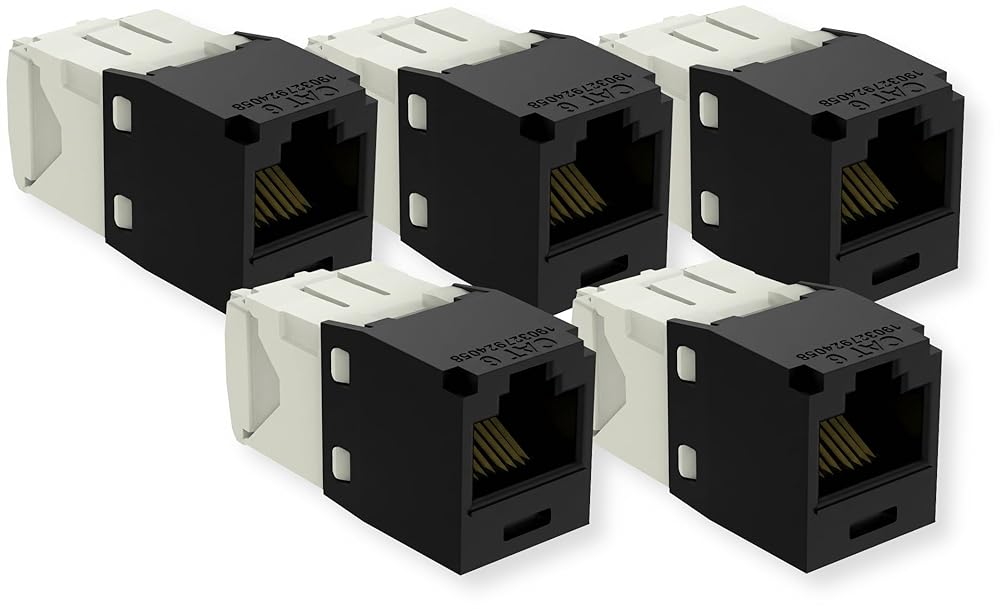

حزمة CJ688TGBL مكونة من 5 وحدات مقبس Mini-Com TX6 Plus Cat6 UTP RJ45 TG بدون أدوات، أسود، T568A/T568B، PoE+/PoE++ (802.3bt Type 3/4)، تصنيف UL 2043 بكامل هيئته
TOOLLESS TG TERMINATION: TG style termination eliminates the need for a termination tool; designed to terminate 4-pair 22-26 AWG twisted pair cable for fast, consistent installs
TX6 PLUS CAT6 PERFORMANCE: Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E requirements at 1 to 250 MHz; supports 10GBASE-T transmission up to 100 meters in 4-connector channel configurations
POE++ READY, HIGH DURABILITY: Rated for 2500 cycles; supports PoE, PoE+, and PoE++ including IEEE 802.3bt Type 3 and Type 4 (4PPoE) for high-power network devices
COMPLIANCE FOR COMMERCIAL SPACES: UL 2043 suitable for air-handling spaces (plenum); UL 1863; UL 94V-0 flammability rated; RoHS compliant; meets ANSI/TIA-1096-A, IEC 60603-7, IEC 60512-99-001.
PRO-GRADE BUILD, FITS MINI-COM SYSTEMS: Polycarbonate body; plated phosphor bronze contacts with 50 microinch gold plating; accepts 0.035 to 0.062 Inch insulated conductors; maximum cable jacket diameter 0.300 Inches; compatible with Mini-Com modular patch panels and faceplates; individually serialized for traceability; compatible with angled wire caps for tight-space routing.
وصف
CJ688TGBL Mini-Com TX6 PLUS Cat6 UTP RJ45 TG jack module delivers a pro-grade, toolless termination solution for structured cabling installations where speed, consistency, and compliance matter. TG style termination eliminates the need for a termination tool while supporting 4-pair 22-26 AWG twisted pair cable and universal T568A/T568B wiring. Engineered to exceed ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E requirements at swept frequencies 1 to 250 MHz, this module supports 10GB-T transmission up to 100 meters in 4-connector channel configurations. Built with a heat-resistant polycarbonate body and plated phosphor bronze contacts with 50 microinch gold plating, it is rated for 2500 cycles and supports PoE, PoE+, and PoE++ including IEEE 802.3bt Type 3 and Type 4 (4PPoE).
Key Features:Pack of 5 jack modules
TG style termination eliminates the need for a termination tool
TX6 plus CAT6 performance
POE++ Ready
Plated phosphor bronze contacts with 50 microinch gold plating
Accepts 0.035 to 0.062 Inch insulated conductors
Compatible with angled wire caps
Specifications:Connector Type: RJ45 Standard
Termination Style: TG Style (Toolless)
Wiring Scheme: T568A / T568B Universal
Shield Type: Unshielded (UTP)
Cable Compatibility: 4-pair, 22-26 AWG Solid or Stranded Twisted Pair
Insulation Diameter Support: Accepts 0.035 to 0.062 Inch Insulated Conductors
Maximum Cable Jacket Diameter: 0.300 Inches
Body Material: Polycarbonate (UL 94V-0 Flammability Rated)
Mating Cycles: Rated for 2500 Cycles
Transmission Support: 10GB-T up to 100 Meters (4-Connector Configuration)
UPC: 074983395446
Unit Dimensions: 1.5 x 0.62 x 0.71 Inches
Unit Weight: 0.024 Pounds
