Controller Mellanox ConnectX-4 Cable media: optical fiber/direct connection cable type 25GBASE-SR、25GBASE-LR、25GBASE-Cu 10GBASE-SR、10GBASE-LR、10GBASE-Cu 1GBASE-SR、1GBASE-LR、1GBASE-Cu Port type 1 * 25G SFP28 PCIe Bus PCIe v3.0 (8.0GT/s) X4 Port speed of 1Gbps; 10Gbps; 25Gbps Power supply PCIE power supply meet the standard IEEE 802.3by-2016 25GBASE-X Ethernet IEEE 802.3ap IEEE 802.3ae 10GBASE-X Ethernet IEEE 802.3ad IEEE 802.3z 1GBASE-X Ethernet IEEE 802.1Q
PXE support Yes DPDK supports Yes WoL supports NO Yes, support for SCSI Giant frame support Yes IEEE 1588 Yes SR-IOV Yes RDMA Yes Giant data frame Max 9.2KB 1/10/25Gbps
Link green light is always on Transmission green light stays on+green light flashes Working environment temperature: 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) Storage temperature -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) Storage humidity: 90% non condensing relative humidity at 35 ℃ Certification FCC, CE, RoHS Product size (unit) :mm) 119*68.8*1.6mm Packaging size (unit) :mm) 156*143*28mm, Network card small vacuum box (square) Network card finished product * 1
وصف

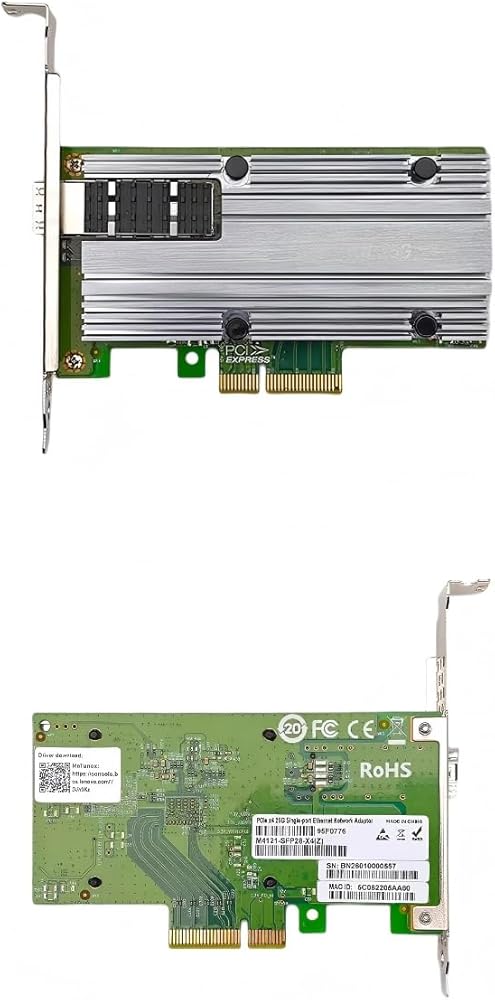

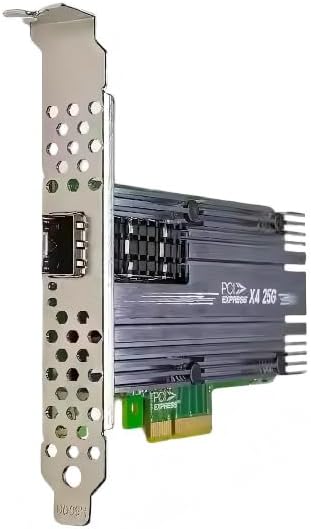

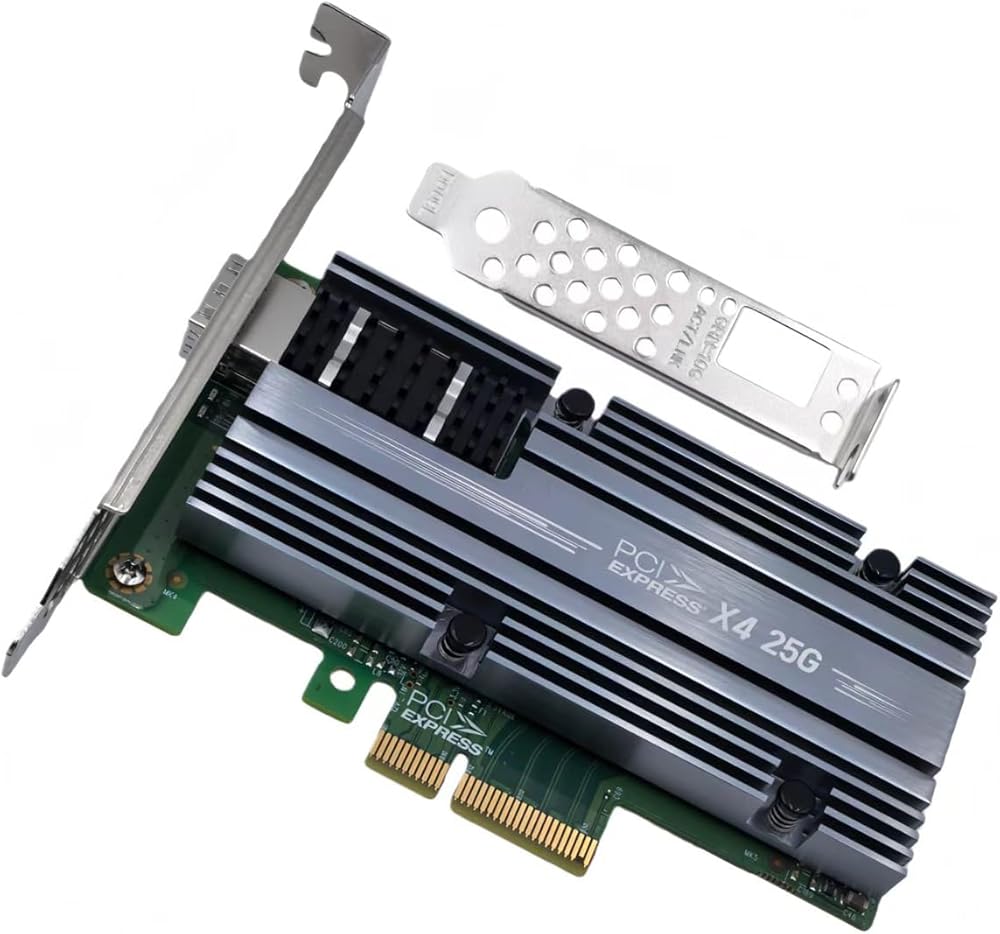

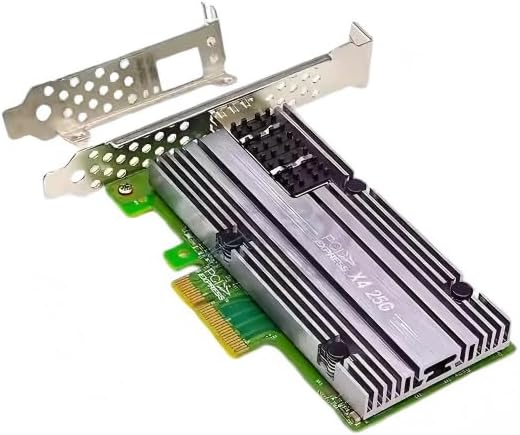

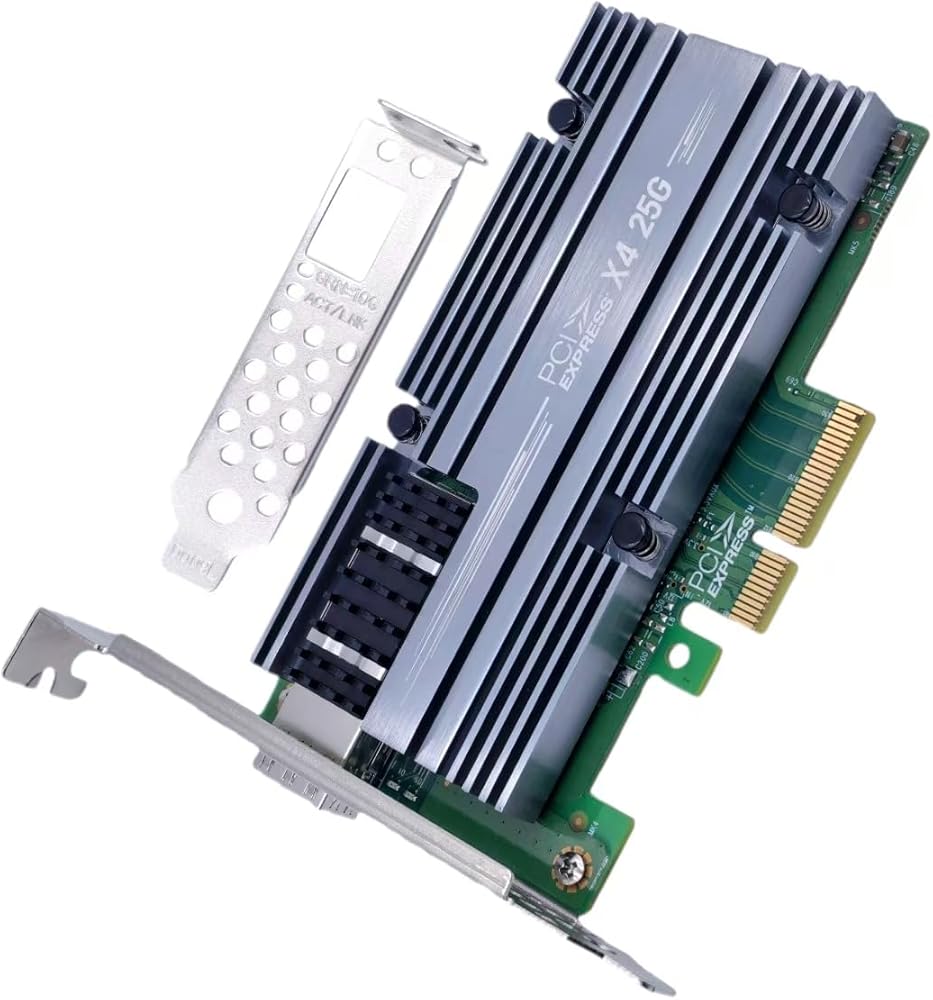

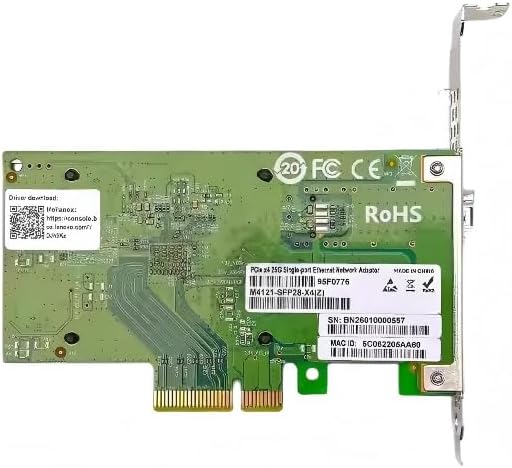

M4121-SFP28-X4 (Z) is a PCIe v3.0 x4 single port fiber 25G Ethernet network adapter developed based on the Mellanox ConnectX-4 main control solution. It features SRIOV technology, which provides dedicated adapter resources for virtual machines in servers to meet network isolation and protection functions. In addition, I/O virtualization technology provides higher server utilization for data centers, while meeting customer requirements for reducing operating costs and on-site wiring complexity. It supports 1/10/25G three rate connections to meet the virtualization applications of current network facilities. Unique feature design: 1. This network adapter achieves efficient computation by offloading protocol processing and data movement overhead (such as RDMA and send/receive semantics) from the CPU, thereby providing more processor power for applications. 2. This network adapter supports SRIOV technology, which divides the PF into multiple VFs for use by the upper layer virtual machine. It is equivalent to the virtual machine bypassing the VI and directly using PCIe devices to process I/O and transmit data.
