مميزات خاصة

[EASY PLUG-AND-PLAY SETUP] This serial port module requires no additional drivers for quick installation. Simply connect via Mini USB and pair with your , DOS or Linux system for instant. The built-in protocol ensures seamless compatibility across multiple operating environments.
[STABLE HIGH-SPEED DATA TRANSFER] Featuring a premium CSR 2.1+EDR chipset, this module delivers reliable data transmission with automatic frequency hopping technology. Supports baud rates from 1200 to 1382400bps for smooth with various devices including PCs, laptops and PDAs.
[LONG-RANGE CONNECTION] With Class 2 power and a high-sensitivity PCB antenna, enjoy stable up to 15 meters in open space. The module maintains strong signal penetration through walls for flexible workspace arrangements.
[VERSATILE DEVICE COMPATIBILITY] Effortlessly connect to-enabled computers, industrial equipment and handheld devices. The module works with both modern systems and legacy equipment requiring RS232 serial for universal application.

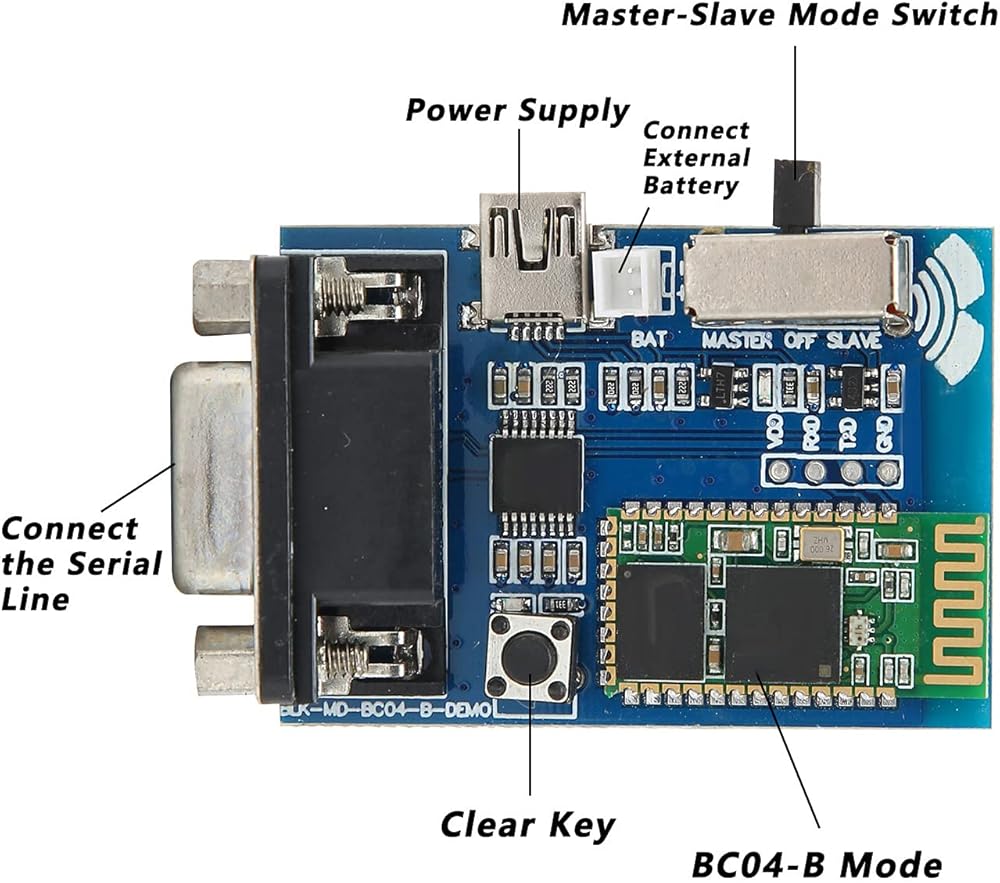

[CONVENIENT USER CONTROLS] Features a reset button for easy device re-pairing when switching between multiple computers. The compact 56.5x38.5x14.5mm plastic housing is durable yet lightweight, for both stationary and mobile setups.

وصف

Item Type: Serial Port Module
Material: Plastic
Operating Standard: BT SIG v2.1+EDR
BT Protocol: BT SPP
Interface Interface: RS232
Communication Rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600, 1382400bps
Modulation Method: 2.4G ISM Direct Sequence Frequency Hopping (FHSS)
Communication Distance: 15 Meters in Open Space, Class 2 Level
Transmit Power: 4 dBm
Receiving Sensitivity: -79dBm
Working Voltage: 5V
Working Current/Sleep Current: 40mA/1.6mA (Typical Value)
Working Temperature / Storage Temperature: -10-50 Degrees Celsius / -20-80 Degrees Celsius
Size: Approx. 56.5 x 38.5 x 14.5mm / 2.2 x 1.5 x 0.6in

Package List：
1 x Serial Port Module

مرحبًا،

بحث

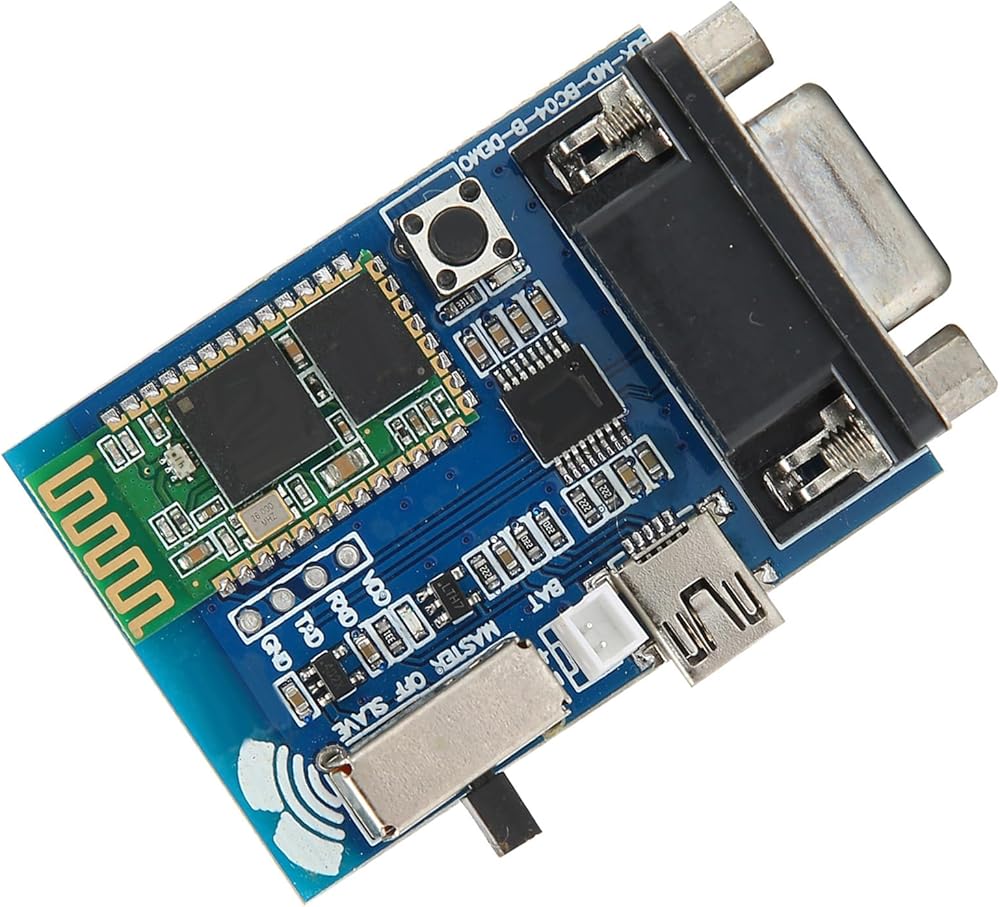

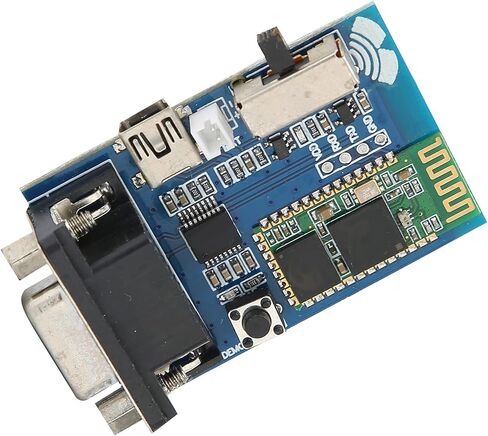

وحدة المنفذ التسلسلي 2.1 محول RS232 جهاز USB صغير 5 فولت لأنظمة Linux DOS مع غطاء بلاستيكي بمدى 15 متر 56.5x38.5x14.5 مللي متر
